Classic Belt Splice Press for Spindle Tapes, Flat Belt and Machine Belt

Classic splice press, single side heating, designed for splicing skived belt, Spindle Tapes, flat belt and machine belt
Classic Belt Splice Press for Spindle Tapes, Flat Belt and Machine Belt
Classic Belt Splice Press for Spindle Tapes, Flat Belt and Machine Belt Classic Belt Splice Press for Spindle Tapes, Flat Belt and Machine Belt

Easy to use portable press for splicing transmission belts, Spindle Tape, Flat belt, Tangential Belt.

Product Information:

  1. Heating system: single side heating

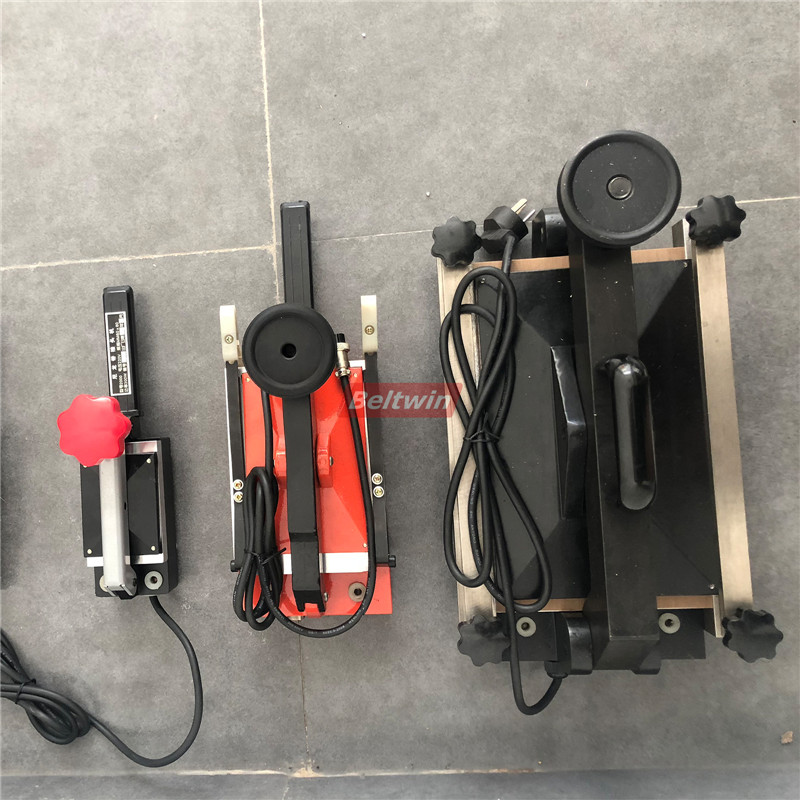

  2. Size: 80x60, 150x100 and 250x160mm
  3. Cooling: Without cooling
  4. Temperature Control: Mechanical control
  5. Working Voltage: 220V Single phase

Options:

  1. Independent controller
  2. Digital thermometer

Features:

  1. We have more than 20 different types small press, pls freely to send us your requirements
  2. Heating presses for bonded splice, (with heating platen on one side), if need double sides heating, pls inform us.
  3. Easy to use and assemble
  4. with fix set temperature, 110 ℃
  5. With independent controller is available by request
  6. Portable type
  7. Compact size, it can used in the place where other presses are too big to use
  8. Light weight
  9. Can used for transmission belts, Tangential Belt, Spindle Tape etc.
  10. Quick splicing

Technical Specifications:



Model

80x60

150x100

250x160

Thickness (mm)

0.3~1.5

0.3~6

0.3~6

Area (mm2)

80x60mm

150x100mm

250x160mm

Packing Dimension (mm)

290x80×110mm

400x140X140mm

430x230x230mm

Packing Weight (kg)

1.5

6

14.5

Temperature

-10~40 ℃

-10~40 ℃

-10~40 ℃

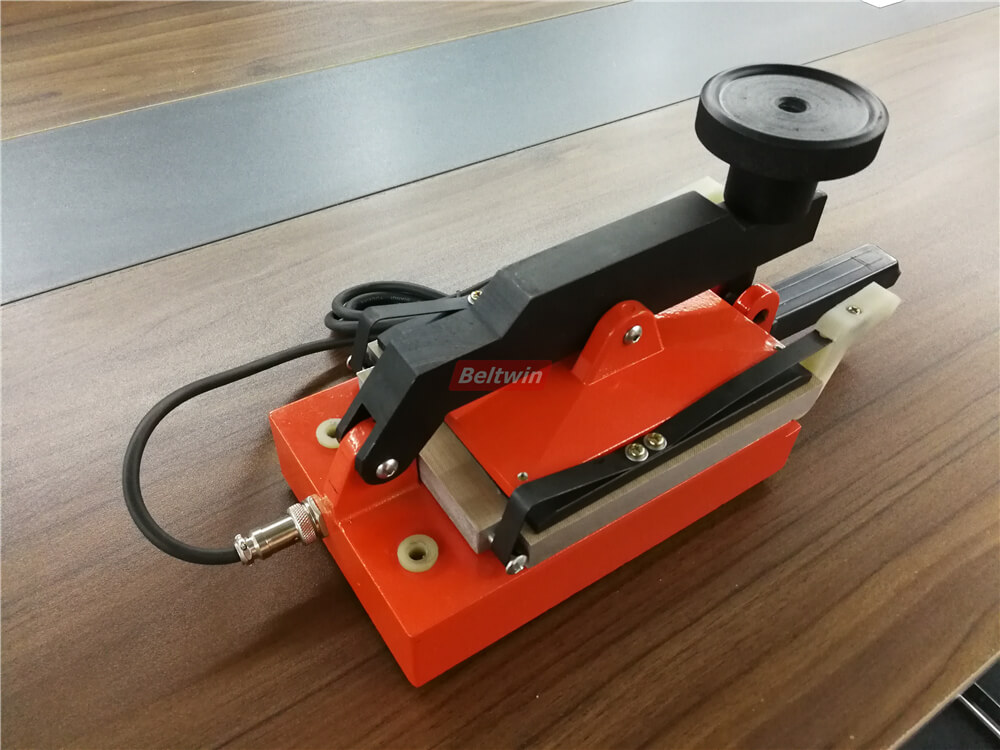

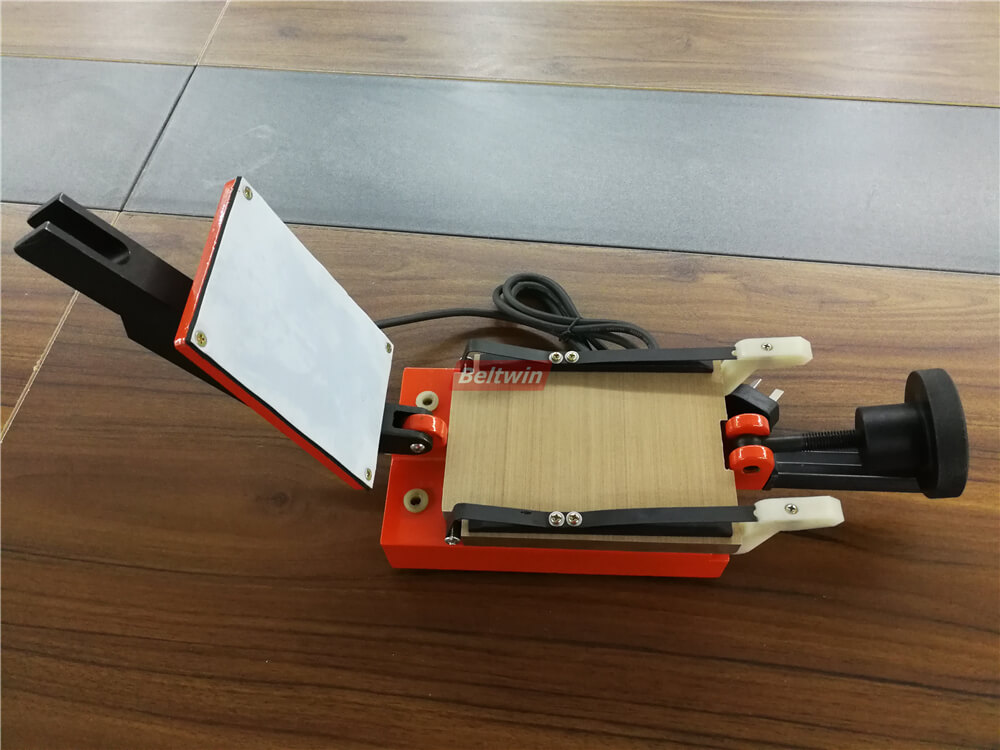

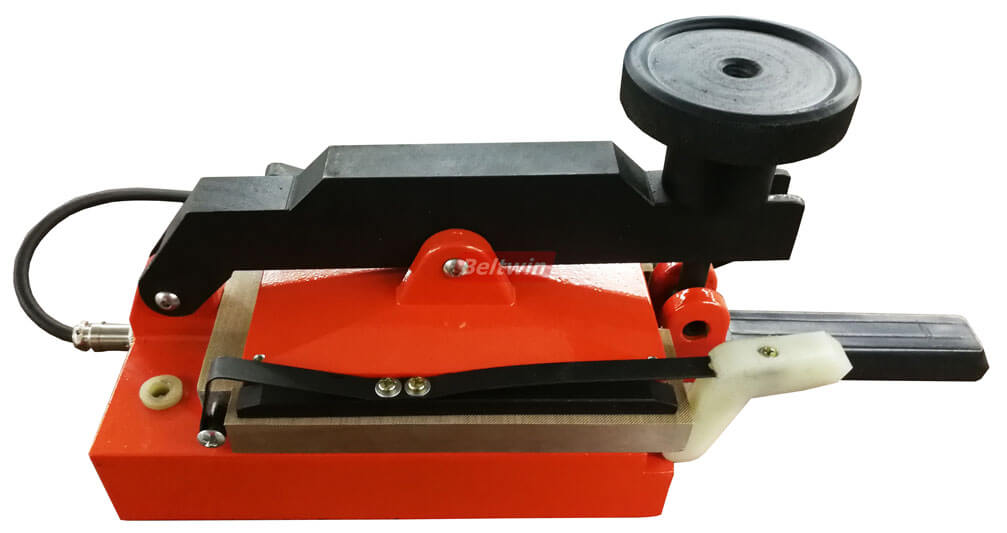

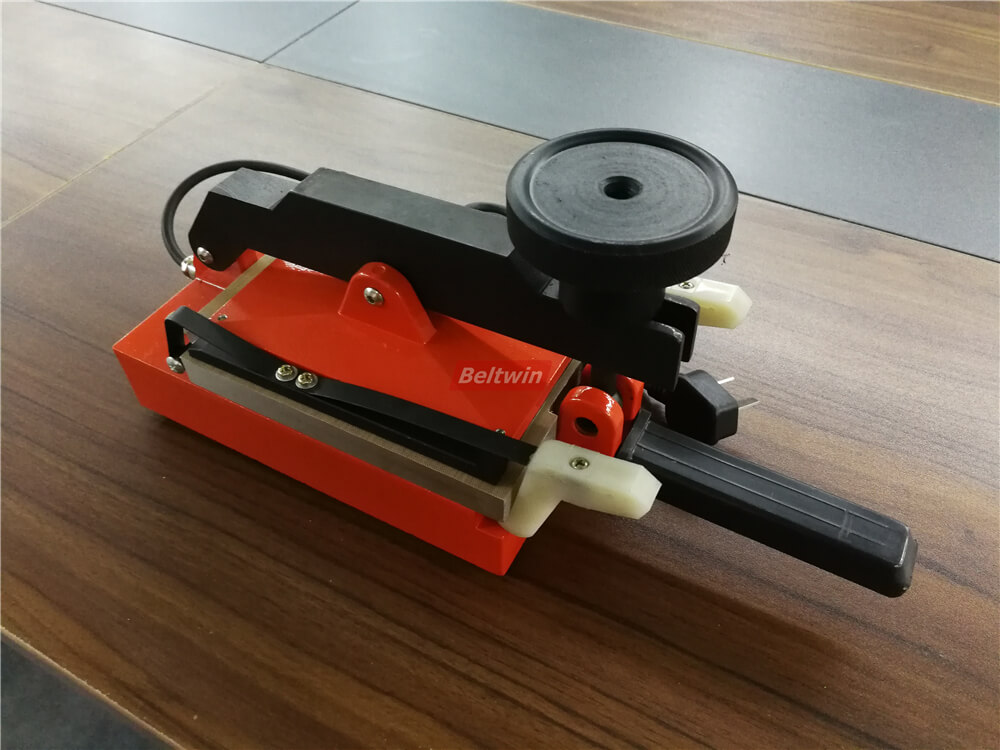

Photos for 150x100mm splice press:
