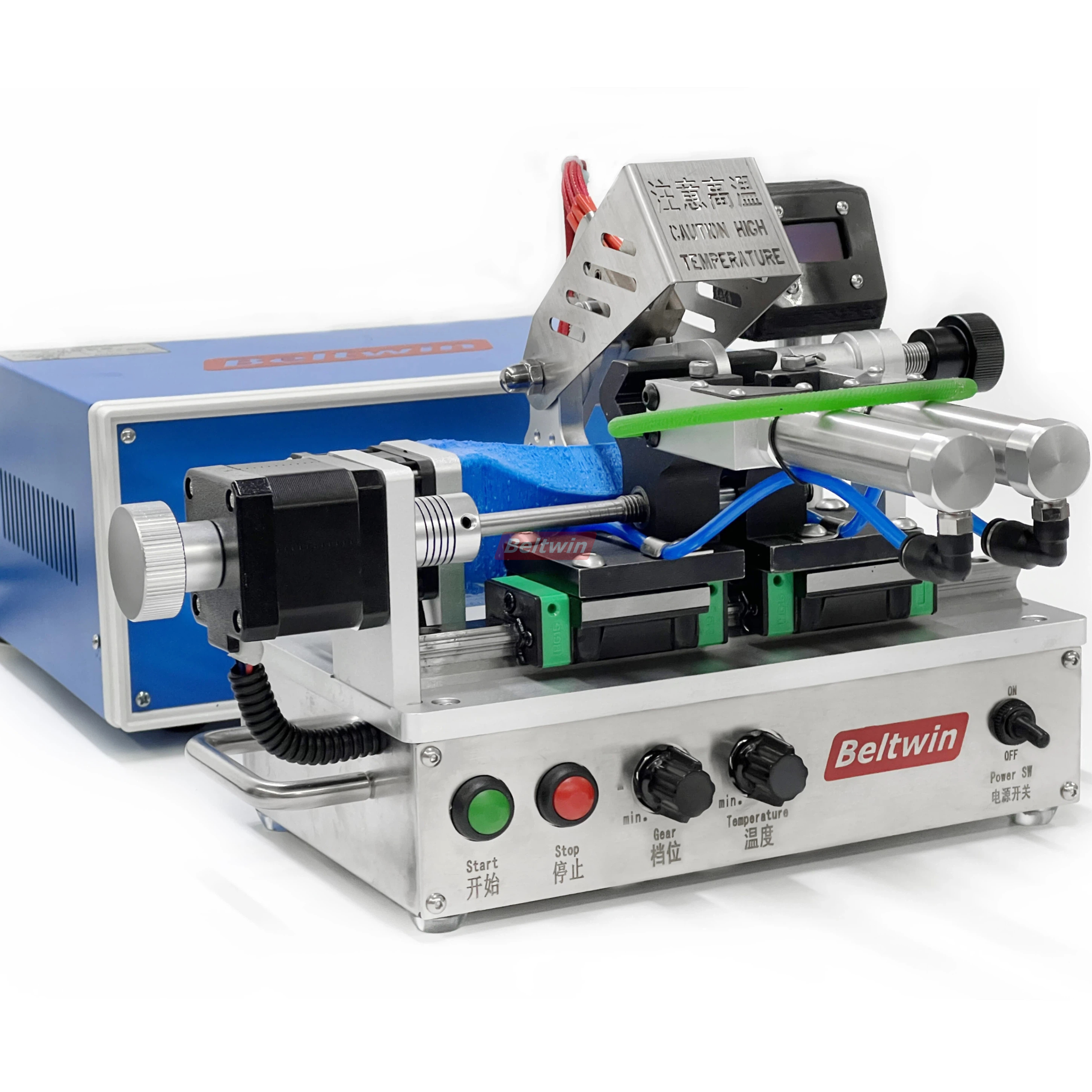

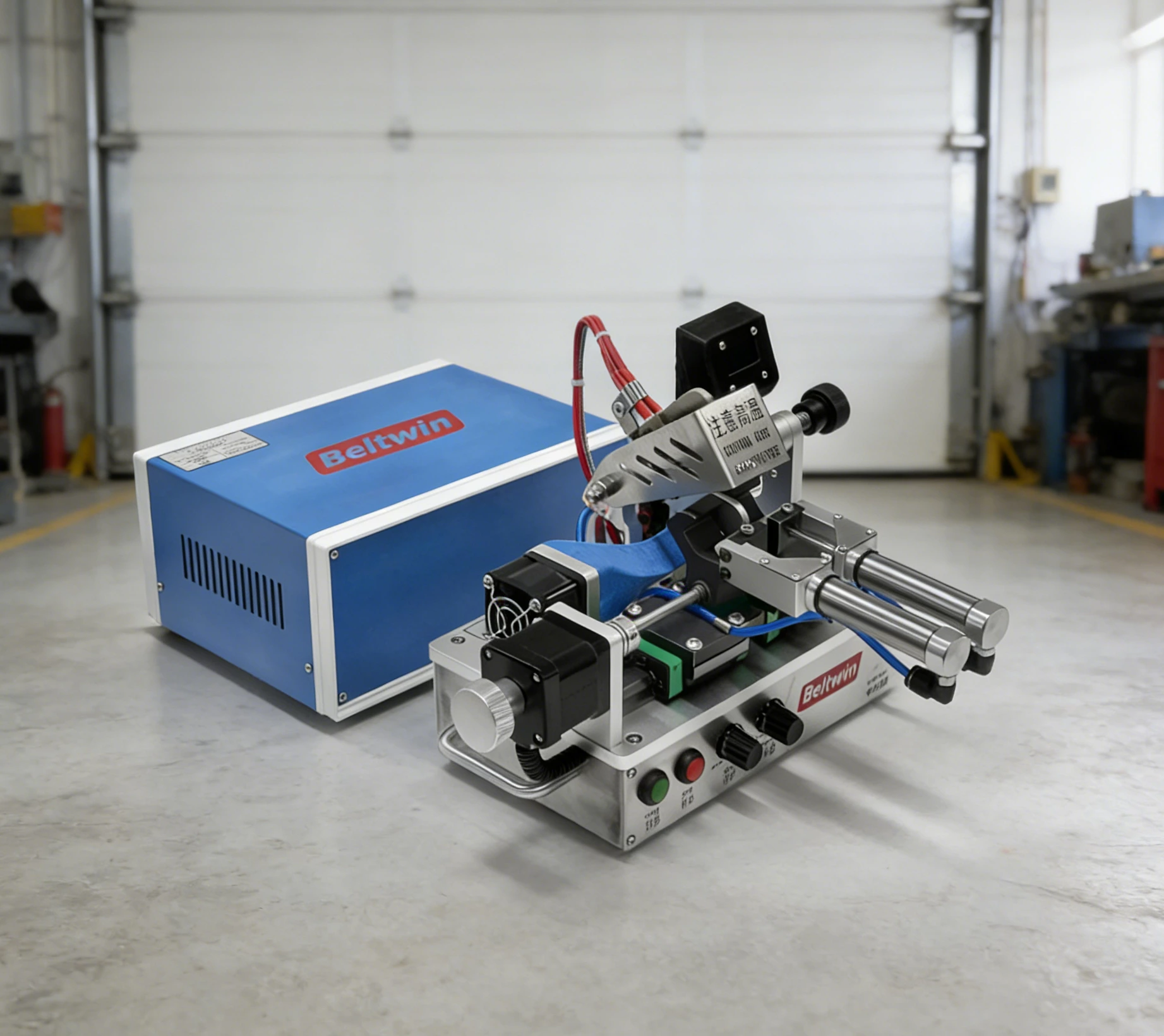

PortuguêsQB13 Semi-automatic PU Round V-Belt Splicing Kit and Skiving Machine

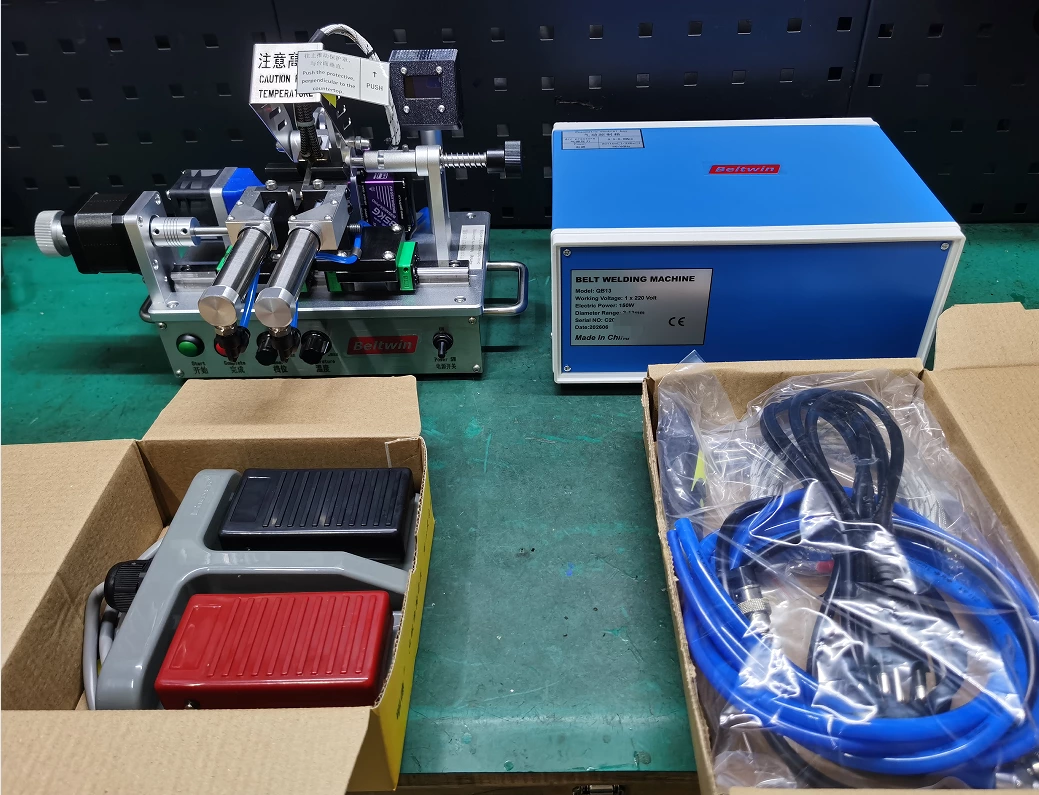

This splicing kits are specially used for welding PU round belts, using welding clamp to fix the round belts, and can make high temperature welding.
Produciton Information:

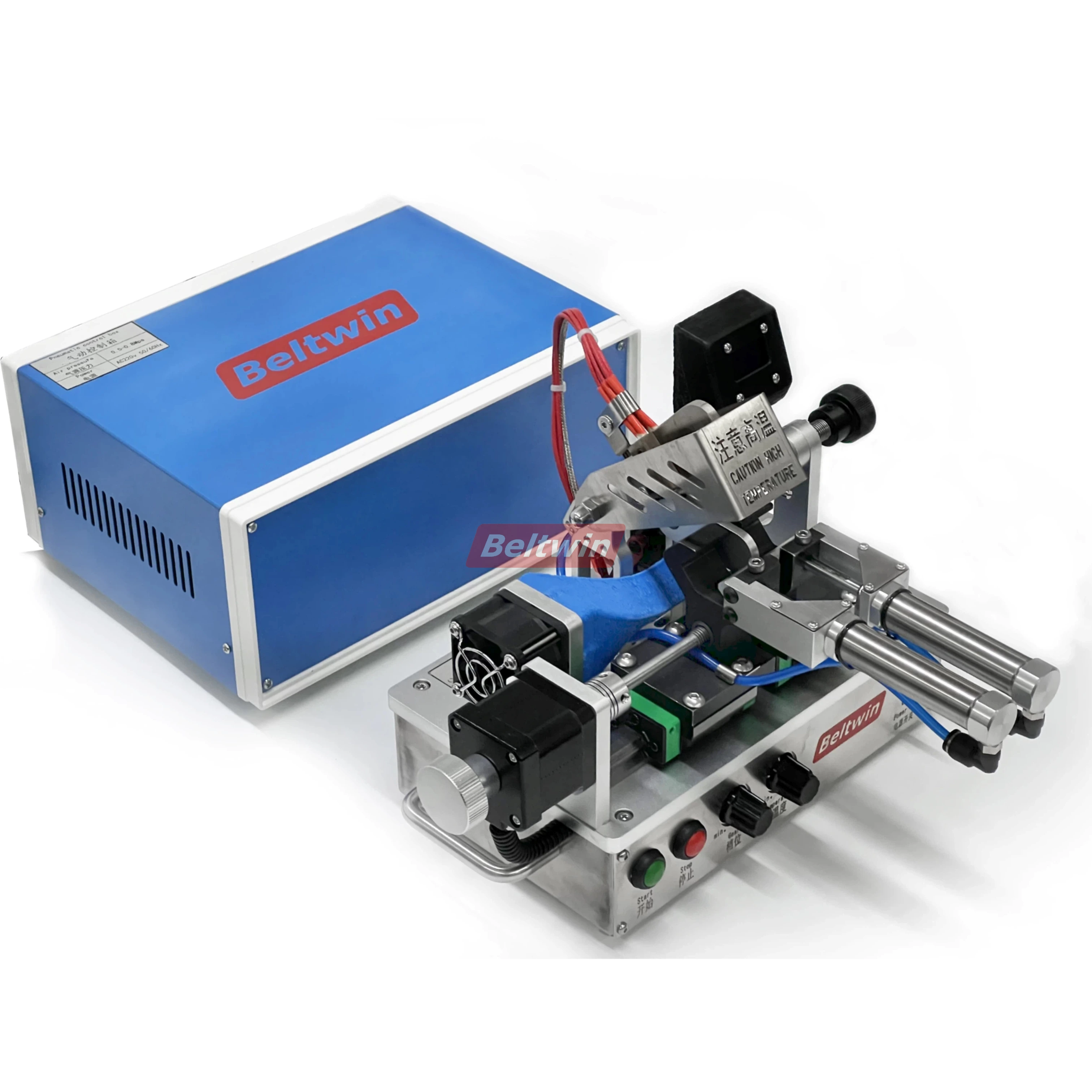

The Beltwin Semi-Automatic Professional PU Round V-Belt Welding Splicing Kit is a specialized tool designed exclusively for welding PU round belts. It integrates essential components like a welding clamp and a high-temperature welding mechanism, providing a one-stop solution for PU round belt splicing needs.
Specification：
| Model | 13 | 20 |
| Splicing Diameter Range | 2 - 13 mm | 5 - 20 mm |
| Temperature Range | Adjustable 30°C - 450°C (86°F - 842°F) | Adjustable 30°C - 450°C (86°F - 842°F) |
| Clamping Power | Pneumatic (Air Cylinder) | Pneumatic (Air Cylinder) |
| Power Requirement | External Air Supply Required (Not Included) | External Air Supply Required (Not Included) |
| Packaged Weight | 7.5 kg | 9 kg |
| Packaged Dimensions | 515 x 365 x 265 mm | 515 x 365 x 265 mm |
| Input Power | AC220V, 50Hz, 1A | AC220V, 50Hz, 1A |
| Power Range | ≤150w | ≤150w |
Optional:
1.Cutter servo to a Brushless Motor
(Benefits: Longer lifespan, higher reliability, and lower failure rate.)
2.V-Belt Welding Fixture
* Clamping range for V-Belt profiles: Y, M, Z, A, B (covers top widths from 6mm to 17mm).
*Note: Lead screw and slider assembly are not included.
* Package Weight: 1 kg

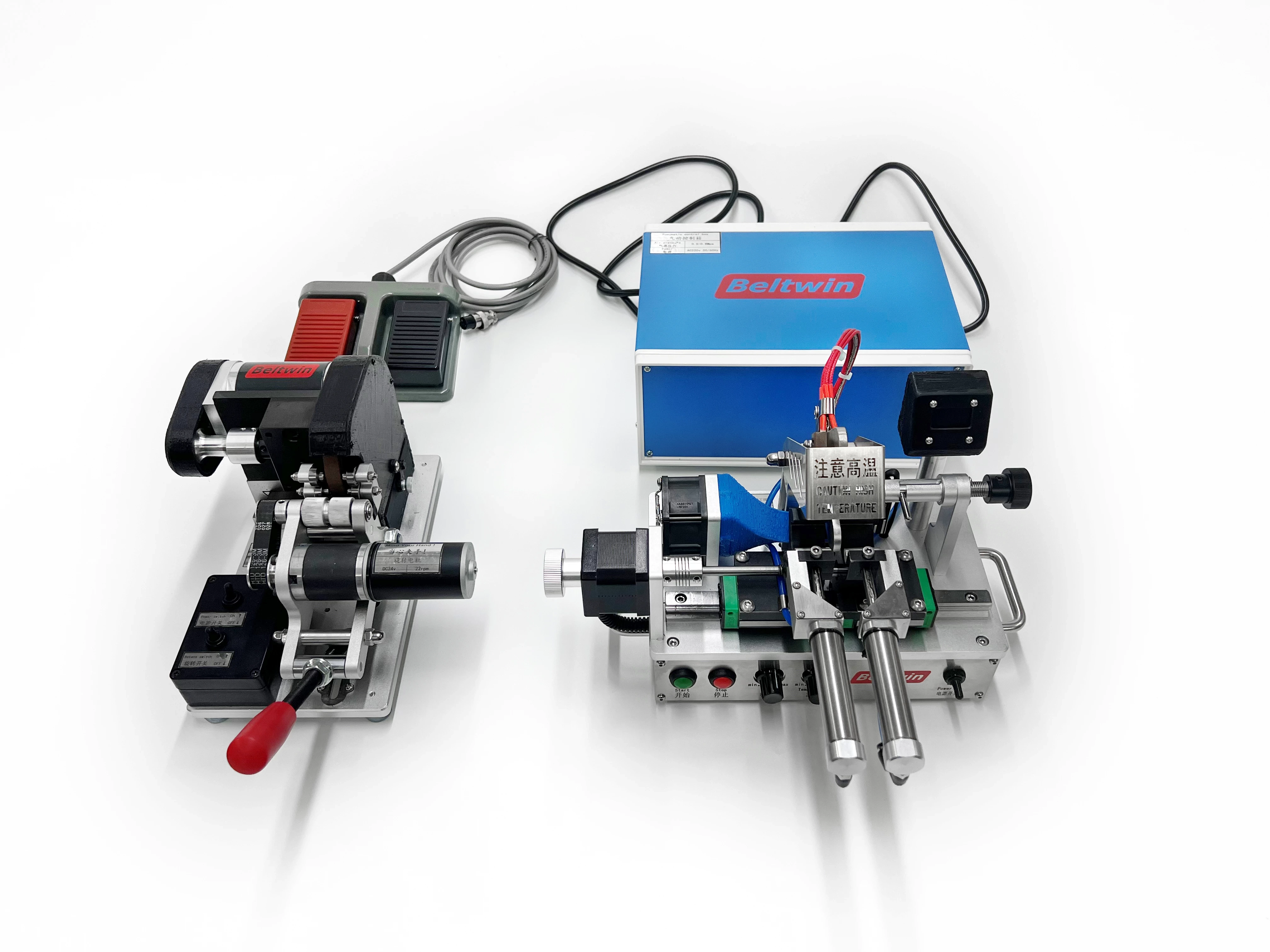

Recommended Supporting Machines:

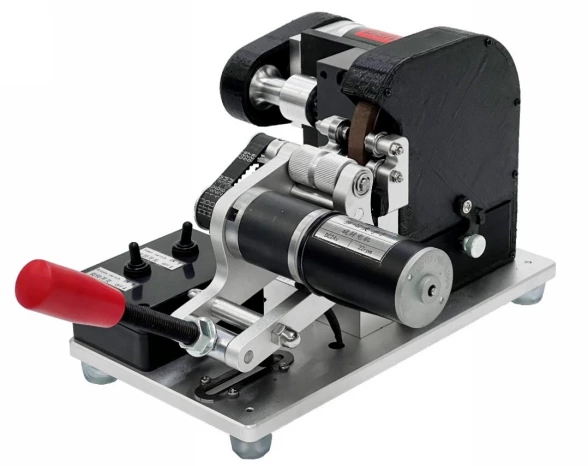

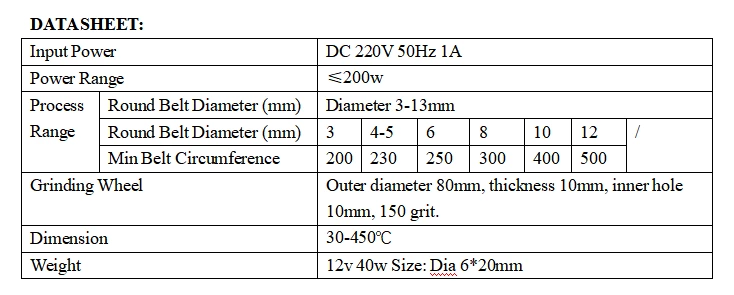

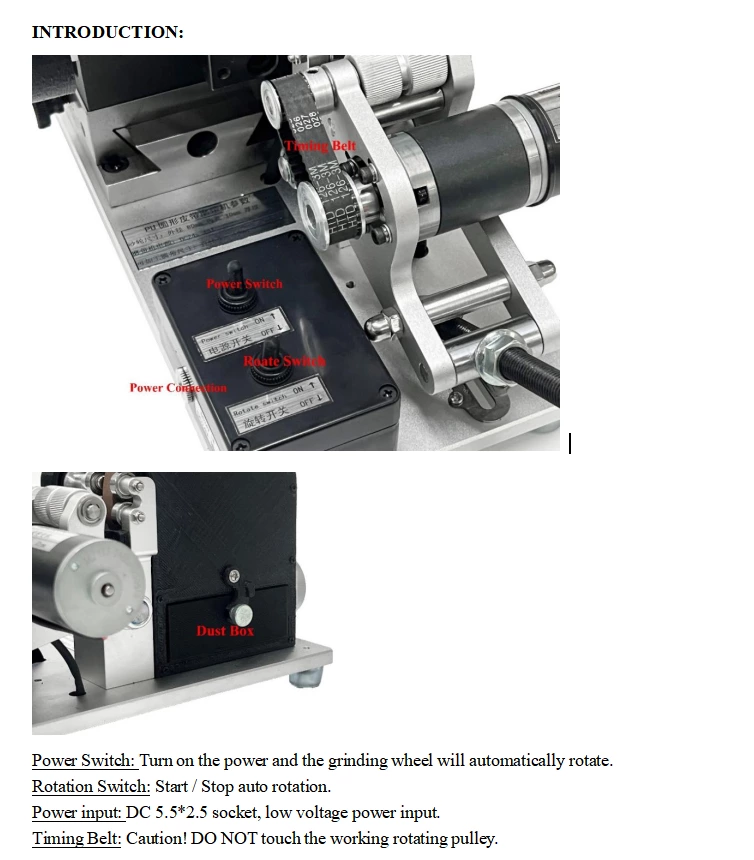

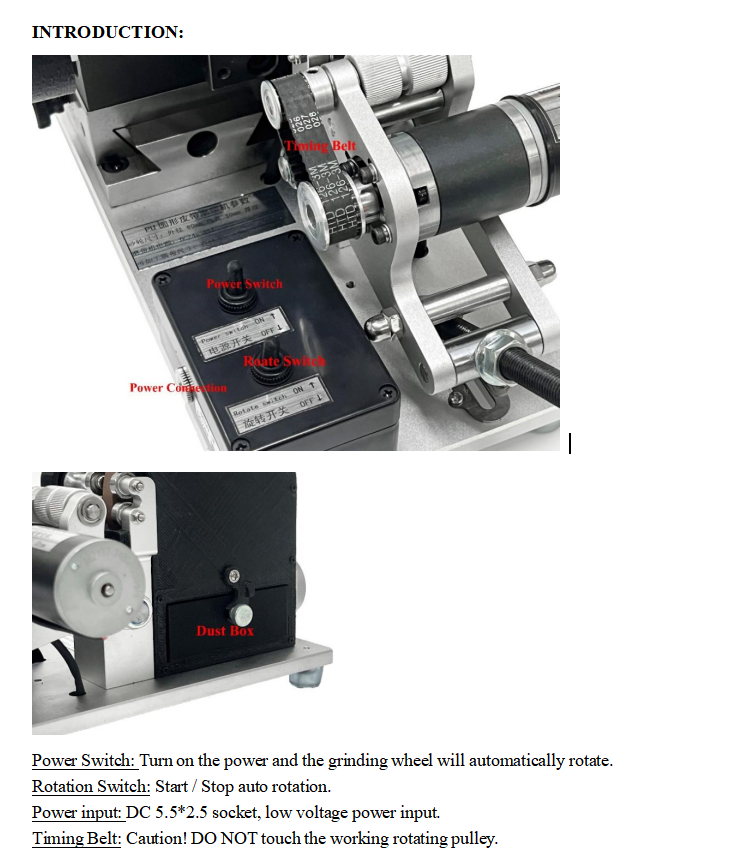

PU Round Belt Joint Grinding Machine: SD13
Part No.: SD13
