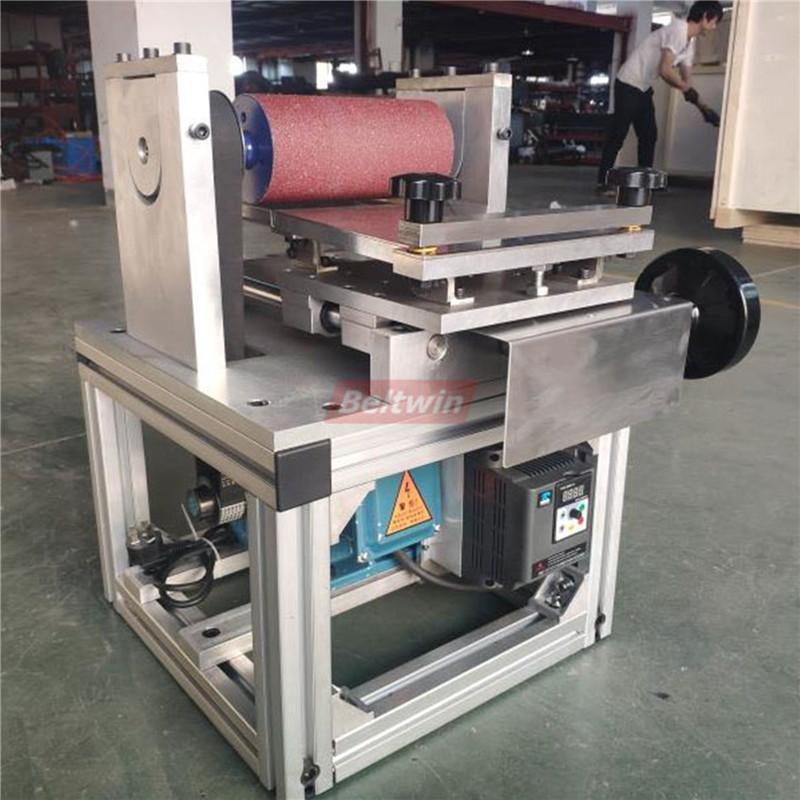

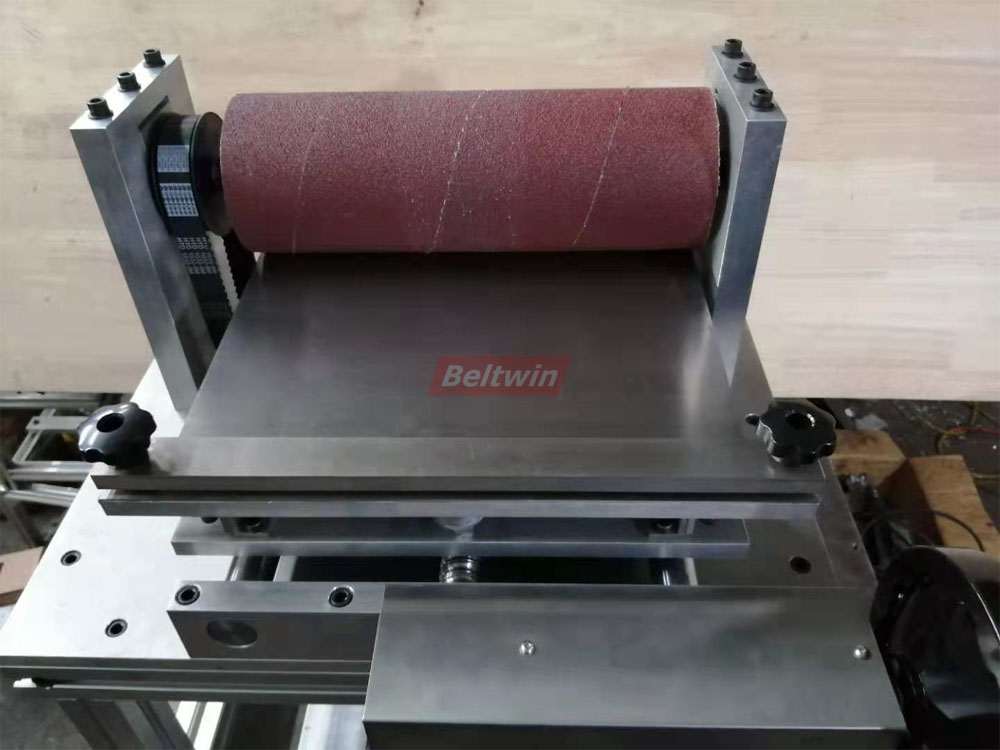

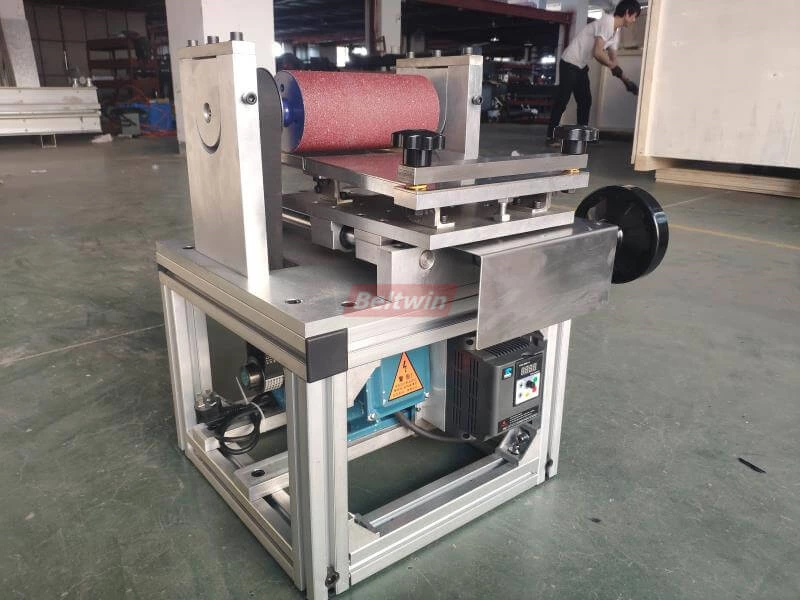

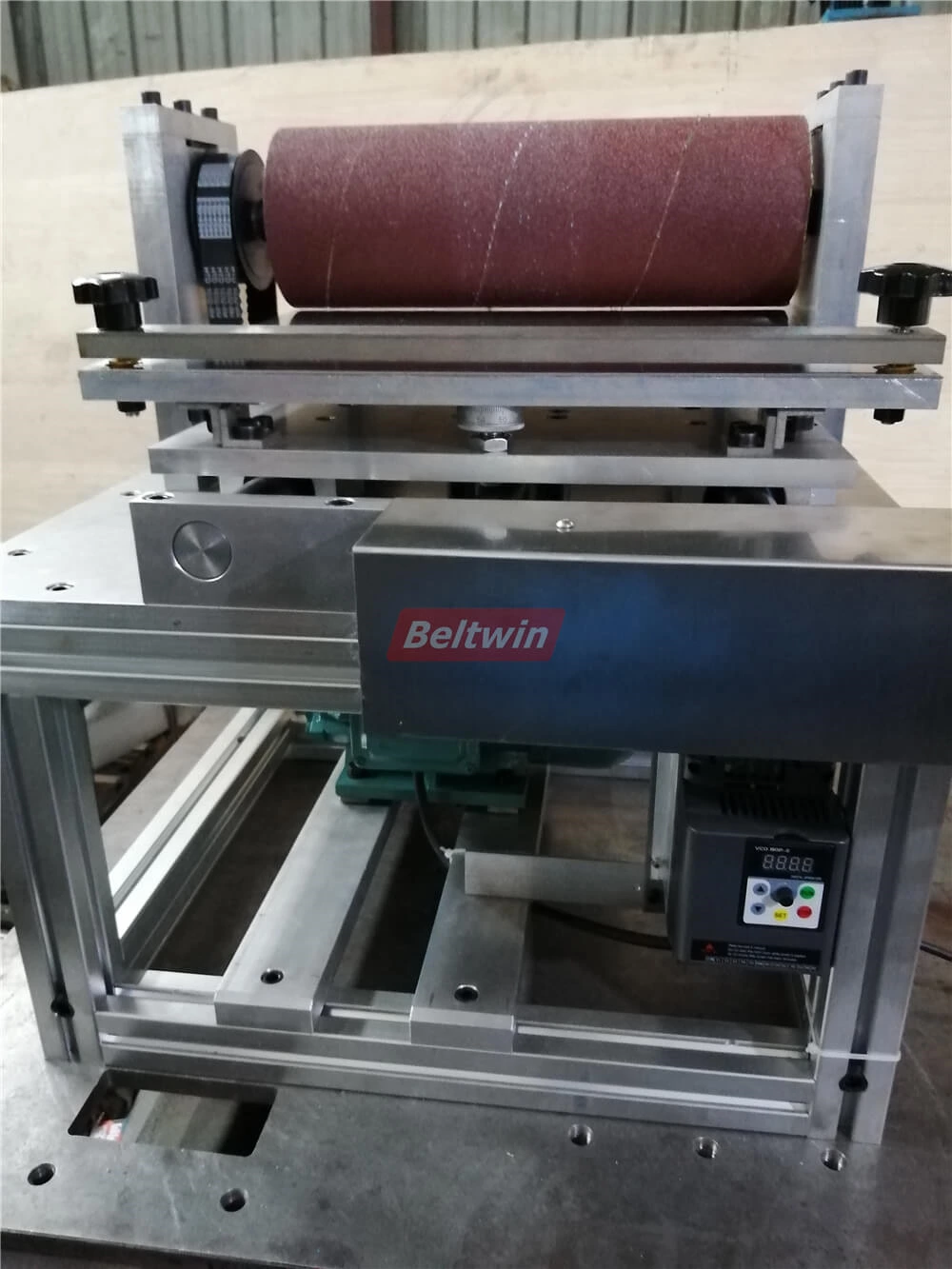

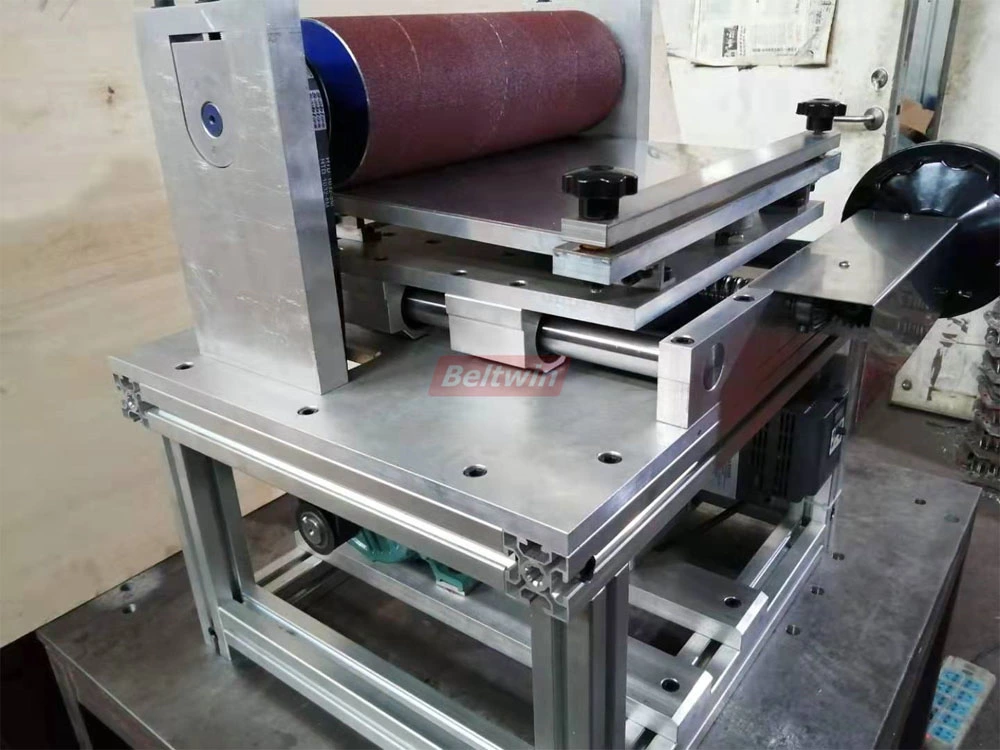

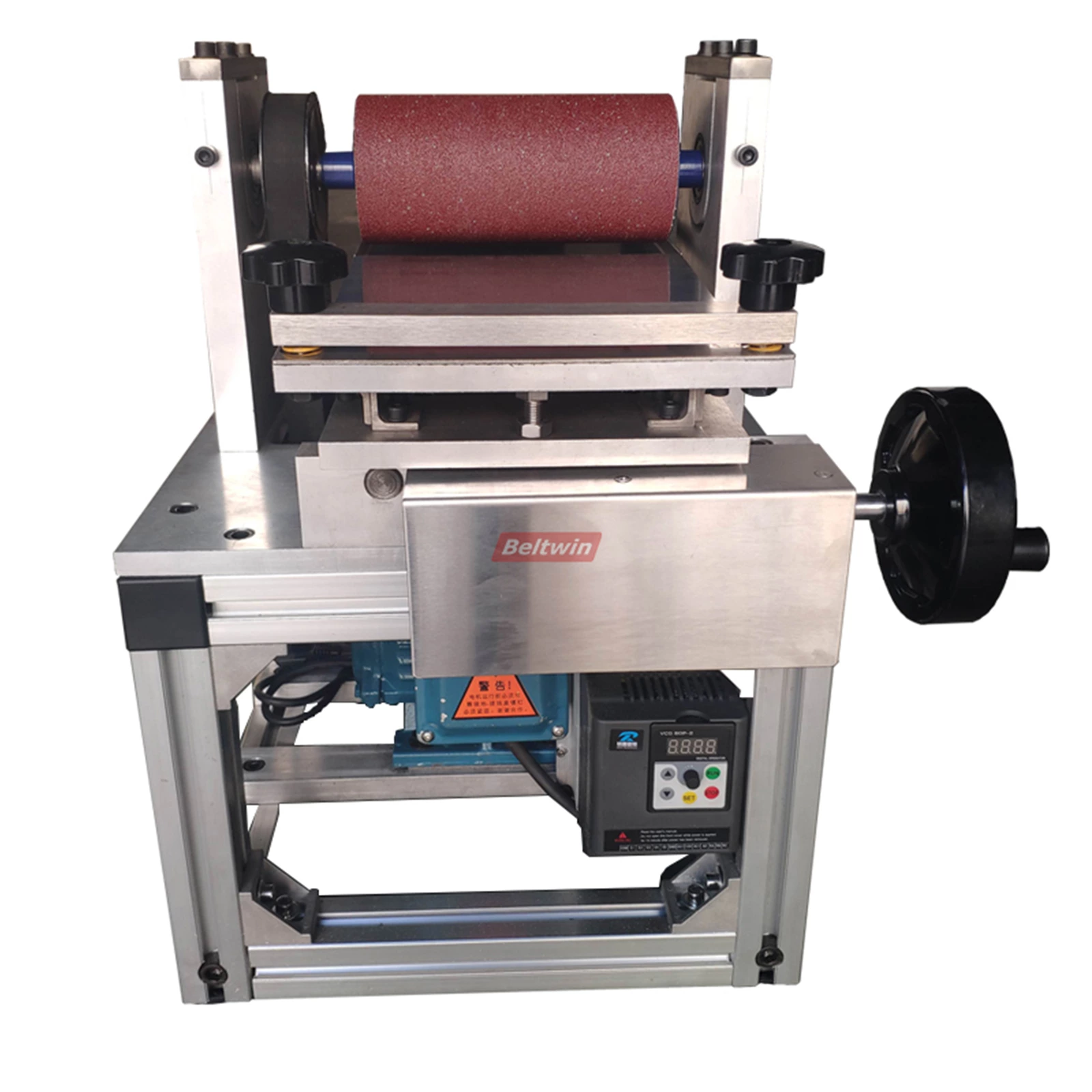

Transmission Belt Skiving Machine SD150-600

Beltwin skiving machine enables the ends of transmission belts to be narrowed for top quality splicing.Then connect two ends of belt by press machine.Meet your demands for different belt in different thickness.
Transmission Belt Skiving Machine SD150-600
Transmission Belt Skiving Machine SD150-600 Transmission Belt Skiving Machine SD150-600

Beltwin skiving machine enables the ends of transmission belts to be narrowed for top quality splicing. Then connect two ends of belt by press machine. Meet your demands for different belt in different thickness.

  • Manual type
  • Meet your demands for different belt in different thickness
  • For belt thickness: 1-5mm
  • Rotational speed: 650r/min
  • Working voltage: 220V single phase

Technical Datasheet

Belt Skiving Machine Specification
Model SD-150 SD-200 SD-300 SD-400 SD-500 SD-600
Power 750W 1100W 2200W 2200W 3300W 3300W
Max Belt Width 200mm 200mm 300mm 400mm 500mm 600mm
Skiving Length 100mm 150mm 150mm 150mm 150mm 150mm
Machine Body Note Aluminum alloy Aluminum alloy Aluminum alloy Aluminum alloy Aluminum alloy Aluminum alloy
/ With frequency inverter,speed control.
  • Operation: Manual adjust
  • Table inclination can be adjusted in order to control the chamfer length, depending on the material thickness.
  • Meet can meet your demands for different belt in different thickness.
  • Fast and simple replacement of the abrasive band
  • Belts can be skived one at a time or lined up to skive several at once.
  • With frequency inverter of the speed control
  • Can adjust the angle of working table.

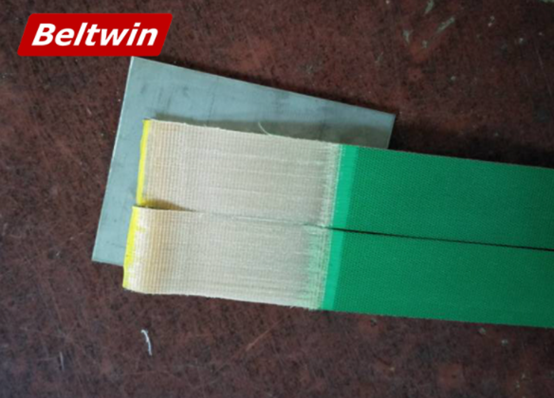

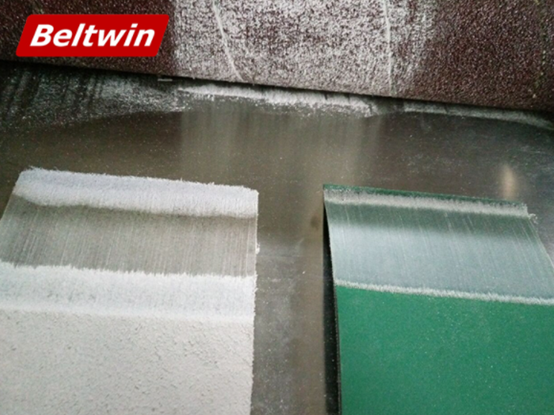

The belt after skiving
