PU Round V Belt Welding Tool Splicing Kit, V belt Welding tool, splicing kit, Round belt splice tool, round belt welder, V belt welder

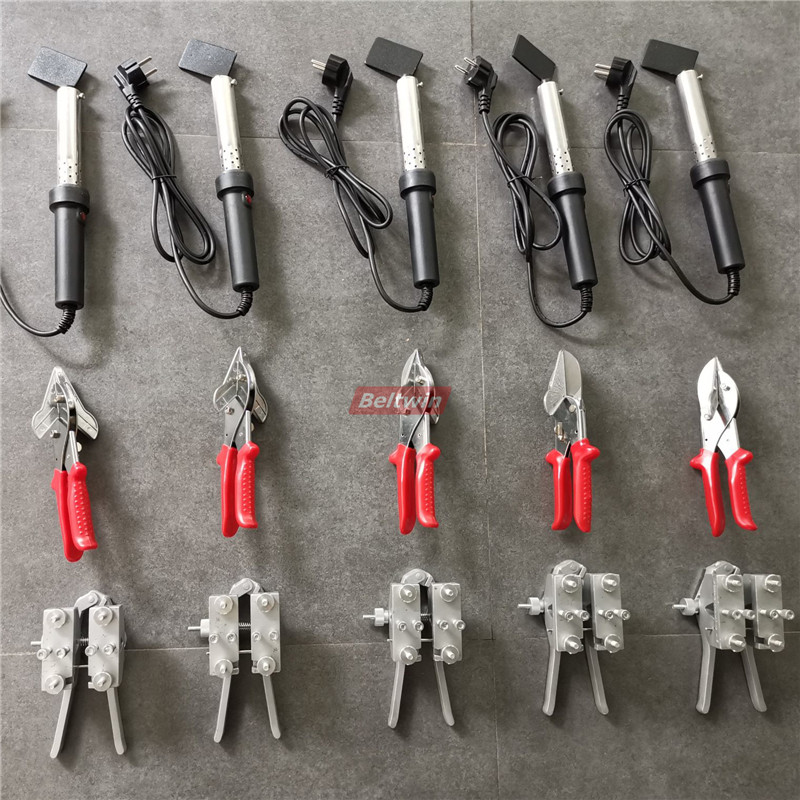

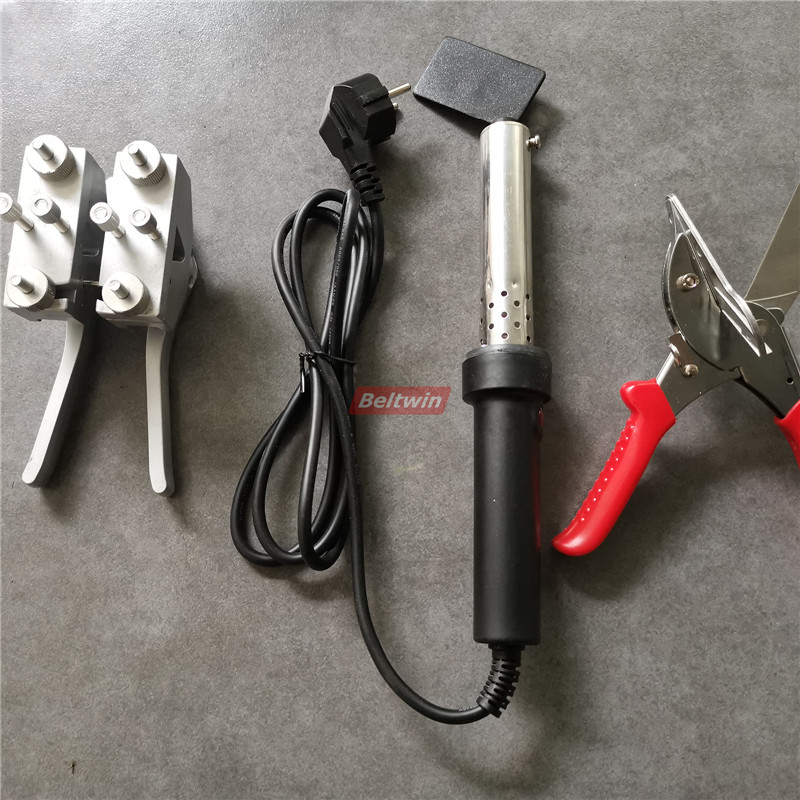

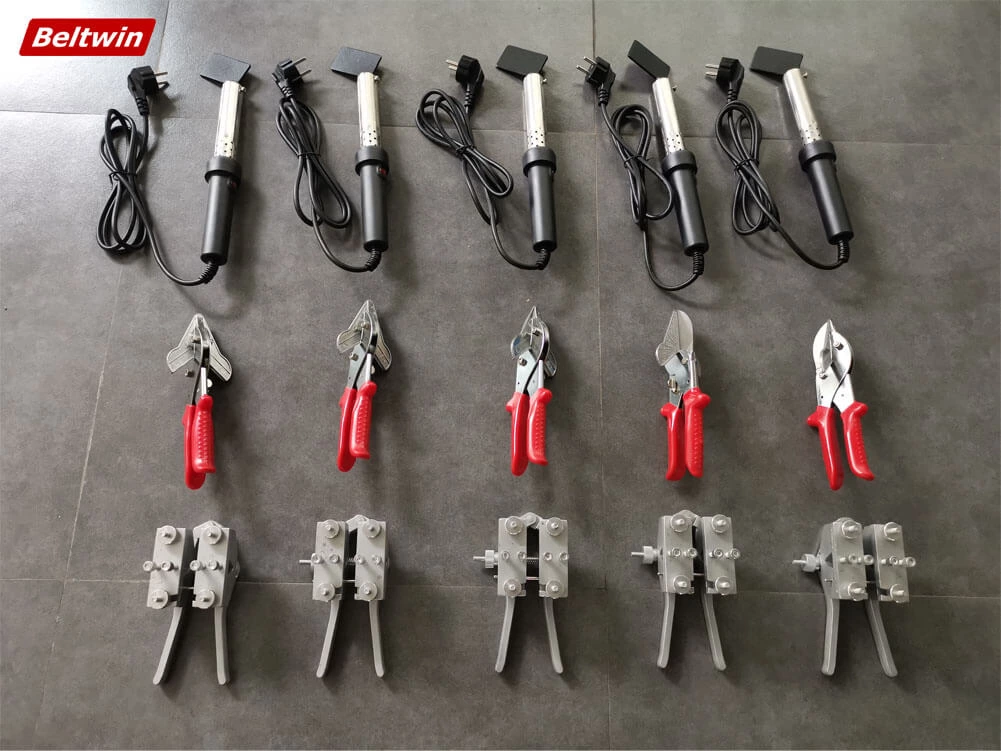

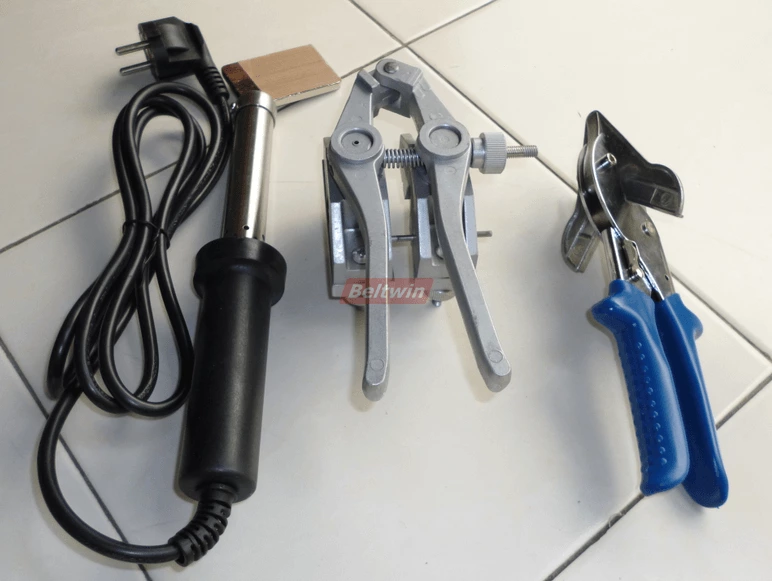

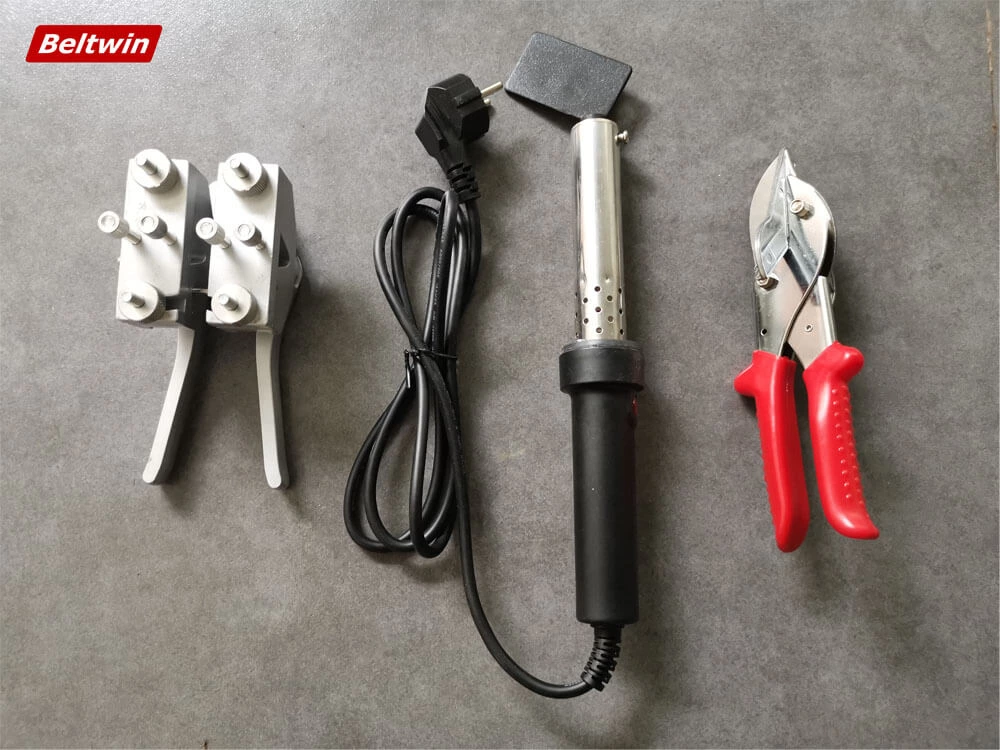

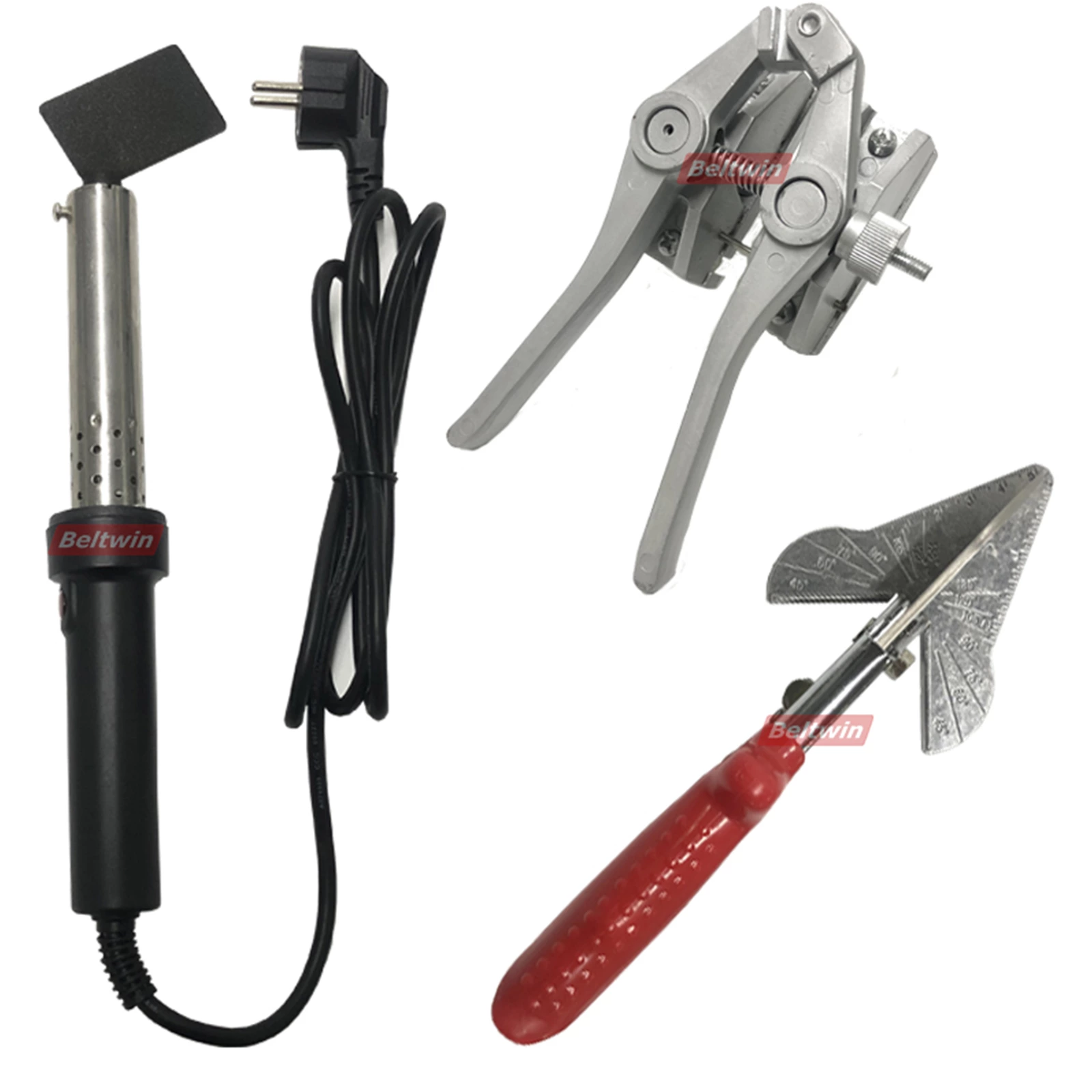

This kits are specially used for welding PU round belts, using welding clamp to fix the round belts, and can make high temperature welding, include following items:

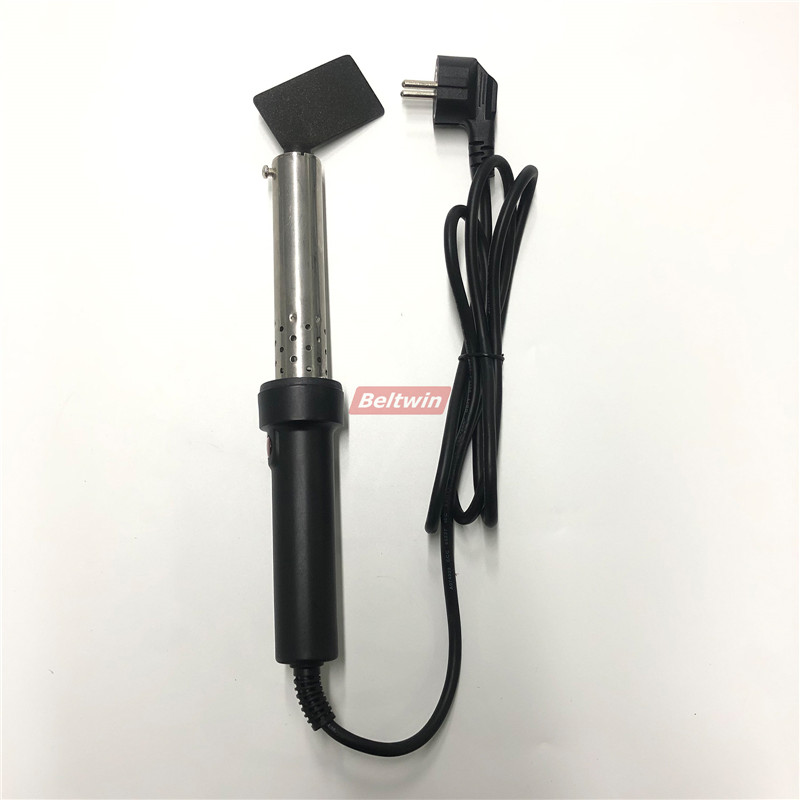

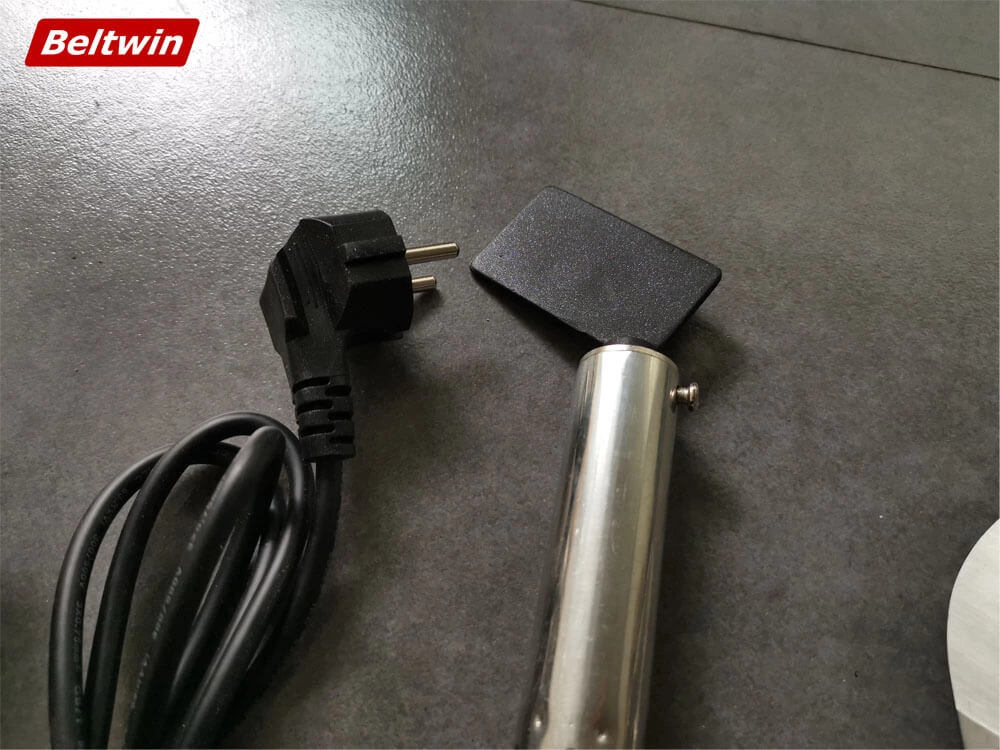

1.Welder (Soldering Iron)

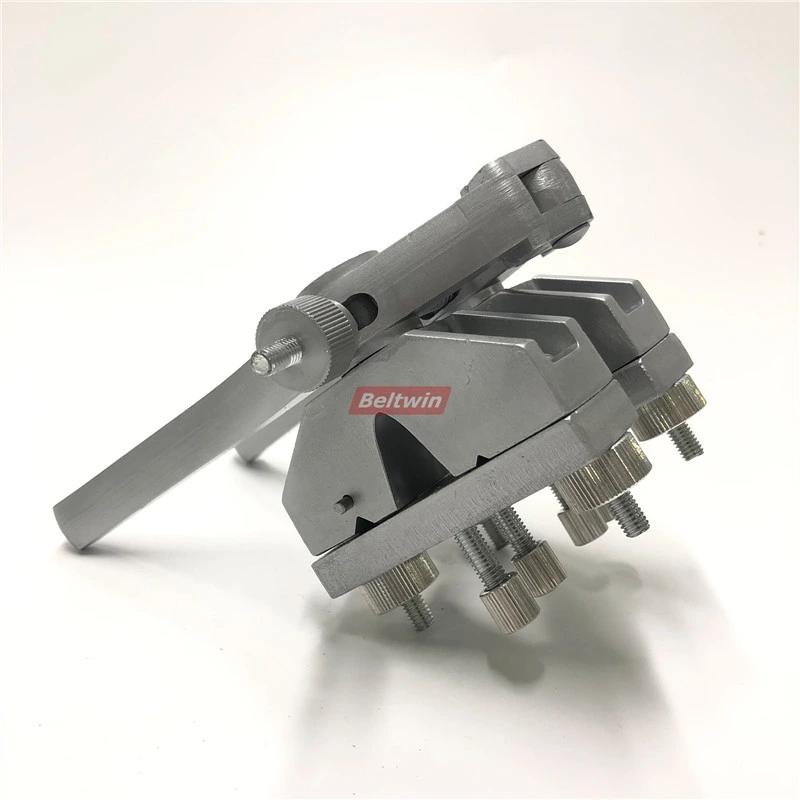

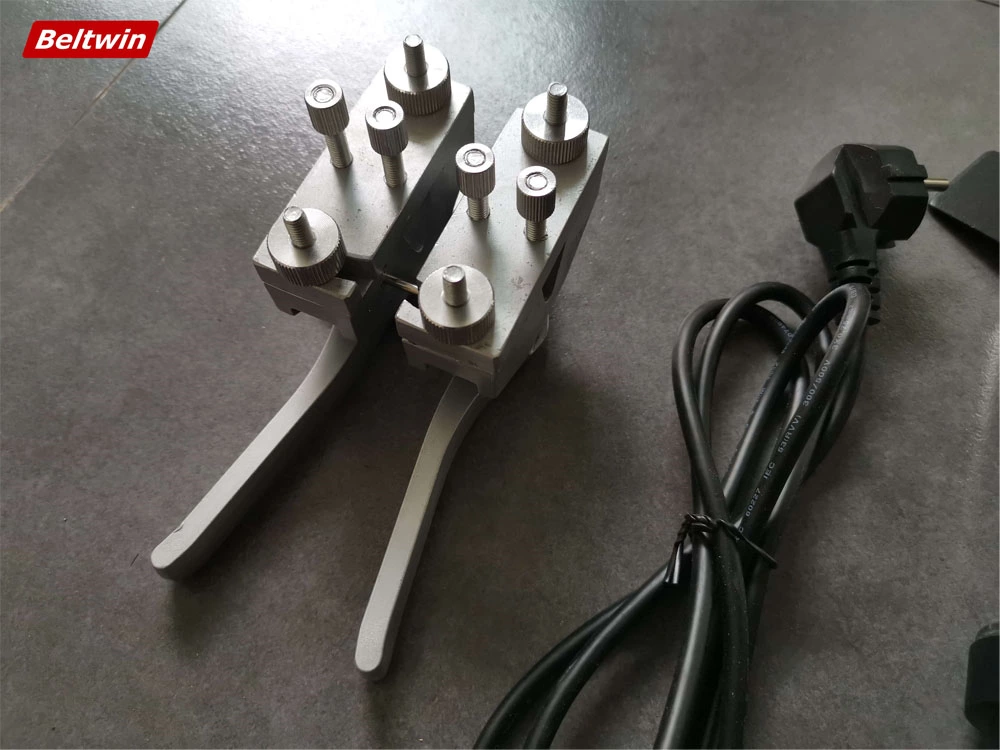

2.Gripper (Welding Clamp)

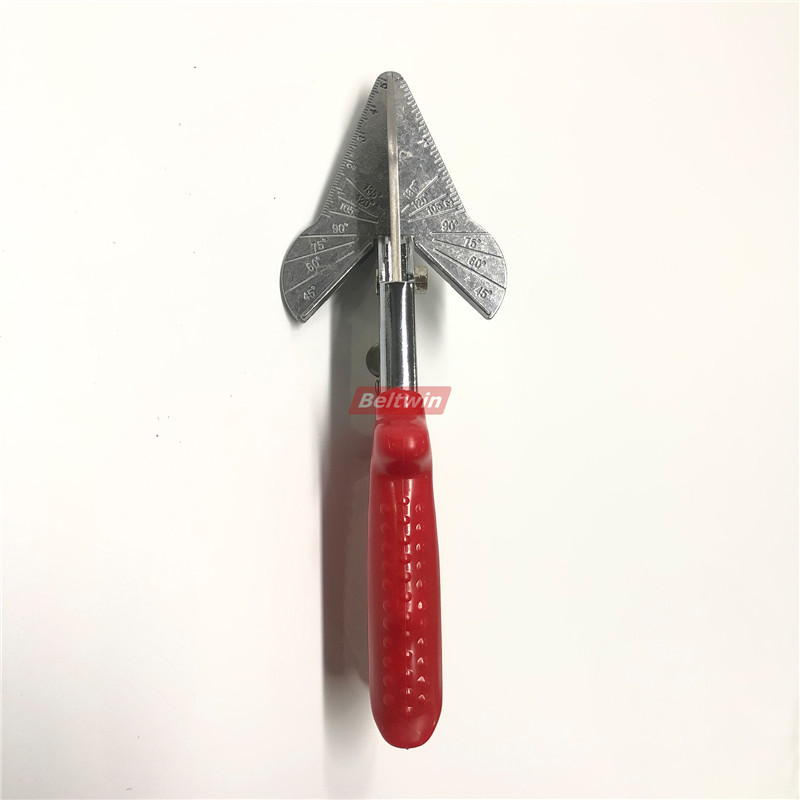

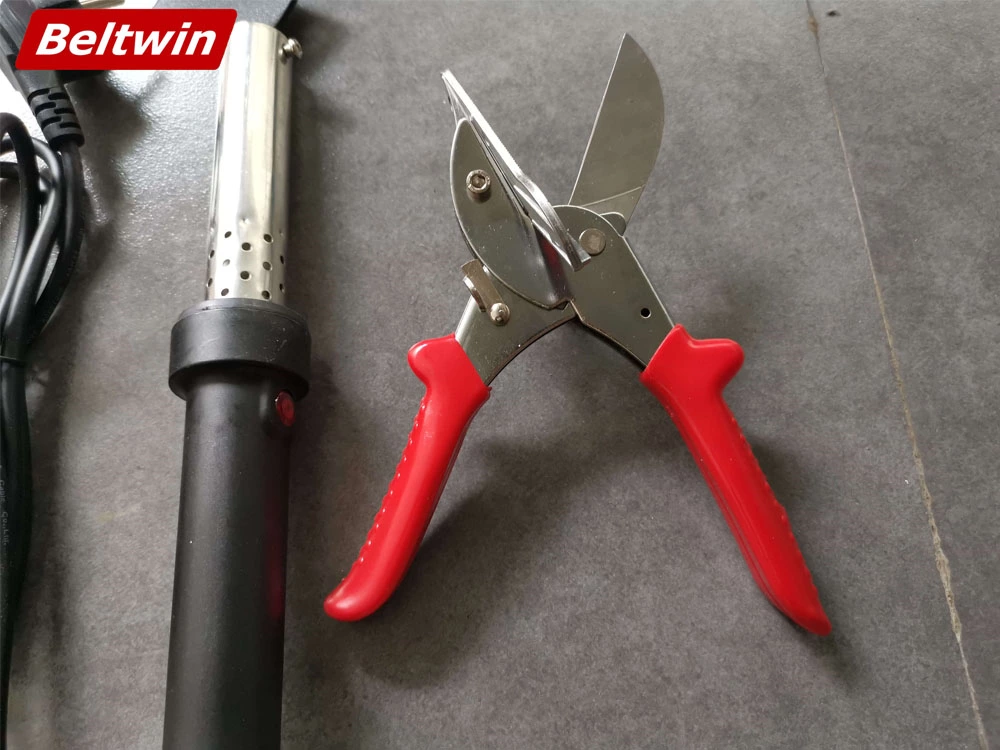

3.Cutter (Scissors with Skid handle)

Specification:

Equipment With	Welder (Soldering Iron)	Gripper (Welding Clamp)	Cutter (Scissors with Skid handle)
Selection	Teflon Coating	Black	Plastic handle
Selection	Teflon Sticking	Silver	Steel
Description	Constant temperature heating	Aluminum	Vertical shear
Specification (mm)	340L x 50W x 85H	210L x 130W x 110H	225L x 65W x 60H
Weight (kg)	0.70	0.80	0.40
Application	for all kinds of PU V-belt and Round belt without cord

Operating Instruction:

1) Preheating the soldering iron; cutting the belt by the scissor and make sure the transverse incision is smooth

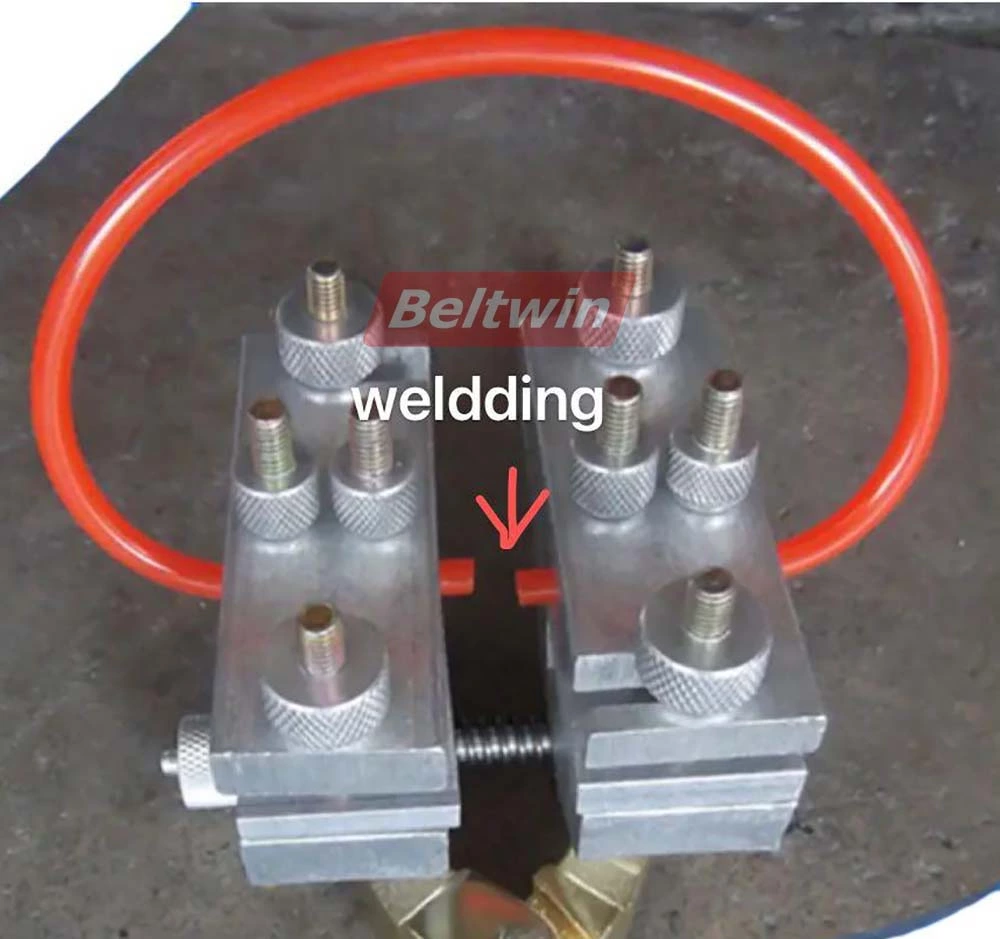

2) Loosen the four big screws of the welding clamp, adjust the height of aluminum plates to put the belt into it.

3) Put the open endless belt into the locating slot (If the belt size is small, adjust the four small screw of clamp to fit it, preset protruding length on both ends of the belt, make the two end belt match perfectly.

4) Place the soldering iron between the ends of belt, gently tighten the clamp,make both ends completely contact soldering iron.

5) Heating the soldering iron, when the PU are melted approximately 0.5~1mm, whip out the soldering iron, closed the welding clamp by the side screw.

6) After about 3 minutes, take off the belt from the welding clamp.

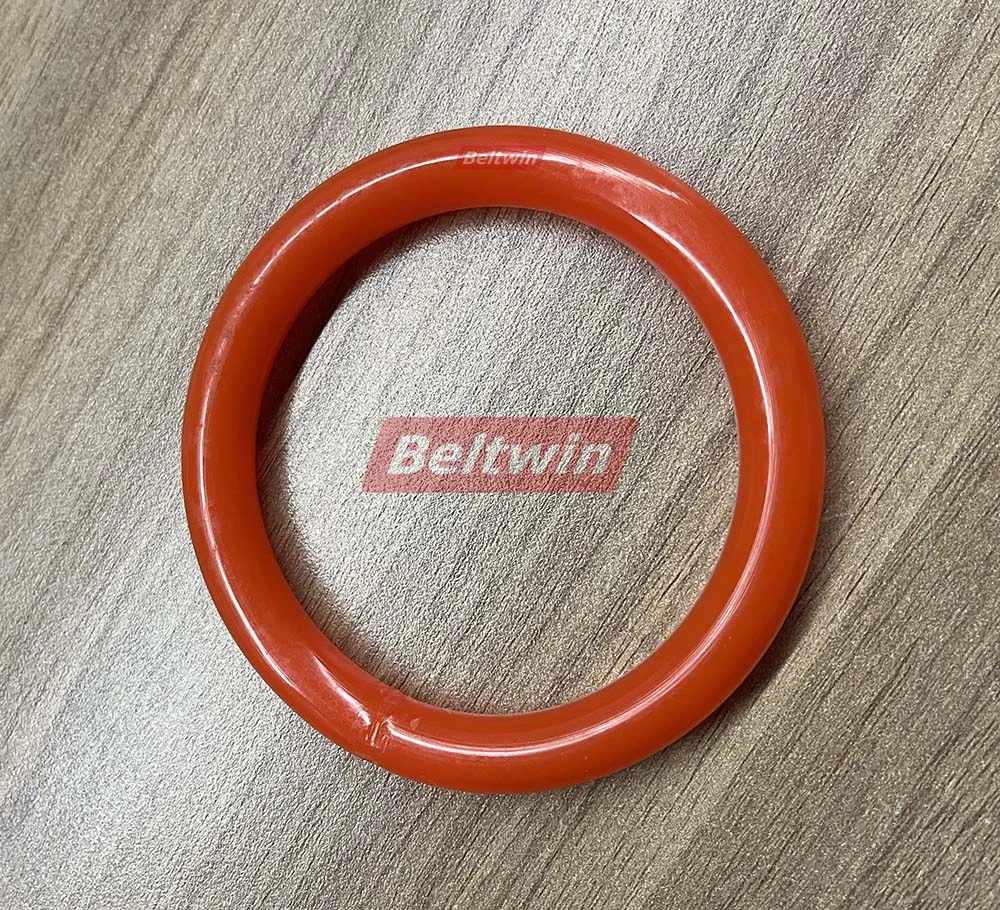

7) Grinding the surface after made the weld, check if it's finished. if not, please repeat the above steps again.
