Pneumatic PVC PU Belt Finger Punching Machine TA1000-2100

Beltwin semi-automatic and pneumatic machine makes finger punching quickly and easily. It is designed for punching single finger and finger-over-finger.
Pneumatic PVC PU Belt  Finger Punching  Machine  TA1000-2100
Pneumatic PVC PU Belt  Finger Punching  Machine  TA1000-2100 Pneumatic PVC PU Belt  Finger Punching  Machine  TA1000-2100 Pneumatic PVC PU Belt  Finger Punching  Machine  TA1000-2100 Pneumatic PVC PU Belt  Finger Punching  Machine  TA1000-2100 Pneumatic PVC PU Belt  Finger Punching  Machine  TA1000-2100

Pneumatic PVC PU Belt  Finger Punching  Machine  TA1000-2100


Specifications:

  • For PVC and polyurethane belts
  • No width limited, open construction, max up to 3.2m width belt. Standard type: 1600mm, also can make smaller 1000mm and wider 2000mm.
  • Wider working table. Take the TA1600 as an example, the punching area dimension is 1650*50*20mm.
  • Use a Booster cylinder, high cylinder strength, work with a high-quality blade, and punch belt completed at one time. 10 times higher speed than the old design.
  • Precision moving and punching, using a guide rail, can move smoothly and easy to control the punching position.
  • Can punch both single fingers and double fingers, triple fingers (this machine makes it easy to cut finger-over-finger joints with a simple forward/backward movement of the belts).

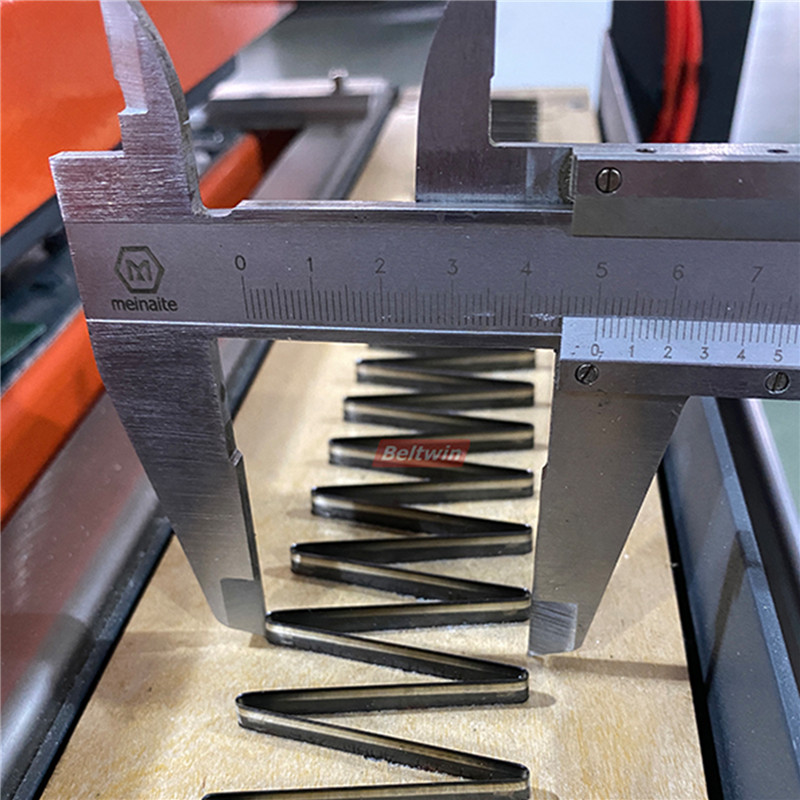

  • Standard die blade size: 20*50mm, other dimensions are optional: 10*80mm, 10*70mm, 10*80mm, 10*90mm, 20*80mm, etc.
  • 2 types of blade styles for selection: round blade and sharp blade.
  • Using a pneumatic cylinder system to fix and unfix the belt.

Technical Datasheet:

Size TA1000 TA1600 TA2100
Recommend belt width 1000mm 1600mm 2100mm
Open struction design, no belt width limitation, can be used for wider belt
Length 1250mm 1780mm 2280mm
Width 650mm 650mm 650mm
Height 1680mm (Standard without feet. The feet is optional) 1700mm 1700mm
Weight 65kg 111kg 185kg
Gross weight 130kg 208kg 250kg
Packing information 1300*670*960mm 1800*670*960mm 2360*670*960mm

Options:  Cutting board (20x50 15x75 etc. also can offer diamond design and inclined finger)

Video for Semi-automatic Belt Finger Punch:

Main Components:

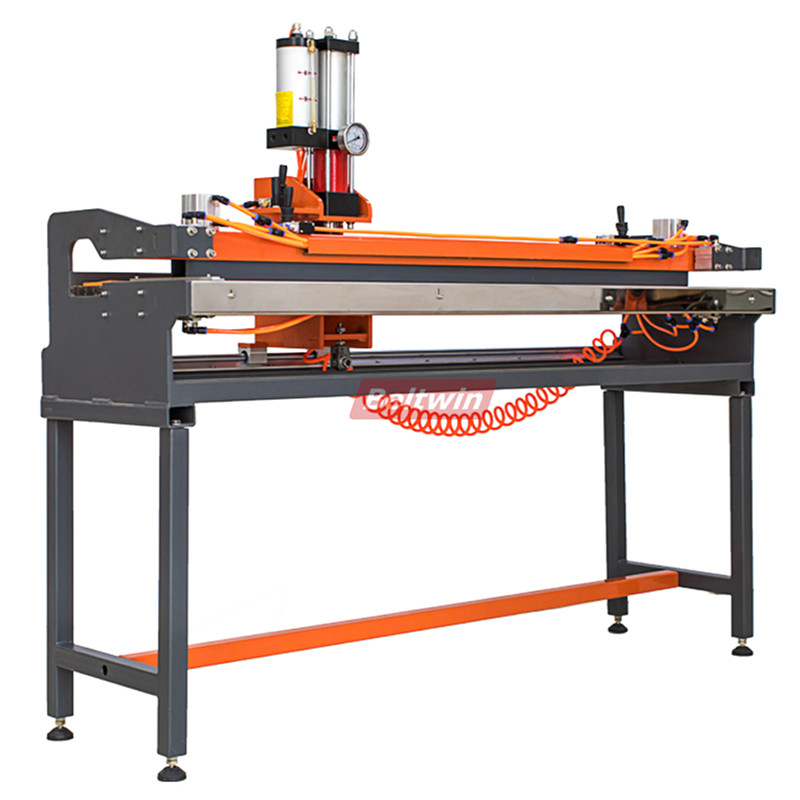

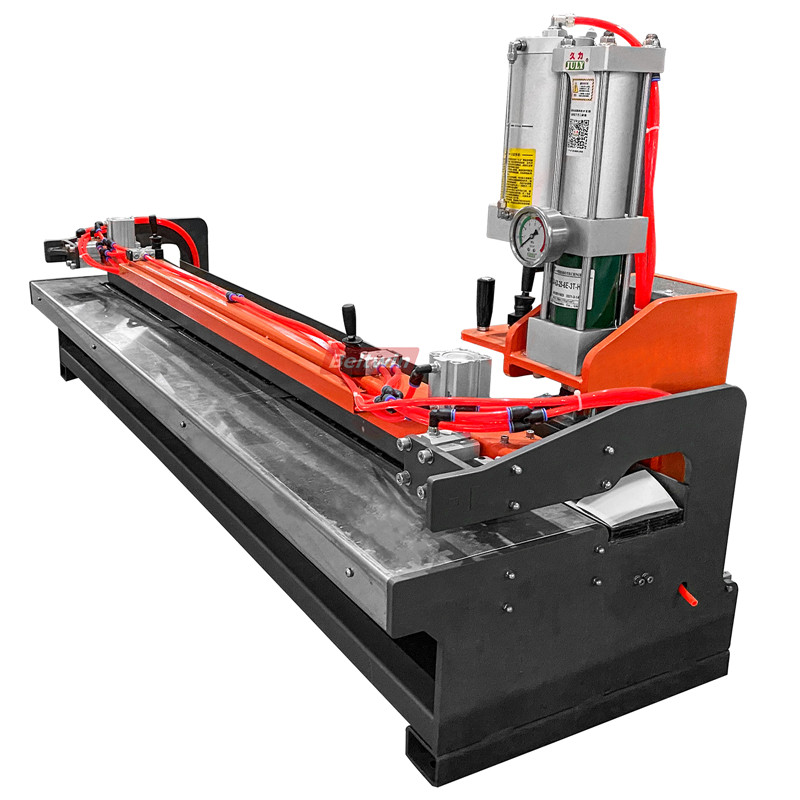

1. Guide Rail & Booster Cylinder

2. Two pneumatic cylinder clamps to fix belt

3. New structure: wider working table and no width limited

Packing and delivery for semi-automatic belt finger puncher:

TA Pneumatic Finger puncher Operation

Pneumatic Finger Puncher for 3- Layer Teeth
