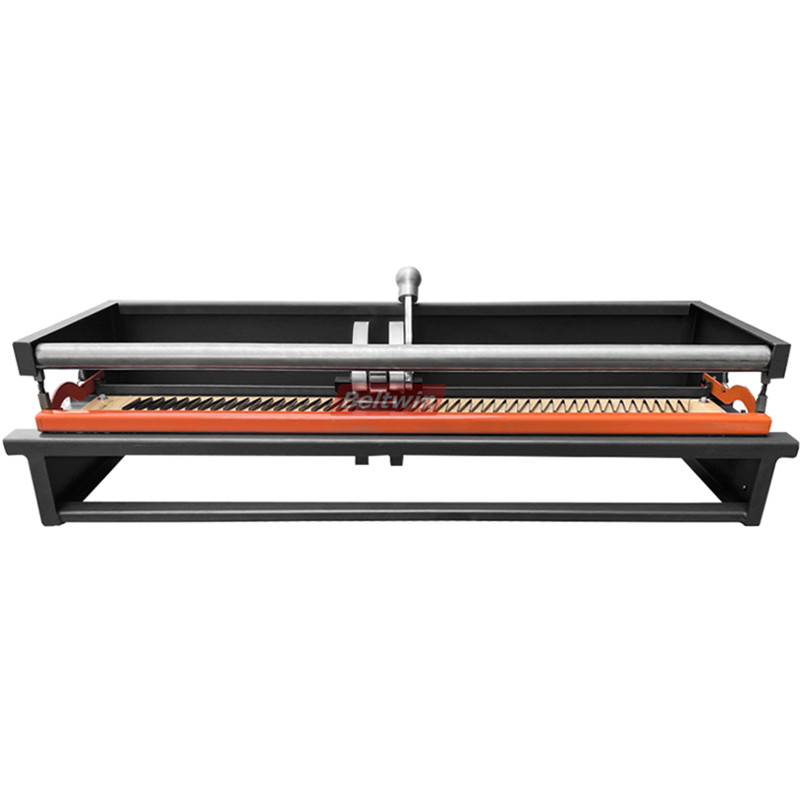

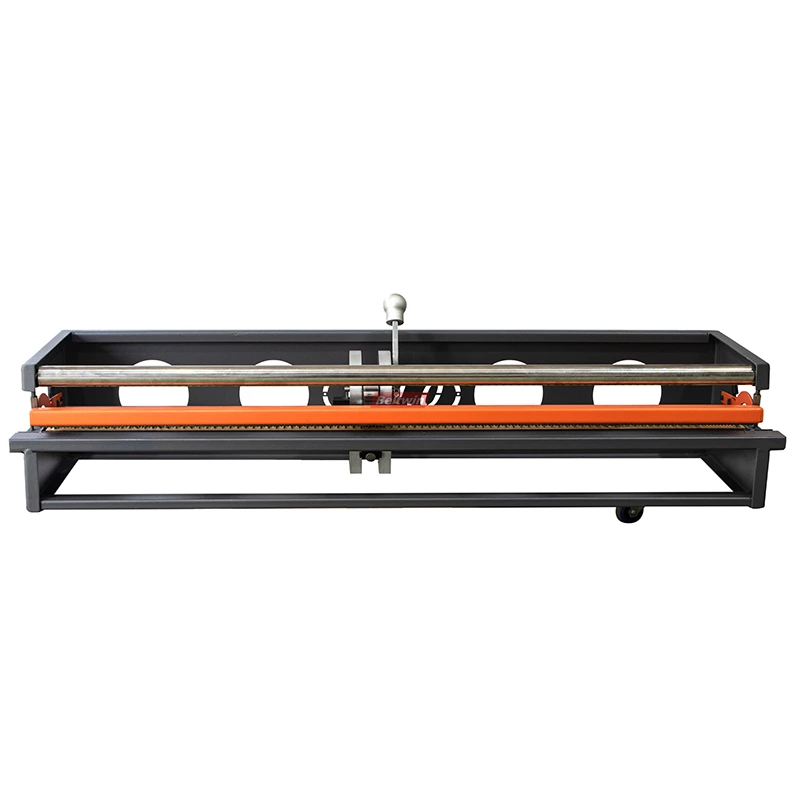

Manual PVC PU Belt Finger Puncher TC300-1500

Beltwin's lightweight and portable manual finger puncher is for site use. It is designed for punching single fingers and finger-over-finger.
Manual PVC PU Belt Finger Puncher TC300-1500
Manual PVC PU Belt Finger Puncher TC300-1500 Manual PVC PU Belt Finger Puncher TC300-1500 Manual PVC PU Belt Finger Puncher TC300-1500 Manual PVC PU Belt Finger Puncher TC300-1500 Manual PVC PU Belt Finger Puncher TC300-1500 Manual PVC PU Belt Finger Puncher TC300-1500

Manual Finger Puncher TC300-1500


Beltwin's lightweight and portable manual finger puncher is for site use.

Video for Manual Finger Puncher:

Product Information:

  1. Punching System: Mechanical punching (manual operation)
  2. Moving System: Manual
  3. Belt width: Open construction make it possible to punch wider belts. Punching area: 300mm (12″) to 1500mm (60″)
  4. Machine Material: Steel
  5. Max belt thickness: 5mm
  6. Electric connection: No electricity or air compressor required

Options:

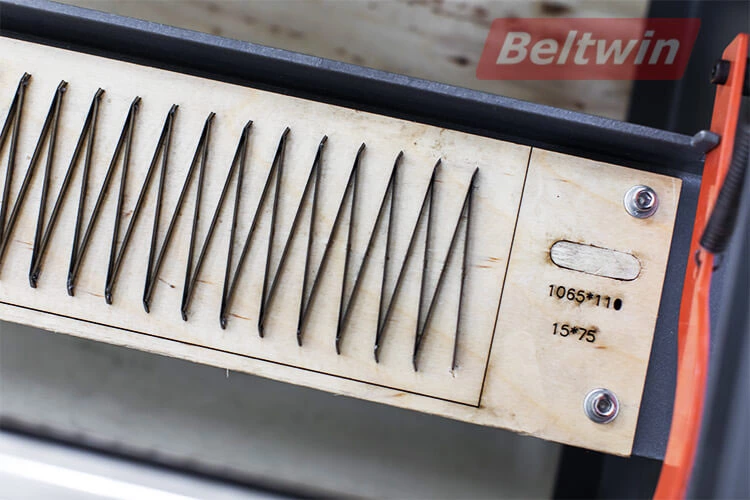

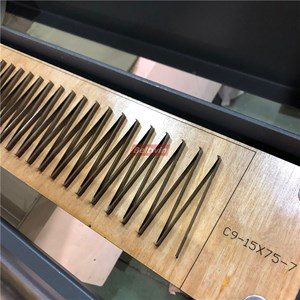

         Cutting board (20x50 15x75 etc. also can offer diamond design and inclined finger)

Specifications:

  • The manual finger puncher has different widths from 24''(300mm) to 60''(1500mm). It is used for PVC PU belts.

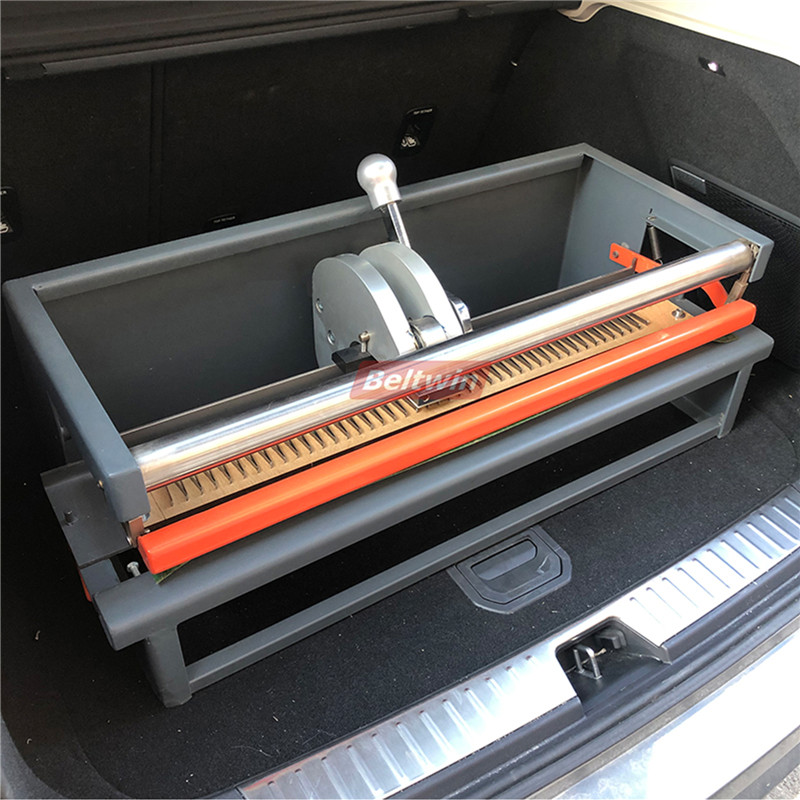

  • Lightweight and portable design, a good choice for outdoor work use. No need for electric power, no need for an air compressor, no need to bring a hydraulic pump, etc.

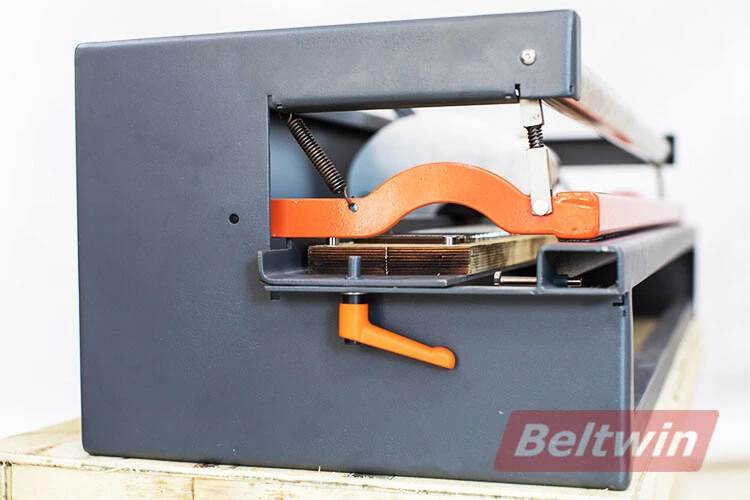

  • Both sides are open design, with no width limited.

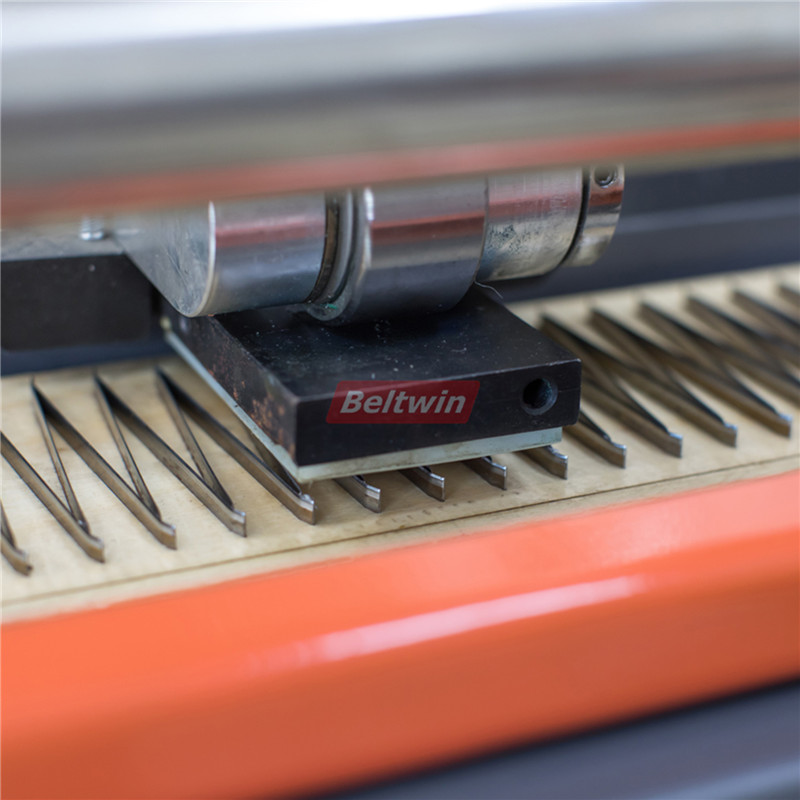

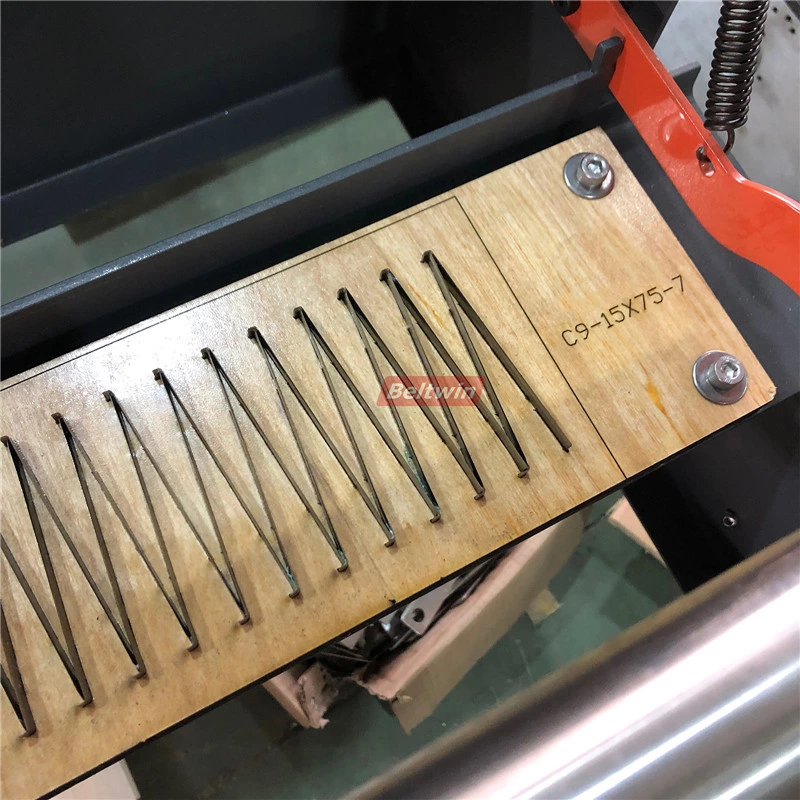

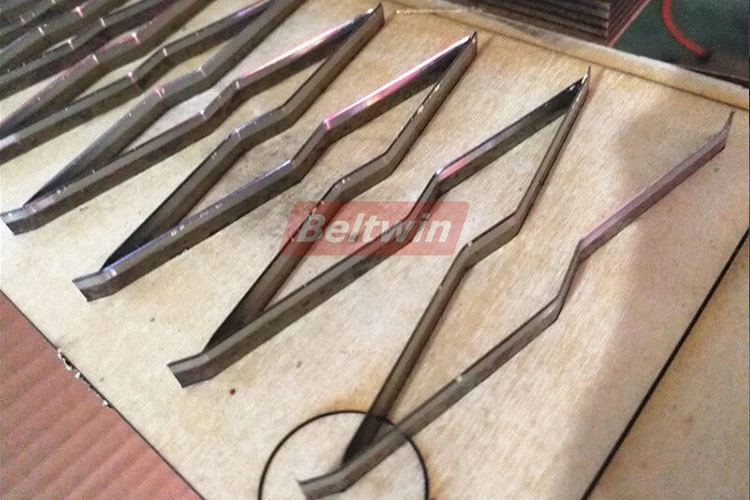

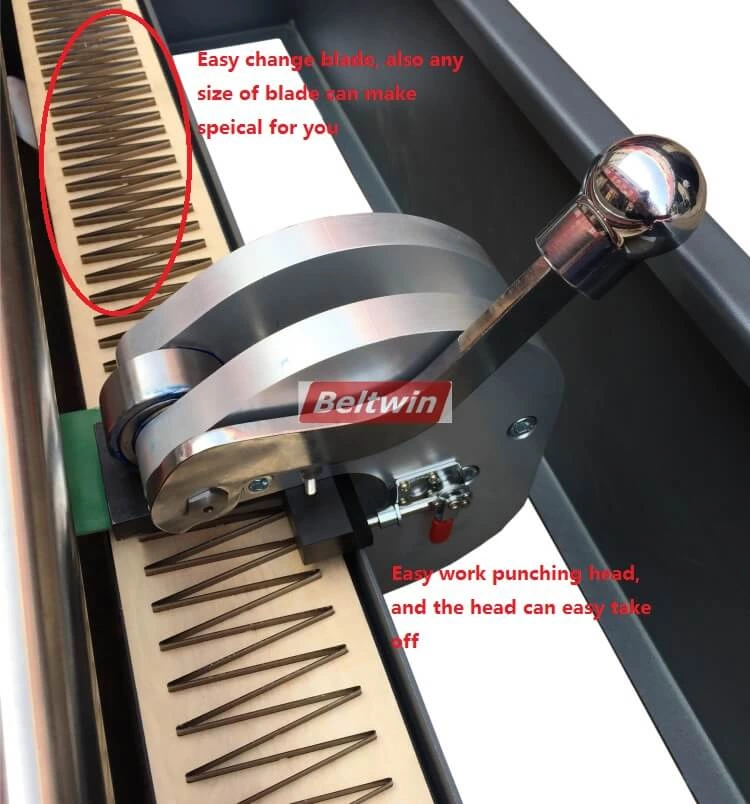

  • Easily change the blade accords to work. The standard blade size is 15*75.  Other different blade sizes can be made according to your requirements. (20×50,20×80,10×80, etc, round and sharp blade is optional)
  • Special Fingers: Diamond Finger, to make joint tighter.

  • Single finger splice & double fingers splice
  • patent technique in press design
  • Durable and maintenance-free

Technical Datasheet:

Model TC300 TC600 TC900 TC1200 TC1500
Machine length 530mm 890mm 1120mm 1450mm 1650mm
Machine width 390mm 390mm 390mm 390mm 390mm
Machine Height 380mm 380mm 380mm 380mm 380mm
Weight 19kgs 27kgs 36kgs 41kgs 47kgs
Packing weight 35kgs 50kgs 65kgs 74kgs 80kgs
Packing Dimension 580x500x480mm 1010x500x480mm 1260x520x550mm 1540x500x540mm 1780x520x550mm

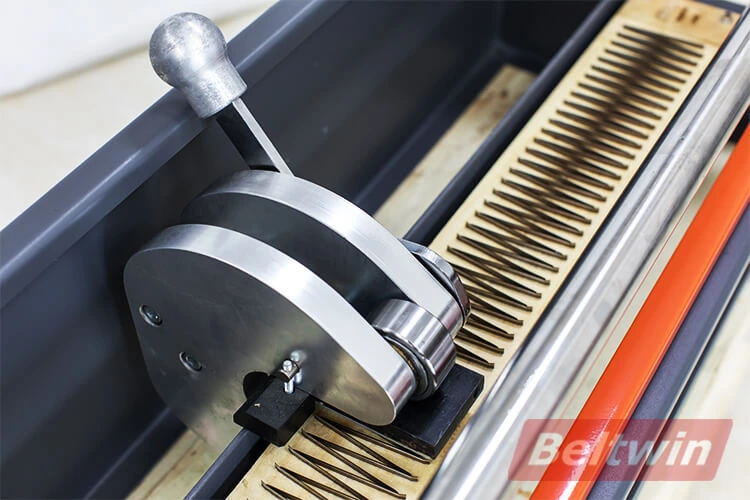

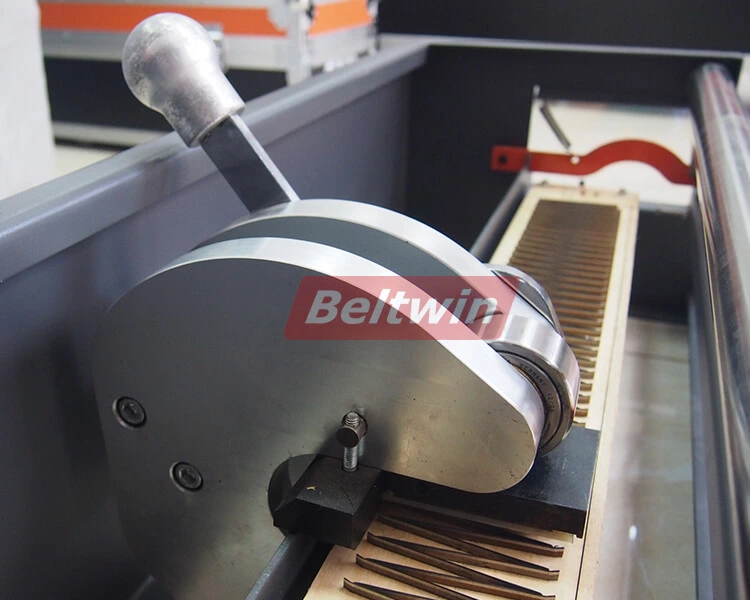

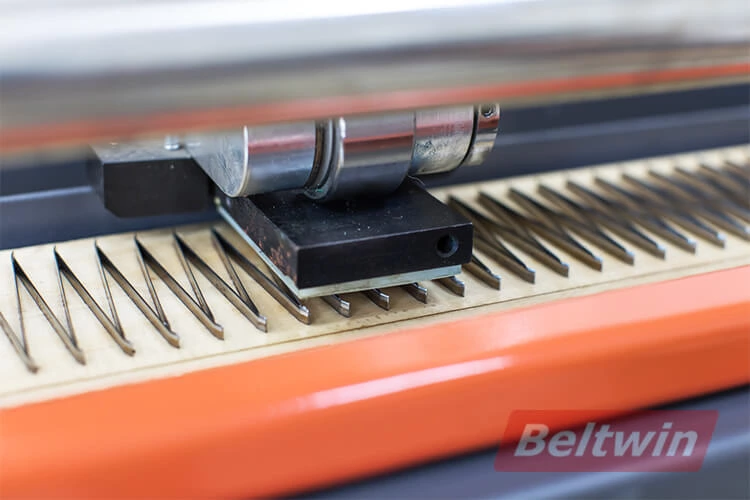

Main components:

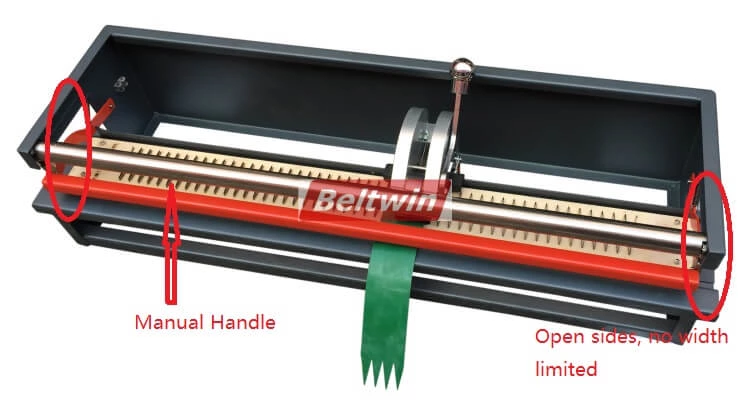

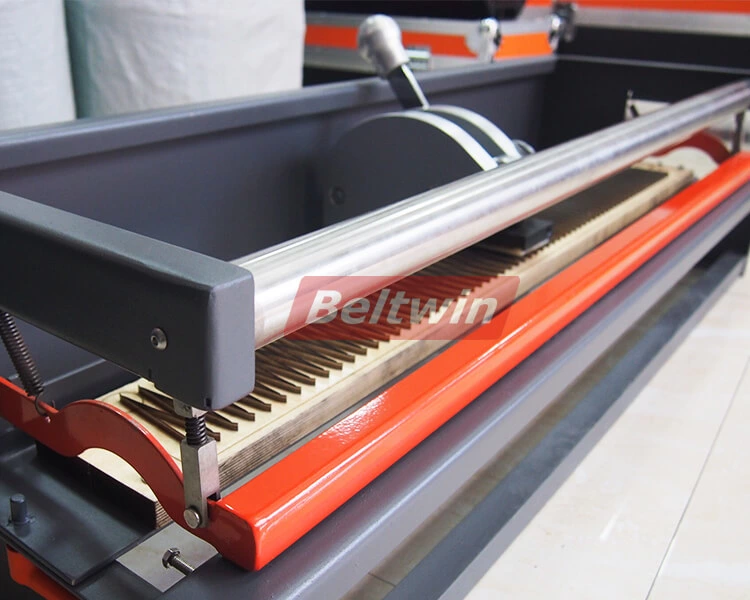

Use manual handle to fix the belt

PVC PU Manual Finger Puncher

Punch Treadmill Belt With Angle By Manual Finger Puncher

Manual Finger Puncher Video
