Aluminum Alloy Body PVC PU Belt Water Cooling Press PC2100-4200

Beltwin Aluminum alloy body hot press is used for PVC belts, Polyurethane belts (PU belts), and Polyester monofilament synthetic belts. Long lifetime and fast splicing.
Aluminum Alloy Body PVC PU Belt Water Cooling Press PC2100-4200
Aluminum Alloy Body PVC PU Belt Water Cooling Press PC2100-4200 Aluminum Alloy Body PVC PU Belt Water Cooling Press PC2100-4200 Aluminum Alloy Body PVC PU Belt Water Cooling Press PC2100-4200

Aluminum Alloy Body PVC PU Belt Water Cooling Press PC2100-4200


The splicing press efficiently handles PVC and PU belts with a width of up to 4000 mm, using compressed air to create fast and effective pressure.

Specifications:

  • Aluminum alloy body and heating platen.
  • The heating area width of the heating platen is 150mm. (If 200mm is needed, we have another type of press).
  • Different sizes for belt widths from 2100mm to 5200mm. (Width under 2100mm, we use stainless steel body).
  • Used for PVC belt, PU belt ( Polyurethane belt), and Polyester Monofilamen synthetic belting.
  • Airbags (pressure bags)
  • Laser silica gel hot platen
  • Easy to use and assemble
  • Lightweight
  • Rapid cooling system within platens
  • Heating to 180°C takes about 15-20 mins; cooling down from 180°C to 60°C takes about 3-5 mins. (according to different sizes of presses.)
  • The temperature error between the upper platen and the lower platen is less than 3°C.
  • Air pressure is 0-0.3 Mpa.
  • Reliable and automatic temperature control panel with time control.
  • Volatge: 220V or 380V. Special voltages can be customized.

Technical Datasheet:

Model PC2100*150 PC2600*150(200 PC3200*150200 PC4200*150200
Belt width 2000mm 2400mm 3000mm 4000mm
Heating platen size 2000*130mm 2400(2500)*130(170)mm 3000*130(170)mm 4000*130(170)mm
Max temperature 200°C 200°C 200°C 200°C
Pressure 2 Bar 2 Bar 2 Bar 2 Bar
Max belt thickness 10mm 10mm 10mm 10mm
Min endless length 1000mm 1050(1300)mm 1200(1260)mm 1200(1260)mm
Lower part height 212mm 253(310)mm 305mm 305mm
Machine weight 210kg 295(356)kg 460(490)kg 565(620)kg
Voltage 220V, single phase
Power 8KW 10(12)KW 12(14.4)KW 15.6(16.3)KW
Cooling system Water cooling
Joint time (PU Belt) Heating time: 20 mins
Dwell time: 3 mins
Cooling time: 3 mins

Options:

  1. Support Stand (for workshop use), pneumatic lift
  2. Jointing Accessories, like PTFE film & pad, Silicone Pad-set, PVC/PU film, etc. can help for better jointing. Please contact us for details. We will offer you the right solution.

More photos:

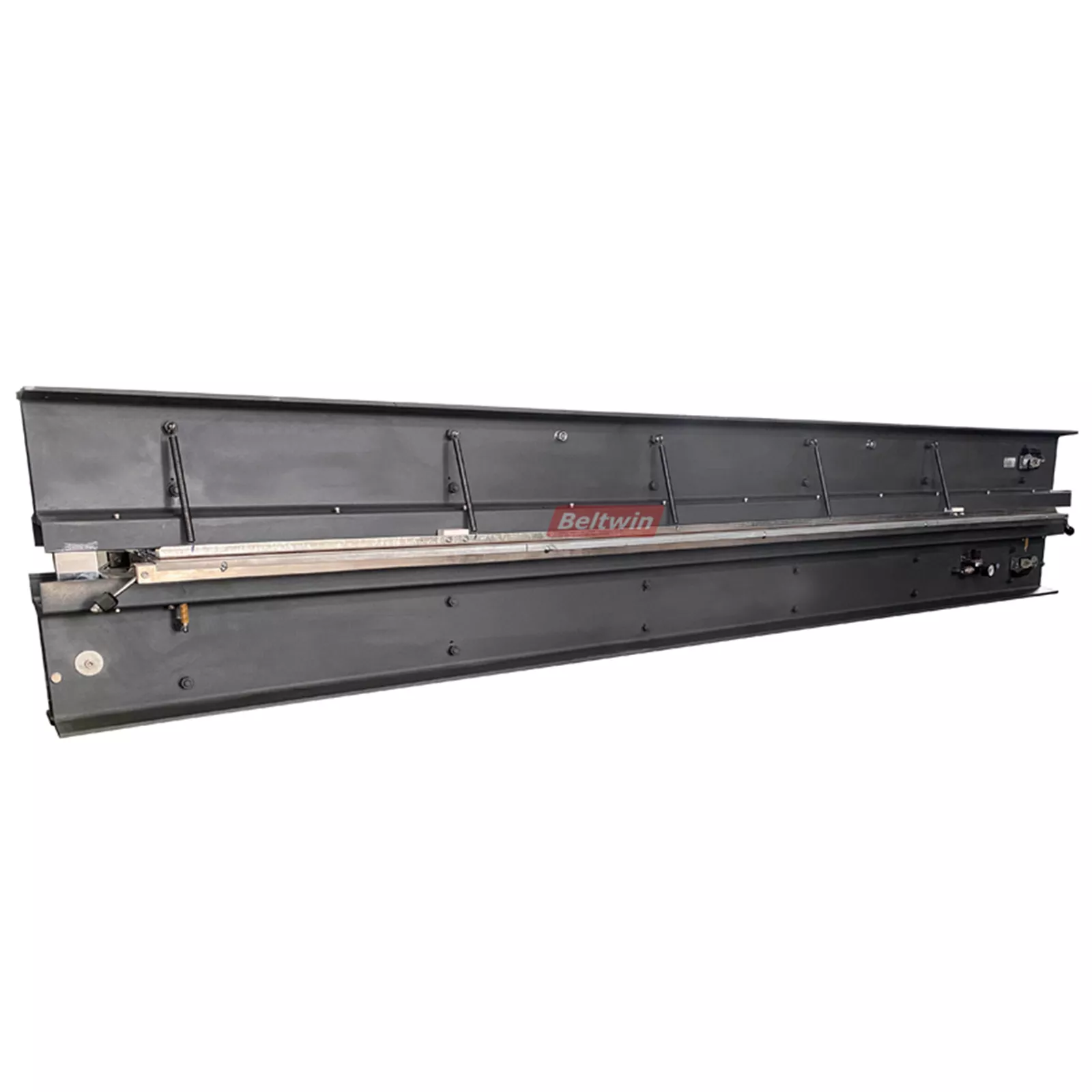

Water Cooling Press for 4000mm:

Optional Accessory:

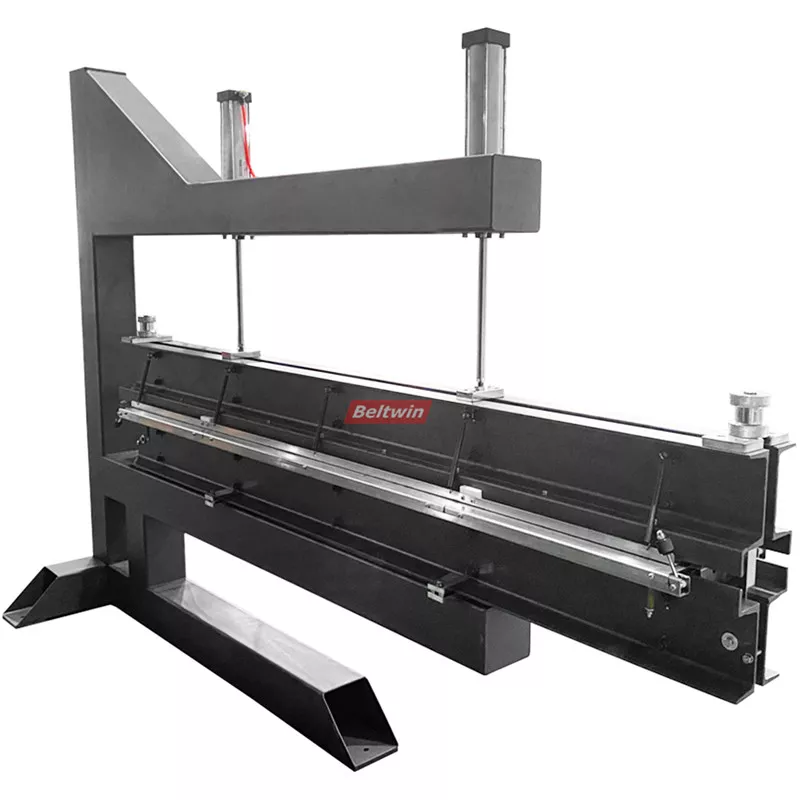

Stand For Water Cooling Press

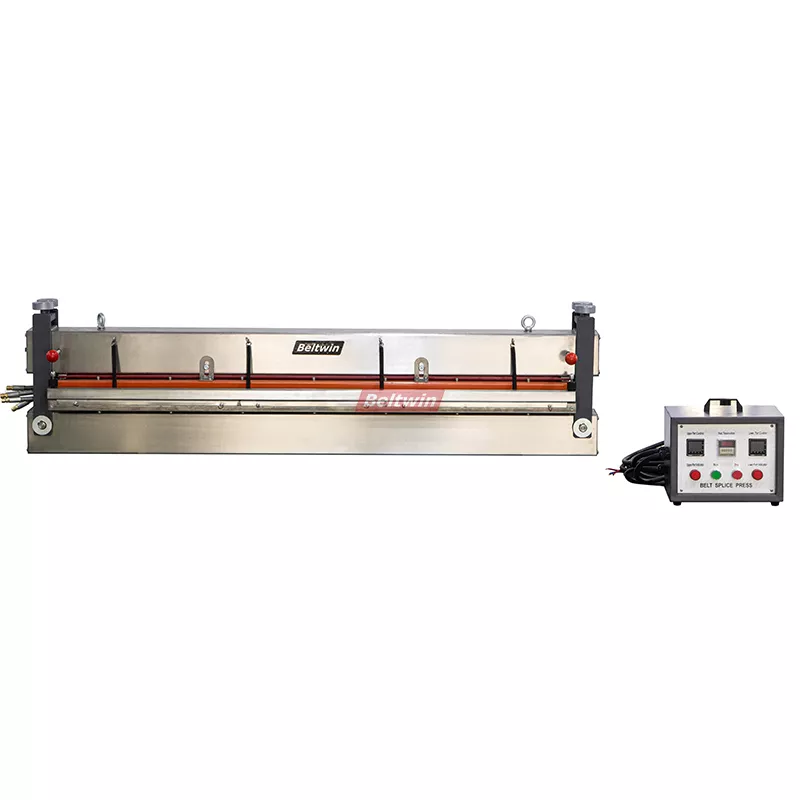

Standard Control Box:

The reliable and high-quality temperature controllers are from OMRON Japanese Brand, one of the most famous electric brands.

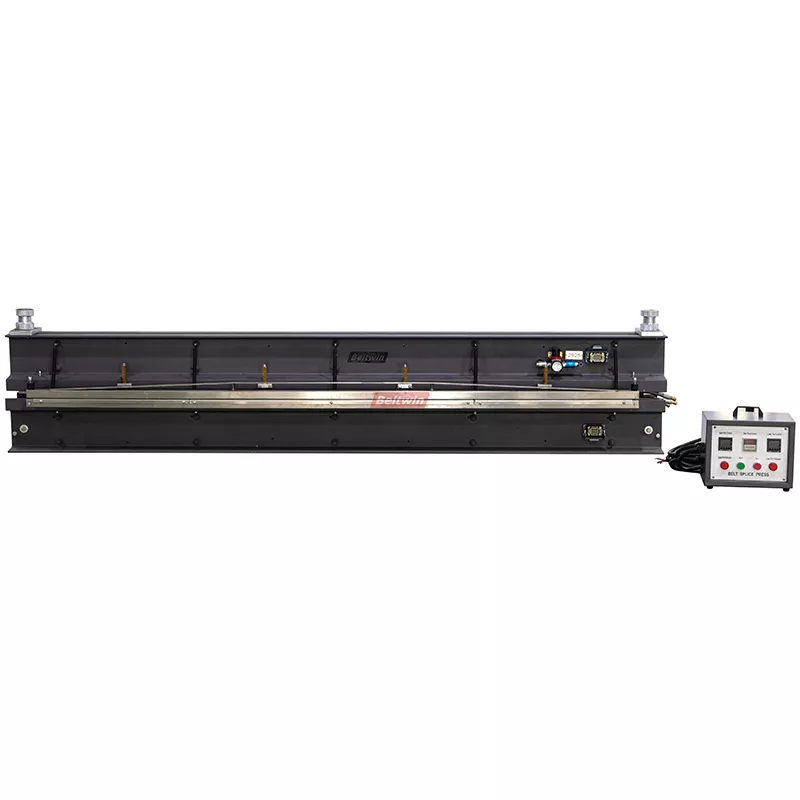

European Standard Control Box (Optional):

All electronics are approved by CE. If you come from Europe or USA, etc, it is a better choice for you.
