PVC PU Belt Ply Separator SB130

Conveyor Belt Ply Separator designed to separate the fabrics for splicing at the ends of 2 and 3 ply conveyor belts for top quality splicing
PVC PU Belt Ply Separator SB130
PVC PU Belt Ply Separator SB130 PVC PU Belt Ply Separator SB130

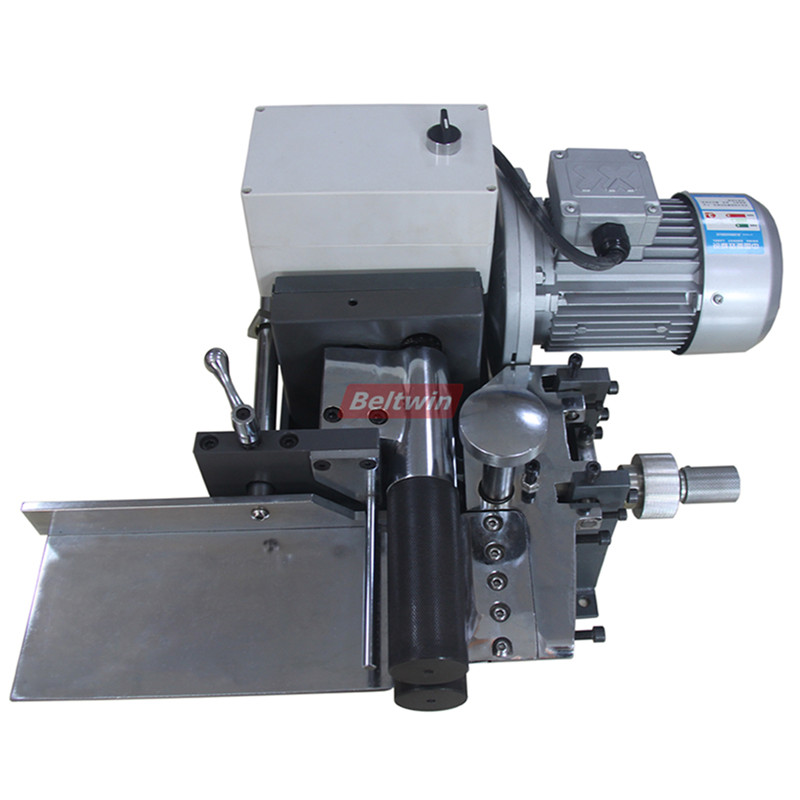

Belt Ply Separator SB130

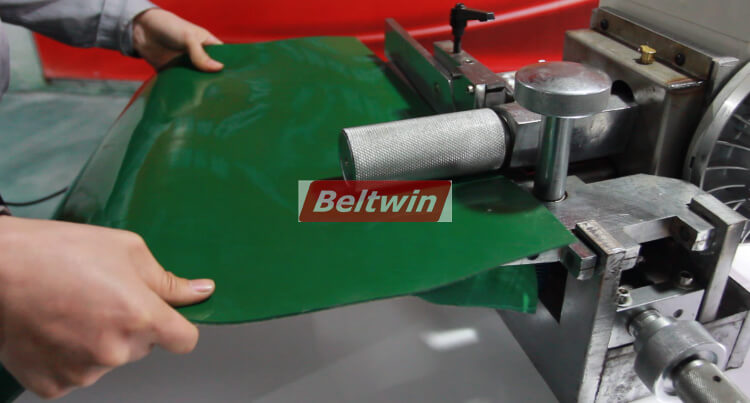

Designed to separate the fabrics for splicing at the ends of 2 and 3 ply conveyor belts for top quality splicing. Fully automatic unit quickly preps belts in PVC PU or rubber belt. Increasing productivity and reducing human error.

Production Information:

  1. Machine material: Steel structure
  2. Split depth 150mm
  3. Split thickness: 1~15mm
  4. Suitable Belt: PVC PU Belt, light duty rubber belt and homogeneous PU belt.

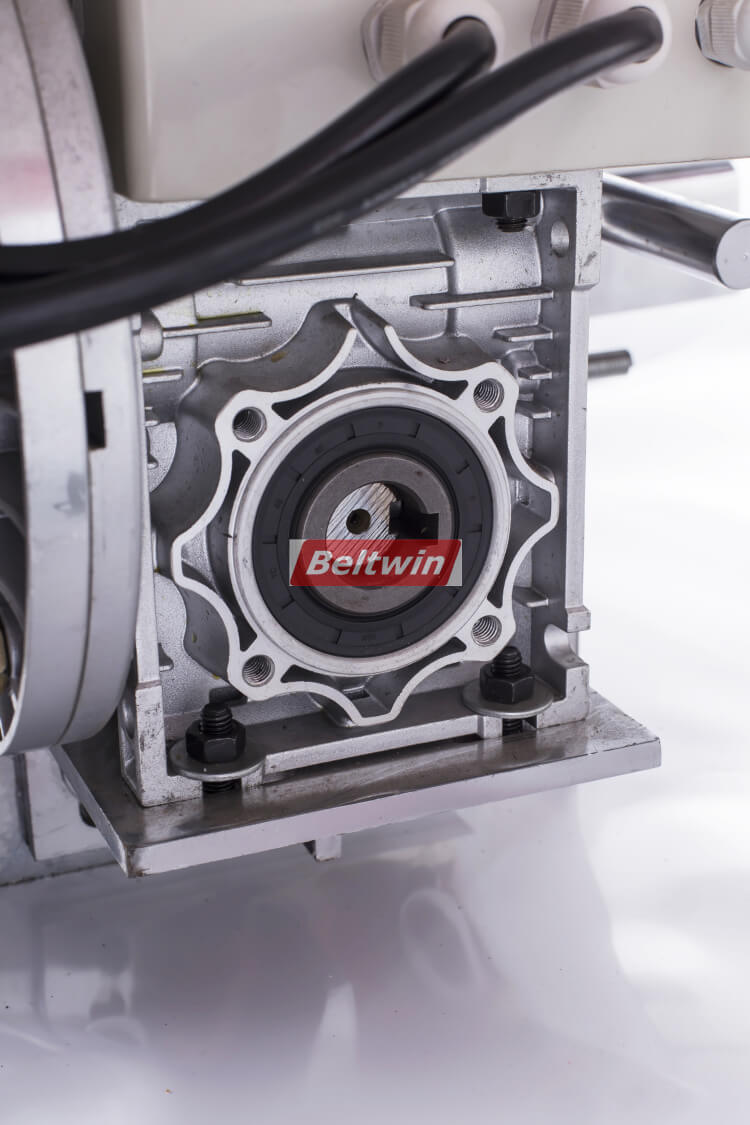

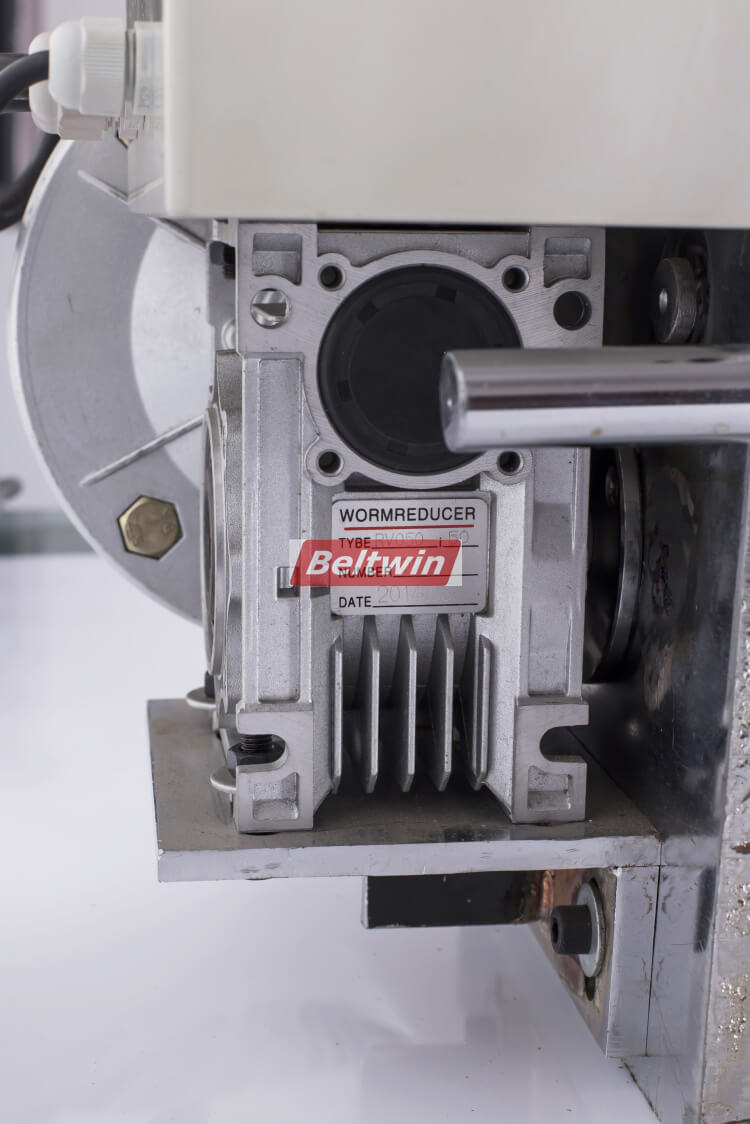

  5. Motor Power: 0.75KW/50Hz
  6. Electric Connection: 380V 3 phases

Specification:

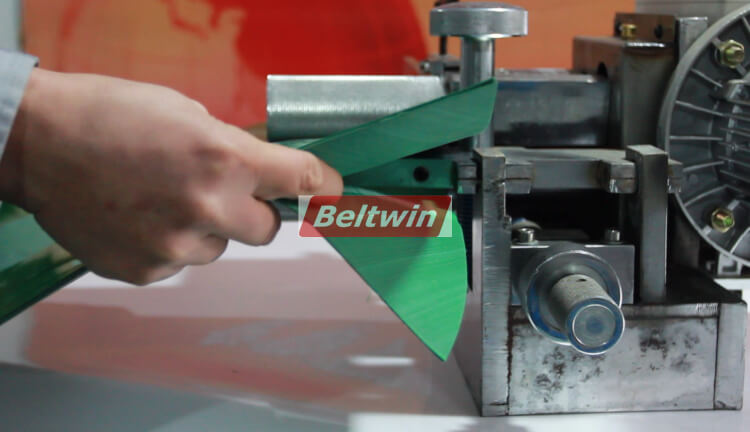

  • To separate belt plies, belts can be divided into two layers, three layers or four layers etc.
  • Easy to maintenance
  • Economic design, if no need separate the belt ply too much, will be good choice for you.
  • Hard alloy steel knife, replaceable, easy to change.
  • For PVC, PU belts and rubber belts
  • Split width 150mm

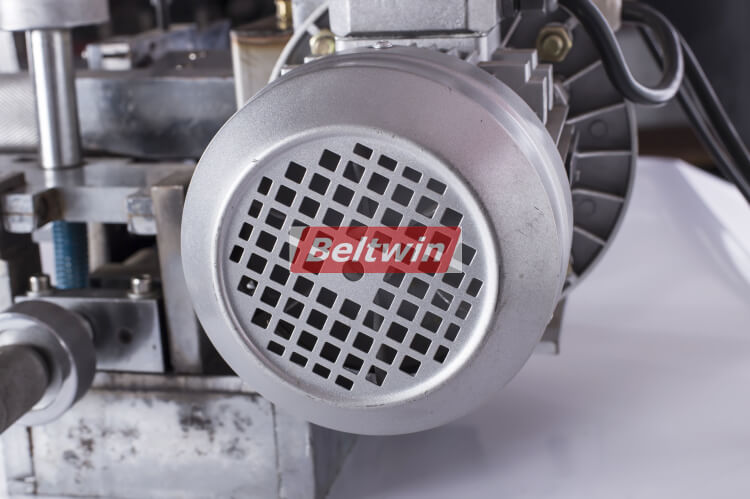

  • Motor speed: 1400 r/min 1.88A

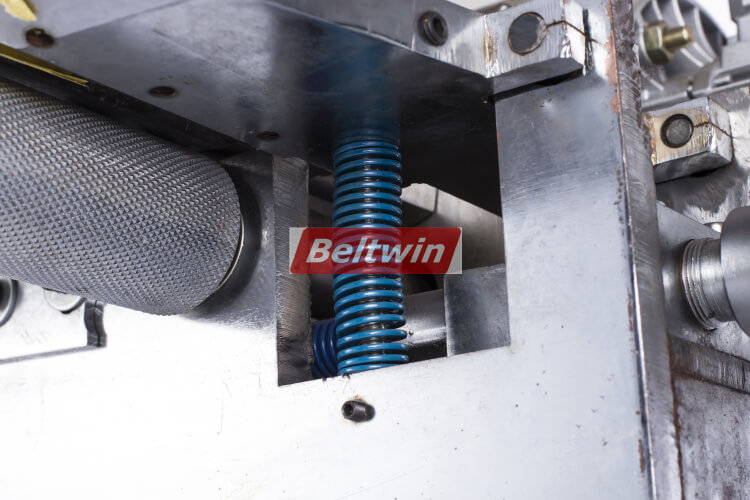

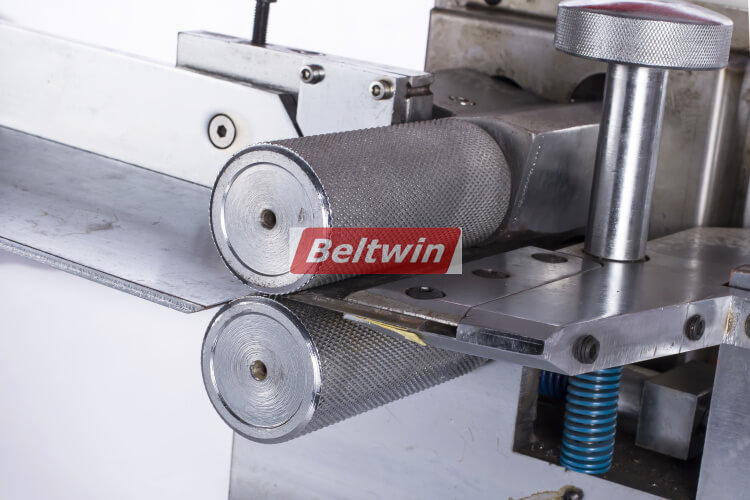

  • Adjust bolt: set upper and lower roller distance accords to ply thickness.
  • Split thickness max 15mm , if any special requirements, pls freely to let me know.
  • With pedal switch, easy operation
  • 380V 3phase
  • Power: 750W
  • Machine net weight: 46kgs

Video for Belt Ply Separator:

PVC PU Belt Ply Separator SB130
