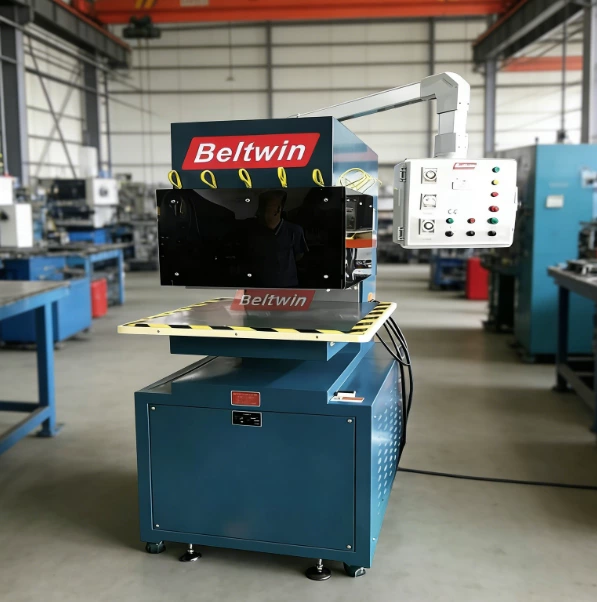

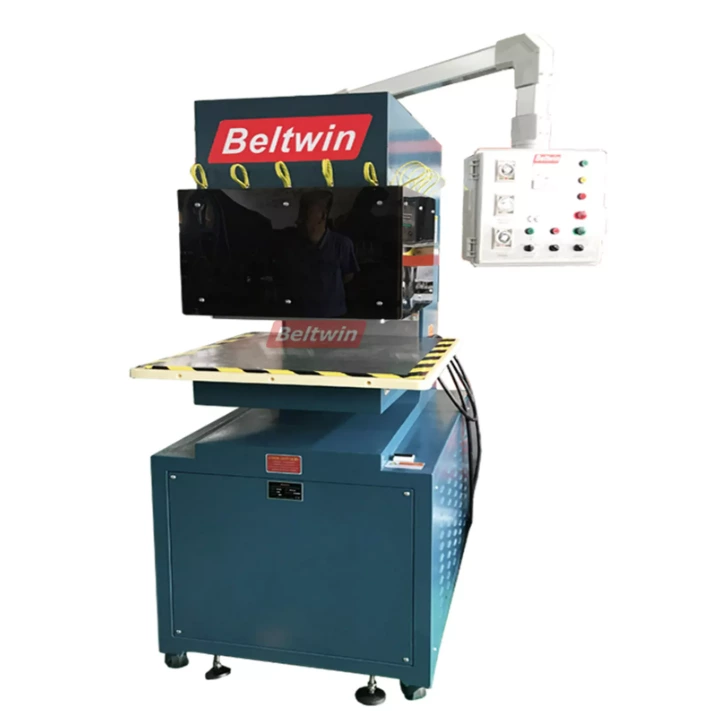

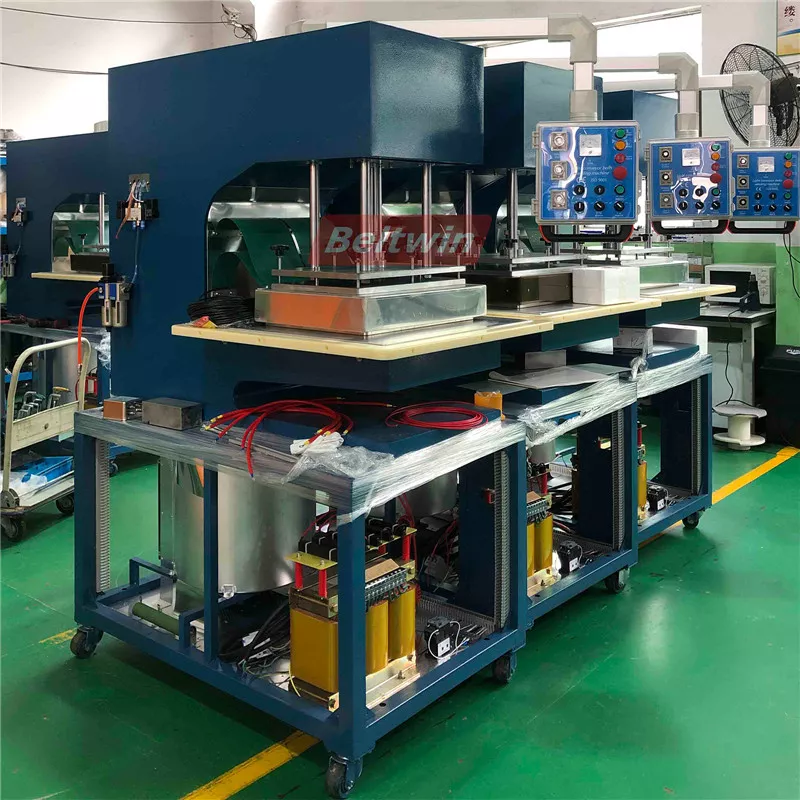

QA-1000H High Frequency Belt Welding Machine For Belt V-Guide/Cleat/Sidewall

High Frequency Belt Welding Machine,used for welding T Cleat, X Cleat, Sidewall and V guide etc. Profiles on PVC PU conveyor belt.

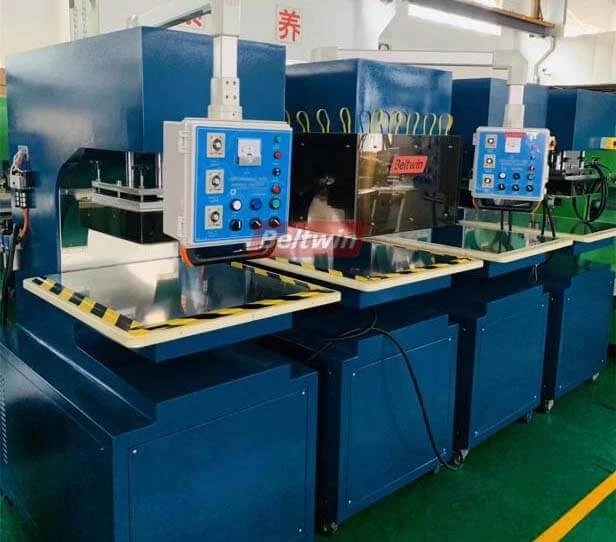

QA-1000H High Frequency Belt Welding Machine For Belt V-Guide/Cleat/Sidewall
QA-1000H High Frequency Belt Welding Machine For Belt V-Guide/Cleat/Sidewall QA-1000H High Frequency Belt Welding Machine For Belt V-Guide/Cleat/Sidewall

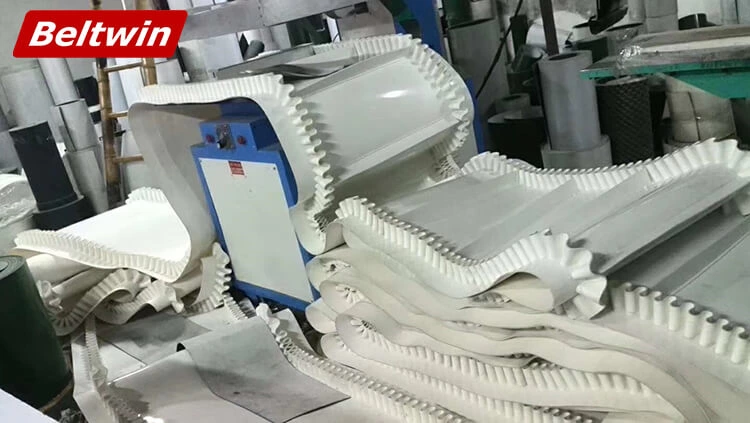

Beltwin High Frequency welding machine is using for fabrications of various cleats, steps and sidewalls can be done easily.

High Frequency welding (HF) or Radio Frequency welding (RF) is the joining of pvc/pu material by supplying HF energy in the form of an electromagnetic field and pressure to the pvc/pu conveyor belt surface.


  1. Machine power: 10KW
  2. Upper platen size: 650*500mm
  3. Bottom plate size: 700*1200mm
  4. Welding length: Cleat/sidewall/V-guide 500~600mm at one time (For cleat mould, the maximum length can be 800mm.)
  5. Working voltage: 380V 3phase (other voltage available by request)
  6. Input power: 16 KVA
  7. Working frequency: 27.12 Mhz
  8. With serious protection: The current resistance protection spark protection and emergency brake protection.
  9. Automated HF weld cycles
  10. Pneumatic lifting system
  11. Easy set-up and operation
  12. Fully HF shielded,whole machine under protection.
  13. High quality vacuum tube from TOSHIBA,made in Japan.
  14. For various material thicknesses and cleat/ sidewall heights upto 120mm


  1. Universal for T-cleat,X-cleat,L-cleat,sidewall,profile,v-guide etc.
  2. Machine groove is deep and wide. It is convenient to weld large area.
  3. Adopting high sensitive spark protect device to avoid damaging the mould.
  4. Welding length can be extended to 800mm or longer for one time.
  5. European model square high frequency vibration box, more stable in output.
  6. Current Adjustment Mode: Rotating Knobs Adjustable Or Electrically Adjustable

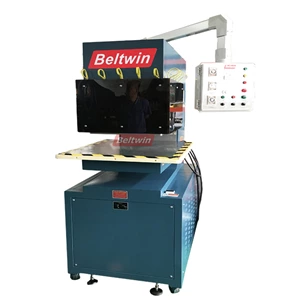

Model QA-1000 QA-1000H QA-1300
Power 10KW 10KW 13KW
Top Heating Plate Size 500*400mm 650*500mm 700*400mm
Bottom Hetaing Plate Size 700*800mm 700*1200mm 600*1500mm
Belt Width No limited 1050mm 1350mm
Max Cleat Length 500mm 800mm 1000mm
Max Sidewall Length 500mm 500mm 500mm
Control System Rocker Control Box Rocker Control Box Or Individual Control Box Individual Control Box
Current Adjustment Mode Rotating Knobs Adjustable Rotating Knobs Adjustable Or Electrically adjustable Electrically Adjustable

The bottom heating platen is 700x1200mm, normally can weld 500mm length cleat (Maximum weld cleat 800mm length)

weld 500mm length sidewall for 600-650mm width belt

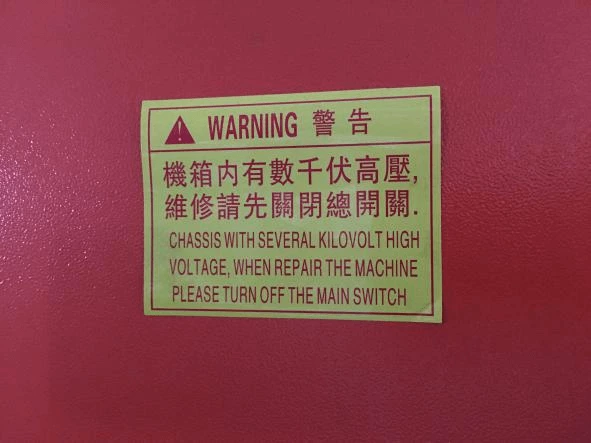

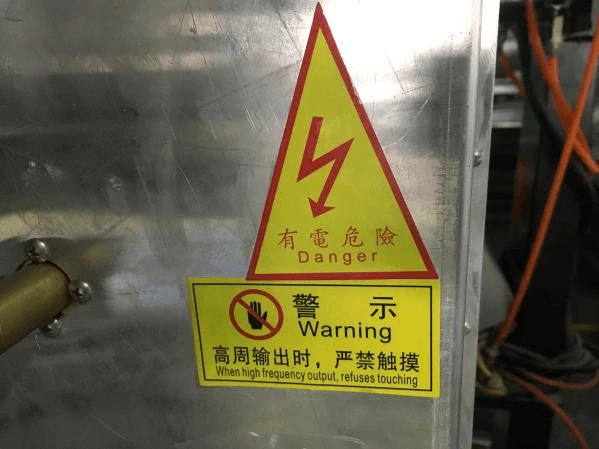

Safety Mark

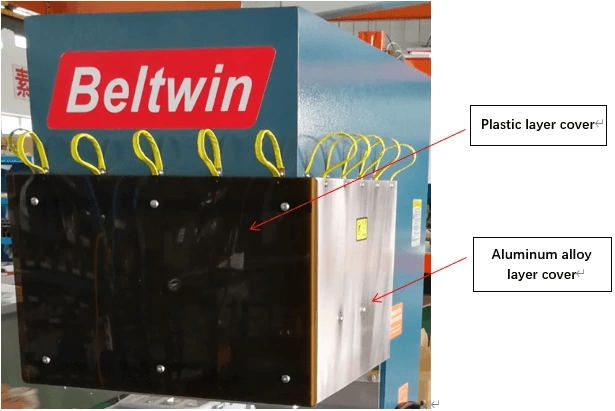

Protection Cover

With protection cover, offer extra protection. Protect the operator far from electric danger and isolate radiation. The machine will only start work until the cover comes down. It’s designed as double layers protection, aluminum alloy and plastic material cover.

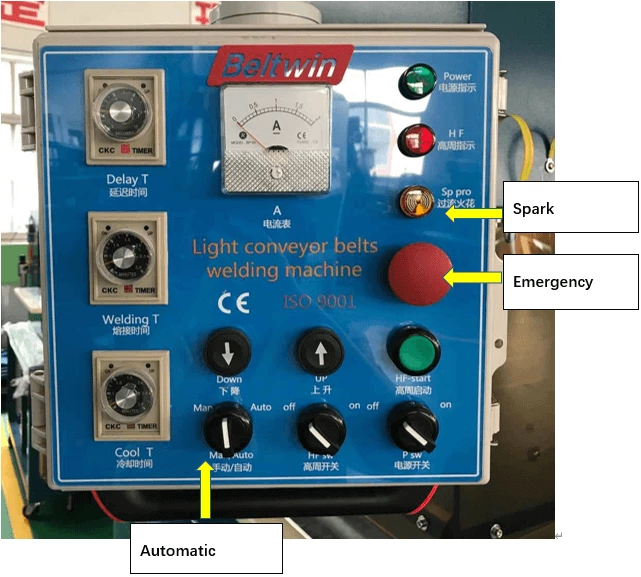

Control Panel

For cleats and 3mm thick sidewall

  • Delay time: set it at 3s
  • Welding time: 50s ( Can adjust the time according to real case when the material is too thick or too thin,slowly by 5s interval )
  • Cooling time: 45s
  • Rise time: 3s
  • Counter: 0.5-0.6 for PVC cleats and sidewall 0.8-1.0 for PU cleats and sidewall.

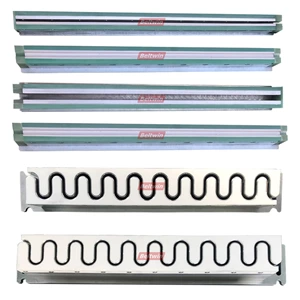

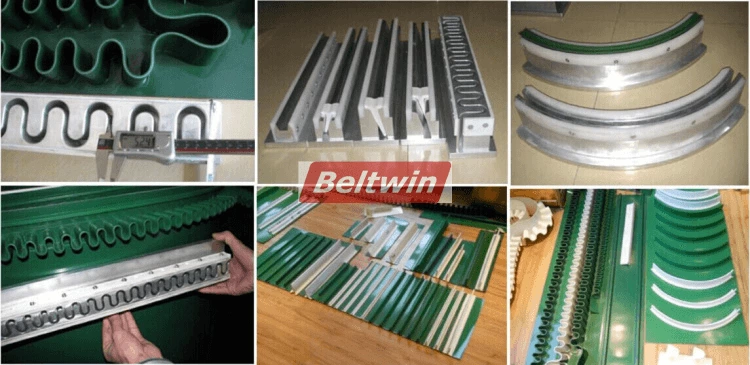

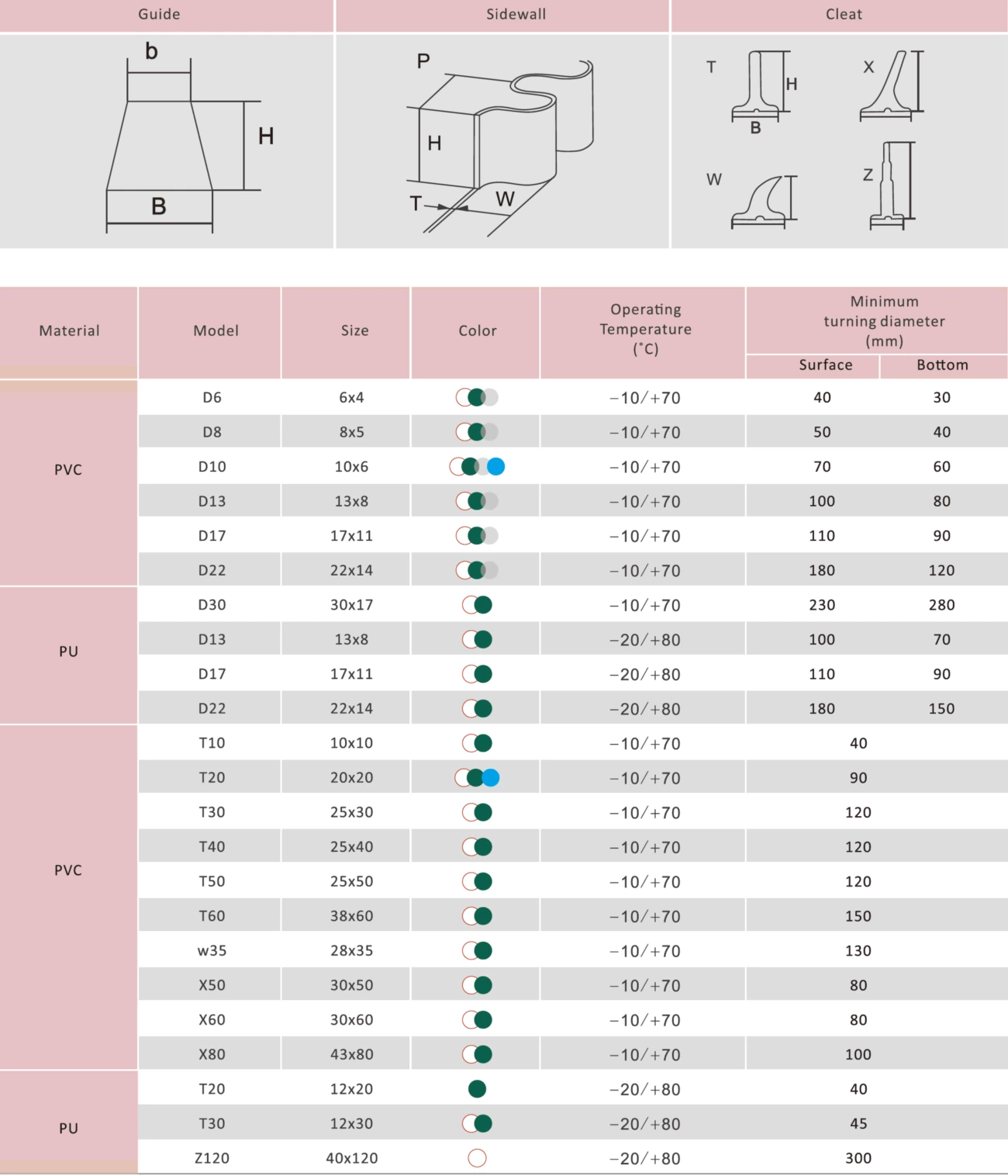

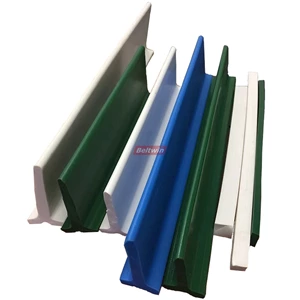

Profile Moulds

HF machine need mould to finish welding work, regarding the mould, we list some normal size as you choose, and standard mould length is 500mm.
