25KW High Frequency Welding Machine for treadmill, PVC PU Belt splice and welding Cleat Sidewall, guide

High Frequency Belt Welding Machine special used for PVC, TPU, Treadmill belts joint. welding T Cleat, X Cleat, Sidewall and guide
25KW High Frequency Welding Machine for treadmill, PVC PU Belt splice and welding Cleat Sidewall, guide

BELTWIN High Frequency welding machine is using for Fabrications of various cleats, steps and sidewalls can be done easily.

25KW High Frequency Welding machine is special used for PVC TPU Treadmill belts joint. It can also do cleats profile welding. Max cleat welding length:1200mm.

Product Information:

  1. Machine Power: 25KW
  2. Welding Length: Cleat: Max 750mm, Sidewall: Max 500-550mm at one time
  3. Max Belt Width: 1500mm
  4. Working Voltage: 380V 3 Phases, other voltage available by request
  5. Adjust the current by button
  6. Two sides working table


  1. Protection cover
  2. Remote Control Box or Remote Control panel


  1. Used for industrial belt, conveyor belt, transmission belt, baffle, sidewall welding
  2. Machine groove is deep and wide. It is convenient to weld large area.
  3. Adopting high sensitive spark protect device to avoid damaging the mould.
  4. Welding length can be extended to 700mm or longer for one time.
  5. European model square high frequency vibration box, more stable in output.
  6. Adjusting the current through the button is more accurate.

Techanical Specifications:

  • HF power outputs 25KW
  • Stable High frequency output
  • Power Supply: 3P 380V 50HZ
  • Frequency:30KVA
  • Work plate size: 750*400mm
  • Bottom table size: 1000*600mm
  • Length of working table: 1000mm
  • Machine throat size: 360mm

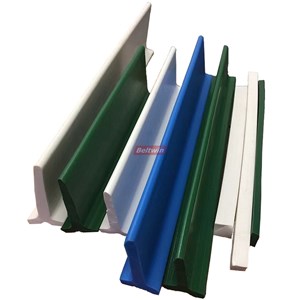

  • Universal for treadmill and PVC TPU belt splice and T-Cleats, X-Cleats, L-Cleats, Sidewalls, profile ,V-Guides etc.
  • Automated HF weld cycles
  • Easy setup and operation
  • Fully HF shielded, whole machine under protection
  • With serious protection: The current resistance protection, Spark protection and Emergency brake protection
  • High quality vacuum tube from CANON, made in Japan.
  • Use pneumatic lifting system
  • Can used for various material thicknesses and cleat/ side wall heights (upto 120mm)

Photos For High Frequency Machine

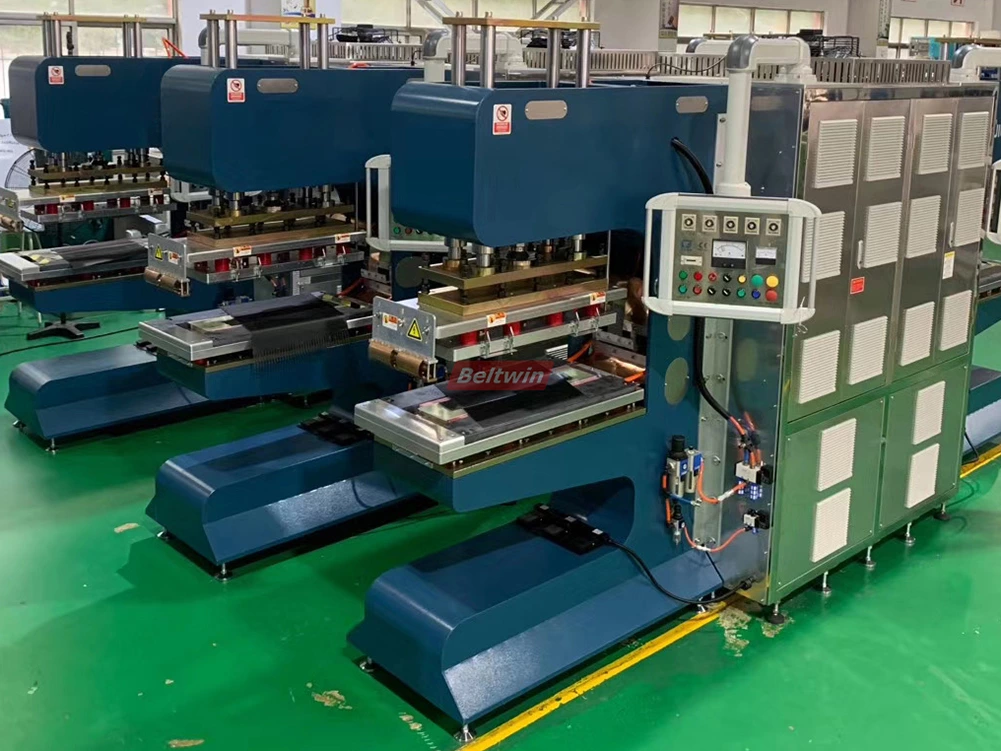

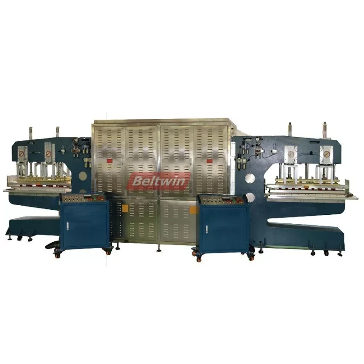

25KW HF Machine With Moveable Control Box:


  • 15 years long life time
  • Reliable machine structure, cross profile without welding and bolts. Cut from complete metal plate. Offer longer life time.

  • Stable high frequency oscillation output
  • Sensitive sparkle protection
  • Fast preheating and stable heating-up,
  • Effectual shielding of high-frequency power output
  • Over Current Protection
  • Fast preheating and stable heating-up, applicable for large acreage welding, reduce at least 30% high-frequency power output
  • Range of application: Sidewall, Cleat, Serging and guide welding.
  • CE approved and EU Standard Security Monitoring
  • Provide professional technical support and after-service in time.

Safety Mark

For cleats and 3mm thick sidewall:

Delay time: set it at 3s

Welding time: 50s

(u can adjust the time according to real case when the material is too thick or too thin,slowly by 5s interval )

Cooling time: 45s

Rise time: 3s

Counter: 0.5-0.6 for PVC cleats and sidewall 0.8-1.0 for PU cleats and sidewall.

Profile Moulds

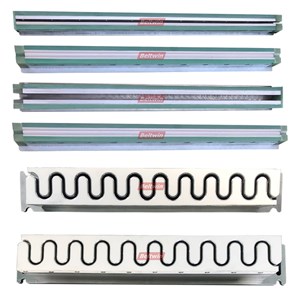

HF machine need mould to finish welding work, regarding the mould, we list some normal size as you choose, and standard mould length is 500mm.
