PVC/PU Cleat ,Sidewall ,Guide
Using advanced equipment and technology, special processing to meet the requirements
of work site lifting,slope and accurate positioning.

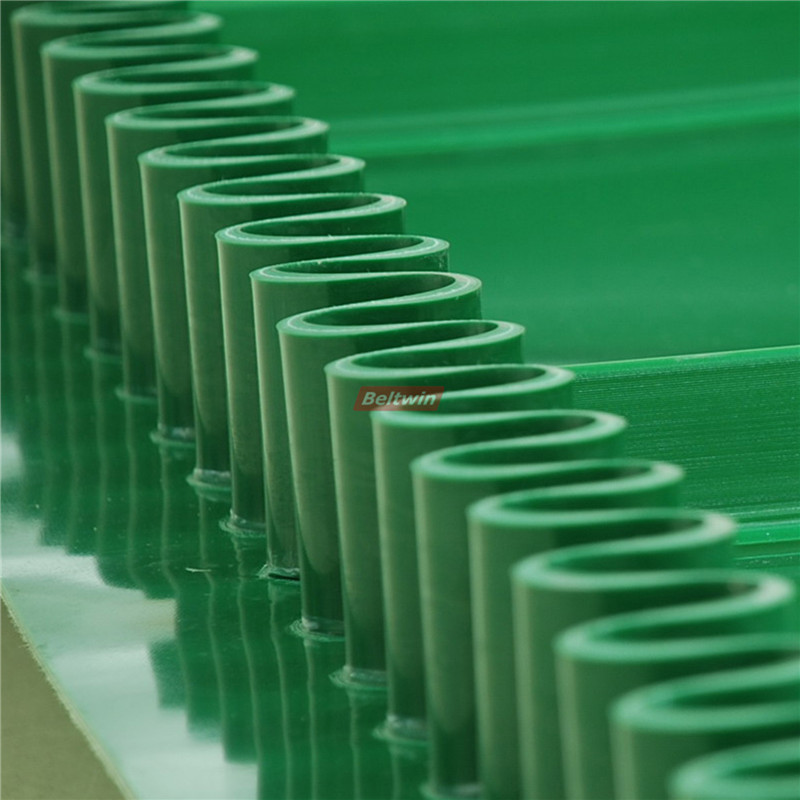

Examples of sidewall and cleat

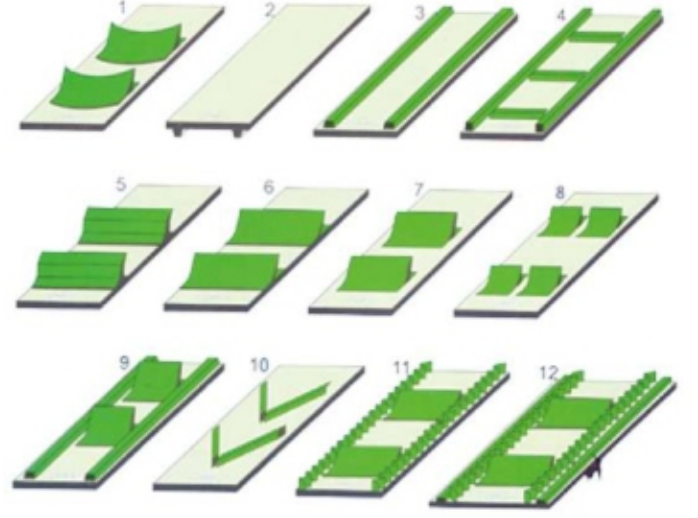

Profiles, Cleat and Sidewalls
Using advancde equipment and technology, special processing to meet the requirements of work site lifting, slope and accurate positioning.

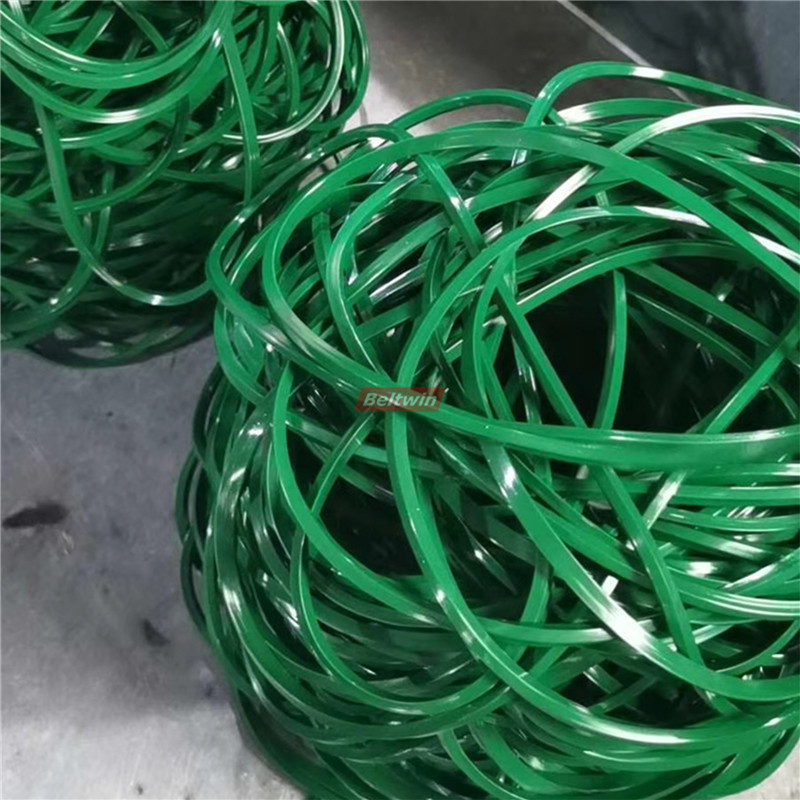

Examples of profifiles and cleats

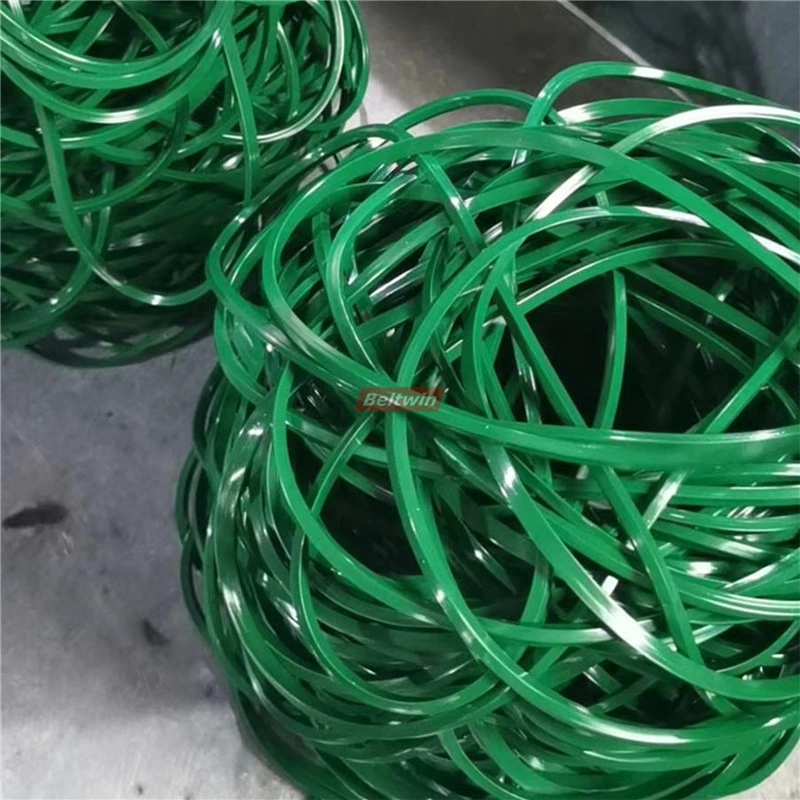

Specification List For Guide

Drawing

Model

Size(BxH) (mm)

Material

Color















PVC Guide

4.2

PU









White

Green

Yellow

Blue

Gray

Dark Green

Transparent

5.3

PVC/PU

6.4

PVC/PU

8*5

PVC/PU

10*6

PVC/PU

13*8

PVC/PU

17*11

PVC/PU

22*14

PVC/PU

30*16

PVC













        Square Guide

5*5

PVC

8*8

PVC

10*10

PVC

12*12

PVC

15*15

PVC

20*20

PVC

25*25

PVC


Specification List For Cleat

Drawing

Cleat Shape



Model



Height(H)(mm)

Width(B)(mm)

Color

























  PVC Cleat (T)

T10

10

10





















White

Green

Yellow

Blue

Gray

Dark Green

Transparent



T20

20

18

T30

30

25

T40

40

25

T50

50

25

T60

60

25

T70

70

35

T80

80

35

T90

90

35

T100

100

35

T120

120

45

T150

150

45

















  PVC Cleat (X)

X20

20

18

X30

30

25

X40

40

25

X50

50

25

X60

60

25

X70

70

35

X80

80

35

X90

90

35

X100

100

35

X120

120

40







 PVC Cleat (W)

W30

30

25

W40

40

25

W50

50

25

W60

60

25













      PU Cleat



T10

10

10

T20

20

14

T30

30

14

T40

40

14

T50

50

14

T60

60

15

T70

70

16

T80

80

16



Specification List For Sidewall

Drawing



Thick(mm)

Height(mm)

Width(mm)

Min.dia(mm)

Working Temperature

Color











    Sidewall



3.0

20

28

60







     (-10/+70)

White

Green

Yellow

Blue

Gray

Dark Green

Transparent

30-40

35

80

50-70

45

100



4.0



50-60

50

120

70-80

50

150

90-100

50

180

110-120

50

200
