PortuguêsTiming Belt Tooth Milling Machine QD200TG

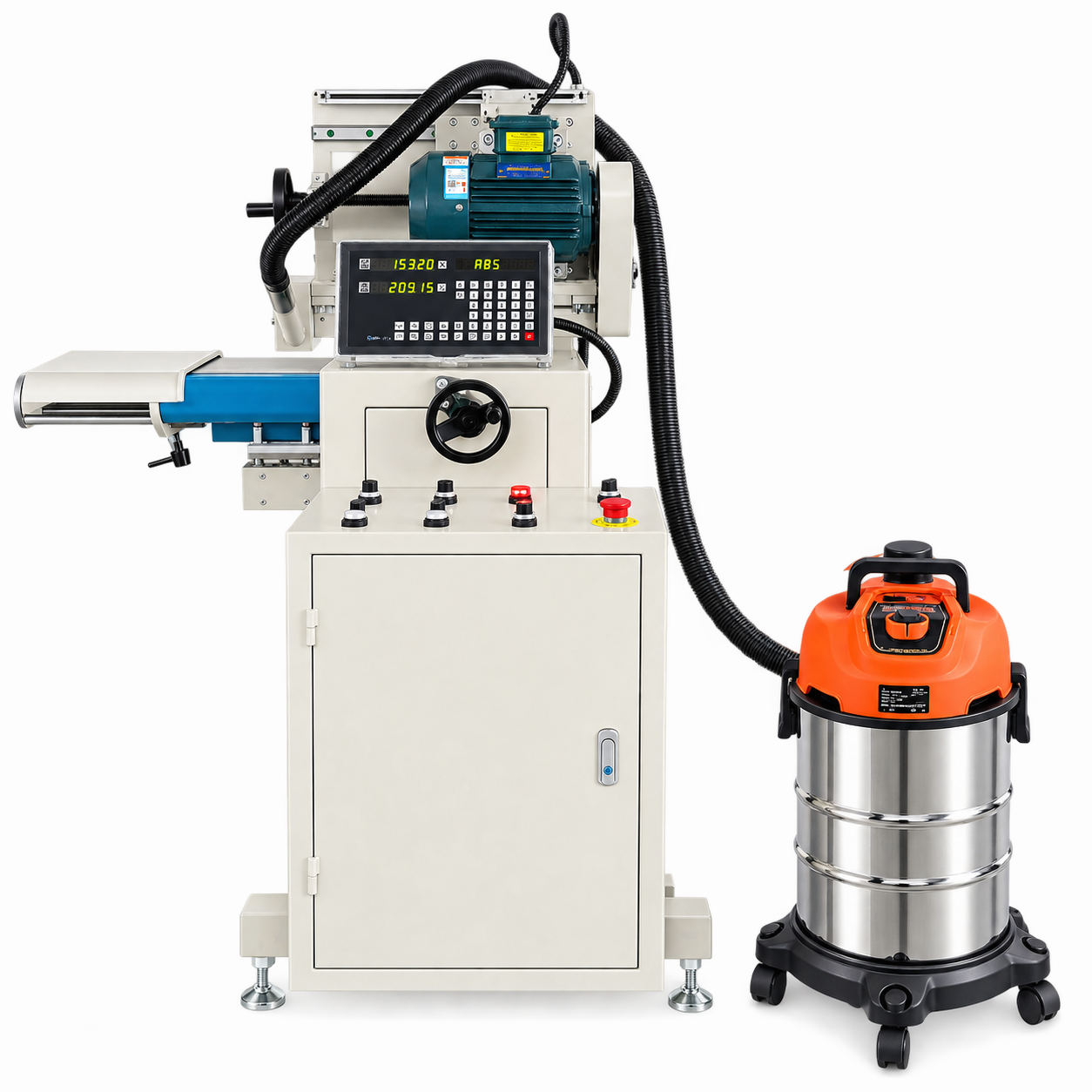

QD200TG Timing Belt Tooth Milling Machine for open or endless timing belt remove the teeth. High working efficiency and easy operation.
- Belt Width
- 200mm
- Belt Type
- Timing belt
Feature
- High-Power Motor – High efficiency and stable performance.
- Precise Adjustment – Milling position and depth are precisely adjustable.
- Safe & Clean Operation – Protective cutter guard ensures safer, cleaner operation.
- Fast Milling – 1 meter in just 1–2 minutes, with adjustable cutter speed.
- Adjustable Belt Speed – Flexible belt feeding speed for different processing requirements.
Technical Datasheet
| Belt Width | 200mm |
| Voltage | 3*380V + N |
| Power | 2 kW |
| For Endless | min length 900mm |
| Weight | 381 Kg |
| Dimensions (Length * Width * Height) | 1040*1140*1780 mm |
1. Different width milling blade
2. Vacuum cleaner

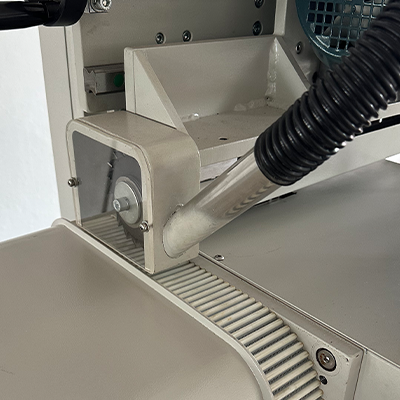

1.With protective cover, vacuum. Ensure safety and cleanliness.

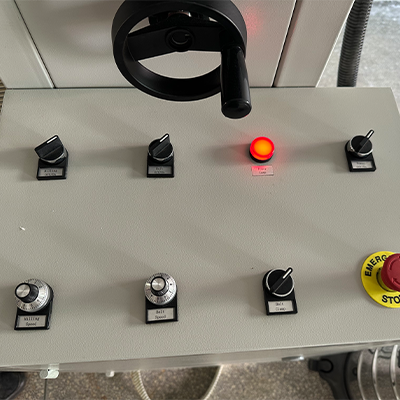

2.The belt running speed, milling blade speed, etc. are all adjusted in speed through the frequency converter.
3.The tabletop can be moved to achieve belt width adjustment.

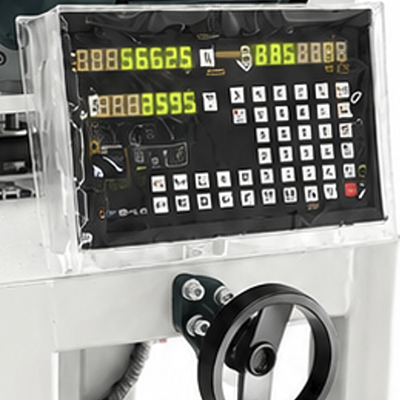

4.Left-right movement and up-down movement will be displayed numerically on the screen.
