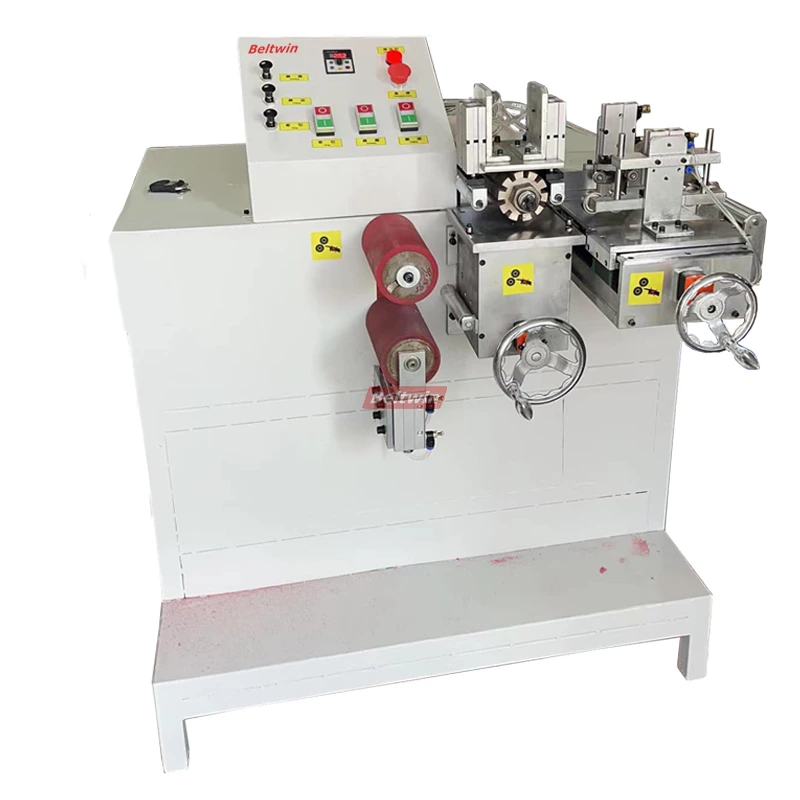

Timing Belt Grinding & Milling Machine QD150G

QD150G ia an all-in-one design for timing belt grinding. It can grind the timing belt back and edge and includes a device to mill the teeth on the belt surface.
Timing Belt Grinding & Milling Machine QD150G
Timing Belt Grinding & Milling Machine QD150G Timing Belt Grinding & Milling Machine QD150G



Technical Datasheet

Type QD150G
Suitable For PU/Rubber sheet or belt coating products
Working Voltage 380V 3phase or as request
Frequency 50~60HZ
Working Width 5-150mm
Working Belt Thickness 1-20mm (please inform us if you need to process thinner or thicker belt)
Grinding Width 5-150mm
Working Length 1500mm-unlimited length
Belt Edge Grinding Motor Power 1.5KW
Spindle Speed Frequency adjustable speed
Belt Edge Grinding Motor Speed 4500r/min
Belt Back Grinding Motor Power 1.5KW
Belt Back Grinding Motor Speed 3500r/min
Accuarcy of Teeth Milling ±0.2mm
Accuracy of Teeth Milling ±0.4mm
Machine Structure Surface plastic coating+accessories electroplating treatment

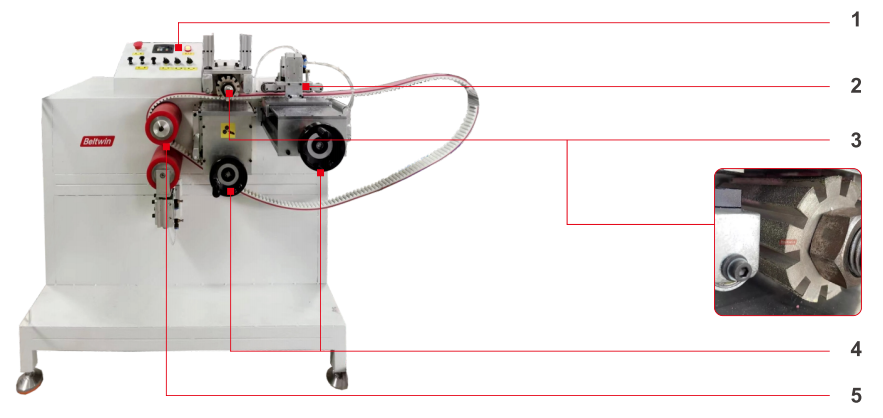

  1. Control Panel: control roller clamps,edging and surface grinding switches etc
  2. Working area for belt edge grinding
  3. Working area for belt back grinding/teeth milling
  4. Rotary handle to control grinding accuracy
  5. Lifting roller fixture and driving wheel
Features Benefits
One machine can make 3 types of timing belt process functions: belt back grinding/ belt edge grinding/ teeth milling Simple operation, lower machine input cost, high accuracy.
Digital conreol panel & Rotary handle grinding high accuracy adjusting

Accuracy of edge & back grinding:±0.2mm

Accuracy of teeth milling:±0.4mm

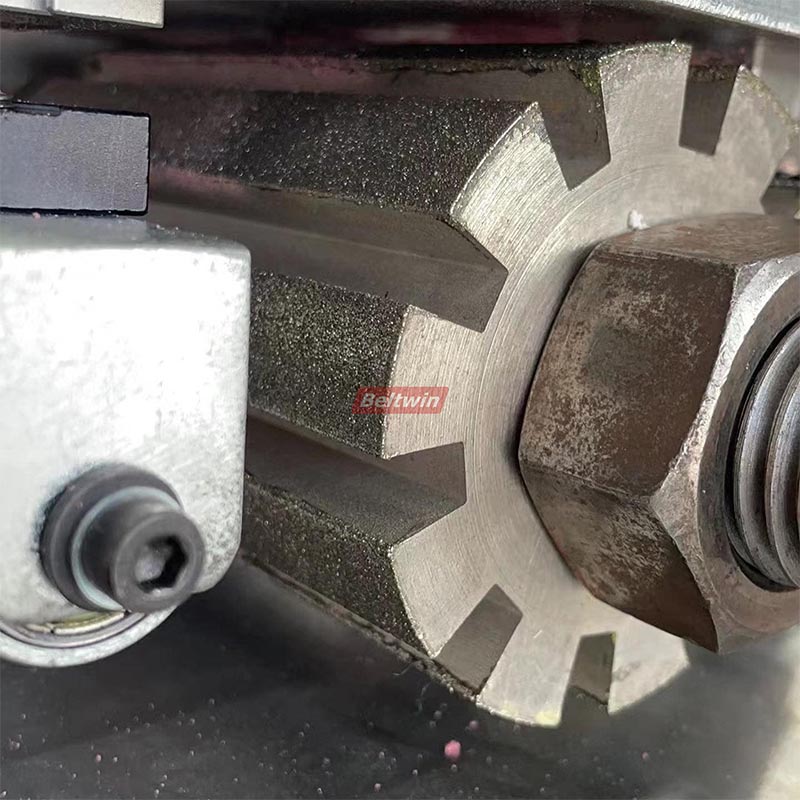

Equipped with high-speed milling cutter and diamond abrasive tools, it is specially used for grinding various glued materials The grinding tool is very durable and maintenance-free, the speed is as high as 4500r/min and the processed surface is very smooth.
Milling toolsize can be changed Suitable for longitudinal milling requirements of various width
Moveable stand No belt length limited
