C-Clamp Repair Vulcanizers | Vulcanizing Repair Press for Rubber Conveyor Belt

Description:

Beltwin Clamp repair vulcanizers can be used for edge-repairs to the center of the belt. Works with all kinds of rubber belt. With automatic temperature and time controller.

Product Information:

1. Material: Aluminum Frame
2. Repair: Longitudinal rips repair and belt edge
3. Pressure System: Common Pressure bag (air or water pressure)
4. Maximum working pressure of 75 psi (5 kg/cm²)
5. Max Belt Width: 1800mm, 2400mm is optional
6. Heating Platen Dimension: 300x1000mm, 300x1200mm, other size can make accords to order
7. Heating Platen: Electric shielded resistance or silicone elements

Optional：

1. Silicone heating element
2. Manual Water pump

Specification:

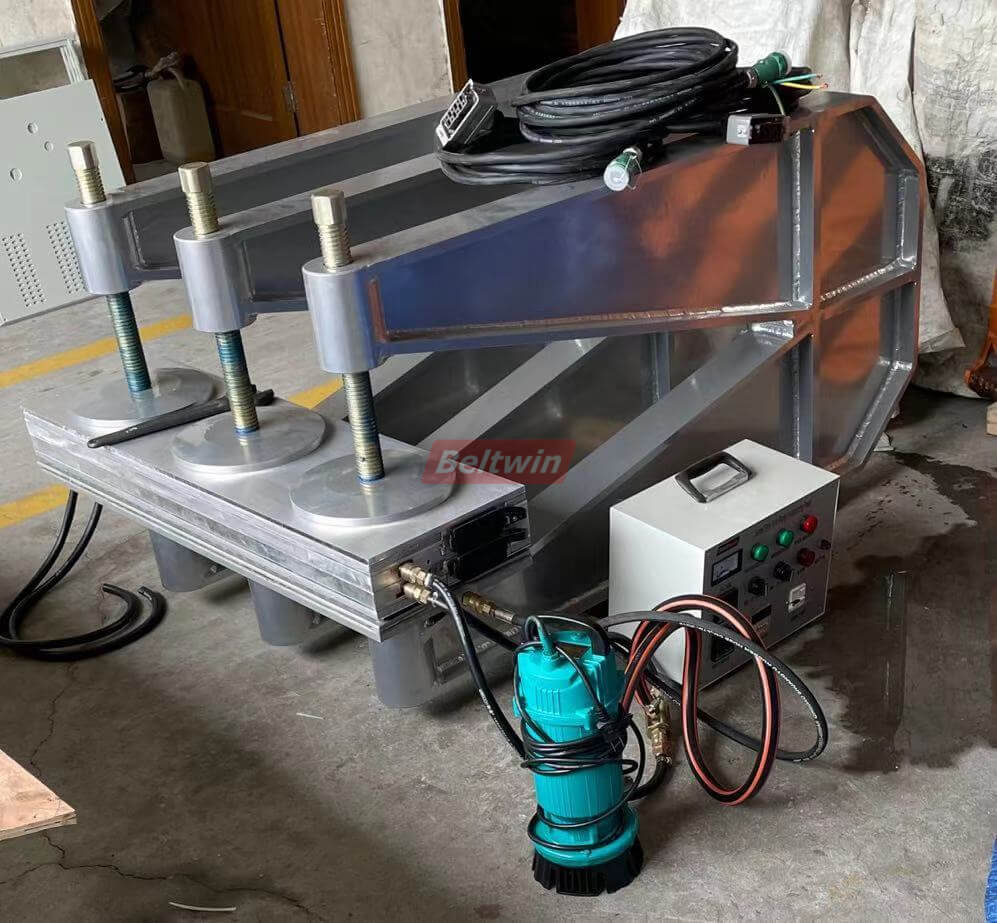

1: C-Clamps

• Pressure c-clamps made of aluminium alloy
• Maximum resistance to bending with minimum weight
• for conveyor belt repairs from belt edges up to belt center
• Available sizes: also can make special accords to customer’s requirements

2: Automatic Switch Cabinet

• With connecting cables (number and type depends on number and sizes of the heating platens)
• Digital temperature display

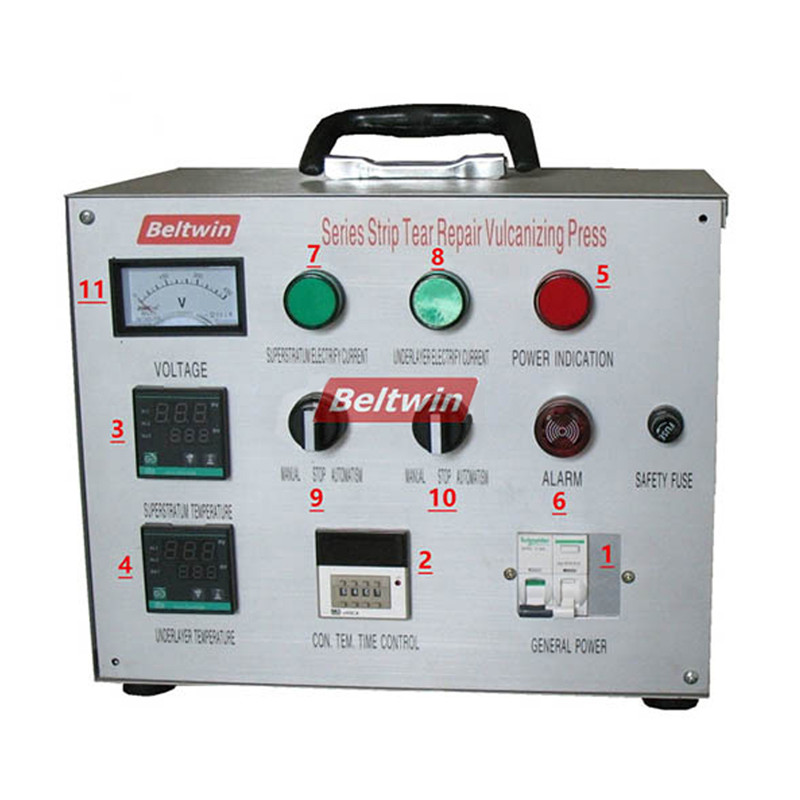

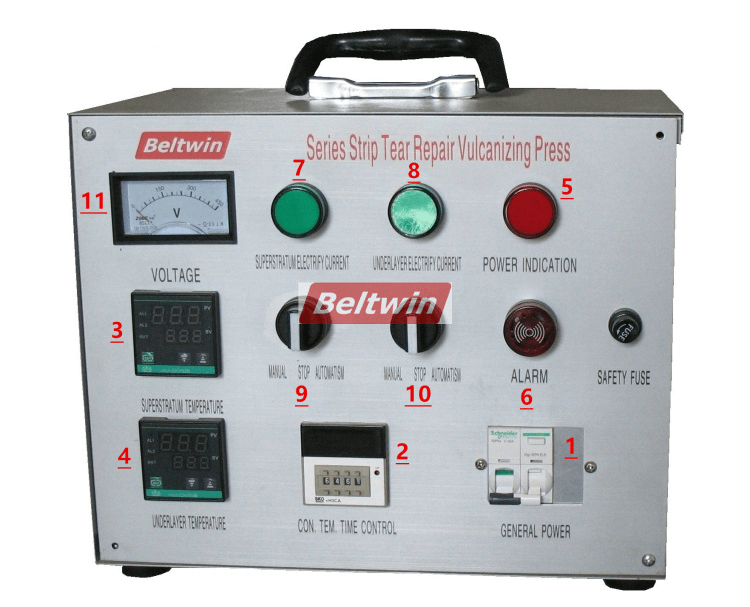

Control

Compare with belt vulcanizer, it used smaller controller, also with temperature and time automatic control.

In case of electronic controller failure, manual operation is possible as well.

1. Main switch (circuit breaker with leakage protection)

2. Electronic type time relay (timer)

3 & 4. Temperature controllers for lower and upper heating platens

5. Power indicator

6. Alarm Indication

7 & 8. Indicating lamp of lower and upper heating platens

9 & 10. Automatic / Manual switch of lower and upper heating platens

11. Voltmeter
