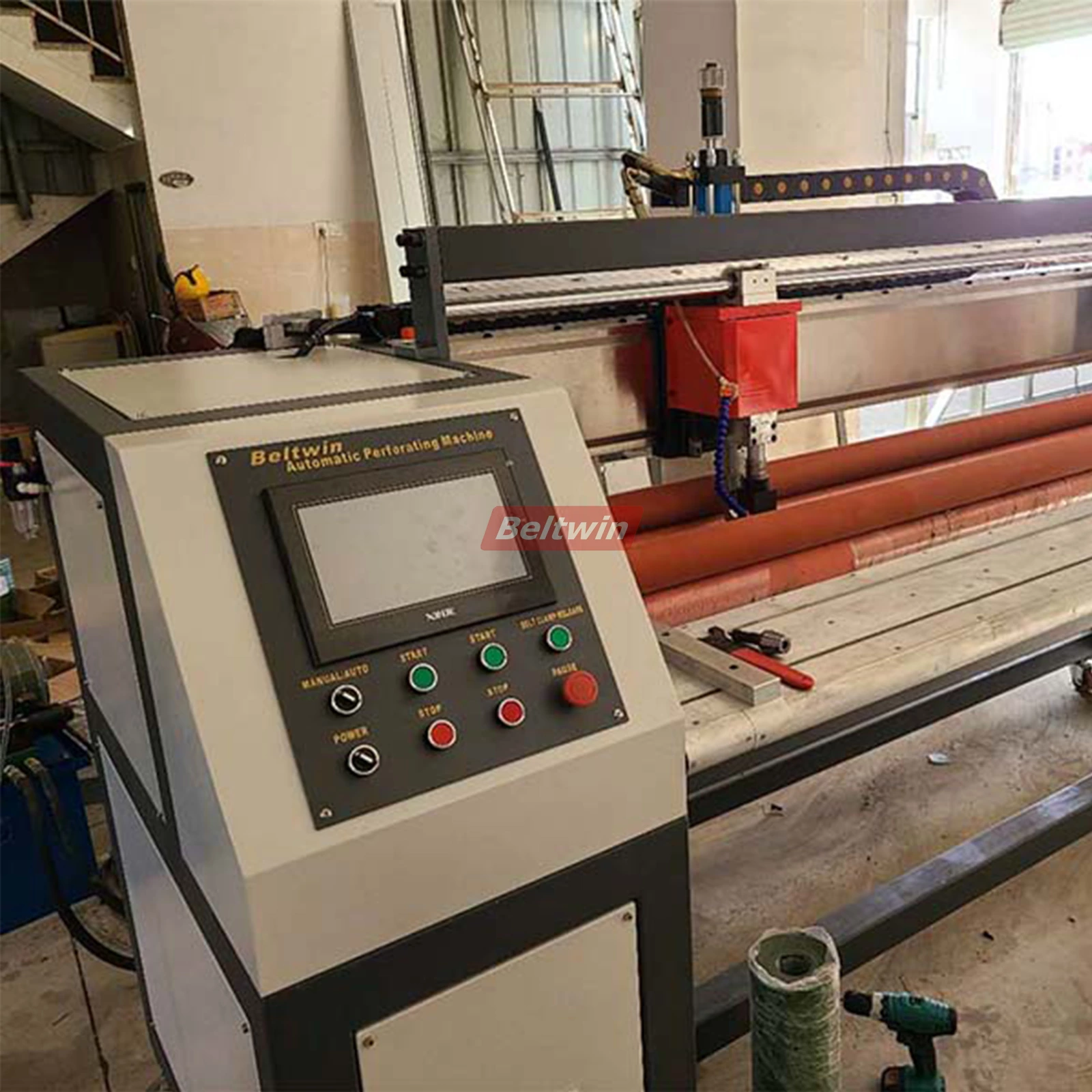

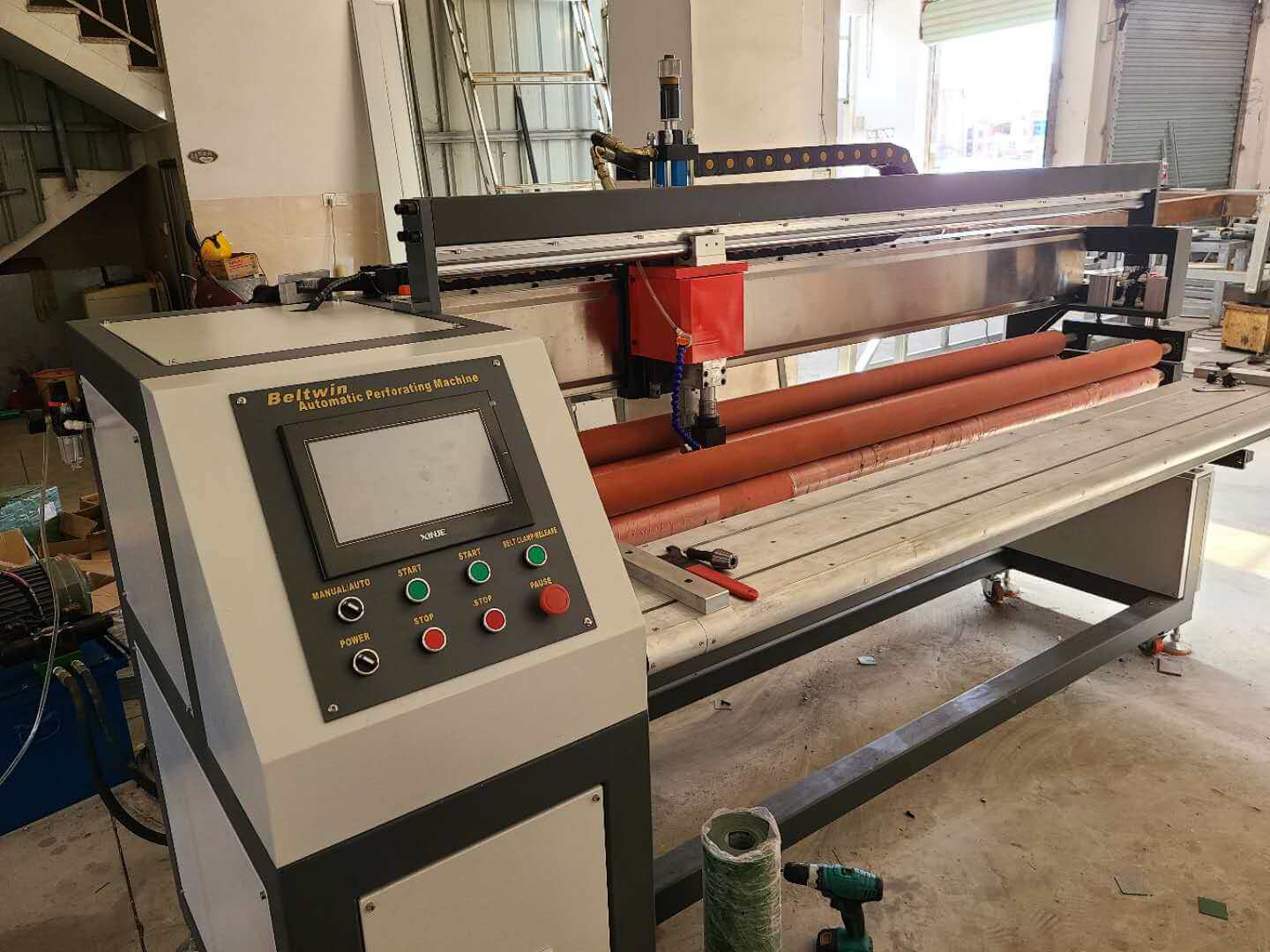

2000mm Wide PVC PU Belt Round Square Oval Holes Punching Machine

The Holes Punching machine is specially designed for making holes on the PVC PU conveyor belt. It is suitable for different types of conveyor belts. It can provide customers with high efficiency and convenient perforating experience, get rid of the trouble of manual drilling.
2000mm Wide PVC PU Belt Round Square Oval Holes Punching Machine
2000mm Wide PVC PU Belt Round Square Oval Holes Punching Machine 2000mm Wide PVC PU Belt Round Square Oval Holes Punching Machine 2000mm Wide PVC PU Belt Round Square Oval Holes Punching Machine

Automatic Perforating Machine


The Holes Punching machine is specially designed for making holes on the PVC PU conveyor belt. It is suitable for different types of conveyor belts. It can provide customers with high efficiency and convenient perforating experience, get rid of the trouble of manual drilling.

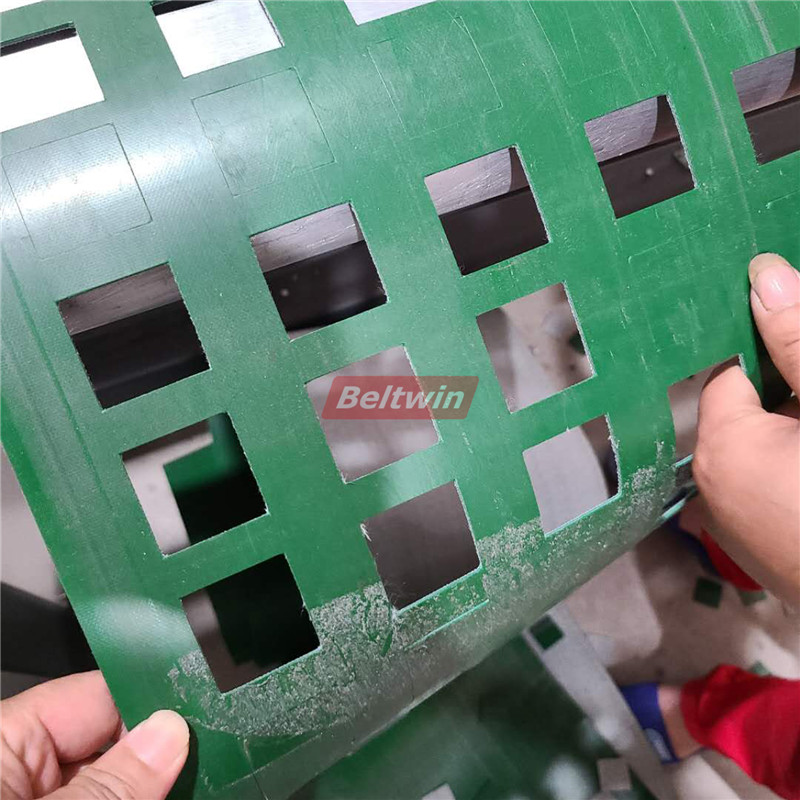

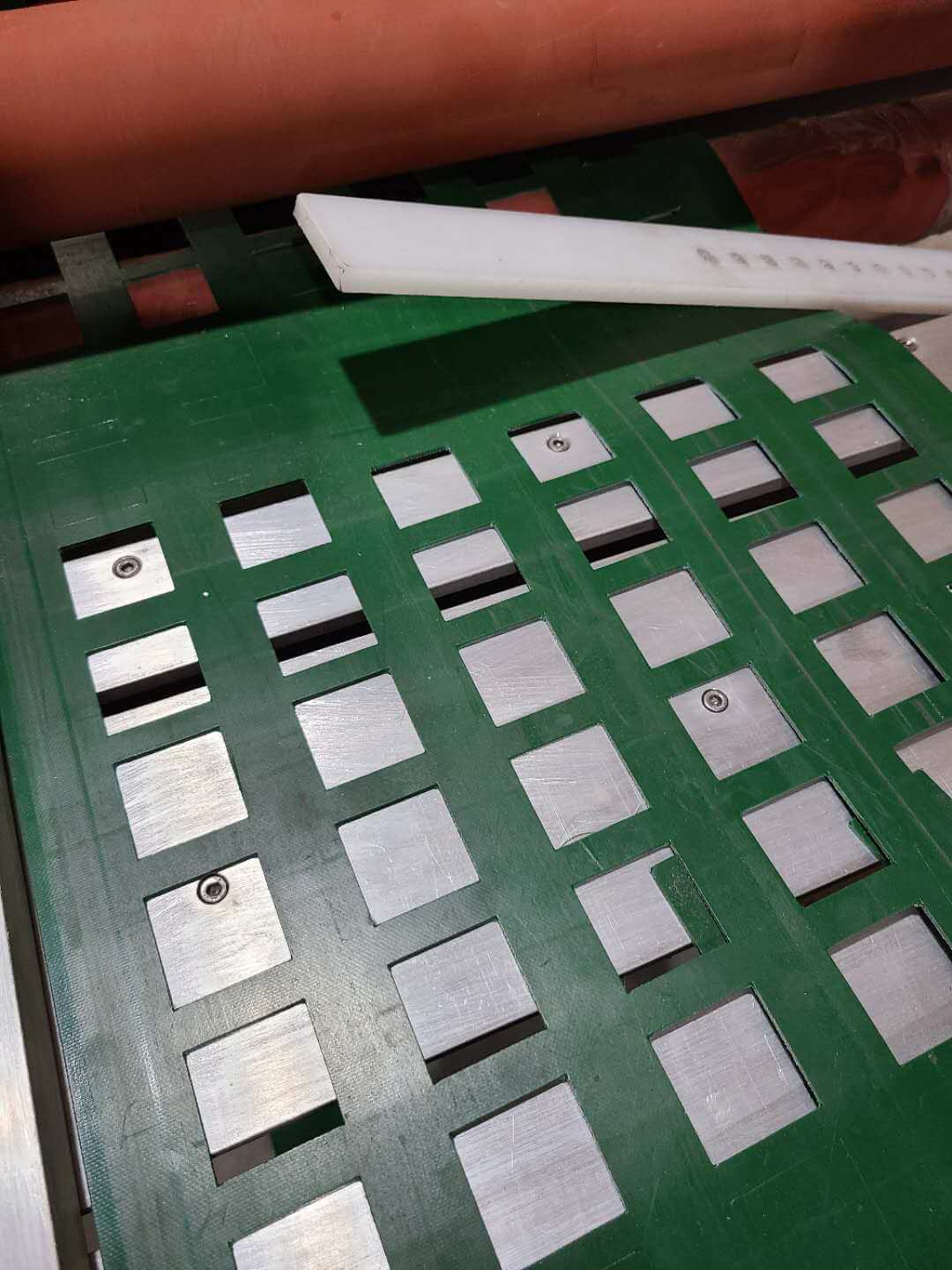

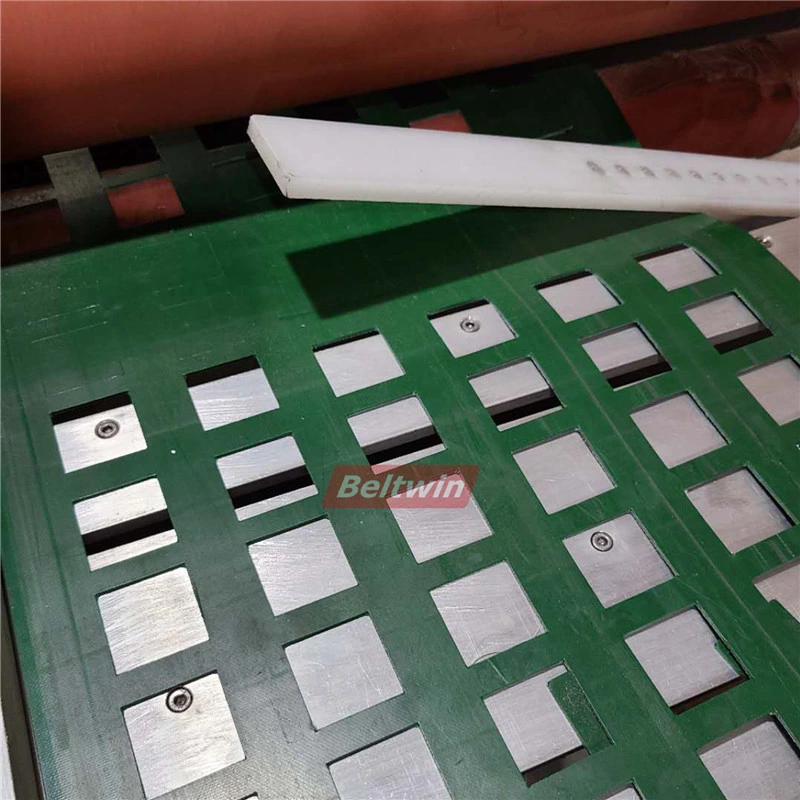

A perforated belt is a PVC/PU conveyor belt with a sequence of punched holes often used for drying or vacuuming purposes. Or rubber belt with holes, used for install something, like bucket etc. Perforated PVC PU conveyor belts allow air to flow around the products and can effectively hold products and materials in place on the conveyor. Normally holes are round, size from 3mm up to 25mm, also have square, oval style holes.

Product Information:

  1. Max Belt width: 2000mm
  2. Holes Making Method: Hydraulic Punching
  3. Holes type: round or square or oval holes
  4. Machine Material: Steel
  5. Belt Type: Open or endless belt (min length 1000mm)
  6. Motor: motor for roller 2.2KW
  7. Electric Connection: 220V single phase
  8. Max thickness 5mm.

Options:

  1. Blades for different size holes
  2. Visible protective cover

Specifications

  1. Suit for different type conveyor belts, such as PVC/PU belt
  2. The commonly used hole size is 3, 4, 5, 6, 7, 8, 9, 10, 11, 12mm, The drill head is changeable, one type hole size with one drilling head.
  3. Can make very clean holes
  4. The machine uses the drilling method, provide different size perforating head, the sharp perforating head can easily perforate the hard conveyor belt, and the hole without burr.
  5. High accuracy: 0.1mm
  6. Total Power: 5500W
  7. Voltage: 220V, Single-Phase
  8. Touch screen, adjustable hole spacing, row spacing, setting of various layouts for holes. all kinds of layout can be real-time changes, not restricted, and The perforating error can be controlled within 1mm.
