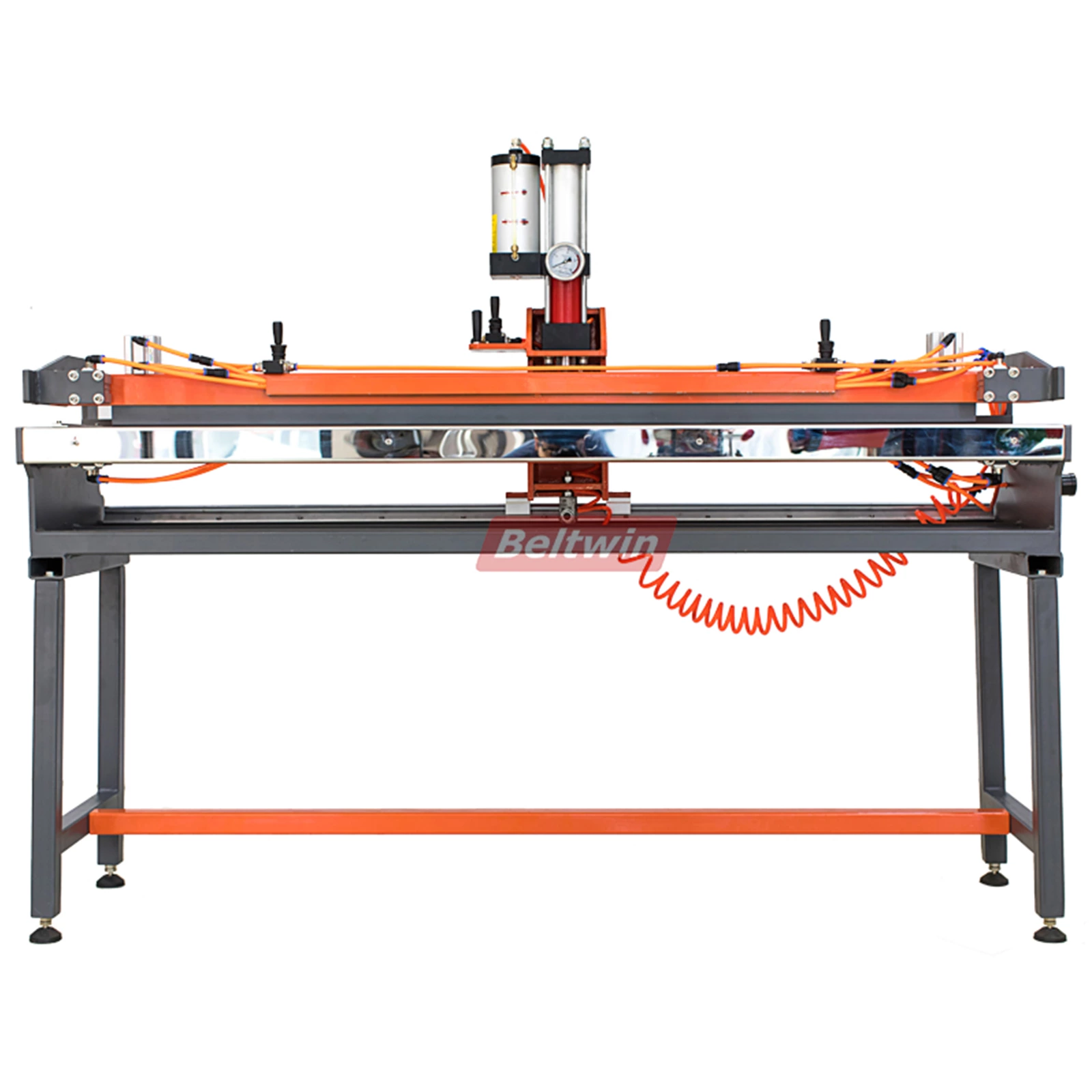

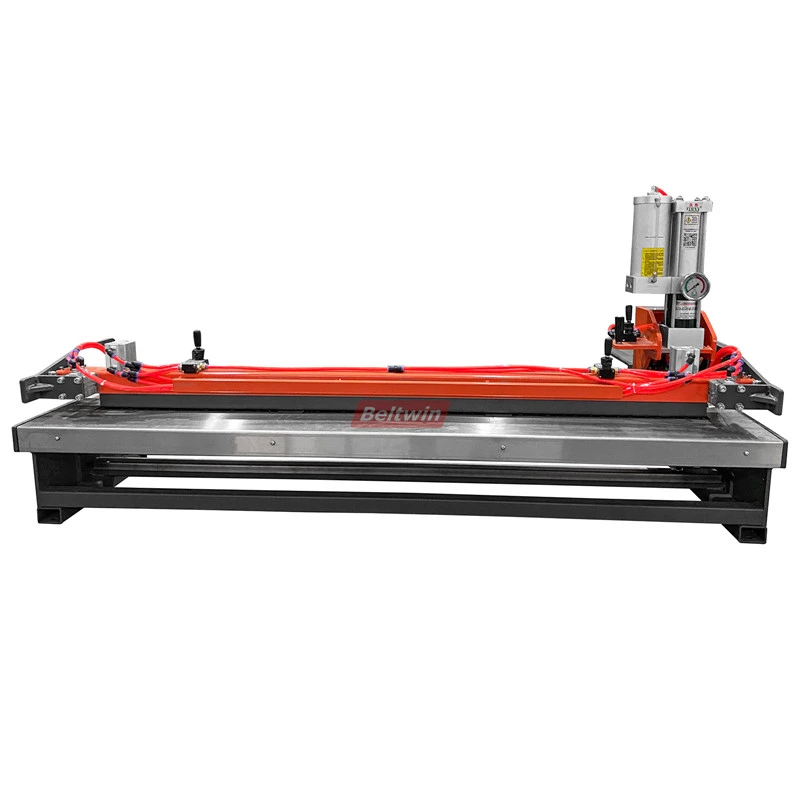

Beltwin Pvc Pu Belt Pneumatic Finger Slitting Machinee Ta1000-2100

___________________________________________________________________________________________________________________________________________________

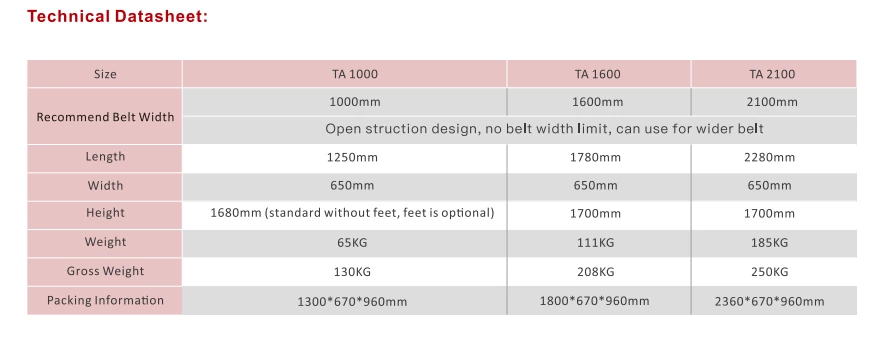

Specifications

• For PVC and polyurethane belts
• No width limited, open construction, max up to 3.2m width belt. Standard type: 1600mm, also can make smaller 1000mm and wider 2000mm.
• Wider working table. Take the TA1600 as an example, the punching area dimension is 1650*50*20mm.

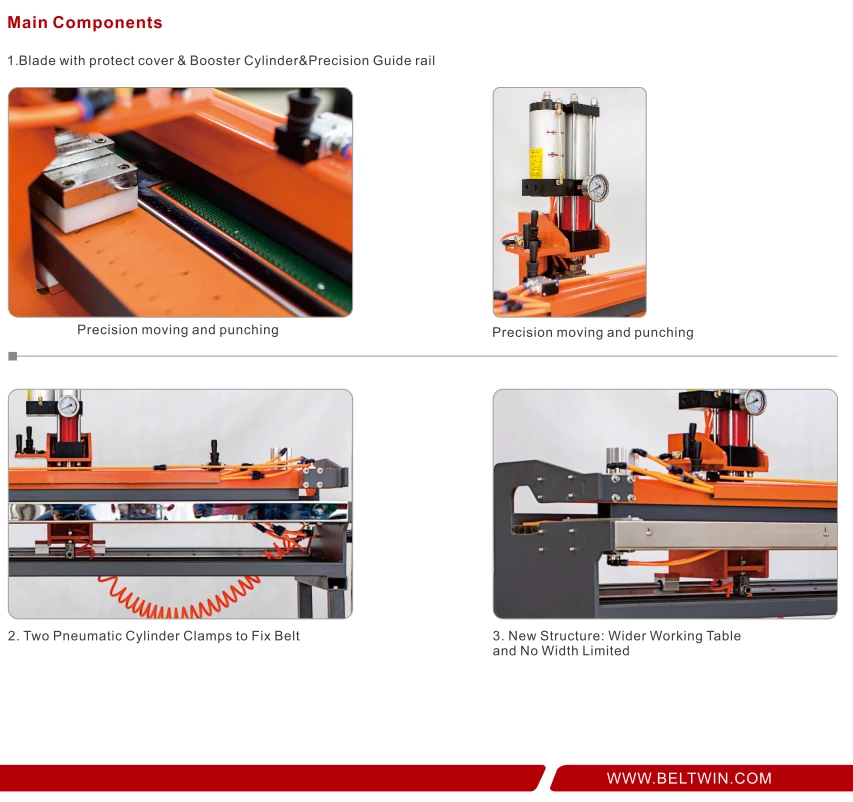

• Use a Booster cylinder, high cylinder strength, work with a high-quality blade, and punch belt completed at one time. 10 times higher speed than the old design.
• Precision moving and punching, using a guide rail, can move smoothly and easy to control the punching position.
• Can punch both single fingers and double fingers, triple fingers (this machine makes it easy to cut finger-over-finger joints with a simple forward/backward movement of the belts).

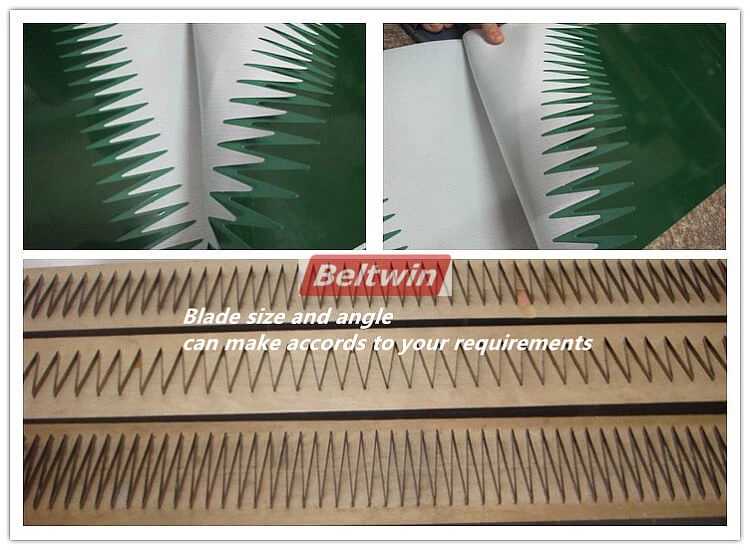

• Standard die blade size: 20*50mm, other dimensions are optional: 10*80mm, 10*70mm, 10*80mm, 10*90mm, 20*80mm, etc.
• 2 types of blade styles for selection: round blade and sharp blade.
• Using a pneumatic cylinder system to fix and unfix the belt.
