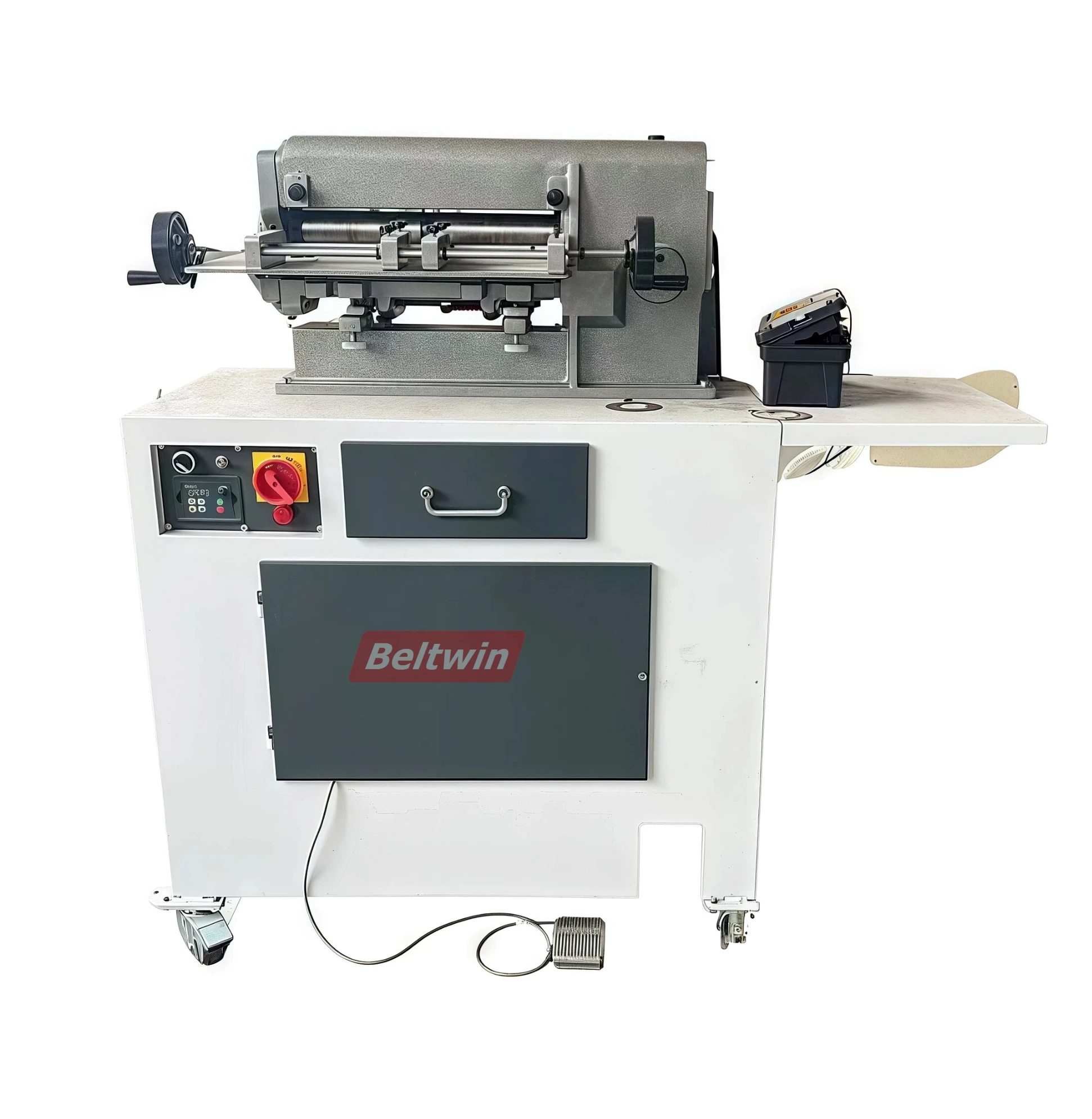

PortuguêsPU Timing Belt Endless Or Open end Cutting Machine CB500

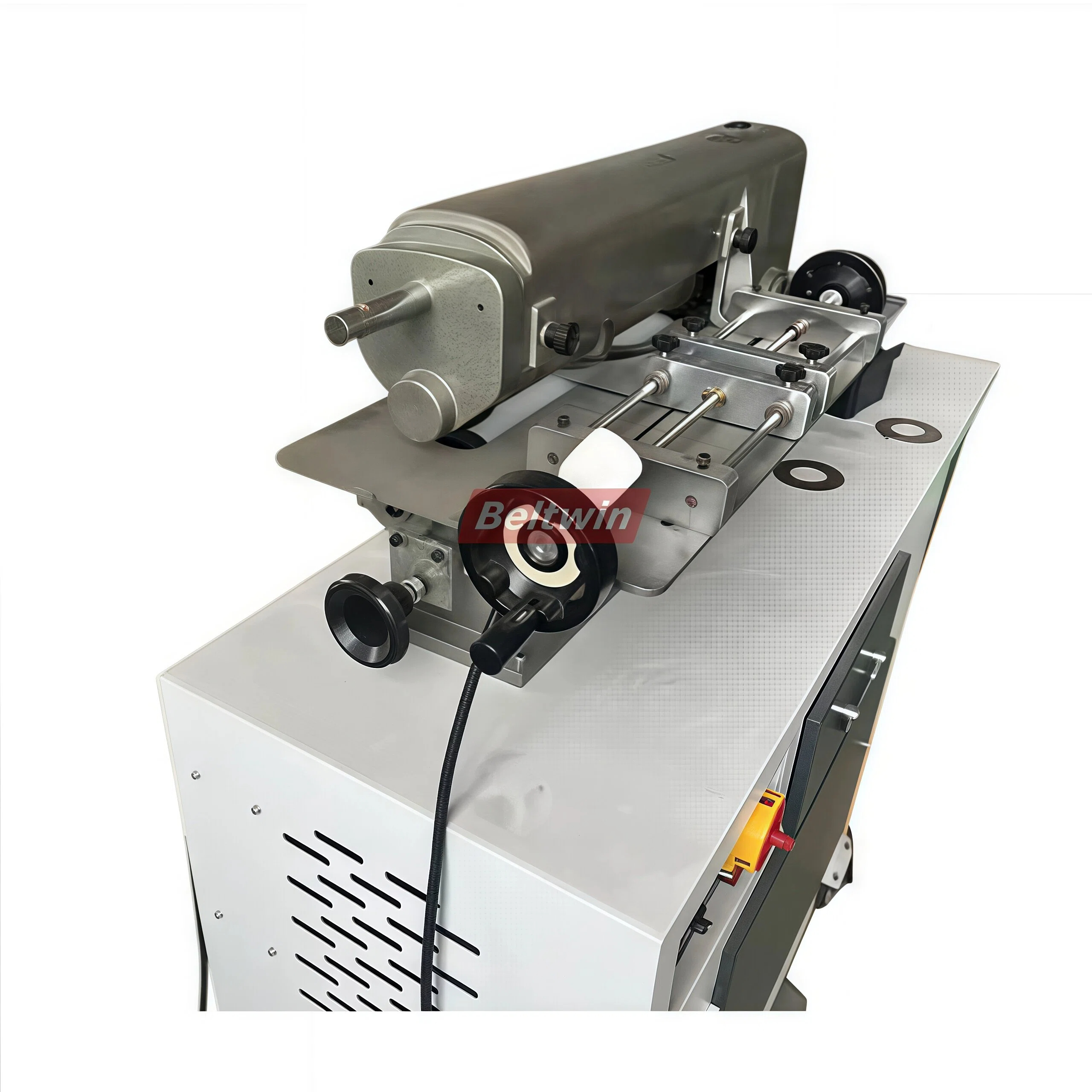

The Timing Belt Cutting Machine CB500 slits timing belts, such as AT20, HTD20. It has a screw adjustment to secure the belt. Blade on the drive shaft moves the belt smoothly – great for slitting open timing belts. Features adjustable speed for fast operation, user-friendly design, high precision – and cuts ring-shaped belts too.
This machine is used for slitting timing belts, like AT20, HTD20 etc. Adding a screw adjustment device to fix the position of the belt. The blade on the drive shaft drives the timing belt to run, especially suitable for slitting open timing belts. Higher precision and it can also cut ring-shaped belts.
Technical Datasheet
| Max belt width | 500mm |
| Max thickness (Open belt) | 20mm(for example AT20) |
| Max thickness (Endless belt) | 10mm |
| Blade outer diamter | 80mm |
| Blade inner diameter | 40mm |
| Power | 550W |
| Standard voltage | 220V single phase |
| Gross weight | 233kg |
| Packing dimension | 1360*750*1350mm(L*W*H) |
Cutting Effect
