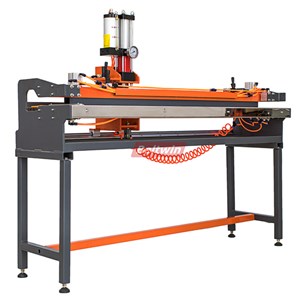

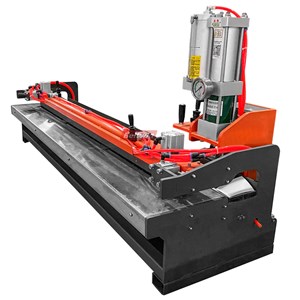

Beltwin TA1000‑TA2100 Pneumatic PVC PU Belt Finger Punching Machine

___________________________________________________________________________________________________________________________________________________

Features

• Suitable for PVC and PU conveyor belts, open-frame design with unlimited working width, supporting belt width up to 3.2m.

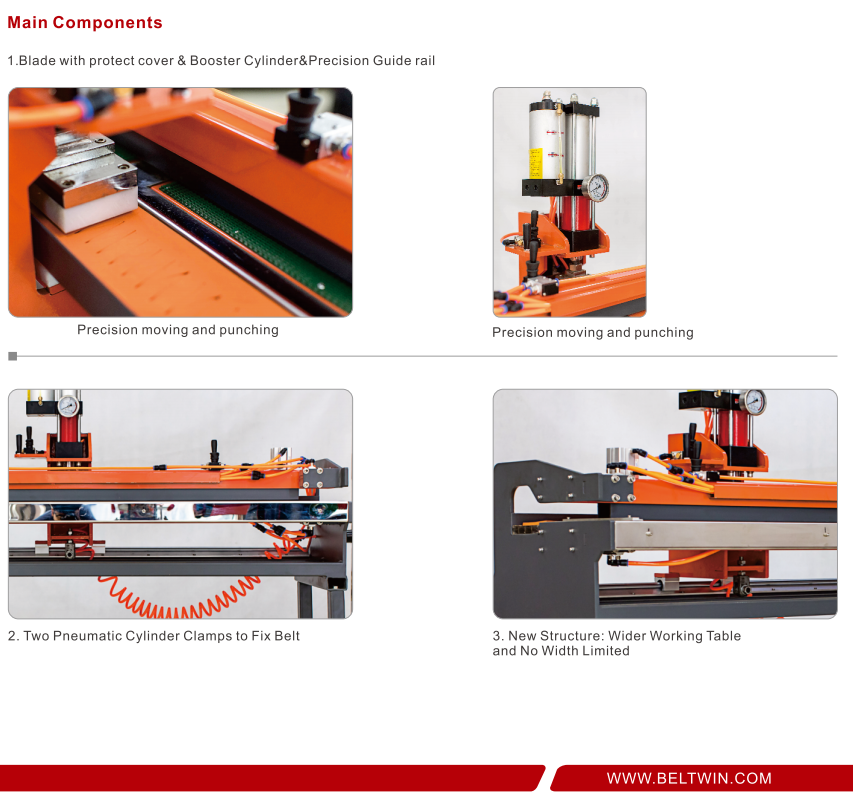

• Equipped with booster cylinder and precision guide rail, one-time punch forming, working efficiency 10 times higher than traditional machines.
• Compatible with single/double/triple finger and overlapped finger joints; various finger shapes can be processed simply by forward and backward movement.
• Extra-wide worktable with accurate positioning, stable operation and easy operation.
• Standard die size: 20×50mm; customized sizes like 10×70/80/90mm and 20×80mm are available.
• Two blade types optional: round mouth and sharp corner; pneumatic clamping design protects the belt from damage.

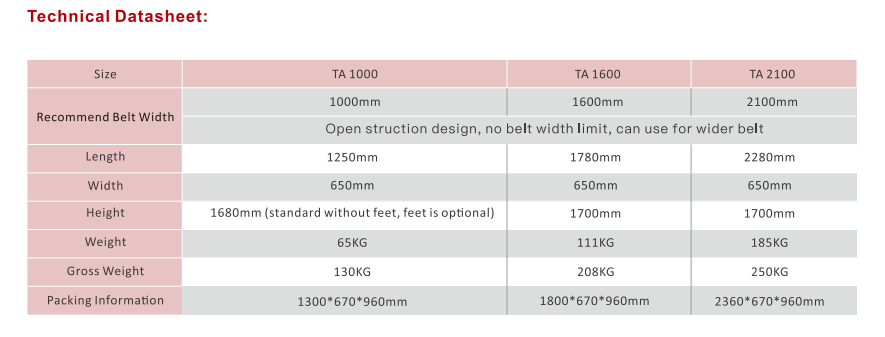

Specifications

- Application: PVC & PU conveyor belts

- Belt Width: Unlimited (open design), max. 3.2m; standard 1600mm, optional 1000/2000mm

- Working Table (TA1600): 1650 × 50 × 20mm punching area

- Actuation: Booster cylinder, one-time punching (10× faster than traditional models)

- Precision: Linear guide rail for smooth, accurate positioning - Joint Types: Single/double/triple finger joints, finger-over-finger joints

- Standard Die: 20×50mm; custom sizes available (10×70/80/90mm, 20×80mm, etc.)

- Blade Styles: Round / Sharp - Clamping: Pneumatic system
