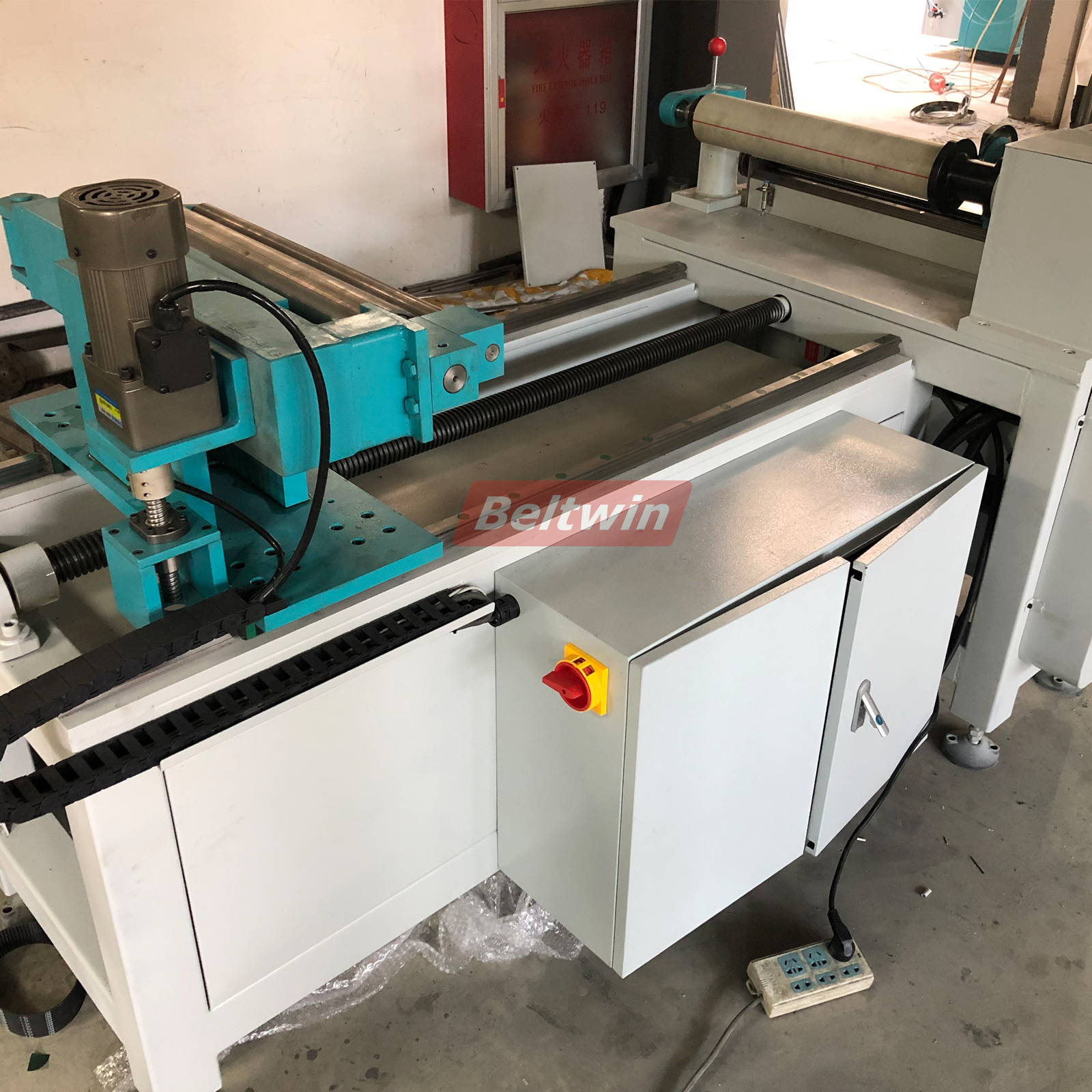

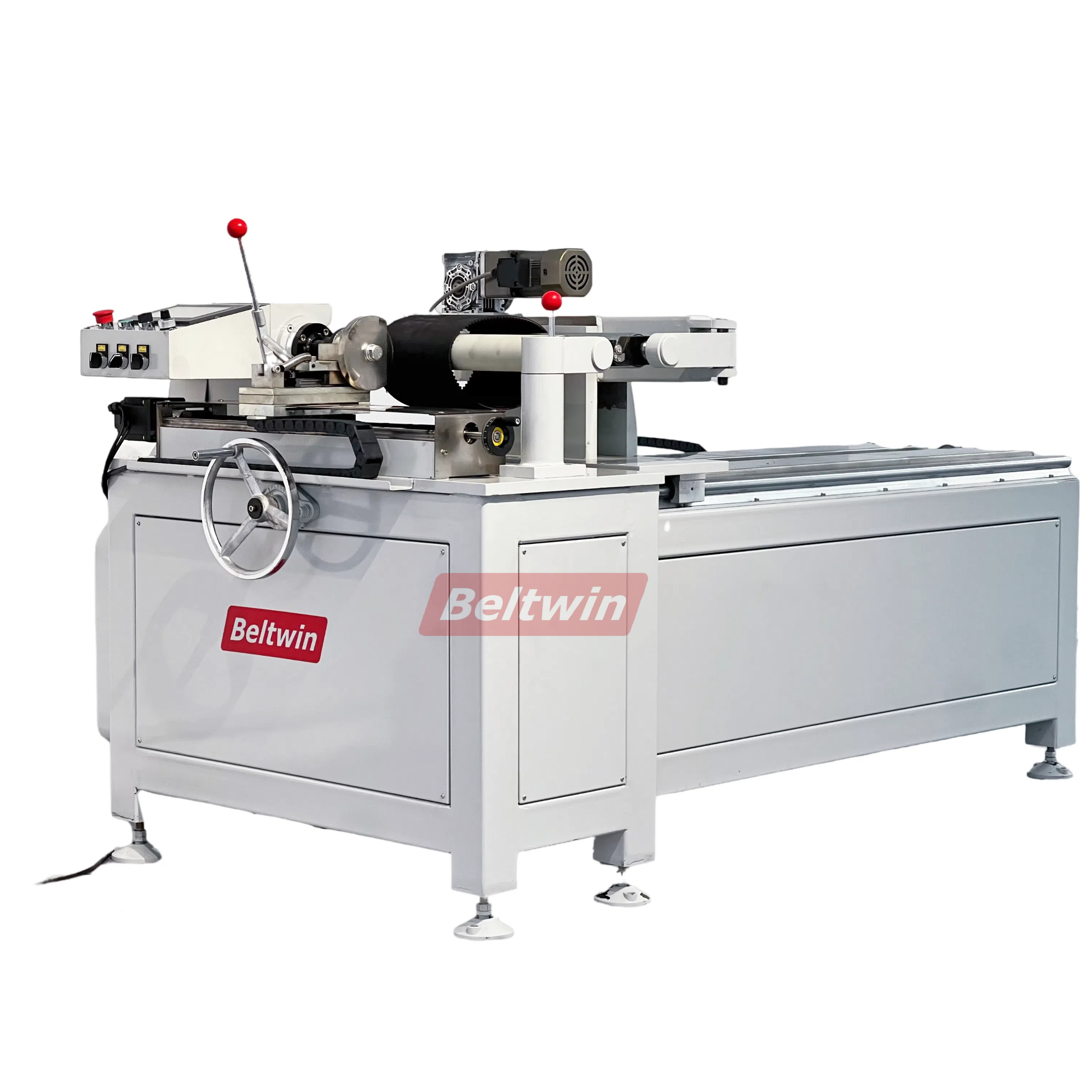

Automatic Endless Belt Slitter

Upgraded based on Semi-Automatic belt slitter,the slitter includes automatic longitudinal cutting and automatic blade lateral movement,which can improve cutting efficiency.The cutting depth,cutting width and cutting quantity can be set on the touch screen.
Automatic Endless Belt Slitter
Automatic Endless Belt Slitter Automatic Endless Belt Slitter

Technical Datasheet

Max Belt Width 500mm
Min Belt Length 190mm
Max Belt Length 3000mm, other length can be make on request
Control System PLC(touch screen in English&Spanish)
Cutting Method Fully-Automatic(automatic moving&cutting)
Setting Accuracy 0.01mm
Motor Power 2.2KW
Voltage 220v single phase or as your request


Operation Interface



Beltwin Automatic Timing Belt Cutting Machine
