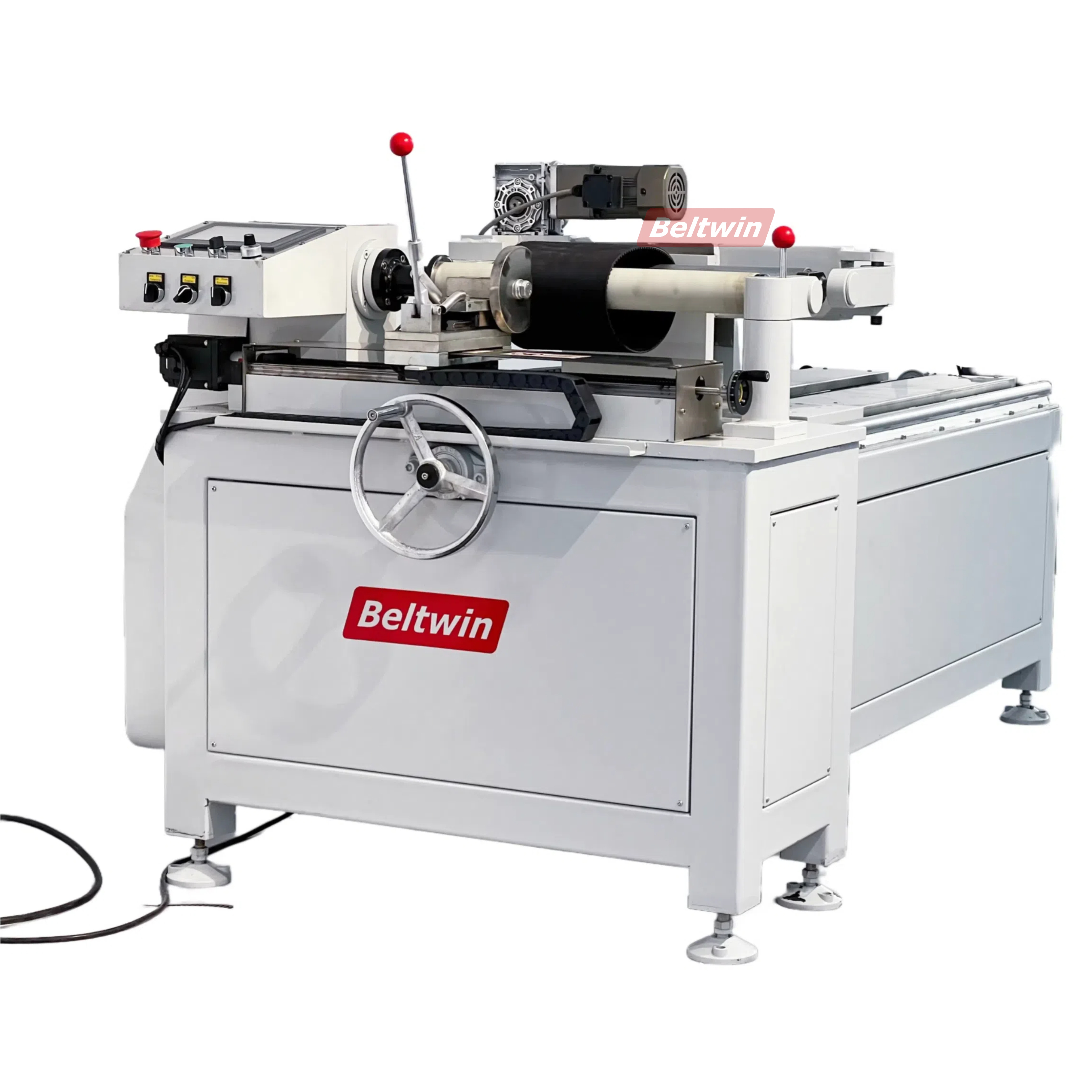

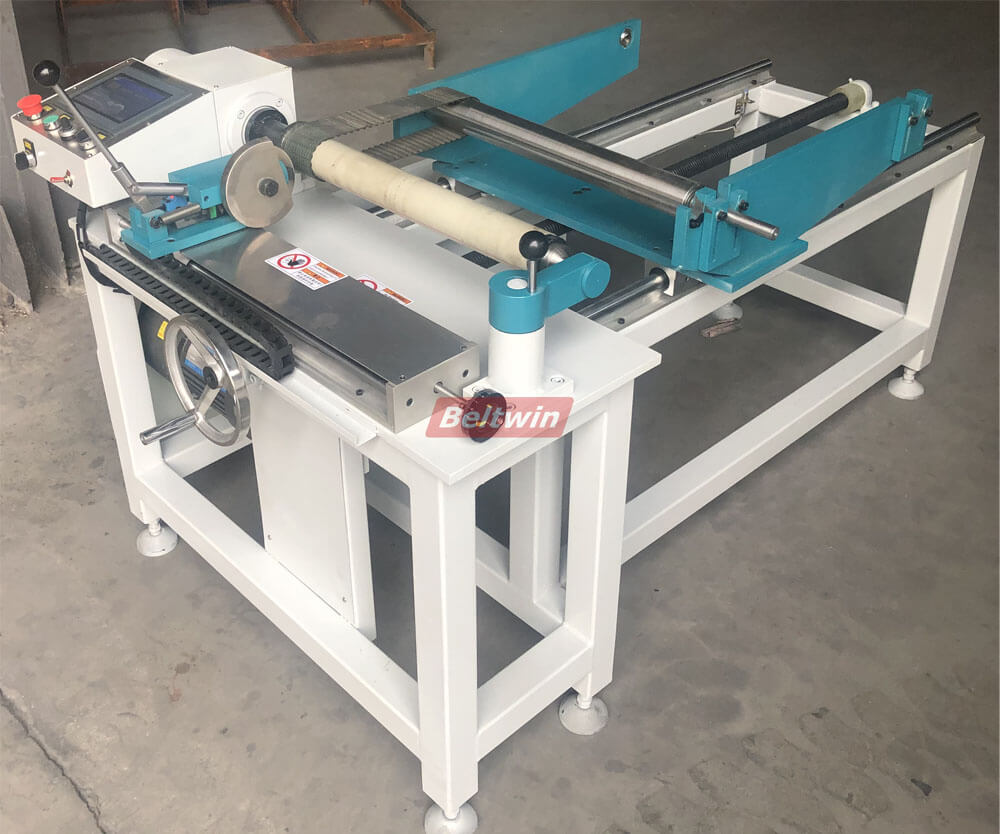

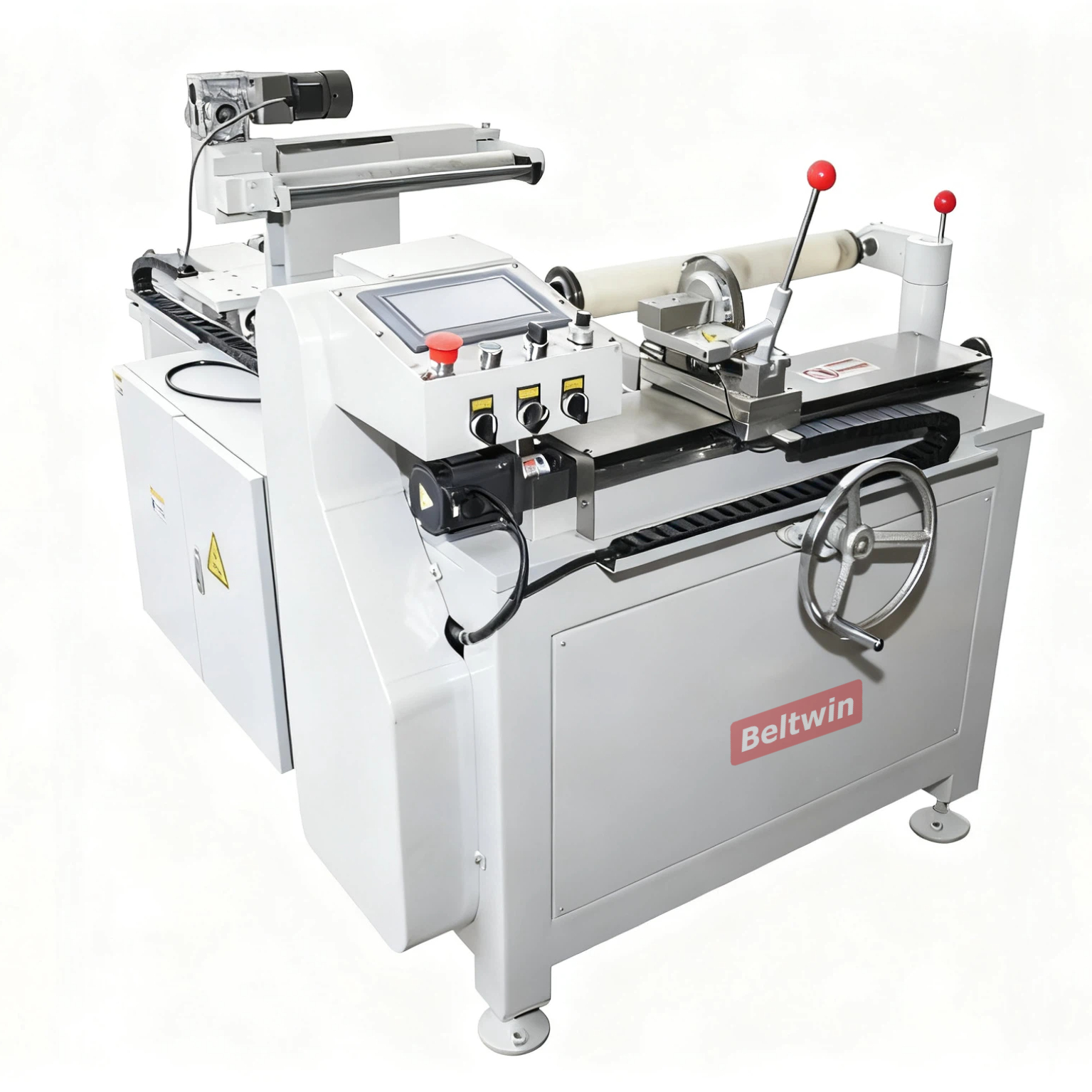

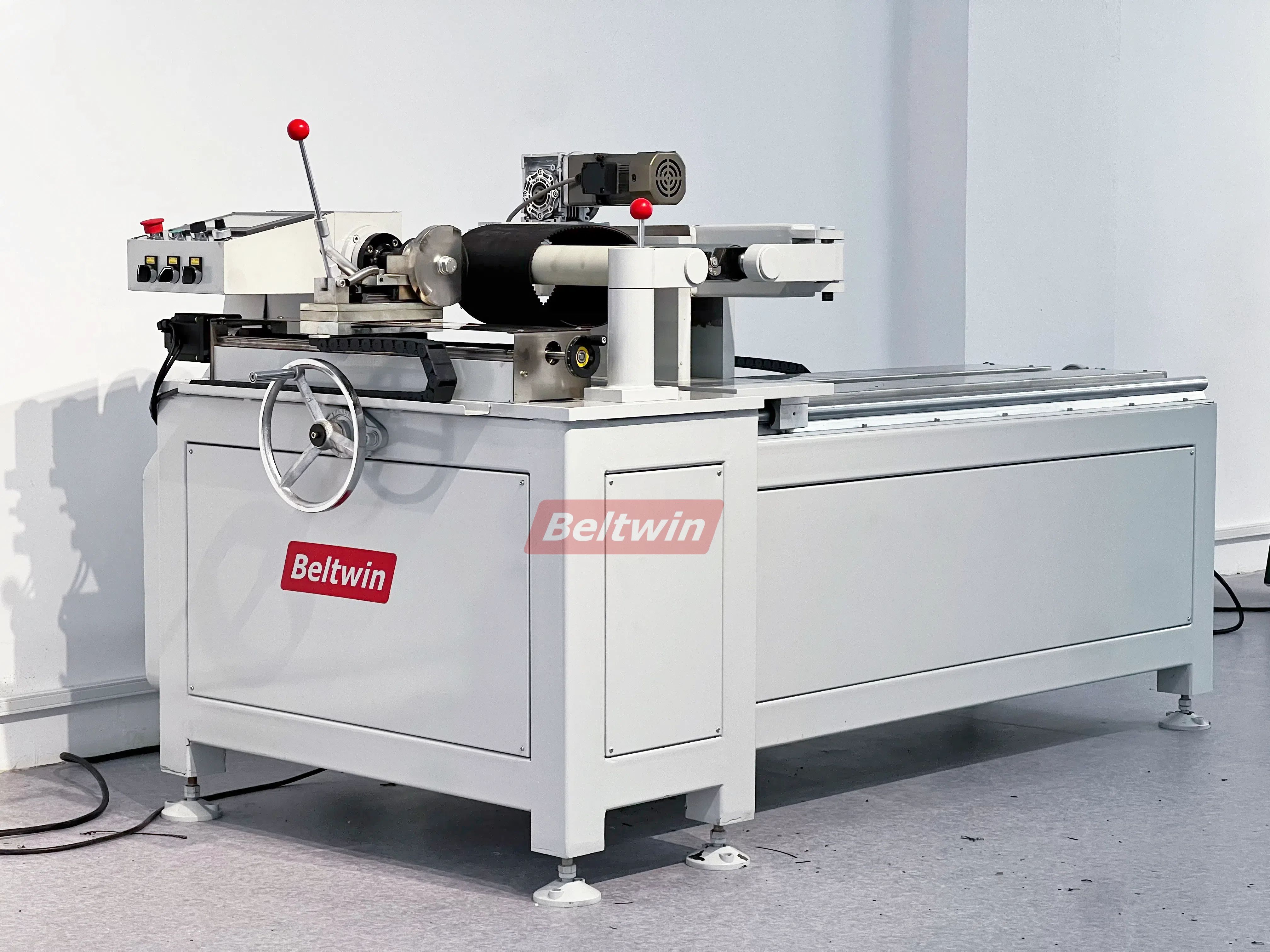

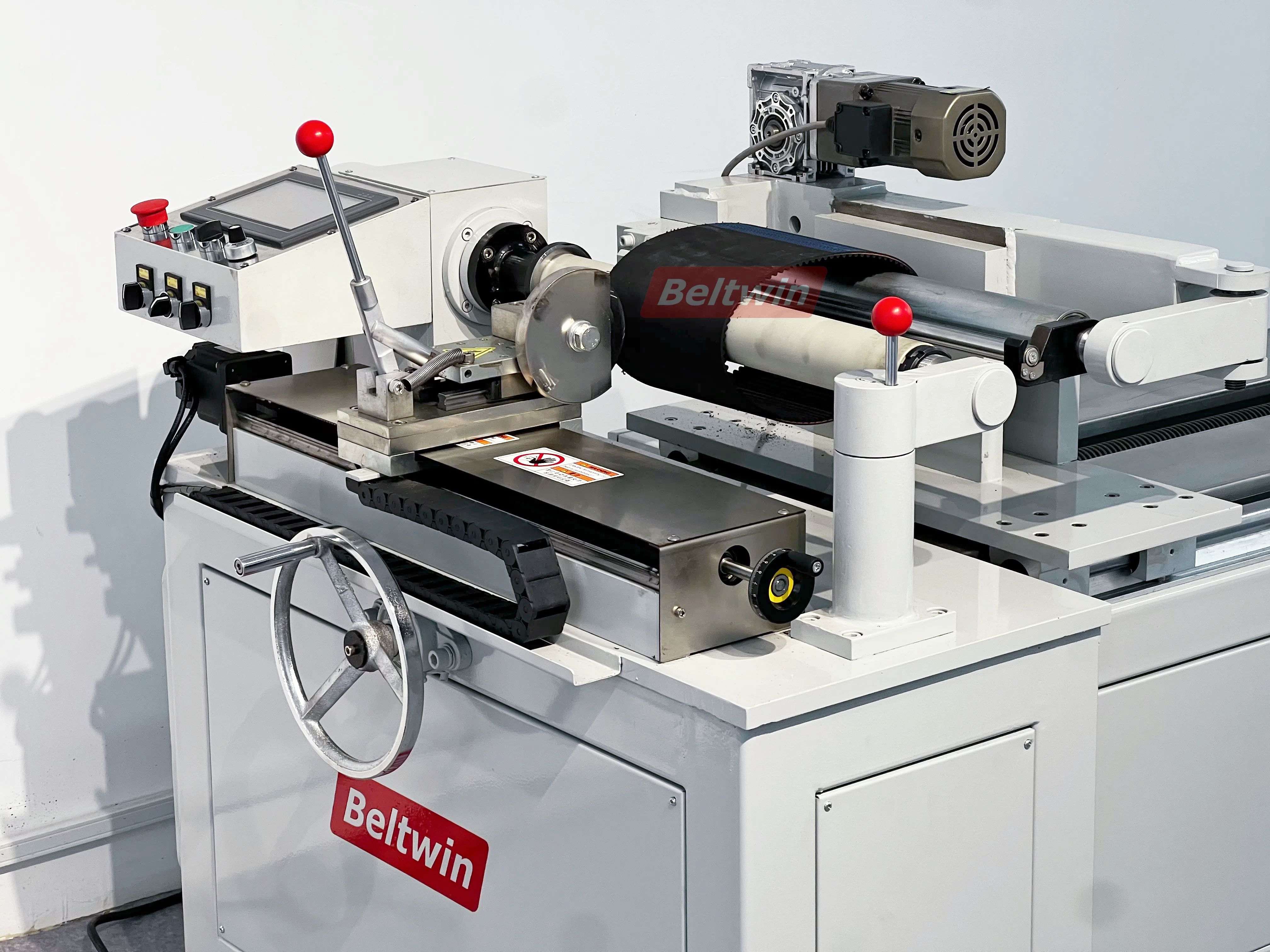

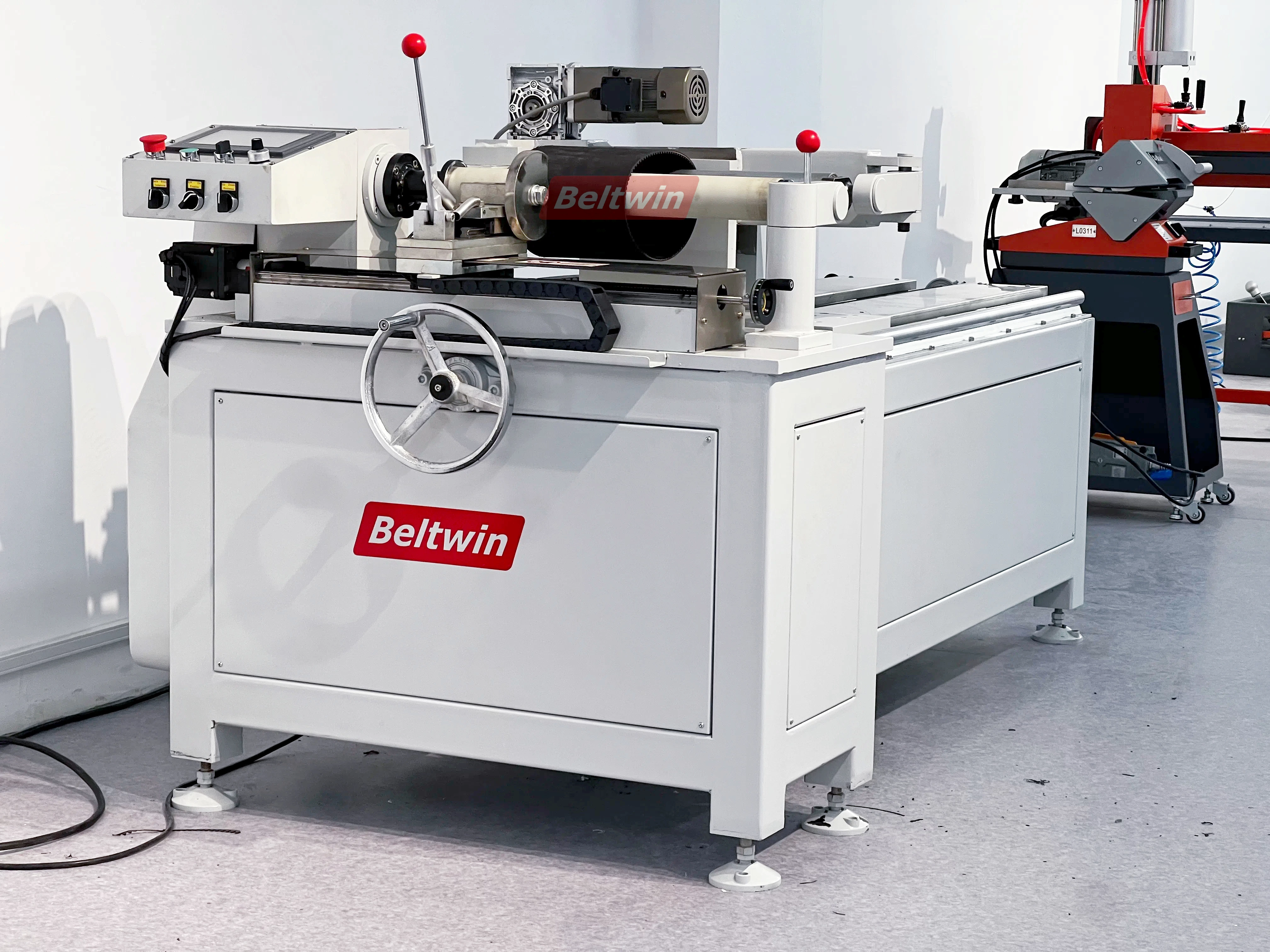

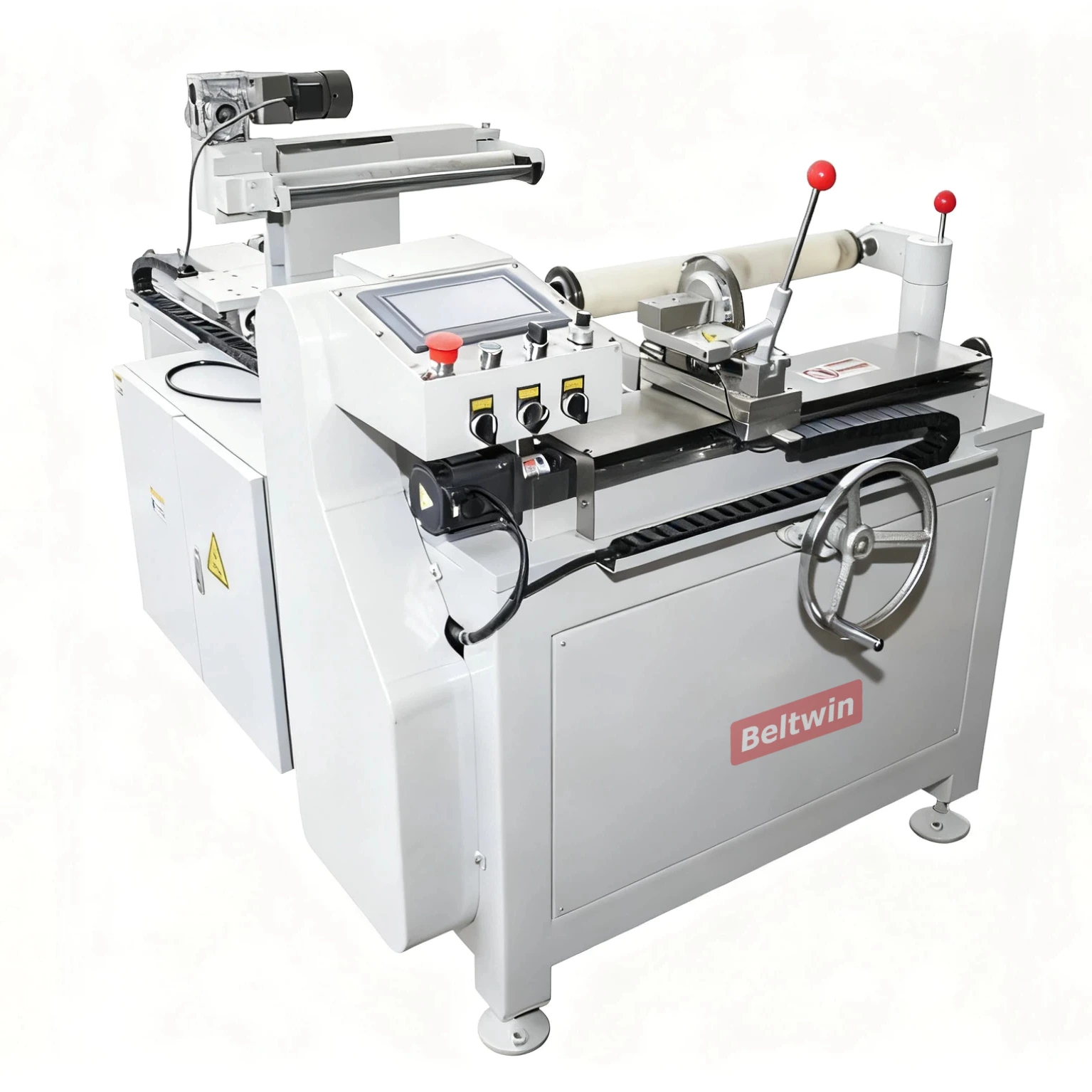

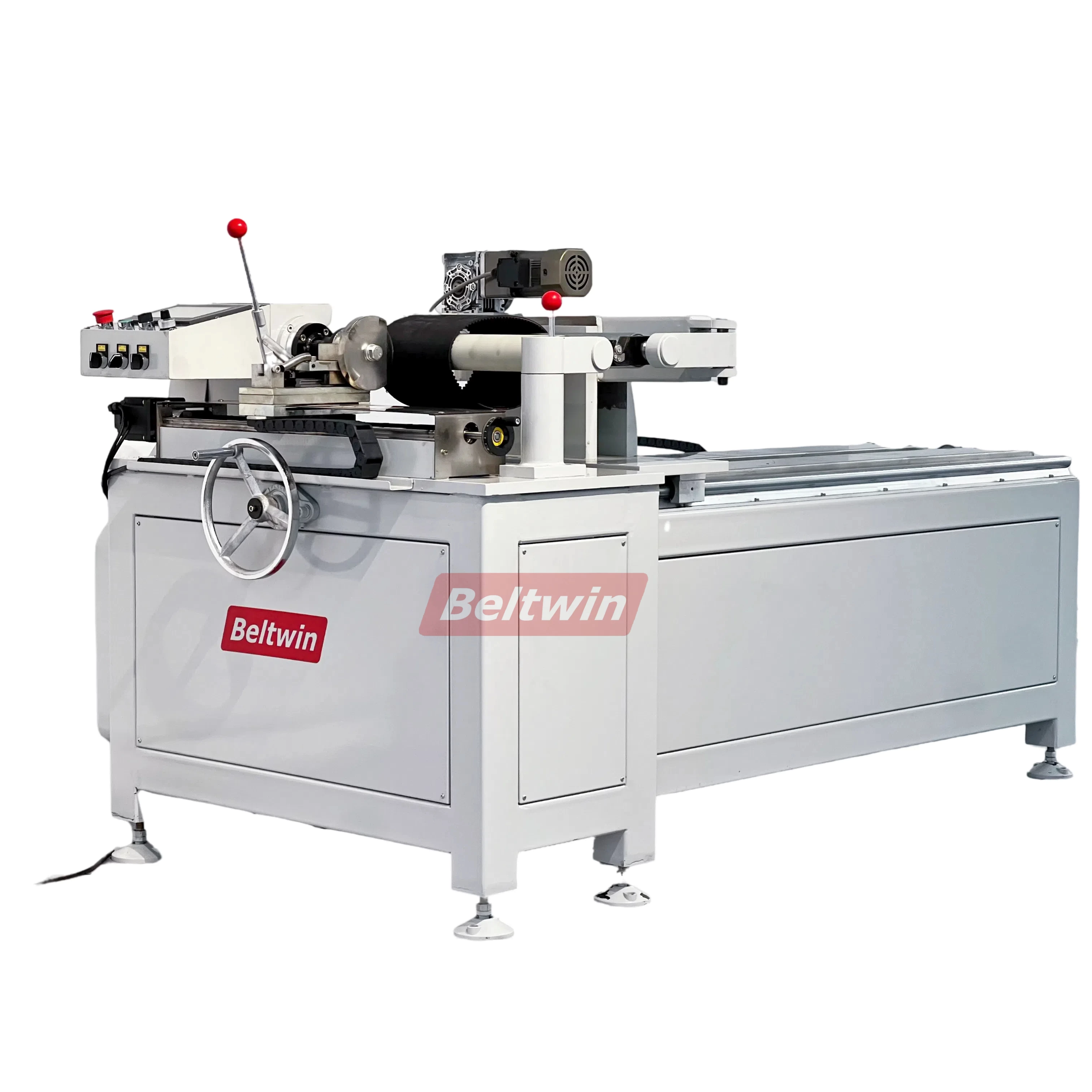

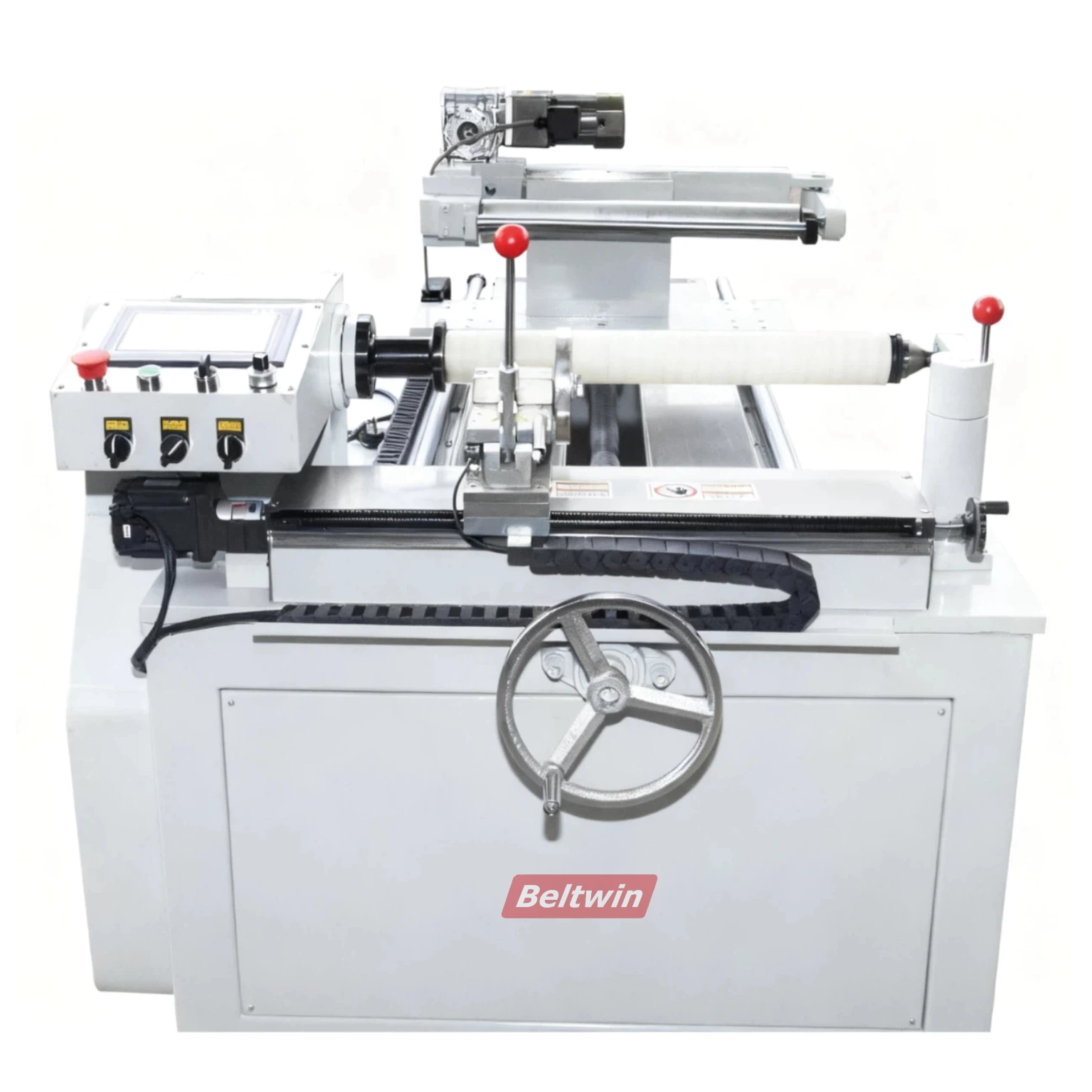

Semi-Automatic Endless Belt Slitter for Timing Belt Sleeves & V-Belt Sleeves

The belt slitter, also versatile as a sleeve belt cutting machine and specialized v belt sleeve cutting machine, was engineered for cutting timing belt sleeves, flat belts and V-belt sleeves.

This Semi-Automatic Endless Belt Slitter includes manual longitudinal cutting and automatic blade lateral movement, which significantly improves cutting accuracy. It mainly suits customers who need to cut many different types of belts—including V-belt sleeves and other sleeve belts—in daily work. You don’t have to set much data to achieve high efficiency, perfectly meeting the immediate requirements of your customers. As a reliable sleeve belt cutting machine and v belt sleeve cutting machine, it can reduce the storage and costs of belts, serving as a good partner to drive high profits.

Specifications

• Standard specifications
• Can set manual/automatic move blade left/right to next cutting width
• Max belt width: 500mm
• Max belt length: 3000mm
• Min belt length: 300mm
• Min cutting width: 3mm
• High precision: ±0.3mm
• Voltage: AC220-240V single phase 50HZ
• Power: 2.2KW
• Equipped with replaceable cutting shaft φ63 & φ40
• Stepper motors and servo motors are used
• Spindle speed 0-450 rpm (adjustable)

Operation

• Controlled by PLC
• Cutting speed is variable (controlled by a steady frequency inverter)
• Digital display of the cutting width

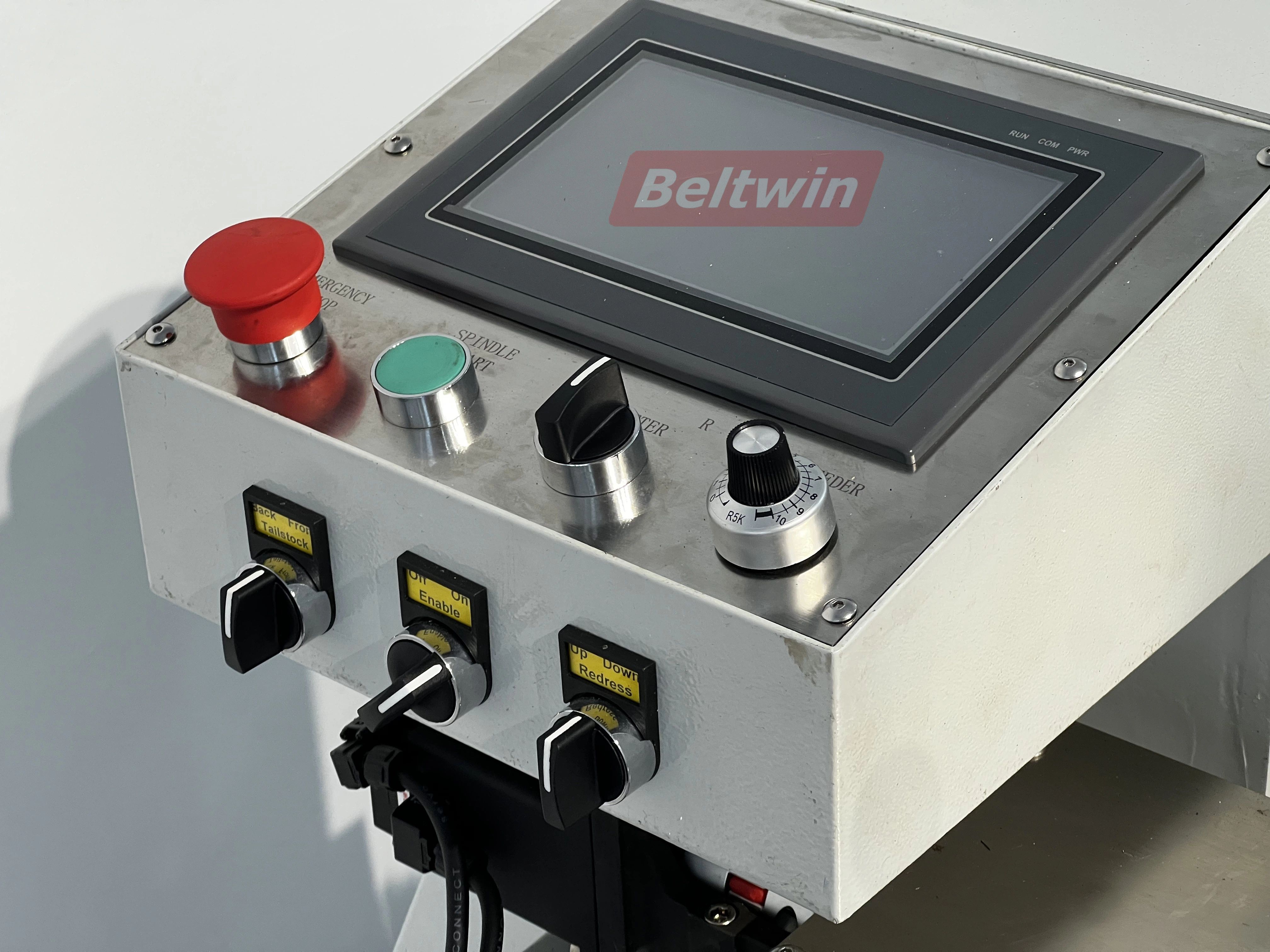

• With a touch screen set cutting width and cutting quantities,stop cutting when arriving at cutting quantities.And can set a cutting start point in any position.
• Manually move the blade forwarder for cutting ; Automatically move the blade backward
• Can set manual or automatic blade lateral movement to the next cutting position
• Can use ball screw manually or motor electric belt tension

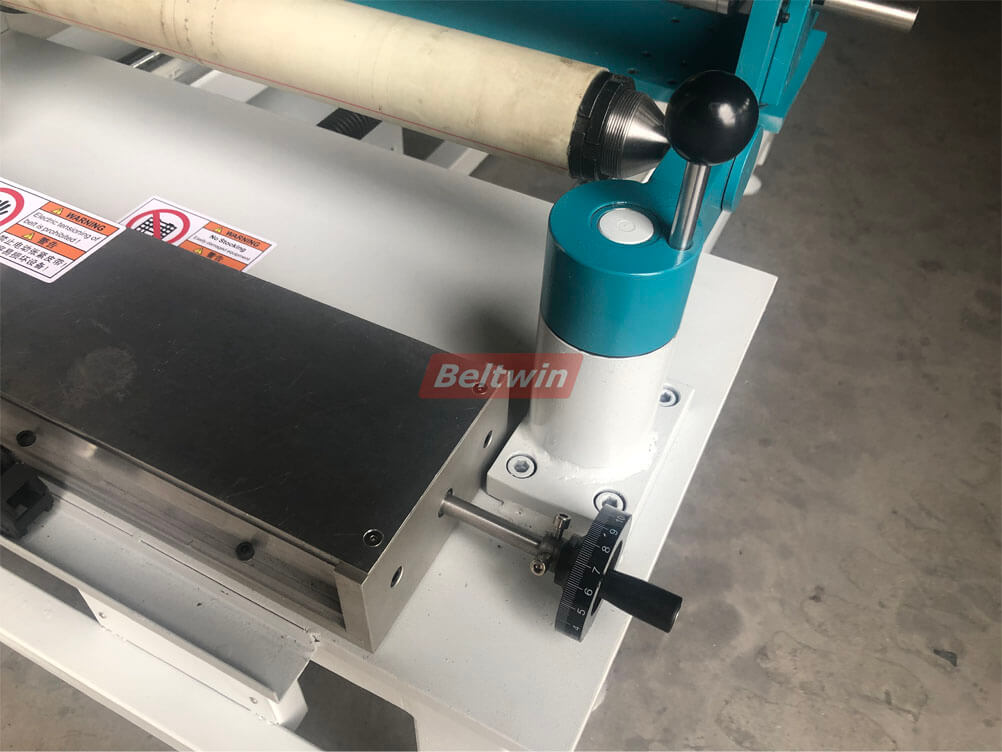

• Manually adjust the belt horizontal roller
• Cutting shaft is exchangeable,diamter φ63 and φ40.

Safety Devices

• Emergency power off
• Safety knife cover
• Electric protection

Machine Frame

• The main body is free of assembling.Other parts are easy to connect with bolts.Easy maintence.
• Baking varnish
• Electric adjust belt horizontal roller

Summary

1. The cutting machine was engineered for cutting timing and flat belt sleeves.
2. This machine can help you lower labour costs and higher productivity.
3. The slitter is one of the helpful tools in your shop, it can help you lower labour costs and higher productivity, reduce the storage and costs of belts.
4. The machine can supply immediate requirements of your customers, make more profit.

5. Machine main body free of assemble, other parts easy bolts connection. Easy maintenance.
6. The controller panel can be selected in English or can be customized in Spanish.

7. Manual adjustment for easy operation.

If you have special requirements for other belt sizes or need an automatic machine, we also have a solution. Please contact us for details.
