Air Cooling Belt Splice Press PA2700 PA3000

Portable air cooling press 3000mm, can joint Max 3000mm width belt. This air cooled press has all components integrated into the tool, allowing a user to simply plug it into electricity and it is ready for use.
Air Cooling Belt Splice Press PA2700 PA3000
Air Cooling Belt Splice Press PA2700 PA3000 Air Cooling Belt Splice Press PA2700 PA3000 Air Cooling Belt Splice Press PA2700 PA3000 Air Cooling Belt Splice Press PA2700 PA3000 Air Cooling Belt Splice Press PA2700 PA3000 Air Cooling Belt Splice Press PA2700 PA3000

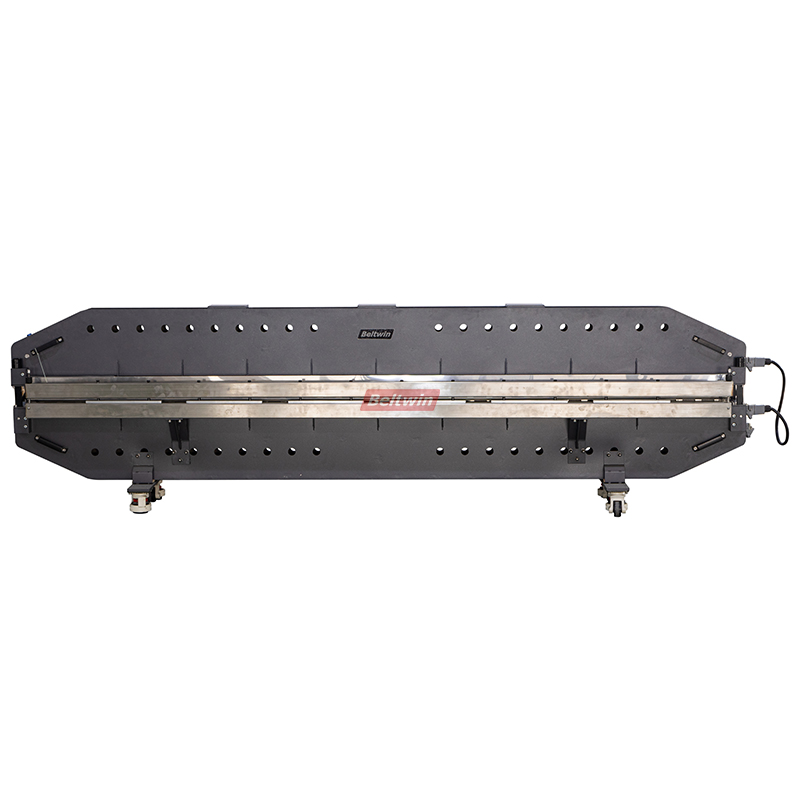

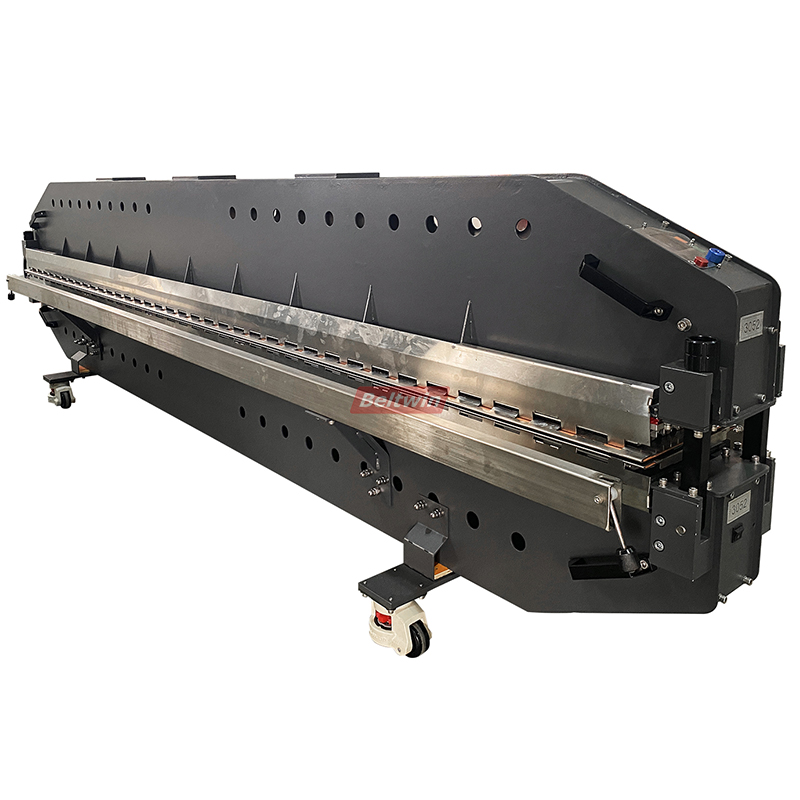

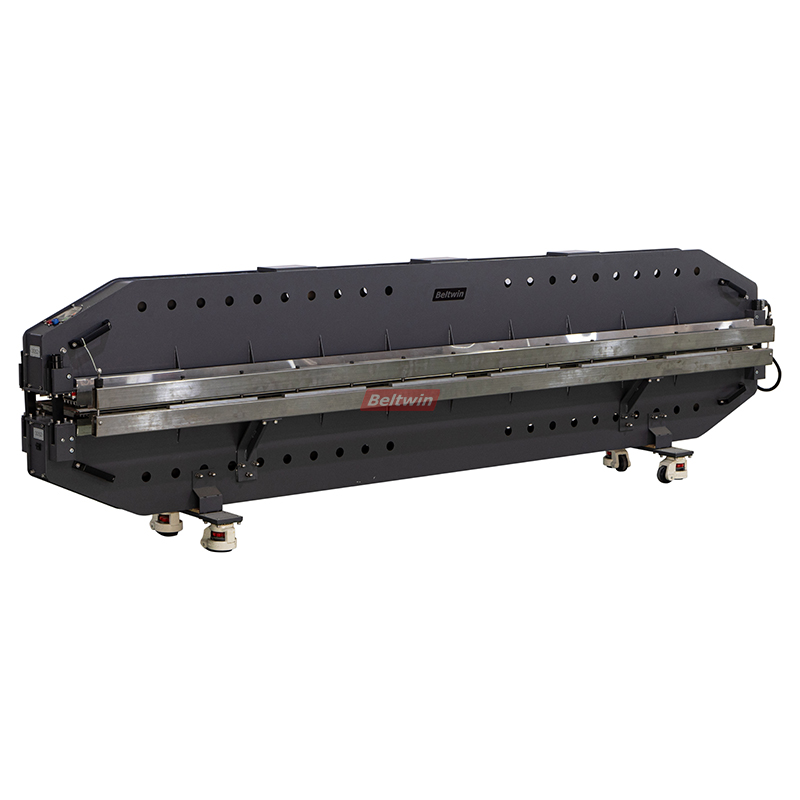

All In One Air Cooling Splice Press PA3000


Portable air cooling press 2700mm and 3000mm, can joint Max 2700mm or 3000mm width belt. This air cooled press has all components integrated into the tool, allowing a user to simply plug it into electricity and it is ready for use.

Product Information:

  1. Cooling: Air Cooling
  2. Max Belt width 106″ (2700 mm) and 118″ (3000 mm)
  3. Machine Material: Aluminum
  4. Working Pressure: 2 bars / 28PSI / 0.2Mpa
  5. Heating Effective width: 150mm
  6. Clamp bars included.
  7. 3000 press Net weight:140KGS, Weight (Include clamp bars) : 180kgs

Options:

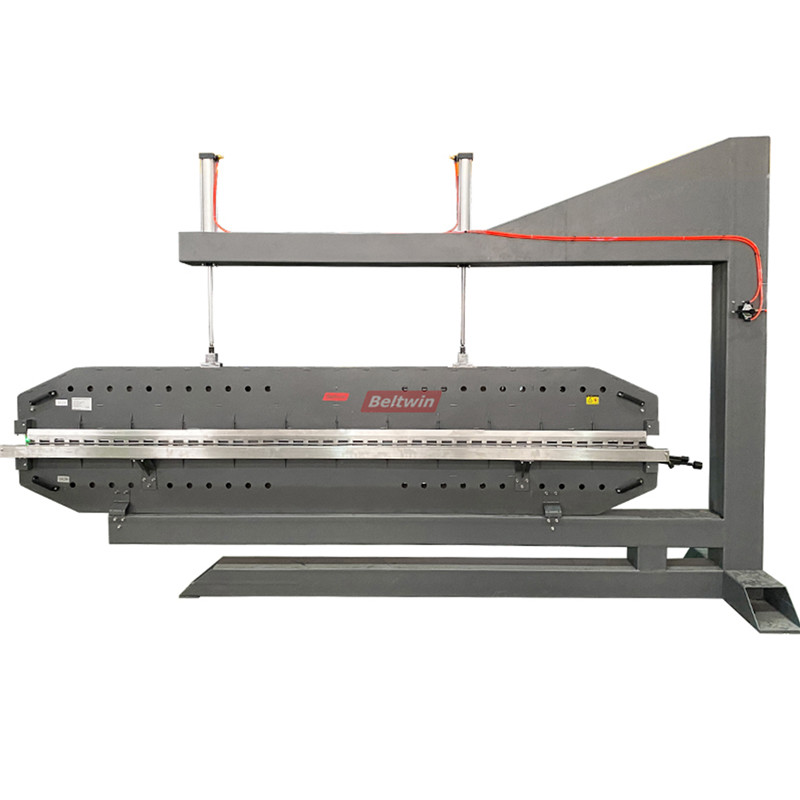

  1. Support Stand (for workshop use), pneumatic lift
  2. Jointing Accessories, like PTFE film & pad, Silicone Pad-set, PVC/PU film etc. can help for better jointing. Please contact with us for details. We will offer you right solution.

Features:

  • Real air cooling & all in one machine for wide belt, 2700mm and 3000mm wide.
  • Used for PVC PU PVK belt etc. thermoplastic belt materials
  • Special machine body design, make it light weight and easily removed to any where for job site use
  • Fast Splicing: include heating time and cooling time, no more than 12 mins.
  • All in one design: The press has an integrated air-cooling system and also air compressor inside. To ensures that the belt is quickly cooled down and auto press on, without water pump or additional air compressor.
  • Easy to use and assemble, how to operate pls freely to refer to below video.
  • Clamp bars included
  • Reliable and automatic Temperature Control, time control and pressure control in one control system, easy to set).
  • Voltage: 380V 3 phase, if special voltage pls freely to inform us.

Datasheet:

Model

 PA2400

PA2700

PA3000

Effective length

2400mm

2700mm

3000mm

Effective width

150mm

150mm

150mm

Weight lower part

63kg

69kg

77kg

Weight upper part

100kg

133kg

140kg

Total weight

188kg

232kg

243kg

Overall height

830mm

840mm

910mm

Overall width

2700mm

3000mm

3300mm

Max pressure

1.3Bar/19PSI ( new design pressure system)

Max. temperature

200 ˚C/390 ˚F

200 ˚C/390 ˚F

200 ˚C/390 ˚F

Power

8.8KW

9.5KW

10KW

Packing Weight

245kg

280kg

300kg

Packaging list(L x W x H)

2940*500*720mm

3300*600*660mm

3390*550*1020mm

Warranty Policy:



Your Air Cooling Press are guaranteed against defective parts, material and workmanship for a period of twelve (12) months from the date of delivery (Bill of Lading date).

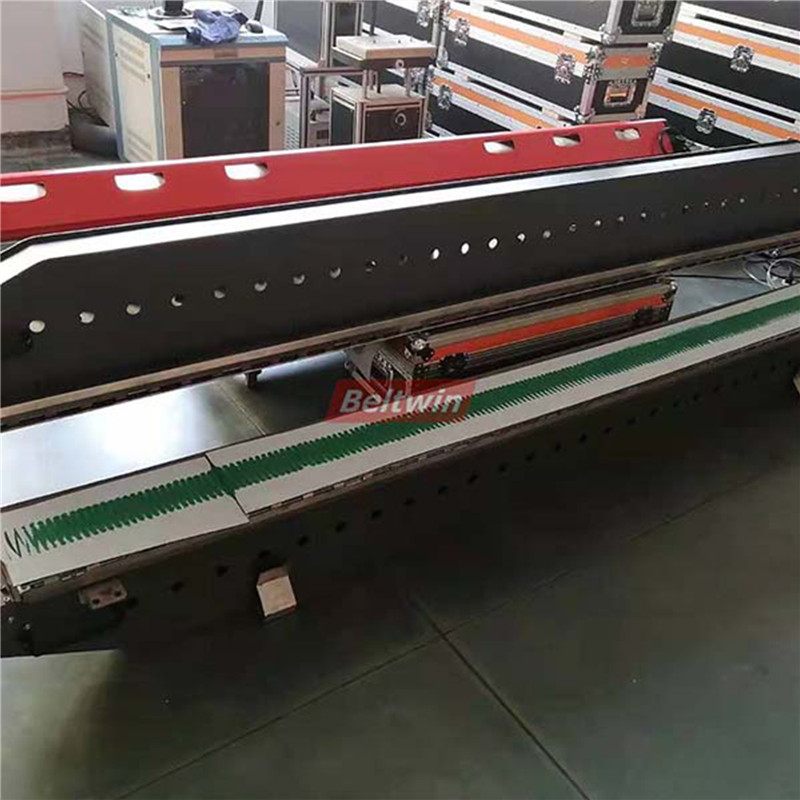

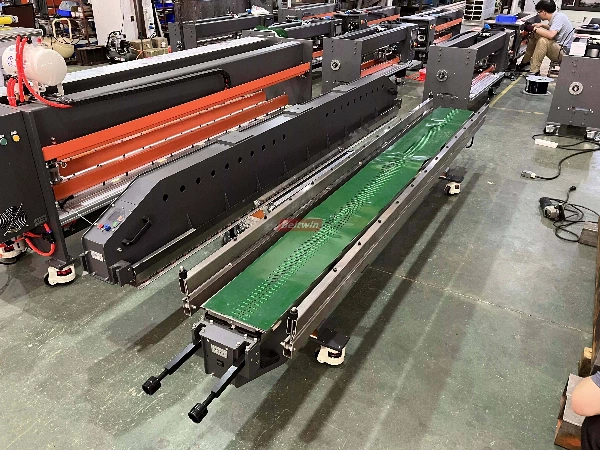

Splice Effect On PVC Belt:

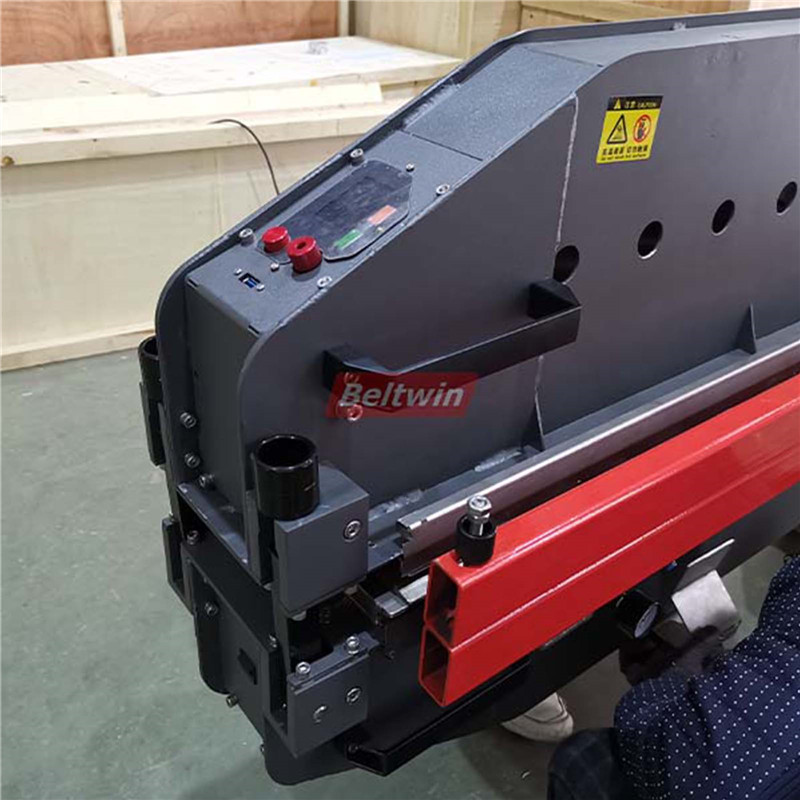

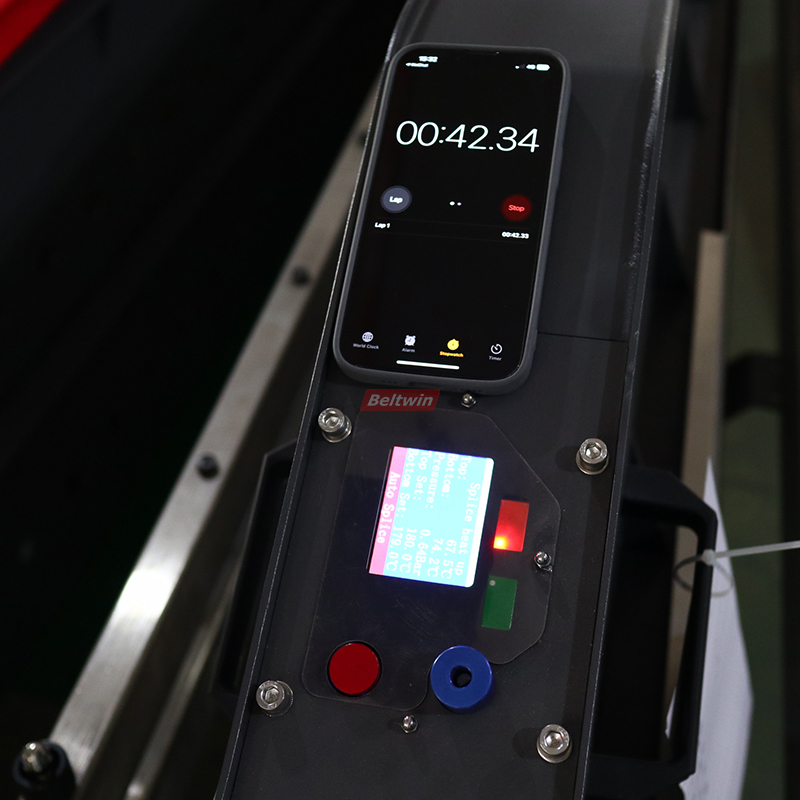

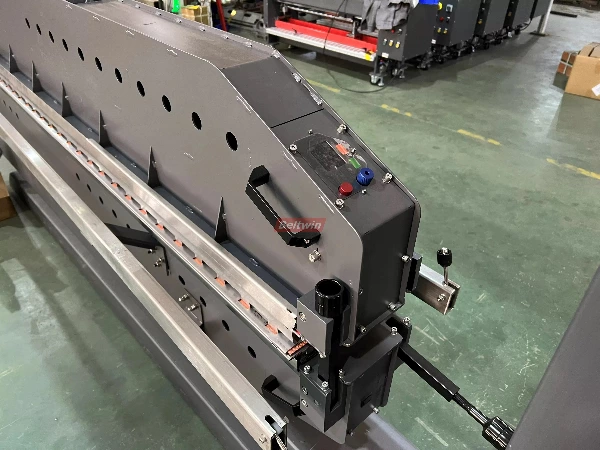

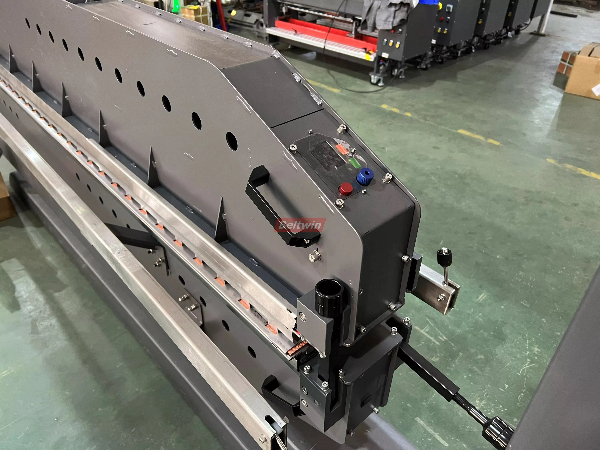

Build-In Control Panel , Can Independent Set Temperature On Upper/Bottom Part ,Can Set Pressure To Max 2 Bars:

Delivery Photo, Use Standard Export Plywood Package.

Complete Operation Of PVC PU Belt Air Cooling Hot Joint Press For 3000mm Width Belt

Newest Third Generation Air Cooling Press For Jointing PVC/PU Belt

PVC PU Belt Air Cooling Hot Joint Press For 3000mm Width Belt

Feedback Video For 3M Air Cooling Press & 2M Automatic Finger Puncher from our Customer in Russia
