Air Cooling Compact Belt Splice Press 600x50mm

Compact Air Cooling Belt Splice Press can be used for many special situations, mainly for belt need small perimeter and small heating area.
Air Cooling Compact Belt Splice Press 600x50mm
Air Cooling Compact Belt Splice Press 600x50mm Air Cooling Compact Belt Splice Press 600x50mm Air Cooling Compact Belt Splice Press 600x50mm Air Cooling Compact Belt Splice Press 600x50mm Air Cooling Compact Belt Splice Press 600x50mm

Compact Air Cooling Belt Splice Press


Description

Compact Air Cooling Belt Splice Press can be used for many special situations, mainly for belt need small perimeter and small heating area.

1. The fuselage is small and narrow, can easy to splice belt with a small perimeter.

2. The heating platen is small, it is used for the belt that needs small heating area. (the heating platen can be customized if special requirements)

Suitable for different jobs: conveyor belts, tubes and flat timing belts.

- Narrow perimeter.

- Light Weight.

- Air Cooling, can finish the work fast

- Easy handling for a single operator.

- Ongoing works.

- Belt width up to 1000mm

- Lengths of platen: 100mm

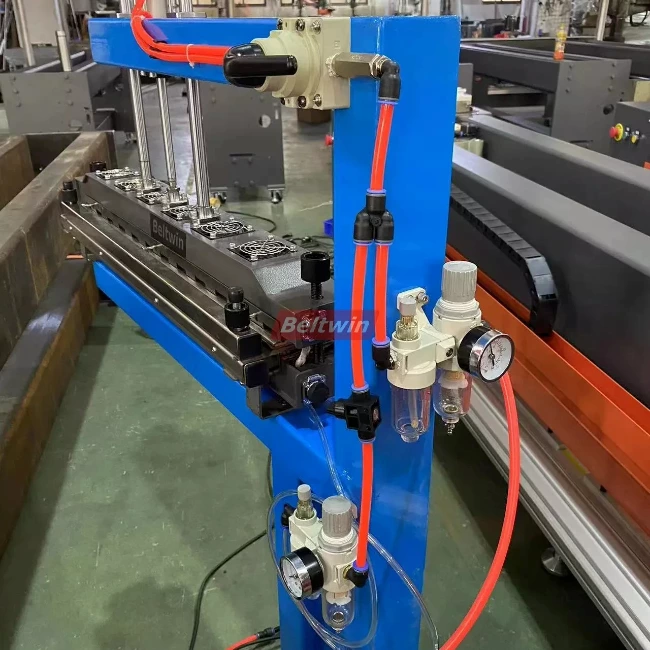

-The steel stand is optional accessory, pneumatic lifting system

Technical Summary

Max Belt Width

600mm

Material

Steel

Angle

90 Degree

Cooling

Air Cooling

Pressure

Air Bag

Max Temperature

200℃

Heating Platen Width

700mm

Heating Platen Length

100mm

Effect Heating Width

600mm

Effect Heating Length

50mm

Working Pressure

1.5 bars

Bottom Perimeter

350mm

Machine Weight

20.4KGS

Working Voltage

AC220V, 50Hz Single Phase

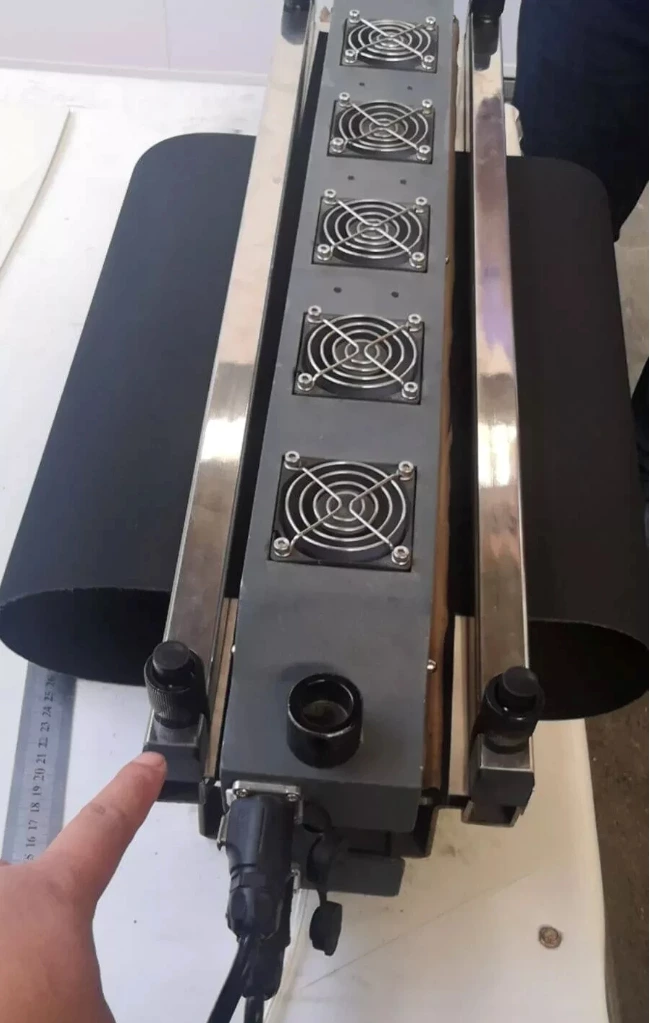

Photo for the Compact Air Cooling Belt Splice Press 600x50mm:

Jointing PU Belting

Operation Video For Air Cooling Press 600*50mm

Narrow Type Air Cooling Press 600x50mm
