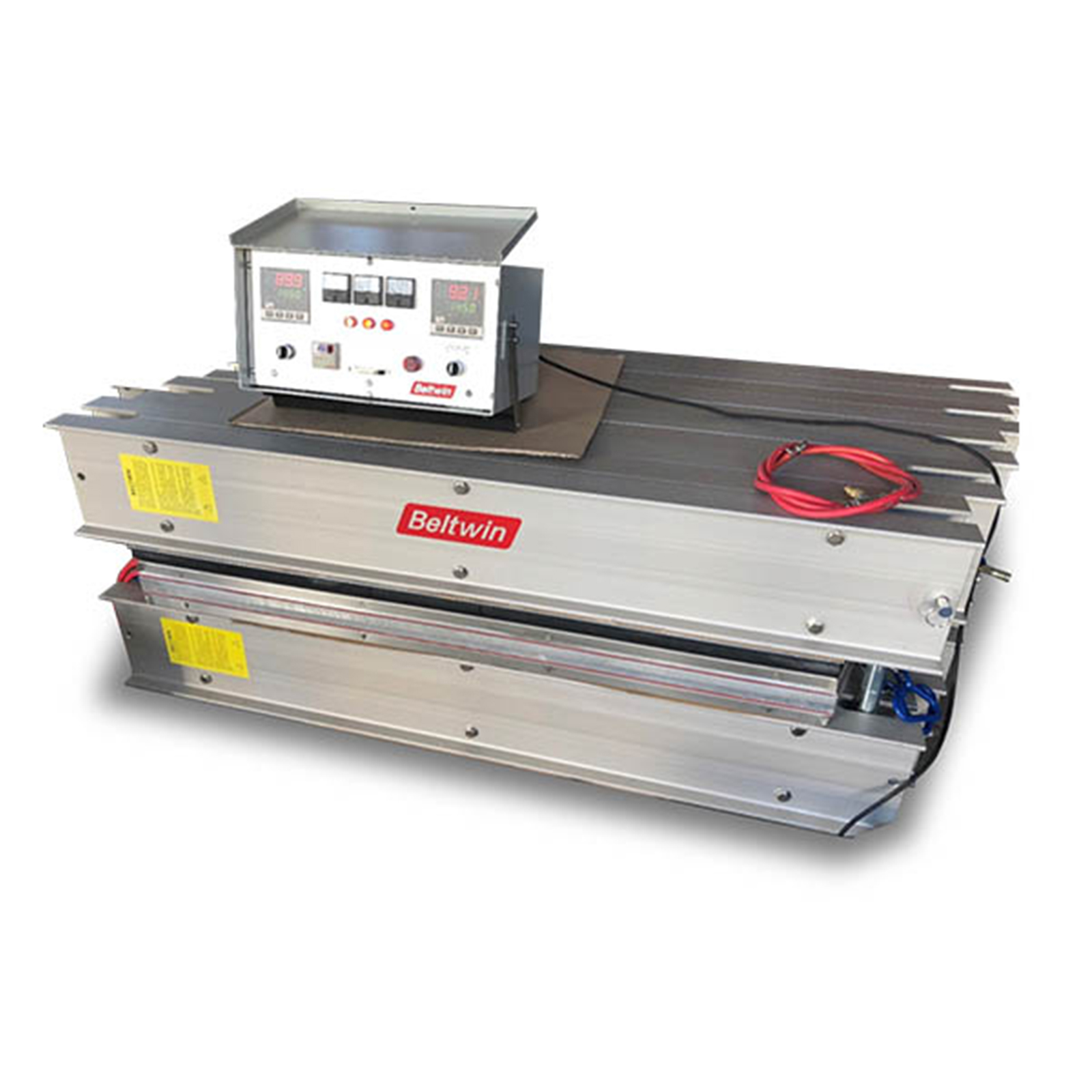

Your Beltwin conveyor belt vulcanizer is engineered for peak performance and longevity. Consistent maintenance is crucial for ensuring optimal vulcanization quality, maximizing production efficiency, and minimizing unplanned downtime. Follow these core practices.

Daily Checks & Immediate Actions​

​Visual & Connection Inspection:​​ Before each start-up, wipe the machine body and frame with a dry cloth. Check hydraulic lines and fittings for leaks or looseness. Tighten connections or replace seals immediately if leaks are found. Inspect for cracks or deformation on the body and control box.

​Electrical System:​​ Examine power cords for damage. Verify temperature controller and pressure gauge readings are normal and stable. Use a multimeter to check voltage stability periodically. Calibrate temperature sensors (target error ≤ ±2°C) and replace malfunctioning instruments promptly.

Scheduled Deep Maintenance​

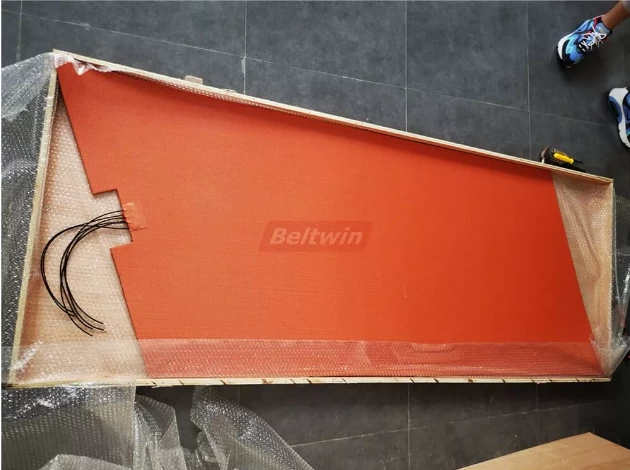

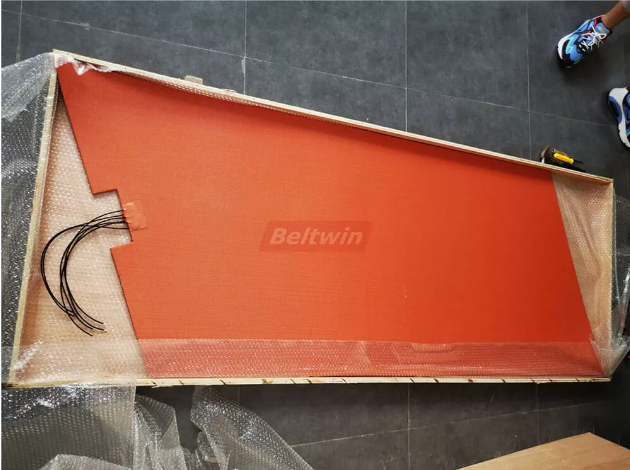

​Heating System Calibration:​​ Critical for consistent vulcanization. Every six months, use an infrared thermometer to verify the temperature uniformity across the ​Heating Platen. Ensure temperature difference is within ​​±5°C. Address localized overheating by grinding or repairing the platen surface. Keep a spare ​Silicone Heating Element​ on hand for rapid replacement, mitigating potential downtime – our durable, etched elements with composite insulation offer reliable backup.

​

Every quarter, check the crossbeam parallelism using a level (target error ≤ 0.1mm/m). Adjust the lead screw or replace cross beams if out of tolerance.

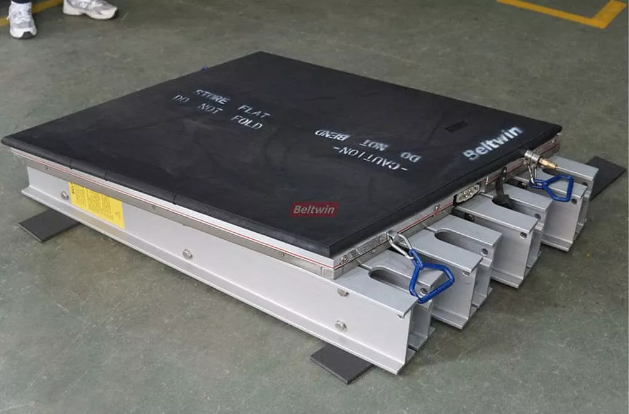

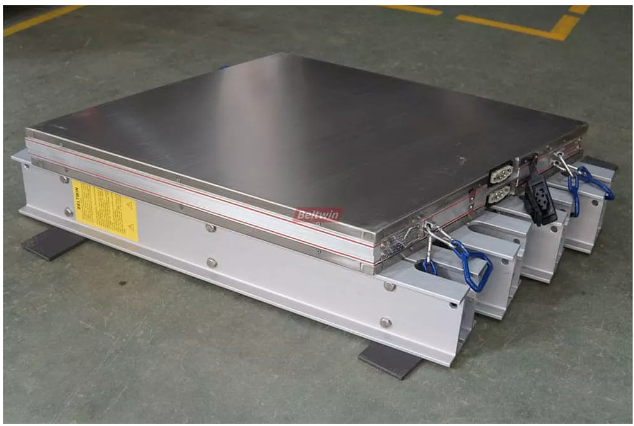

Water Cooling Efficiency:​​ Regularly inspect the integrated ​Water Cooling System​ in your Heating Platen. Ensure it achieves rapid cooling (e.g., ​10-15 mins from 145°C to 75°C). Check for residual water after cooling; utilize compressed air to purge lines effectively (aim for ≤10% residual). Monitor the system for long-term performance and ease of cleaning.

Spare Parts Strategy & Safety​

Vulnerable Parts Management:​​ Proactively manage spares. Maintain an inventory of critical consumables – specifically, keep at least one spare ​Silicone Heating Element​ and ​Rubber Pressure Bag​ readily available to avoid production delays.

Non-Negotiable Safety:​​ Always wear certified ​heat-insulating gloves​ during operation. ​Never​ allow skin to contact the Heating Platen surface (operating up to ​200°C). Ensure proper electrical connections using the standard connector​ for high-temperature reliability.

​

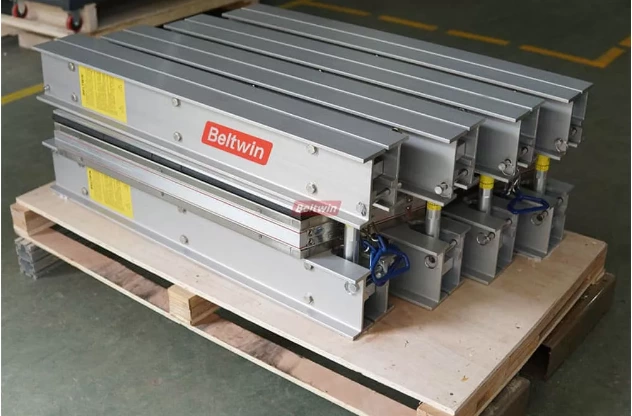

​Optimal Storage:​​ When not in use, store the vulcanizer in a controlled environment: temperature ​5-40°C, humidity ​​≤80%​, and protected from corrosive acidic/alkaline fumes.

Maintain Records:​​ Document all maintenance, part replacements, and faults. This data is invaluable for predictive maintenance and optimizing your vulcanization process.

By integrating these proactive steps with Beltwin's reliable components – like our precision-engineered ​Heating Platens with Water Cooling​ and durable ​Silicone Heating Elements​ backed by a ​24-month warranty​ – you ensure maximum productivity, safety, and return on your vulcanizer investment.
