Recision Temperature Control in Rubber Belt Vulcanization: How Beltwin's Heating Systems Deliver Consistent Performance

Publish Time: 09/29 2025 Author: Site Editor

In rubber conveyor belt vulcanization, temperature control accuracy directly determines splice strength, operational lifespan, and safety reliability. At Beltwin, every vulcanizer—from the portable DSLQ-RS Repair Vulcanizer to the high-pressure DSLQ-H Hydraulic Vulcanizer—is designed with precision heating systems that ensure temperature deviations remain within ±1°C, with high-end models achieving ±0.5°C or better.

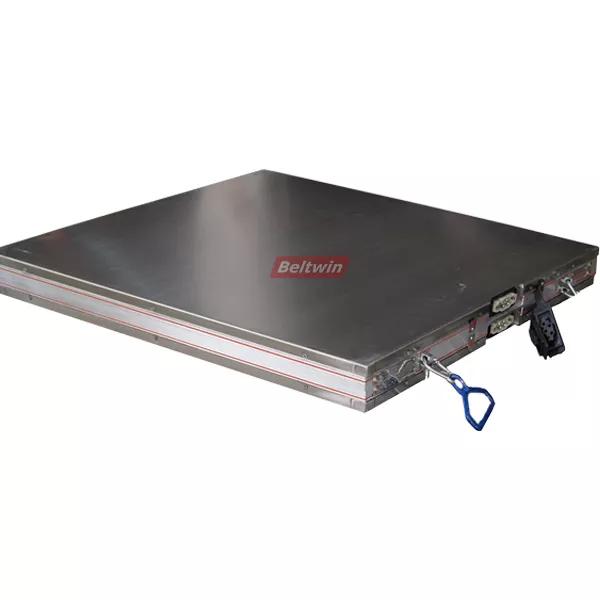

Heating Platens: The Foundation of Uniform Heat Distribution

The Heating Platen is the core component responsible for transferring heat evenly across the entire splicing area. Beltwin's heating platens are manufactured from high-grade aluminum or steel, providing excellent thermal conductivity and structural stability.

Key features include:

Precision-machined surfaces to eliminate temperature variations and cold spots
Integrated temperature sensor ports for real-time monitoring and PID control
Compatibility with all Beltwin vulcanizer models, including DSLQ-S, DSLQ-F, and DSLQ-H series

Whether performing a simple repair or a full-width splice, Beltwin's heating platens maintain consistent surface temperature, ensuring complete vulcanization without under-cured or over-cured zones.

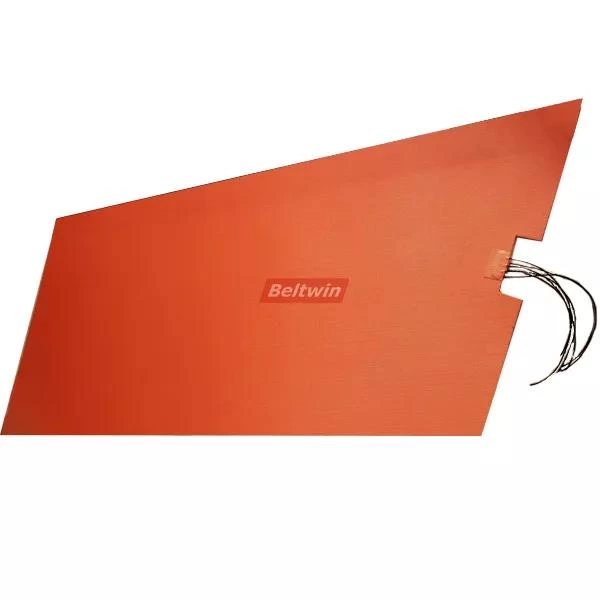

Silicone Heating Elements: Rapid Response and Durability

Beltwin's Silicone Heating Elements provide the rapid thermal response needed for efficient vulcanization cycles.

These elements are laminated with high-quality silicone rubber, offering:

Excellent flexibility for optimal contact with both the platen and belt surface
Fast heat-up times, reaching operating temperature (e.g., 150°C) within 10–15 minutes
High power density with even heat distribution across the entire element surface
Robust construction resistant to moisture, chemicals, and mechanical wear

In combination with Beltwin's digital PID controllers, these heating elements deliver the precise temperature stability required for high-strength splices in demanding applications.

Temperature Control System Integration

Beltwin's vulcanizers integrate heating platens and silicone heating elements with advanced control systems:

Digital PID controllers continuously adjust power output based on real-time sensor feedback
Multi-zone temperature control (available on full-frame models) ensures even heating across wide belts
User-friendly interfaces allow operators to set and monitor temperature profiles accurately

Maintenance Recommendations for Optimal Performance

To maintain temperature accuracy over time:

Regularly inspect heating platens for surface flatness and cleanliness
Verify temperature calibration using a portable pyrometer
Check silicone heating elements for any signs of damage or delamination
Keep electrical connections clean and secure

Conclusion

From spot repairs with the DSLQ-RS to production splicing with the DSLQ-H Hydraulic Vulcanizer, Beltwin's integrated heating systems—featuring precision heating platens and durable silicone heating elements—deliver the temperature control needed for reliable, repeatable vulcanization results across all industries.
