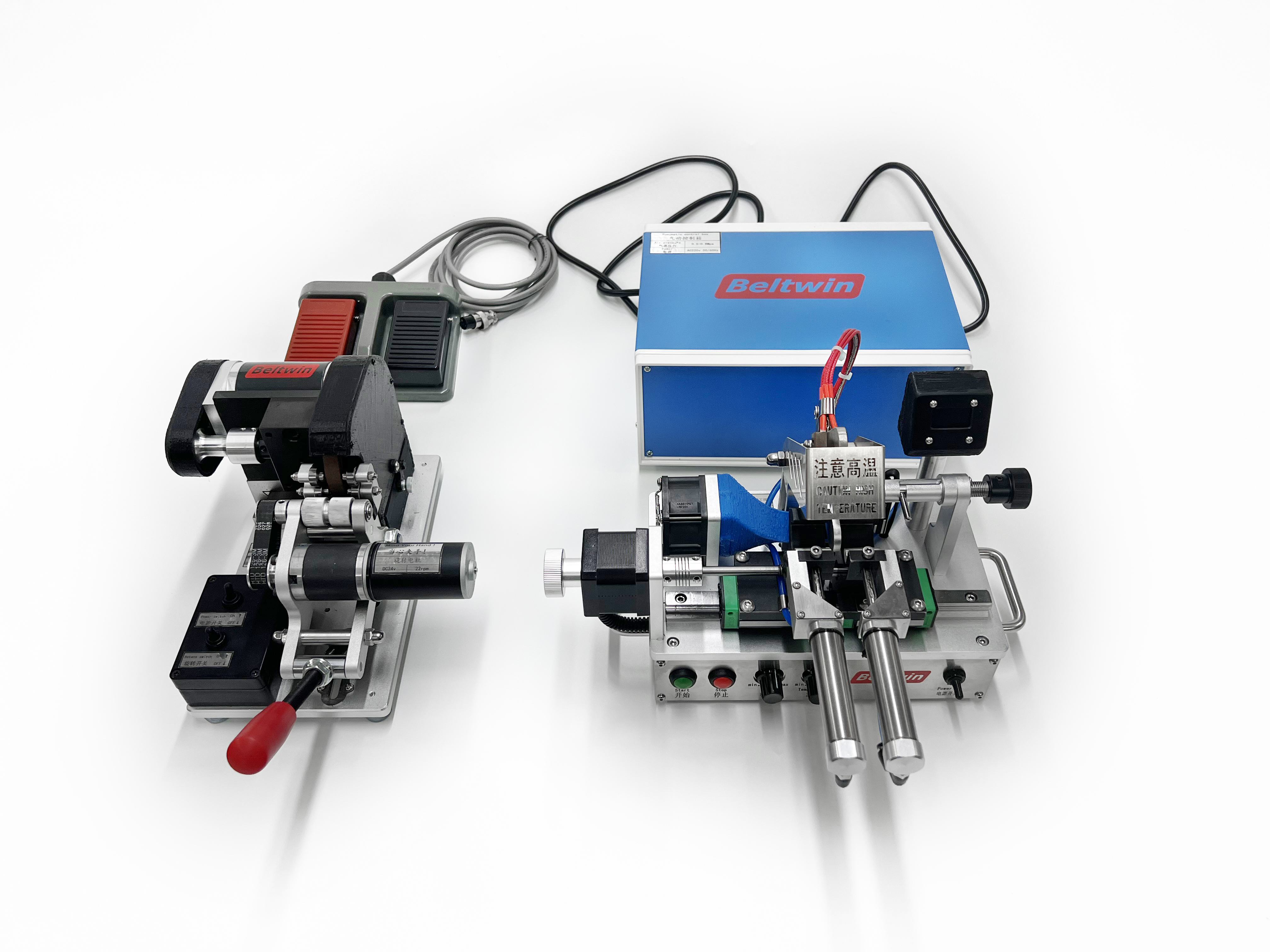

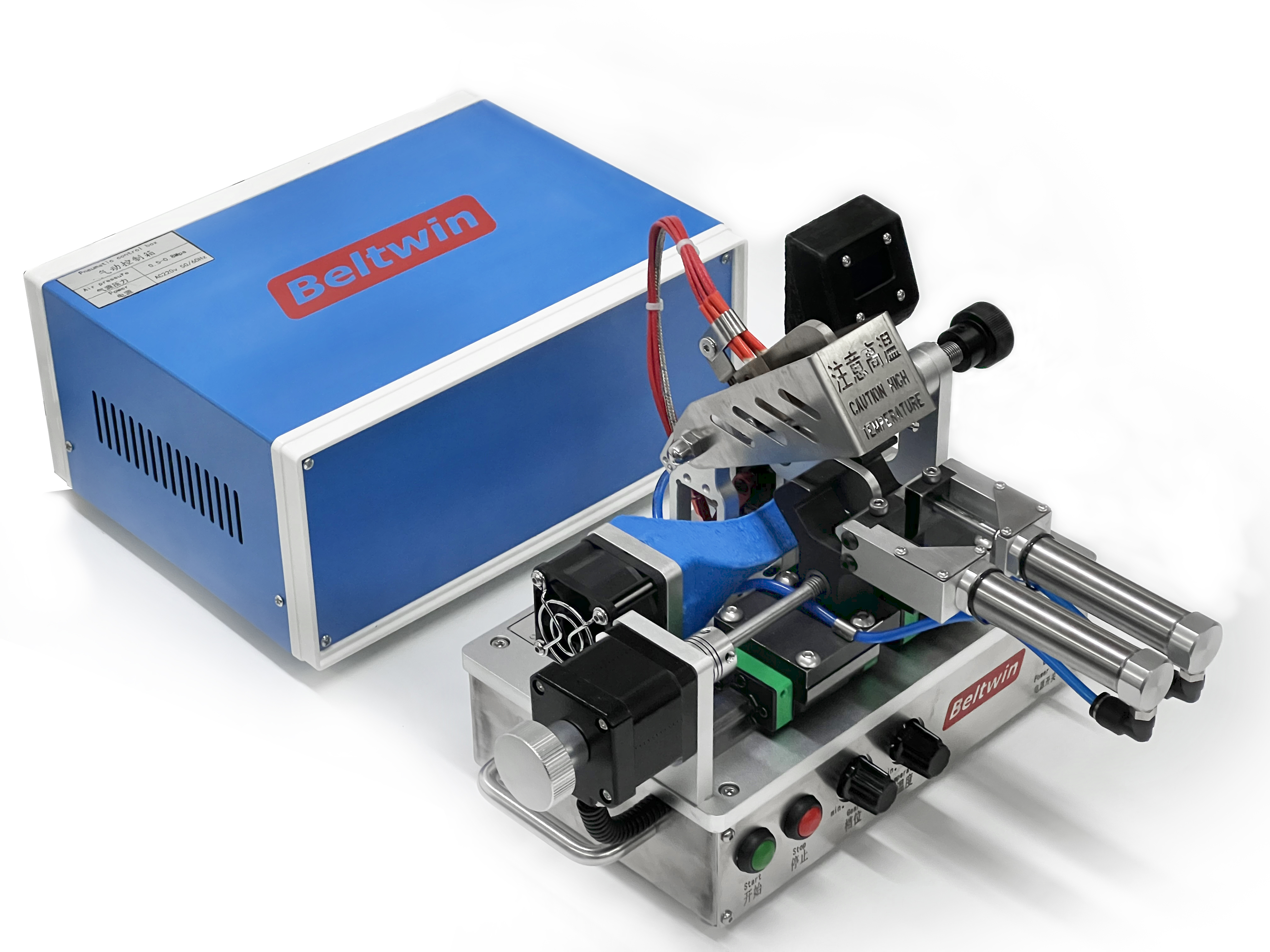

PortuguêsSemi-automatic PU Round V-Belt Welding Splicing Kit Cutter
This splicing kits are specially used for welding PU round belts, using welding clamp to fix the round belts, and can make high temperature welding.
Produciton Information:
Specification：
| Model | 13 | 20 |
| Splicing Diameter Range | 2 - 13 mm | 5 - 20 mm |
| Temperature Range | Adjustable 30°C - 450°C (86°F - 842°F) | Adjustable 30°C - 450°C (86°F - 842°F) |
| Clamping Power | Pneumatic (Air Cylinder) | Pneumatic (Air Cylinder) |
| Power Requirement | External Air Supply Required (Not Included) | External Air Supply Required (Not Included) |
| Packaged Weight | 7.5 kg | 9 kg |
| Packaged Dimensions | 515 x 365 x 265 mm | 515 x 365 x 265 mm |
Optional:
1.Cutter servo to a Brushless Motor
(Benefits: Longer lifespan, higher reliability, and lower failure rate.)
2.V-Belt Welding Fixture
* Clamping range for V-Belt profiles: Y, M, Z, A, B (covers top widths from 6mm to 17mm).
*Note: Lead screw and slider assembly are not included.
* Package Weight: 1 kg
