Description:

Normal Rubber conveyor belt splitting machine and special machine used for steel cord belt. Easy use and save labor cost. Make your job easier and quicker while increasing productivity. No need to flip the belt, because the removal of the upper and lower covers of the steel wire rope can be done at one time.

Compared with the traditional manual peeling method, it is more convenient to operate, can save a lot of time, and greatly reduce labor intensity.

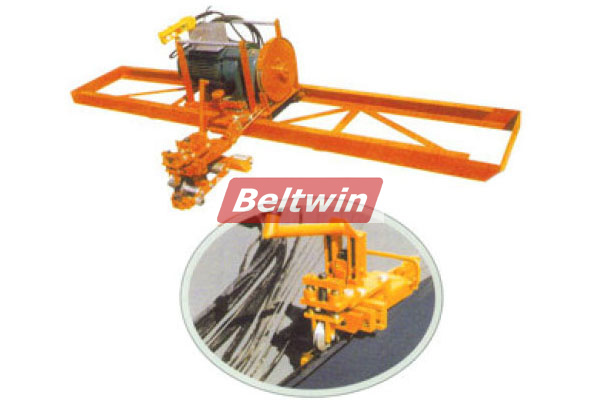

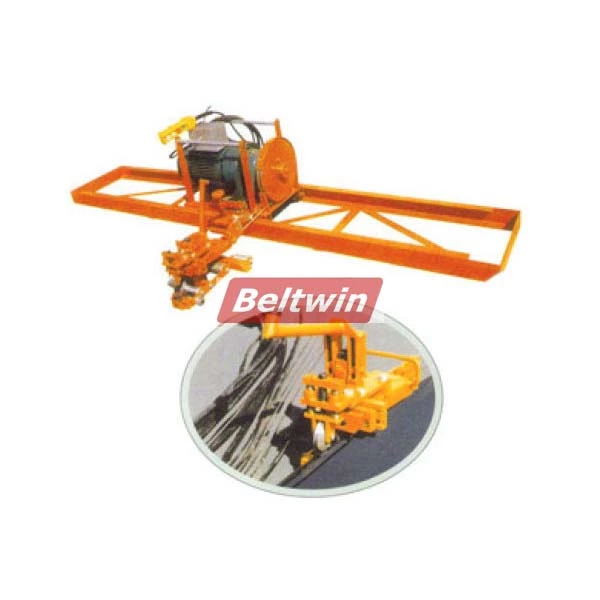

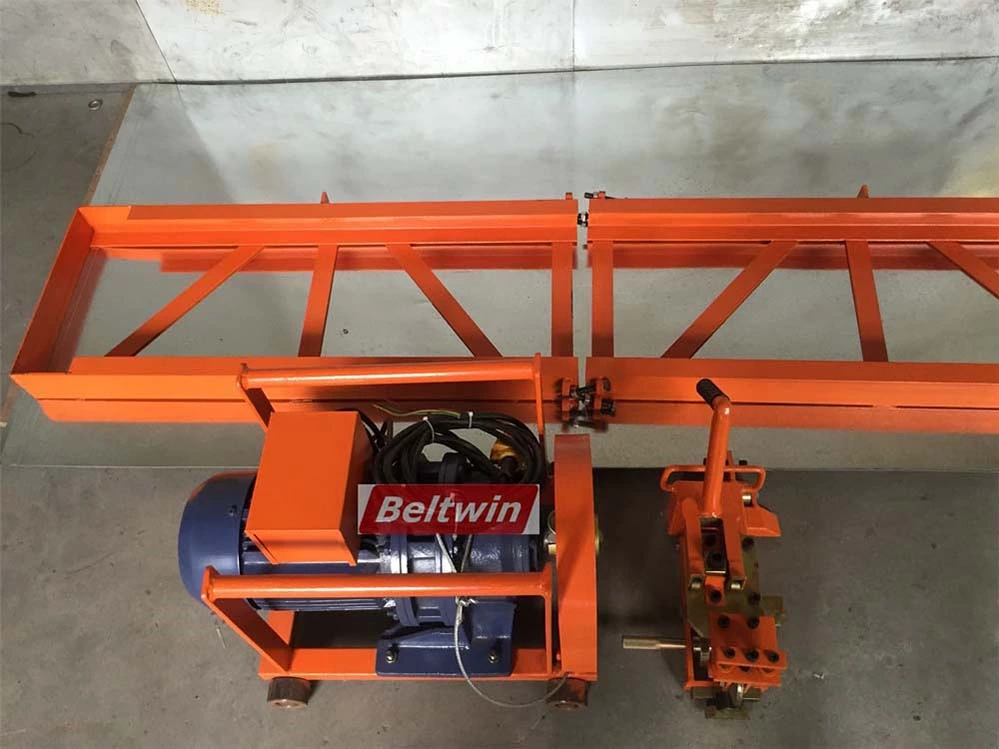

Steel cord belt stripper machine

Steel cord rubber conveyor belt strip machine designed for the strip work of various steel cord belts, the products are widely used in the following industries: power plants, mining, steelworks, wharf, petrochemical, etc.

Technical Data:

  • Power supply : 380V, 50Hz
  • Motor power : 3 Kw
  • Weight : 96 kg
  • Application: strip of steel cord conveyor belt, no width limited
  • Altitude: not more than 2000 m
  • Ambient temperature: -20℃ … +40℃
  • Relative temperature: not more than 85%
  • Dimensions: 590x360x470mm
  • Belt max thickness: ≤43mm
  • Linear speed: 0.3m/s

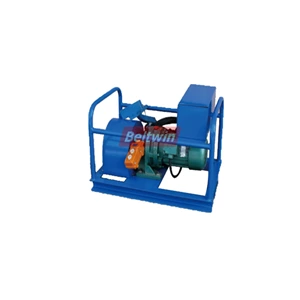

Rubber Belt Peeling Machine Used To Tear Off The Rubber-Cover From Nylon, Canvas, Cable, Etc. Via Frog Clamp And Electric Motor.

  • High efficiency, operation is simple and fast, can reduce the time required for jointing
  • Light weight and easy to carry
  • For rubber belt, not for steel cord belt
  • Power 0.75KW
  • Voltage:380V
  • Speed:0.3m/s
  • Belt Peeling width: up to 400mm

Rubber stripper, Model BPJ, for rubber conveying belts is used for the dedicated electric-powered rubber-stripping machine of rubber conveying belts with cores such as nylon, canvas and steel-wire rope etc. This machine can automatically grip, tear off and strip off the rubber layer covered on the belts, and separate the rubber from the core of the belts. It has such features as with strong towing force, large stripping surface and fast stripping velocity etc. This equipment is easy to operate, both safety and reliable; it can greatly reduce the labor strength of the job operator.
