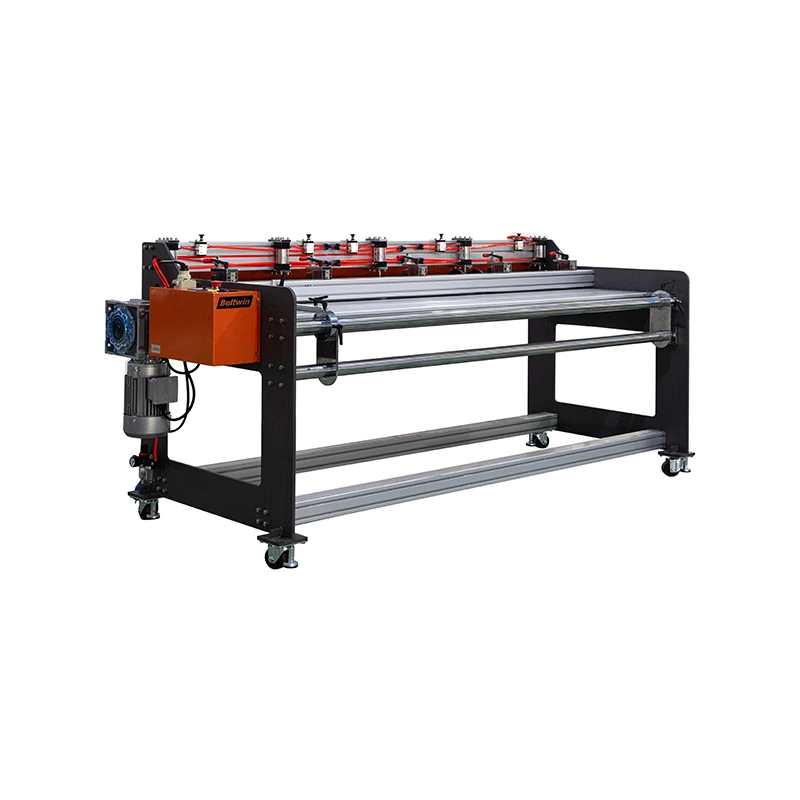

PVC PU Conveyor Belt Slitter CA2000-3000, Cutting Machine CA2000-3000

PVC PU Conveyor Belt slitter is designed for easy longitudinal cutting of conveyor belts up to 2000mm, 3000mm, 3500mm wide.
PVC PU Conveyor Belt Slitter CA2000-3000, Cutting Machine CA2000-3000
PVC PU Conveyor Belt Slitter CA2000-3000, Cutting Machine CA2000-3000 PVC PU Conveyor Belt Slitter CA2000-3000, Cutting Machine CA2000-3000 PVC PU Conveyor Belt Slitter CA2000-3000, Cutting Machine CA2000-3000 PVC PU Conveyor Belt Slitter CA2000-3000, Cutting Machine CA2000-3000 PVC PU Conveyor Belt Slitter CA2000-3000, Cutting Machine CA2000-3000

The Beltwin Slitter Machine is designed for easy longitudinal cutting of PVC, PU and other material conveyor belts up to 4 meters wide.Generally, our customers will choose to use in a fixed location in the factory, and if necessary, we can provide them with a series of conveyor belt splice solutions.We can ensuring a quick setup and increased productivity.

Specifications:

  • Without winder and unwinder units.
  • Cutting for PVC PU and PE Conveyor Belt
  • Belt width 2000mm, 3000mm (any special width can be customized)
  • Max belt thickness 15mm.
  • According to different requirements, can adjust the cutting speed.
  • Easy operation
  • Easy move in your workshop
  • The machine standard with 5 blades.
  • Electrical & Pneumatic control panel including the speed control, roller adjustment.
  • Complete assembly when delivery
  • Manual tracking fence to control alignment
  • Length Counter

Technical Datasheet:

Model

CA2000

CA3200

Machine Length

2480mm

3500mm

Machine Width

1070mm

1070mm

Machine Height

1020mm

1020mm

Machine Net Weight

420kgs

640kgs

Packing Weight

470kgs

720kgs

Packing Dimension

2670x1100x1420mm

3690x1100x1420mm

Power

750W

750W

Max working speed

47 Rotation/min

47 Rotation/min

Max Belt Width

2000mm

3200mm

Main Components:

1. Adjust the blade toolbar.



2. Control Panel: Pneumatic handle valve control the roller and cutting speed.

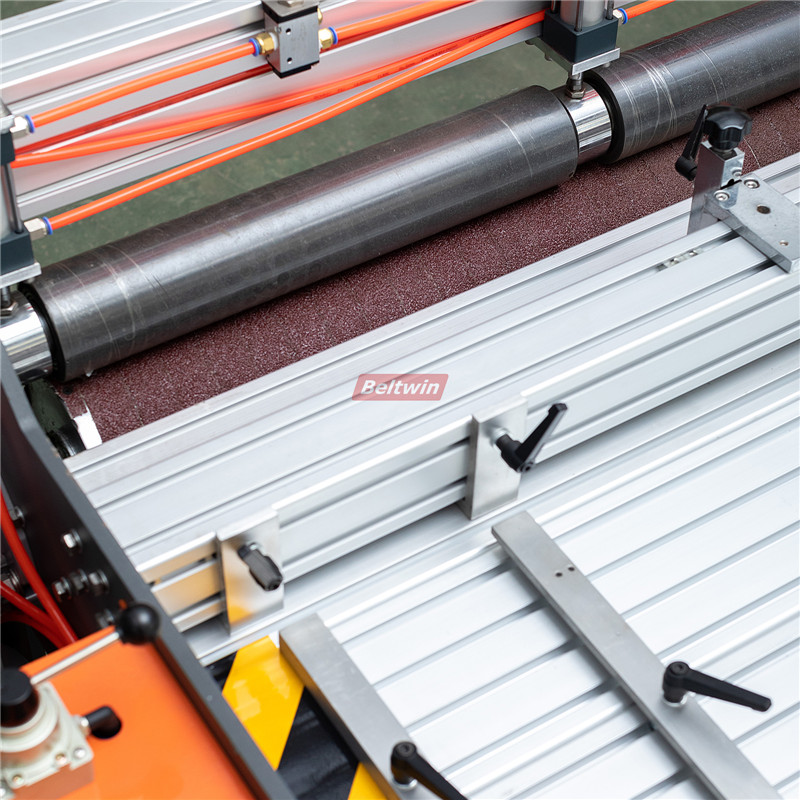

3. Blade holder with knife, mounted on moveable toolbar; stainless steel roller



4. Pneumatic assistant system. Pneumatic roller tensioner to keep coils tight, the latest separated  pneumatic cylinders for independent control. To help tight the wide belt and improve the cutting accuracy.

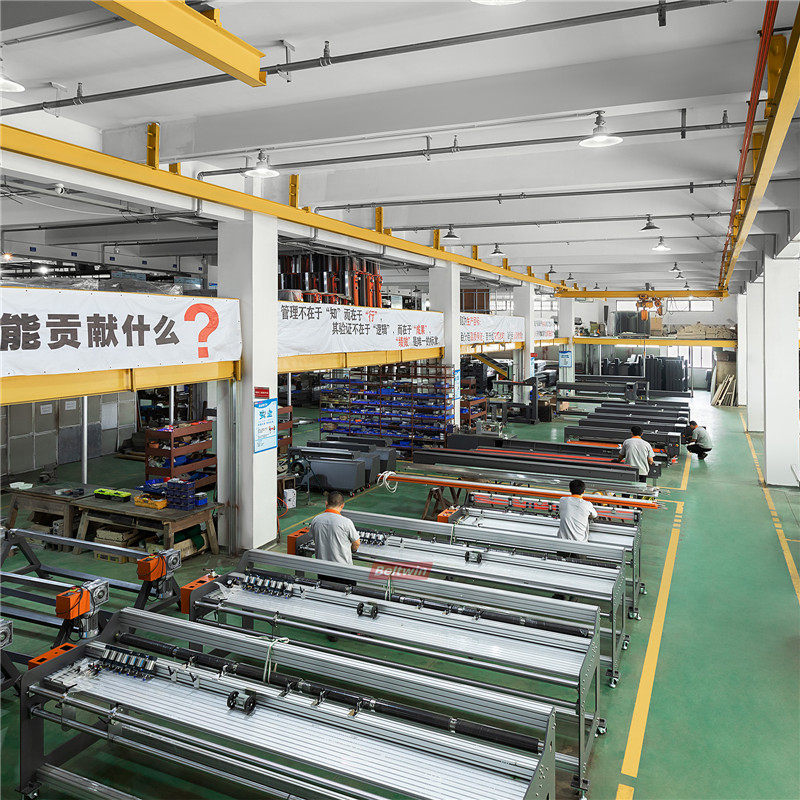

5. Mass production

Beltwin PVC/PU Belt Slitter Without Winders Operation

Cutting test for 11mm thickness rubber belt

Beltwin PVC/PU and Rubber Belt Cutting Slitter

2 Meter Belt Slitter Cutting Machine With Winder And Rewinder For Cutting PVC/PU Belt
