PortuguêsTiming Belt Finger Punching Machine for 20Ton
Technical Datasheet
Model
TB20T
Max Cutting Force
200KN
Width of Swing-arm
350*550mm
Stroke Adjustment Range
5-75mm
Cutting Speed
0.10m/s
Distance between swing-arm and working b
Technical Datasheet
| Model | TB20T |
| Max Cutting Force | 200KN |
| Width of Swing-arm | 350*550mm |
| Stroke Adjustment Range | 5-75mm |
| Cutting Speed | 0.10m/s |
| Distance between swing-arm and working bench | 65-150mm |
| Motor Power | 1.5KW |
| Electric Supply Voltage | 380v3phase,50hz. |
| Oil Tank Volume | 50kg,46#hydraulic oil |
| Dimension | 1000*1200*1500mm |
| Weight | 1000kg |

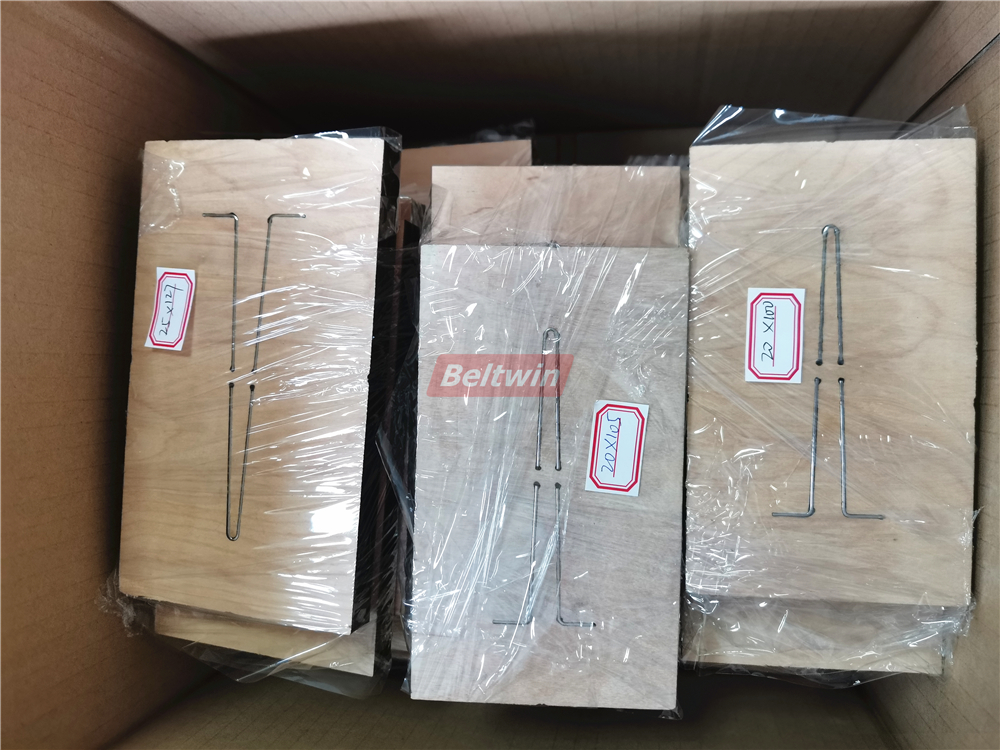

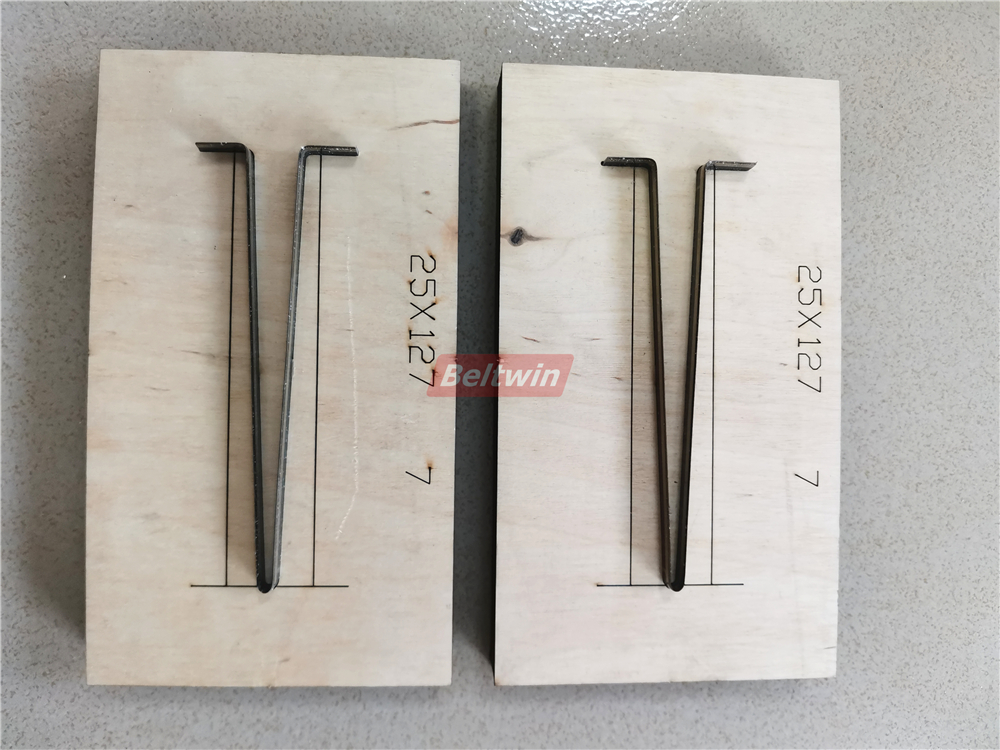

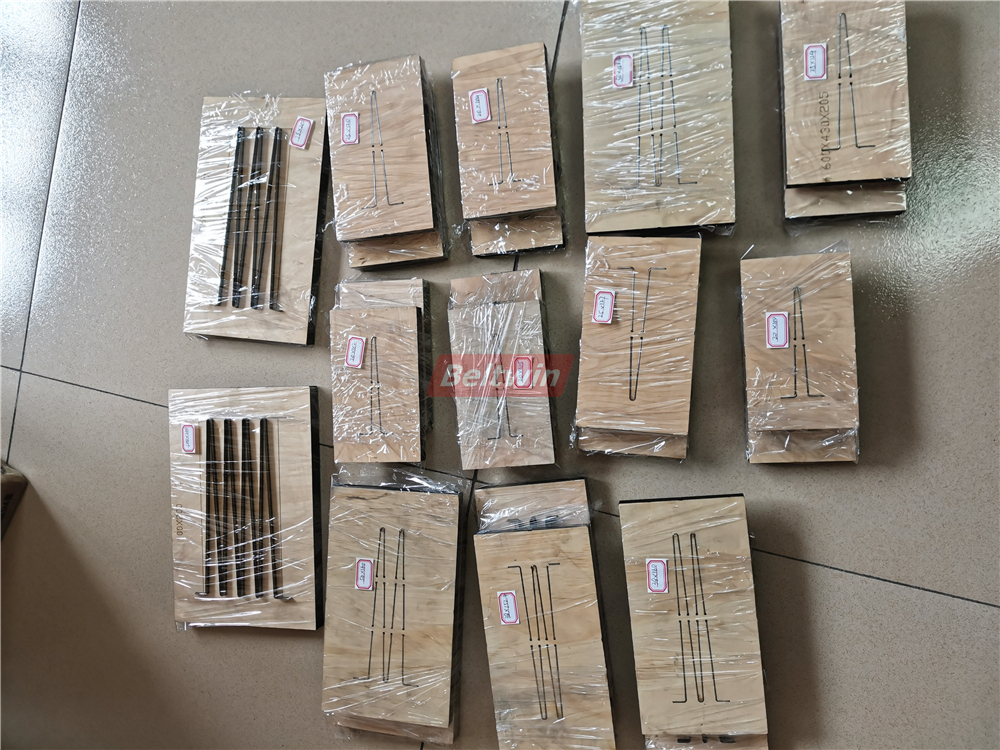

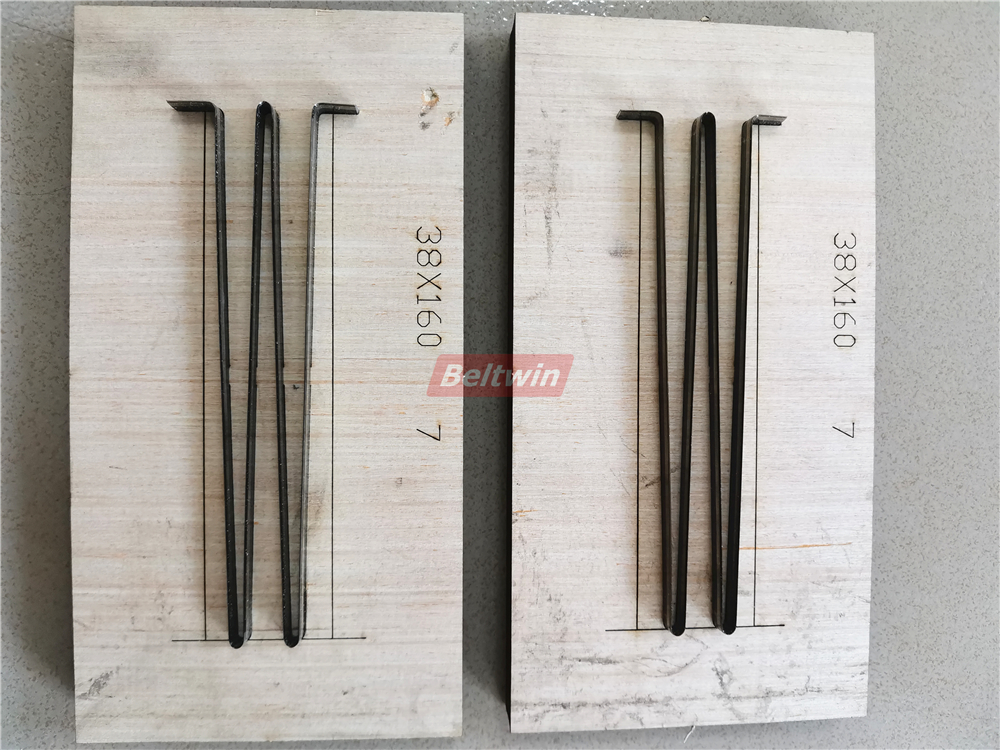

Punching Mold
T5, AT5, AT10, T20, AT20, 5M, 8M, 14M, H, L, etc.

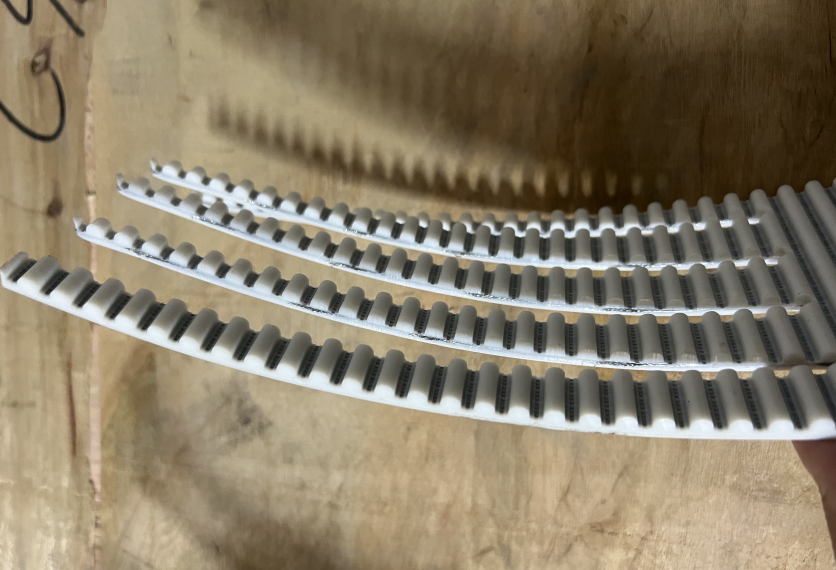

Punching Effect For PU Timing Belt Include Steel Cord
