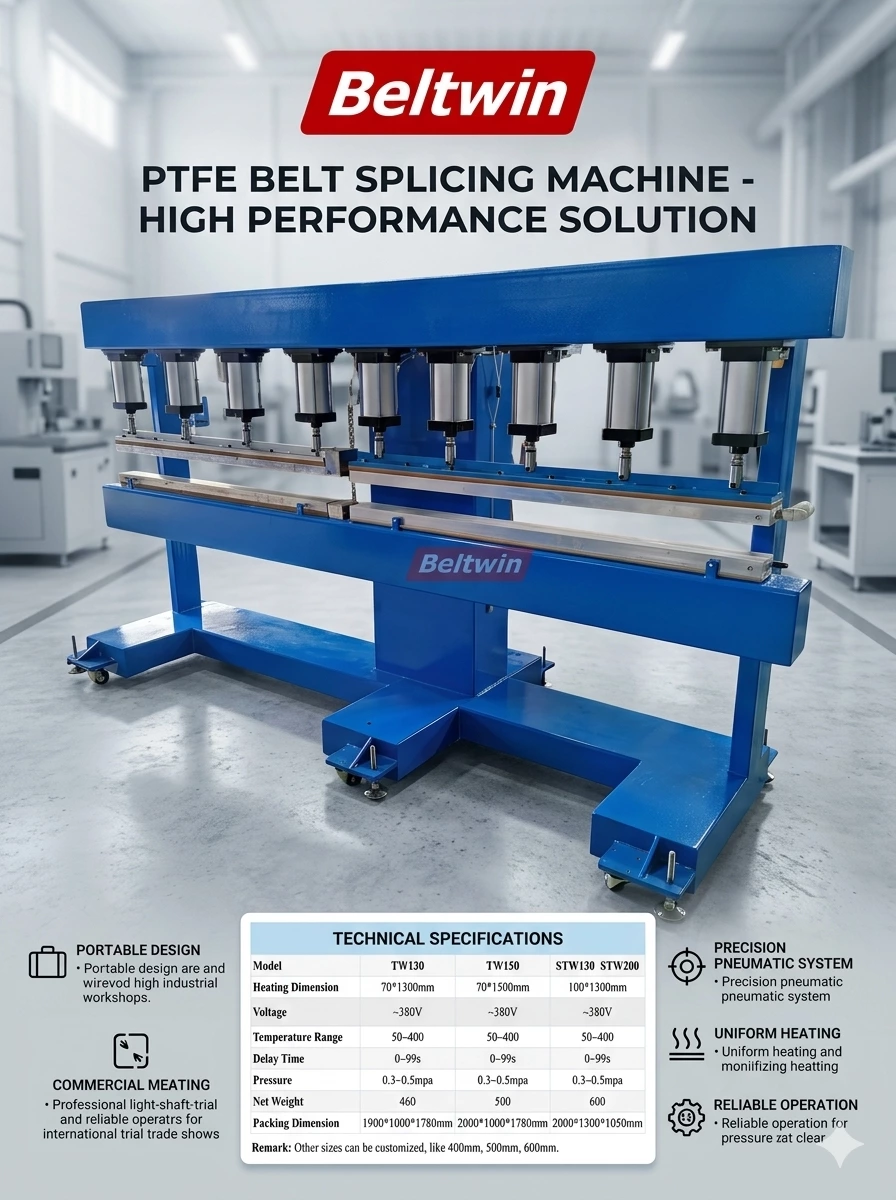

PortuguêsTW(STW)130-200 PTFE Teflon Conveyor Belt Hot Splicing Press Welding Machine
Technical Datasheet Model TW130 TW150 STW130 STW150 STW200 Heating Dimension 70*1300mm 70*1500mm 100*1300mm 100*1500mm 100*2000mm Voltage ~380v ~380v ~380v ~380v ~380v Temperature Range 50~400 50~400
- Working area
- The maximum effective size of the belt it can weld, which is 1300 mm in width × 2000 mm in length.
- Belt Width
- 400mm, 500mm, 600mm,
- Application
- Widely applied in food processing, new energy, textile printing, electronics, packaging, pharmaceutical and chemical industries.
Technical Datasheet
| Model | TW130 | TW150 | STW130 | STW150 | STW200 |
| Heating Dimension | 70*1300mm | 70*1500mm | 100*1300mm | 100*1500mm | 100*2000mm |
| Voltage | ~380v | ~380v | ~380v | ~380v | ~380v |
| Temperature Range | 50~400 | 50~400 | 50~400 | 50~400 | 50~400 |
| Delay Time | 0~99s | 0~99s | 0~99s | 0~99s | 0~99s |
| Pressure | 0.3~0.5mpa | 0.3~0.5mpa | 0.3~0.5mpa | 0.3~0.5mpa | 0.3~0.5mpa |
| Net Weight | 460 | 500 | 460 | 500 | 600 |
| Packing Dimension | 1900*1000*1780mm | 2000*1000*1780mm | 2000*1300*1050mm | 2200*1300*1050mm | 2700*1300*1050mm |
Remark: Other sizes can be customized, like 400mm, 500mm, 600mm.
What is PTFE teflon conveyor belt?
The PTFE TEFLON Conveyor Belts or Mesh conveyor Belt. It is high temperature resistance, can resist all most of chemical medicines and non-stick. So it is widely used in paper, food, environmental protection, printing and dyeing, clothing, chemical, Glass, medicine, electronics, insulation, grinding wheel slicing, machinery and other fields.
Standard type machine photos
Two platens welding machine (heating and cooling platen)
The welding machine for welding material on edge of open mesh belt (Heating platen x 1 ,Water cooling platen x 1 )
The PTFE belt welding machine include quick water cooling system for welding endless open mesh and teflon (Heating platen x 1 ,Water cooling platen x 1 )
Two kinds of PTFE material bonding machine
Delivery photos
