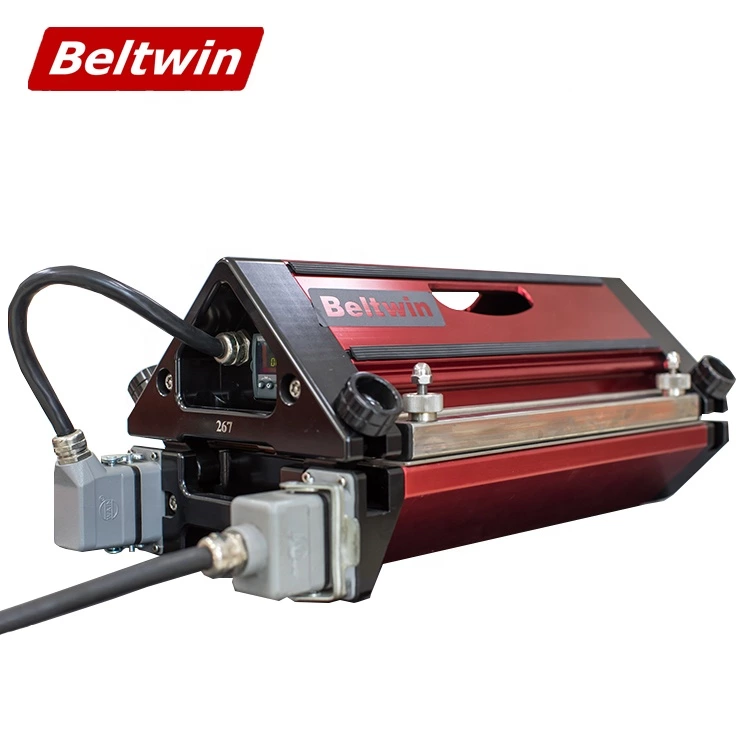

Portable PVC PU Conveyor Belt Jointing Machine

All In One Air Cooling Press PA300-2100

The splice press splices fast and is portable everywhere.

Product Information

Cooling: Air Cooling

Belt width from 24″ (300 mm) to 82″ (2100 mm)

Machine Material: Aluminum

Working Pressure: 2 bars / 28PSI / 0.2Mpa

Heating Effective width: 130mm Generation 2 or 150mm

Flight case is included.

Features

1.High-Accuracy Core Component: Ensures precise alignment for reliable performance.

2.Powerful 5.3 kW Motor: Delivers robust energy for efficient splicing operations.

3.220V Voltage Compatibility: Suitable for various industrial settings worldwide.

4.Comprehensive Documentation: Includes video quality check and mechanical test reports.

5.Compact Design: Dimensions 1720 x 450 x 430 mm for easy storage and portability.

Specifications

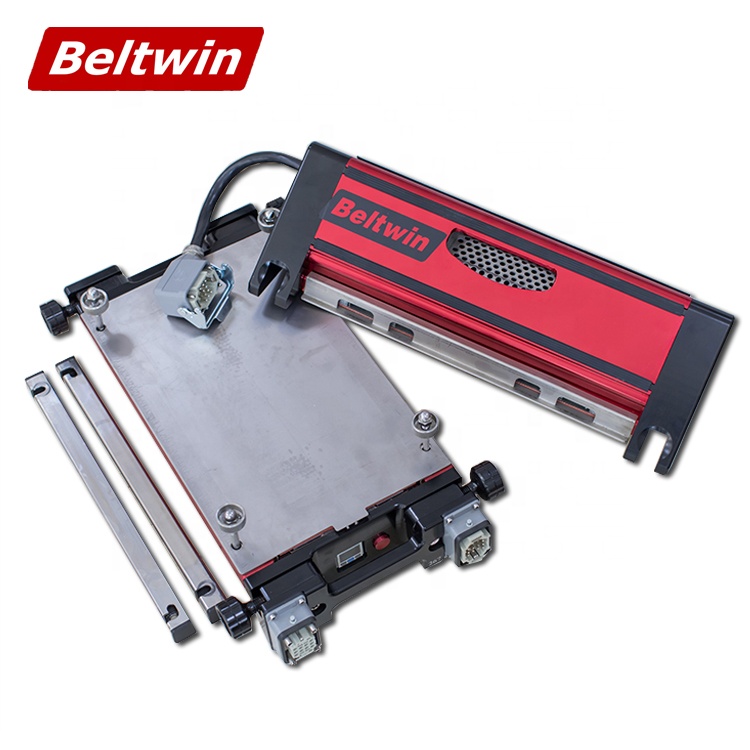

Frame

Thee extruded aluminum alloy body makes the total machine lightweight. The low profile height is only 83mm. Both end caps are machined by a CNC machine. Outside high-quality painting (red color is our standard color, but we also can offer other colors, like blue as your request). The whole body is hand polished to ensure the safety of your workers.

Cooling System

Several high-performance fans on the upper frame ensure can cooling down from 180ºC to 65ºC only takes 4m30s to 5m30s.

Control Panel

Built-in the frame of the press and easy to operate. Temperature control (setting heating temperature and cooling temperature) and time control (dwell time setting) in one meter. Pressure control is independent, specially supplied by SMC Pneumatic Japan, with pressure limitation, making sure the workers can’t set pressure higher than 2 bars, much safer.
