PortuguêsAir Cooling Splice Press for Longitudinal Jointing of PVC PU Conveyor Belts
This air cooling splice press is designed for longitudinal jointing of PVC and PU conveyor belts. It enables fast splicing, with a jointing time of 10-20 minutes, and has no restrictions on belt width or length.
The market trend is increasing the width of the conveyor belts. A belt that 20 years back was considered as exceptionally wide, nowadays is frequently called as normal.
Following to this trend, Beltwin has updated its production lines: Air Cooled Splice Press Longitudinal Jointing Conveyor Belt.
Using a hot vulcanising process, it has the capability to longitudinally joint almost all PVC PU belts, this process ensures the longitudinal joint maintains its flexibility, strength and consistency. This is especially important for short belts and pattern belts like sawtooth.
Machine Specification:
| Joint Time: 10-20mins | ||
| For PVC and PU Belt | ||
| No limited width and length | ||
| PA-1500 | PA-2100 | |
| Jointing Length: | 1500mm | 2100mm |
| Jointing Width: | 150mm | 150mm |
| Top Plate Weight | 46KG | 60KG |
| Bottom Plate Weight | 49KG | 62KG |
| Press Weight | 95KG | 125KG |
| Press Body Length | 1730mm | 2330mm |
| Press Top Plate Height | 250mm | 250mm |
| Press Bottom Plate Height | 140mm | 140mm |
| Joint Press Height | 320mm | 320mm |
| Press Top Plate Width | 230mm | 230mm |
| Press Bottom Plate Width | 295mm | 295mm |
| Max. Press Working Pressure | 2Bar | 2Bar |
| Max. Temperature | 200℃ | 200℃ |
| Machine Specification(mm) | 2800*950*1850 | 3500*950*1850 |
| Total Machine Weight | 1100KG | 1600KG |
| Power | 5KW | 7.3KW |

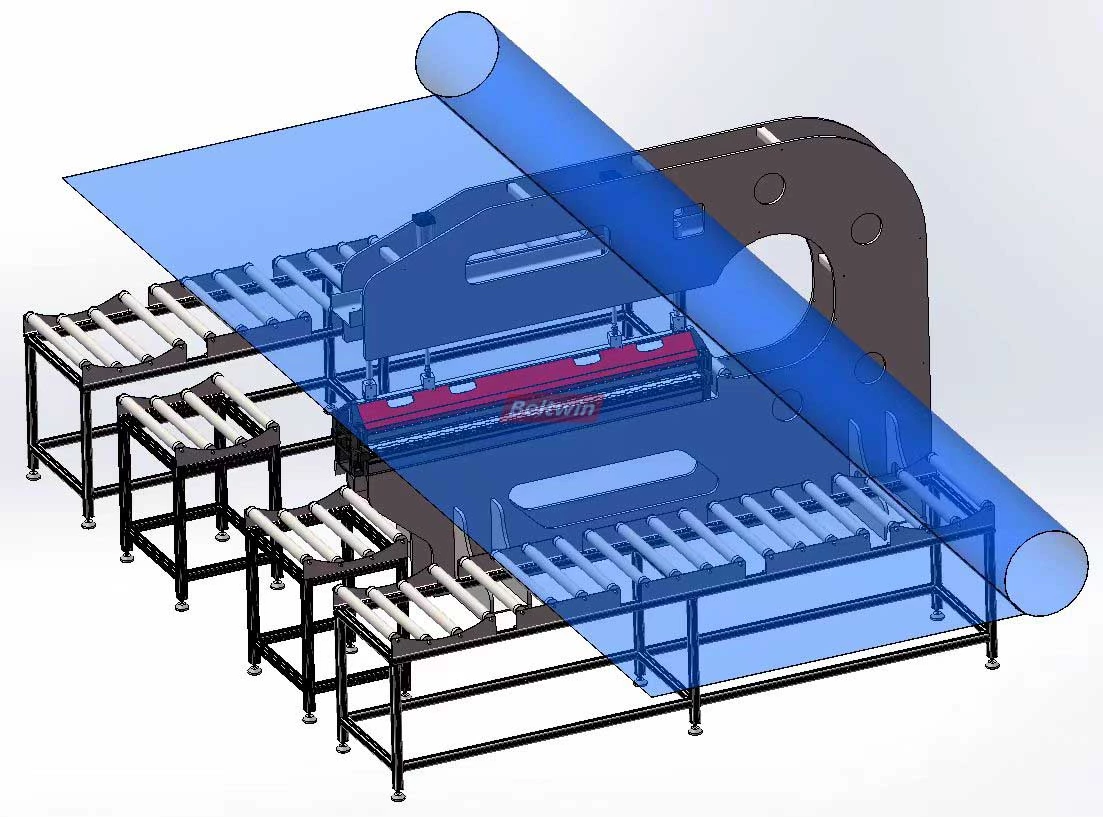

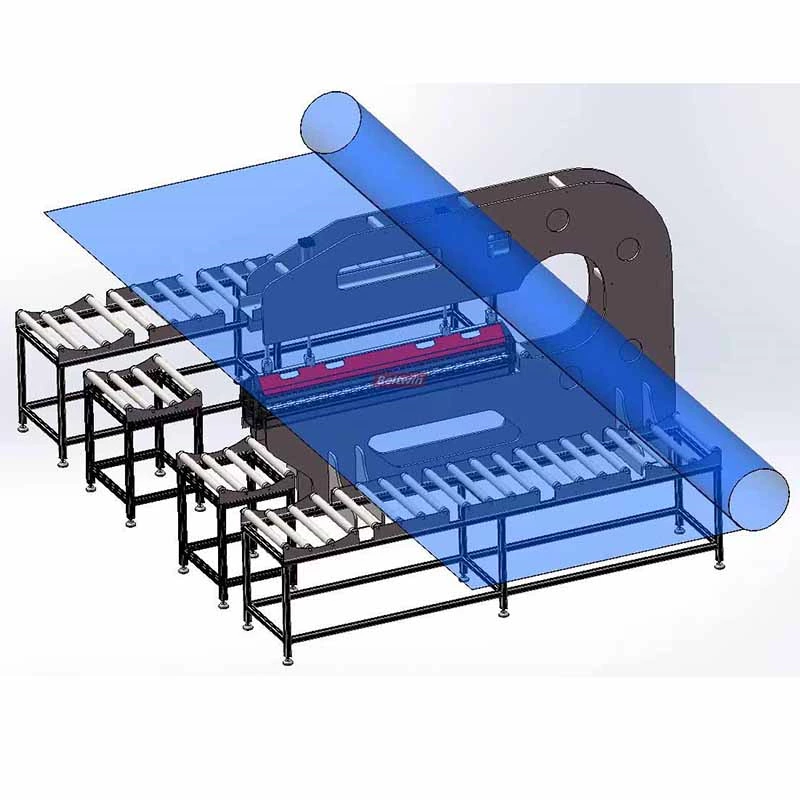

Optional Accessory: The belt support rack is optional

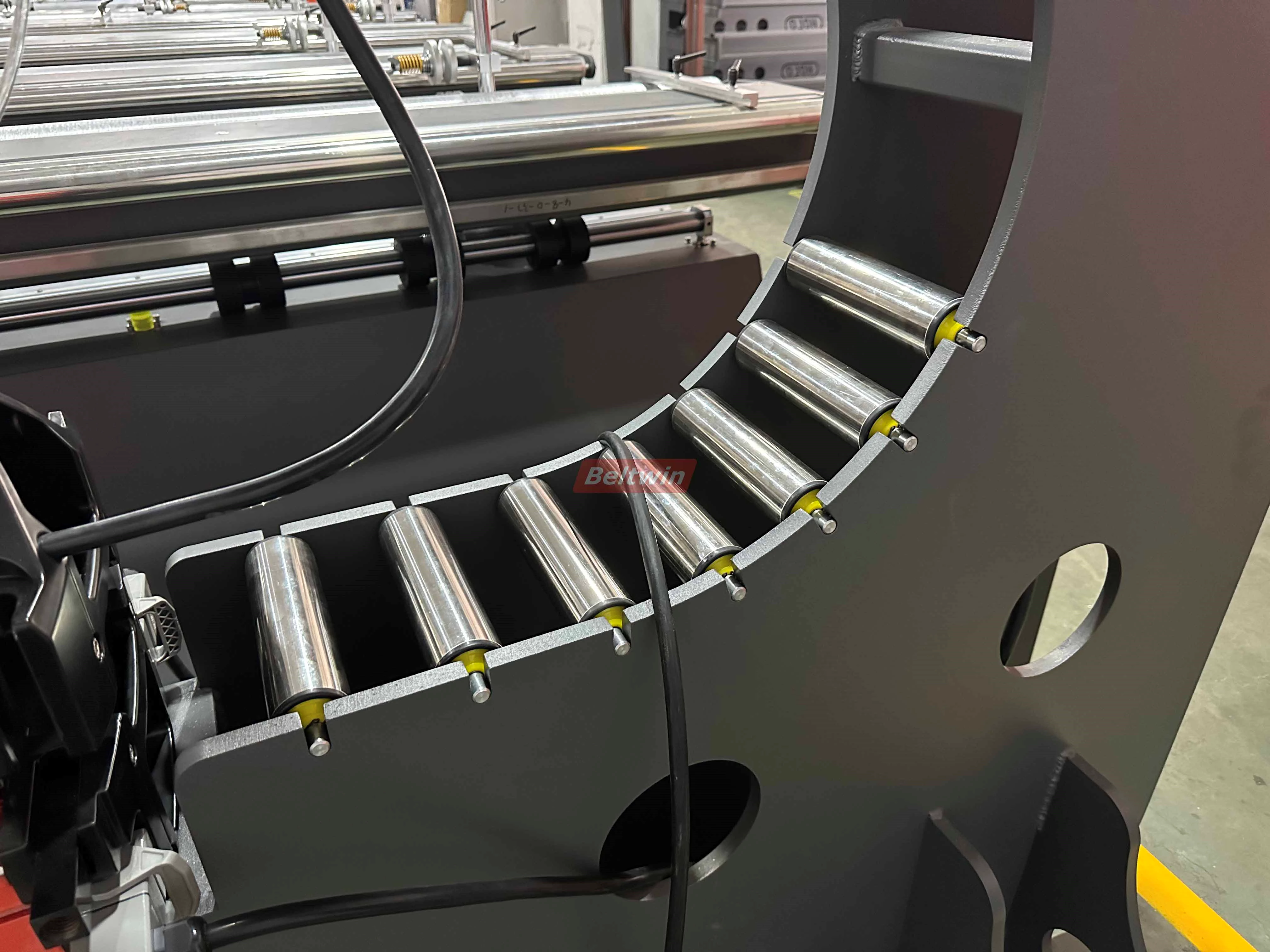

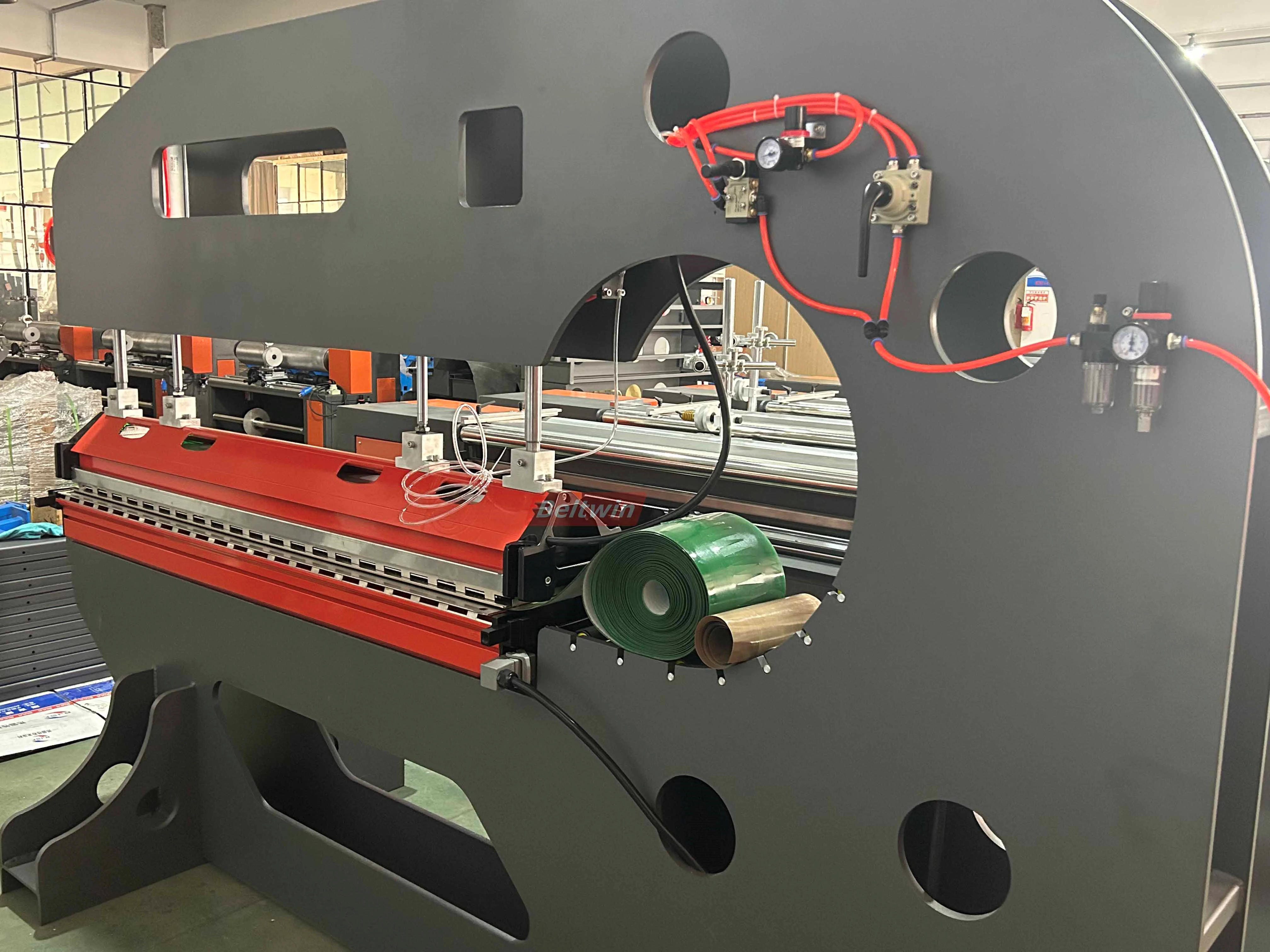

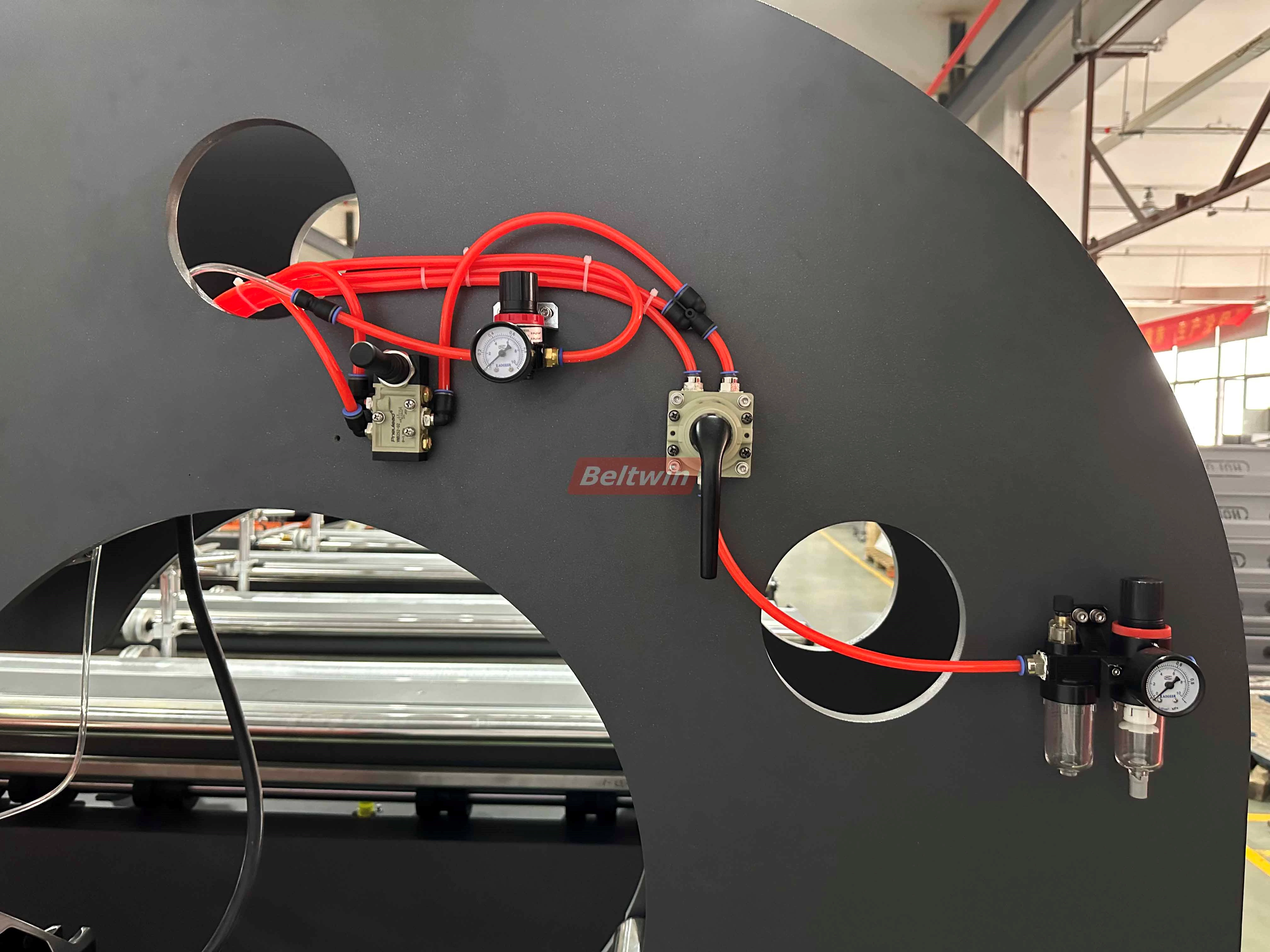

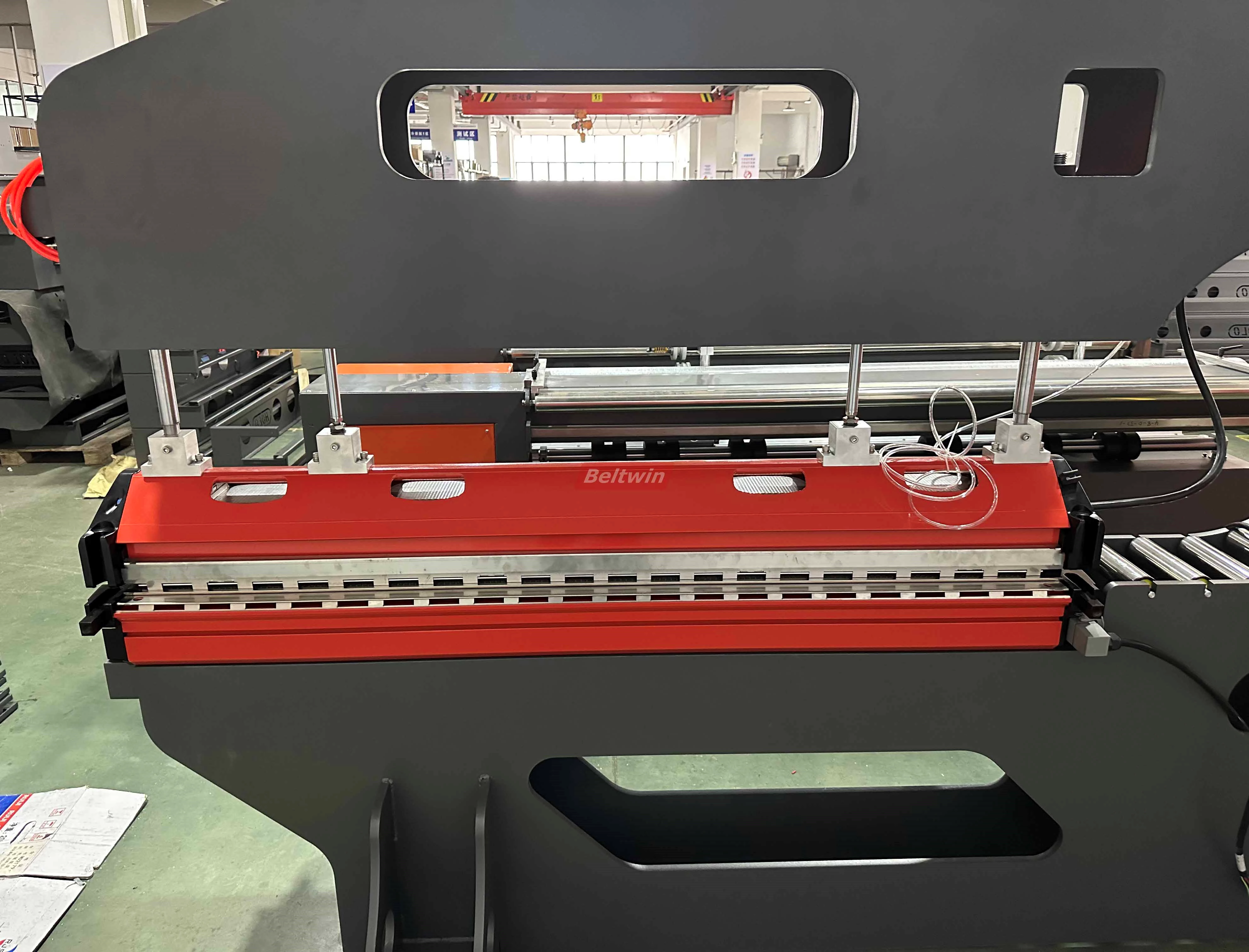

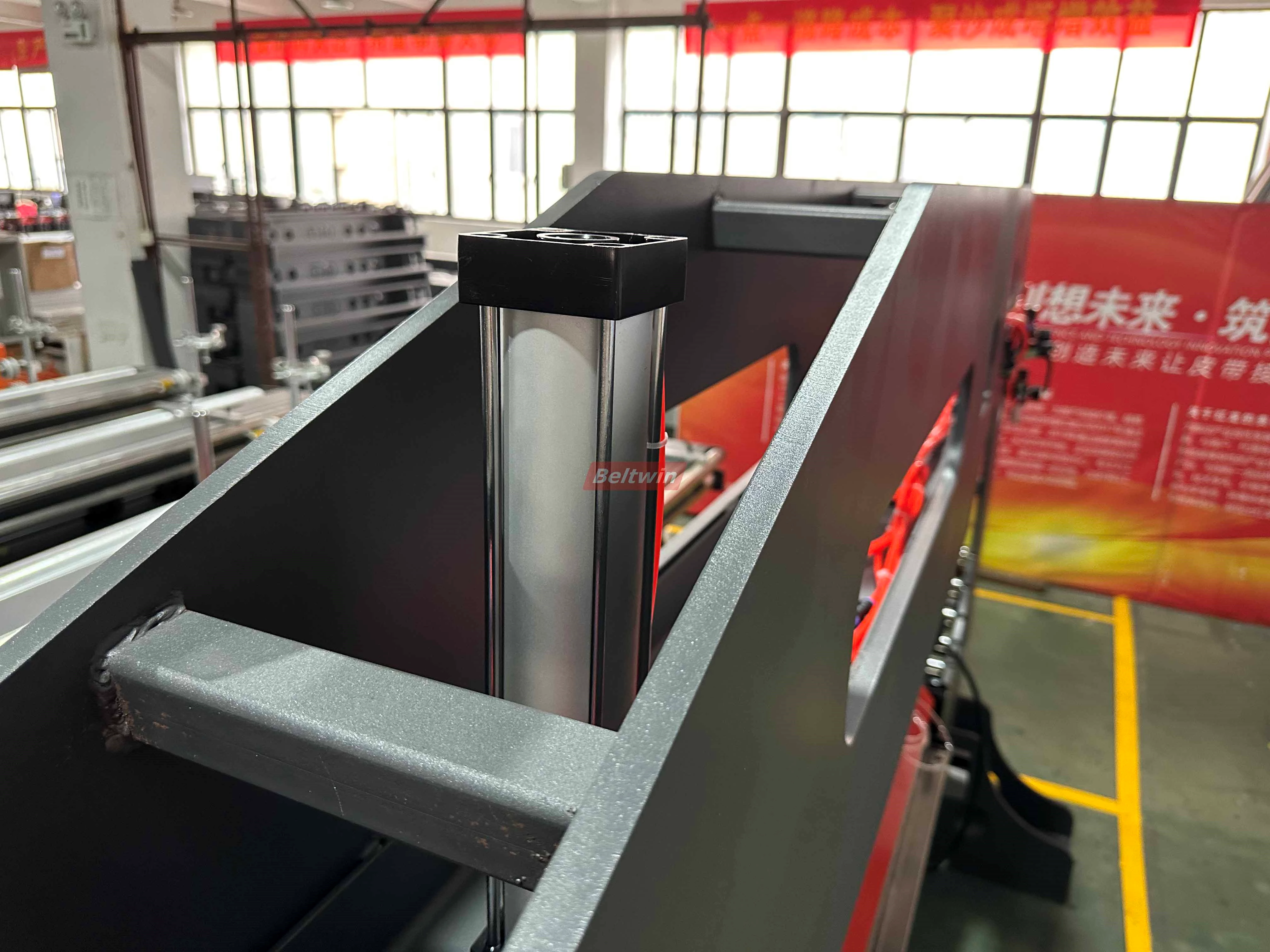

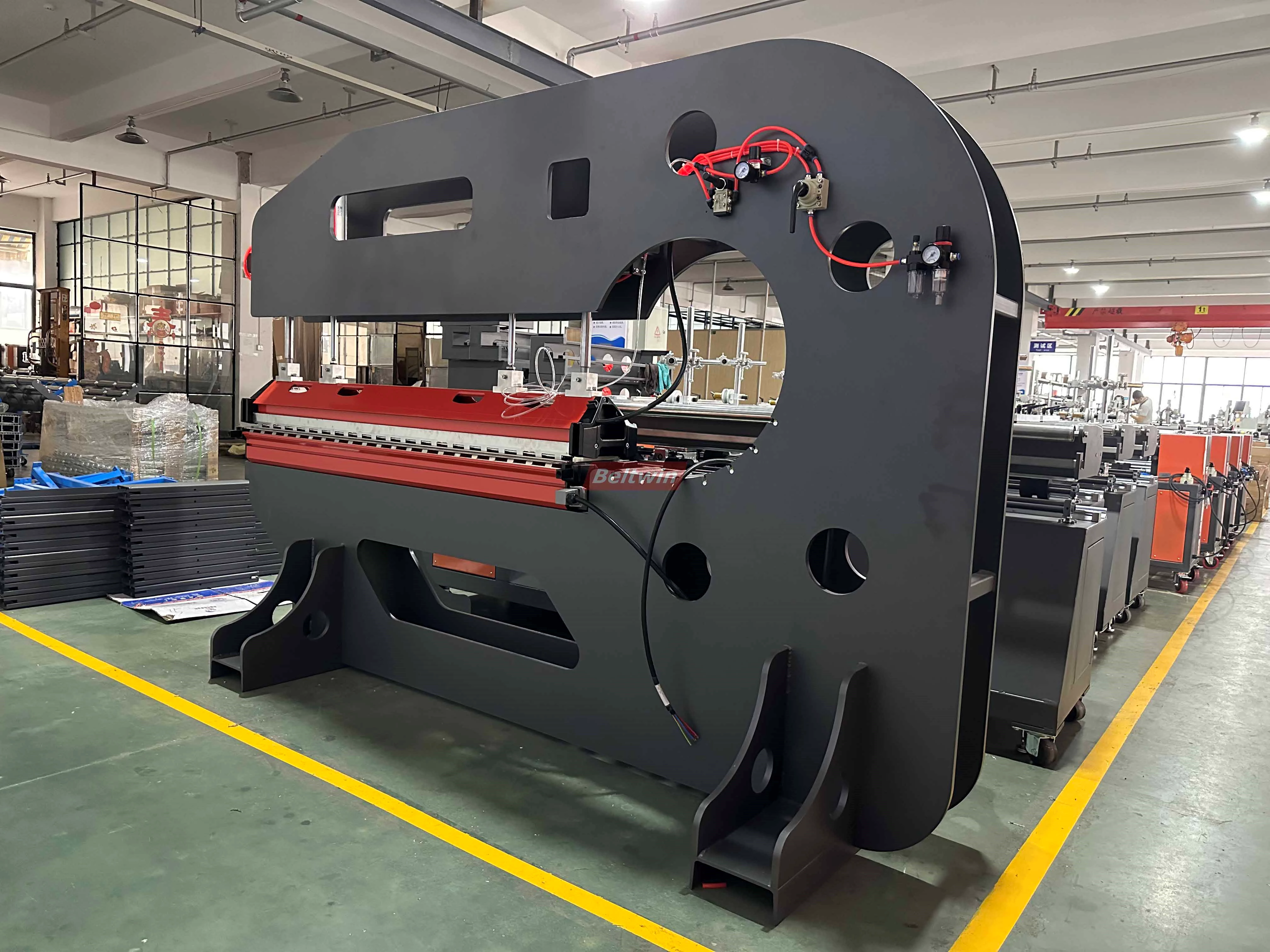

Machine Photos:
