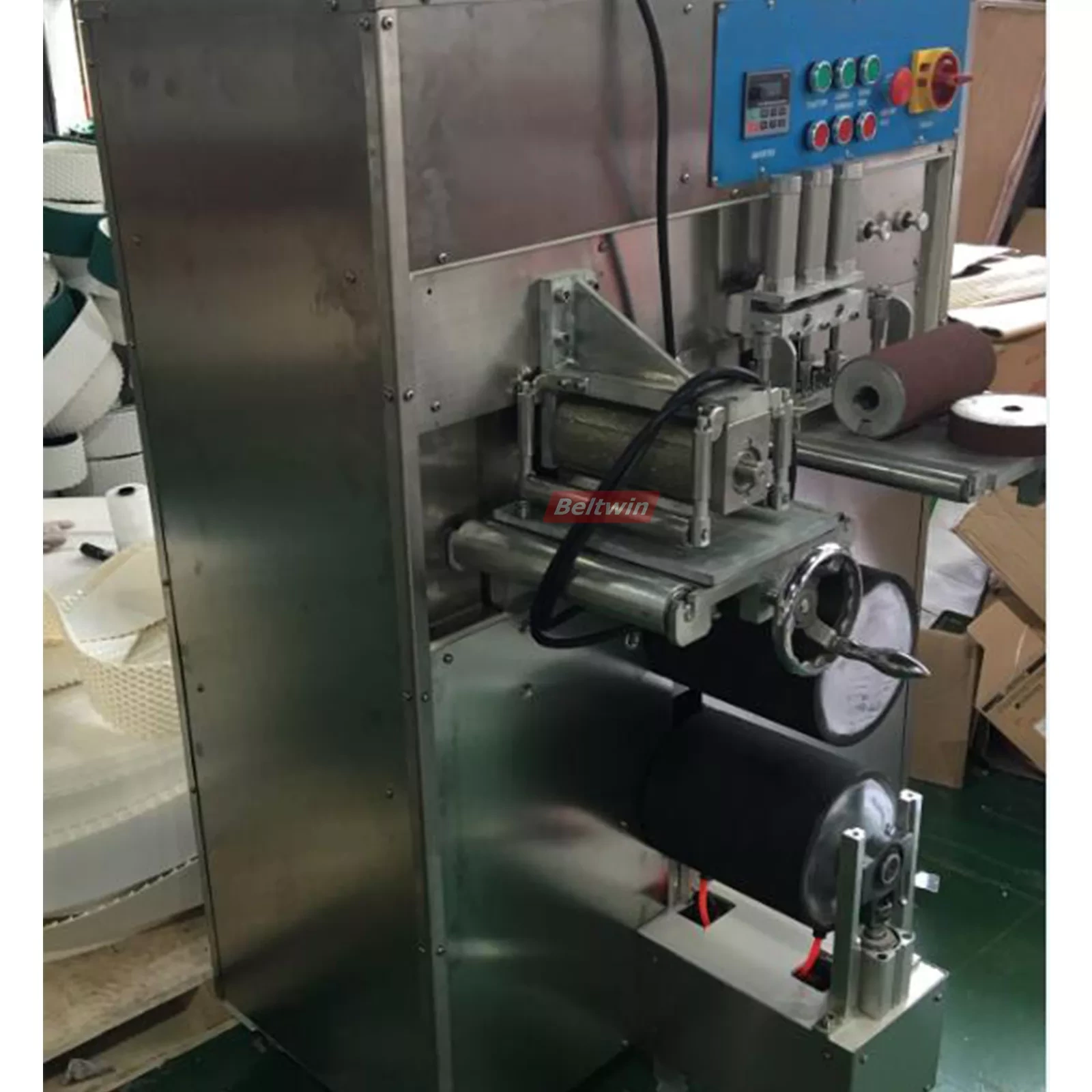

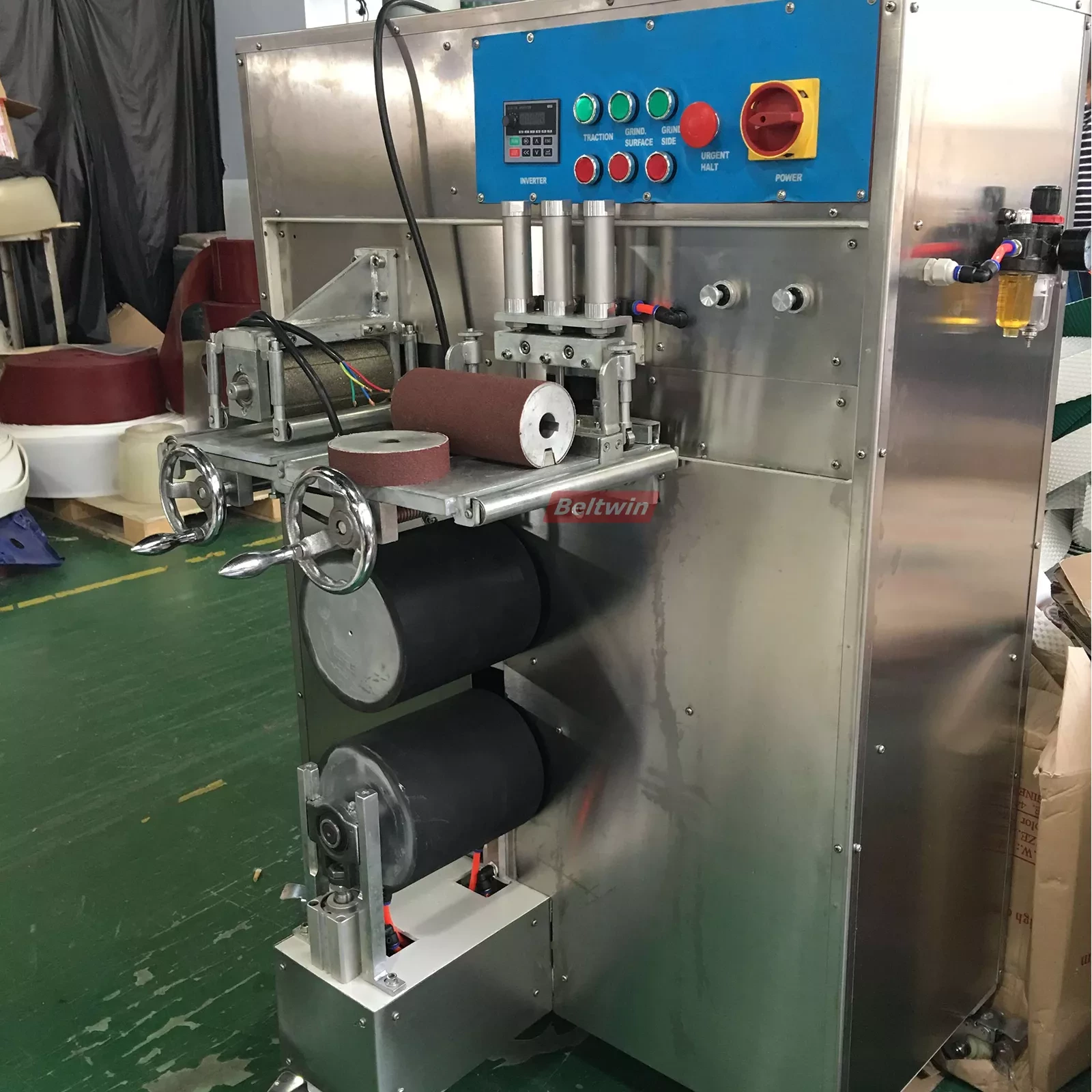

Timing Belt Grinding Machine

This machine can grind the both side of surface of coated rubber / PU timing belt

Specification:

1. Suitable for : PU / Rubber sheet or Belt coating products
2. Voltage : 380V 3Phase , 50/60Hz (Sepecial Voltage is on request.)
3. Frequency : 50~ 60 Hz
4. Total Power : 3.4 Kw
5. Complete with : Machine body, Control box, Abrasive belt roller (Diamond roller on request)
6. Traction Speed : Maximun 30meter / Minutes, speed adjusting up to different products
7. Structure : Aluminium + Iron + Stainless steel structure, Blue / Silver color
8. Working Length : 1200mm - no limited length
9. Working Width : 5- 150mm
10. Working Thick : 1 - 20mm (Please infom if you need to process thinner or thicker belt)
11. Packing Size : 1100 x 1000 x 1500 mm
12. Machine Size : 1000 x 850 x 1350 mm
13. Grinding Width : 5~ 150 mm
14. Gross Weight : 422 Kg
15. Net Weight : 350 Kg

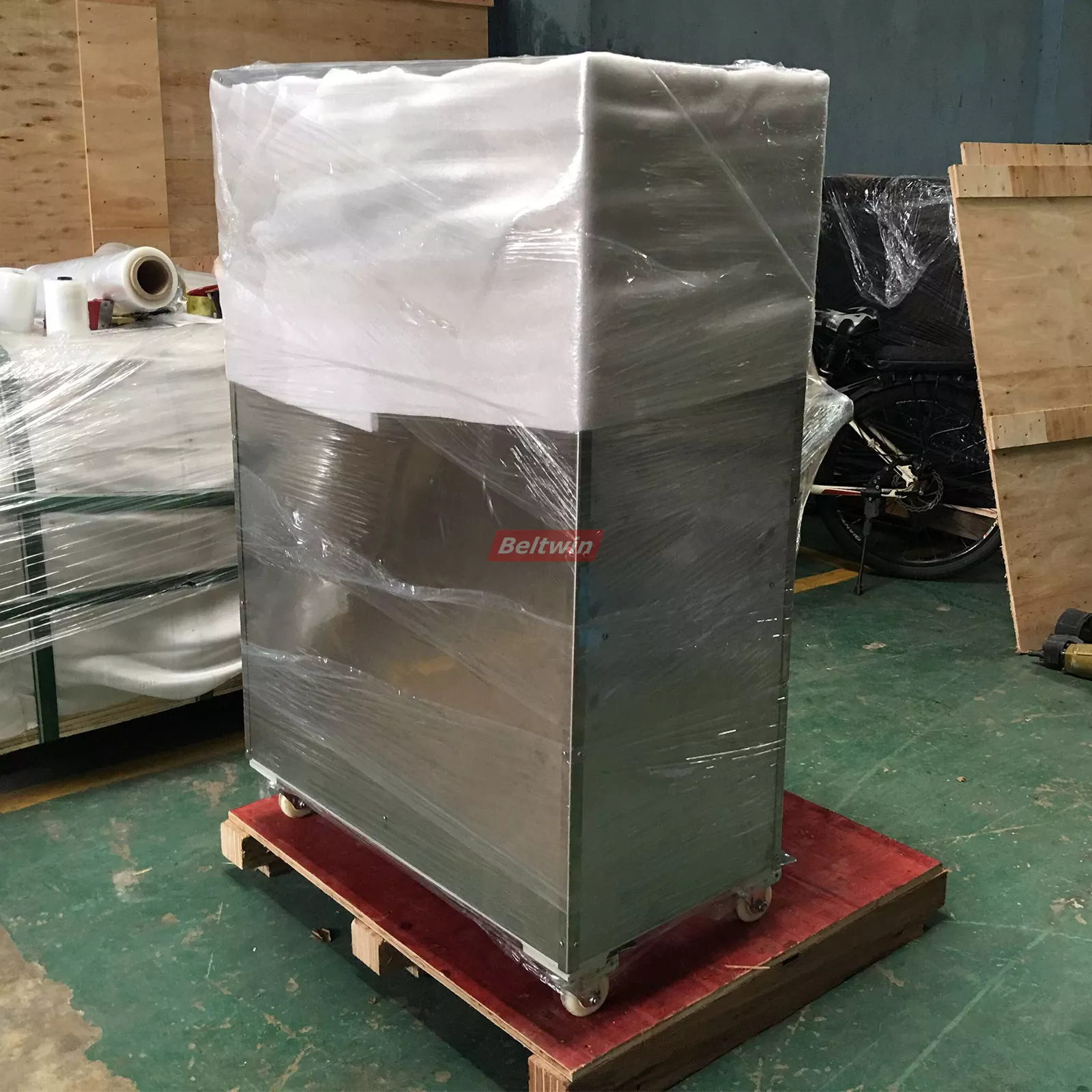

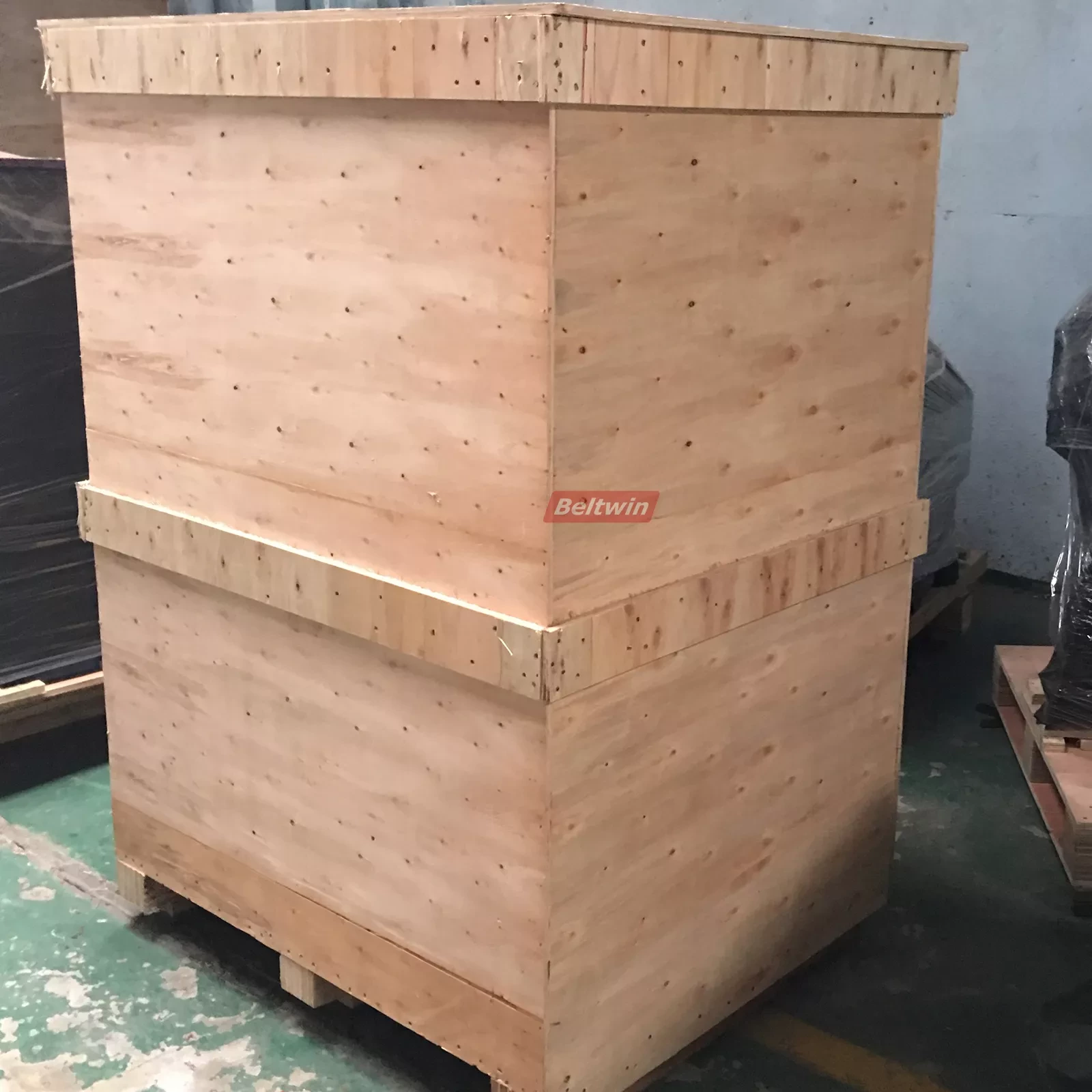

Machine Packing Photos :
