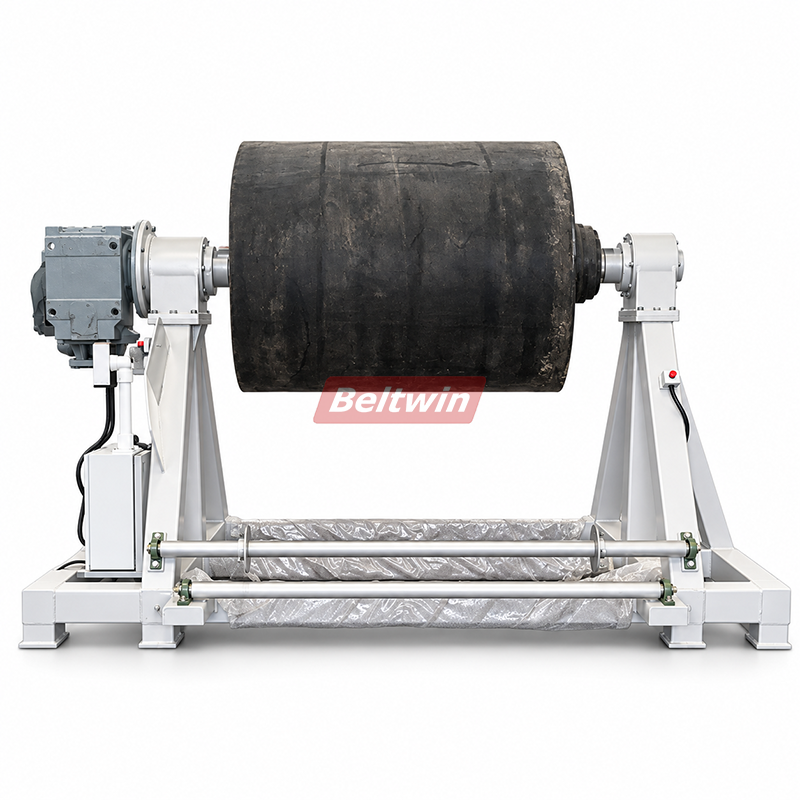

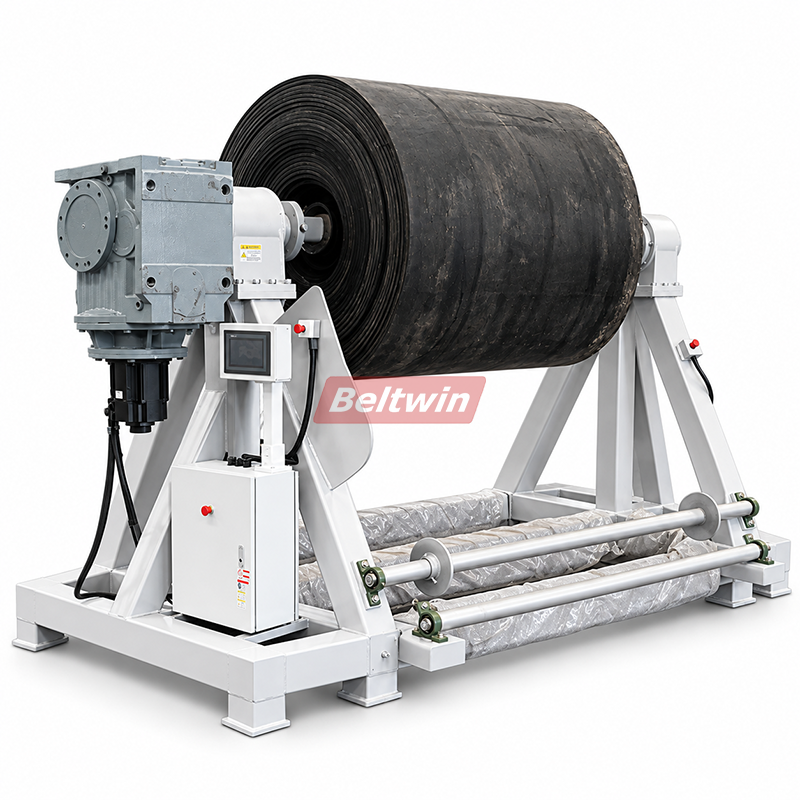

PortuguêsHeavy Duty Rubber Belt Winder
The winder can roll and unroll the belt automatically.Efficiently and safely achieve the retraction and extension of the rubber belt.
Features
- Max roll weight: 7 tons (customizable), designed for heavy-duty industrial rubber belts.
- Stable support prevents slippage or misalignment during winding.
- Unique design: Width, load capacity, and technical parameters can be tailored to client requirements.
- PLC control: Current belt winding parameters display for real-time metrics (e.g., roll diameter, speed).
Technical Data
| Model: CAW2000E | 2000mm Heavy-duty Belt Winder |
| Dimension | 3890*2280*2150mm |
| Max Belt Width | 2000mm (78'） |
| Max Belt Roll Diameter | 3000mm (118”) |
| Power | 7.5KW |
| Dimension | 3890*2280*2150mm |
| Max Speed | 10M/min (with speed regulator) |
| Speed Ratio | 1/136 |
| Rated Torque | 6493 N.m |
| Load Capacity | 7 Tons |

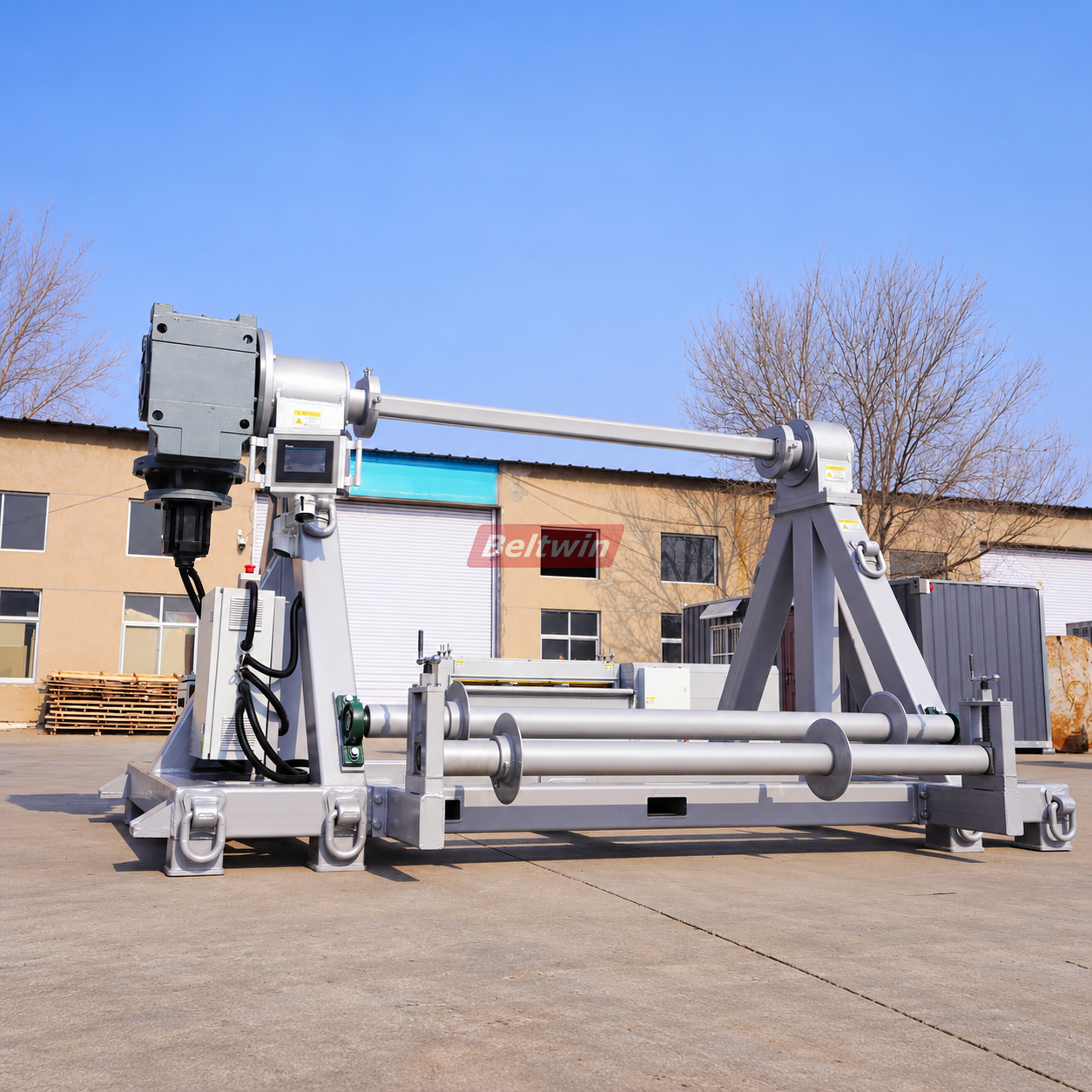

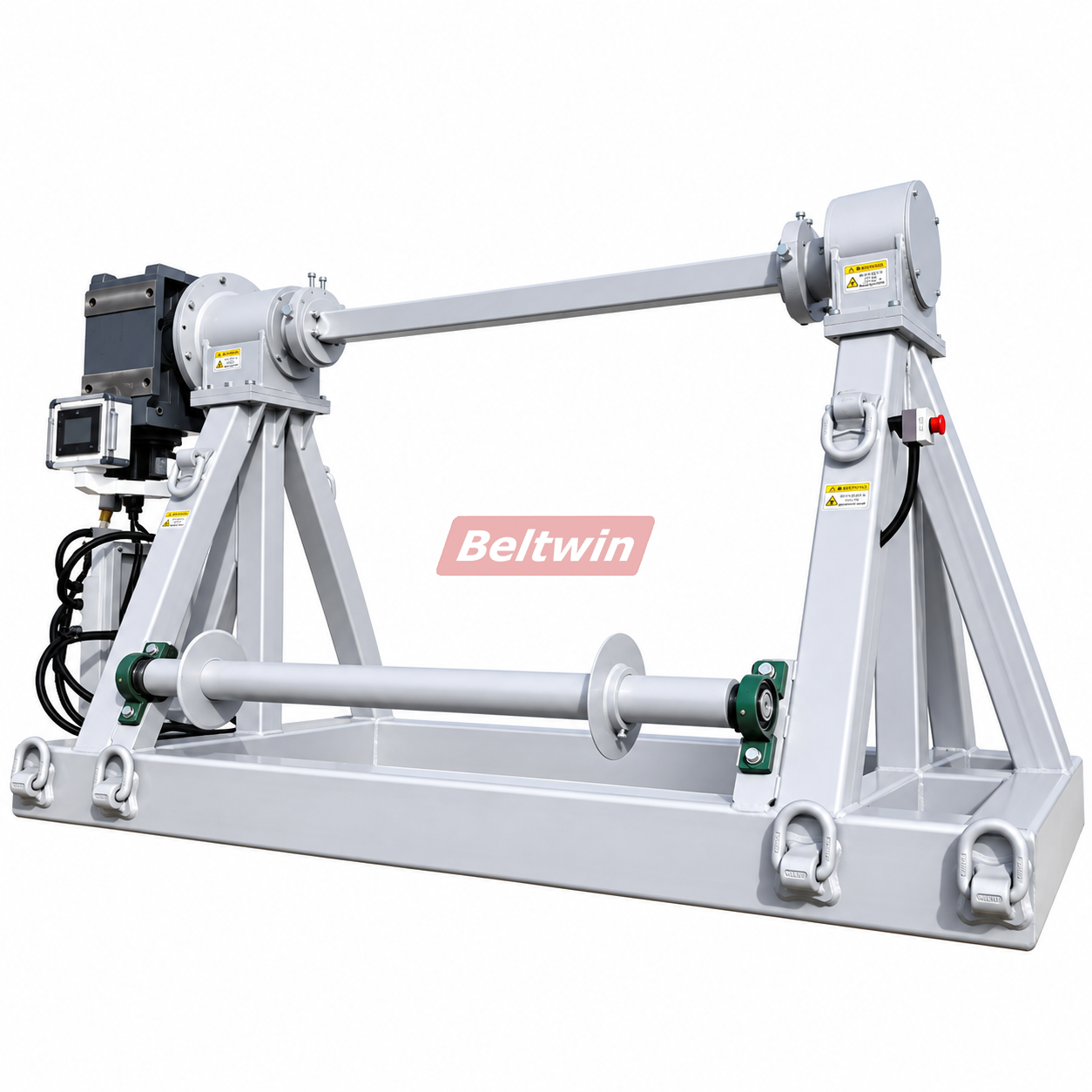

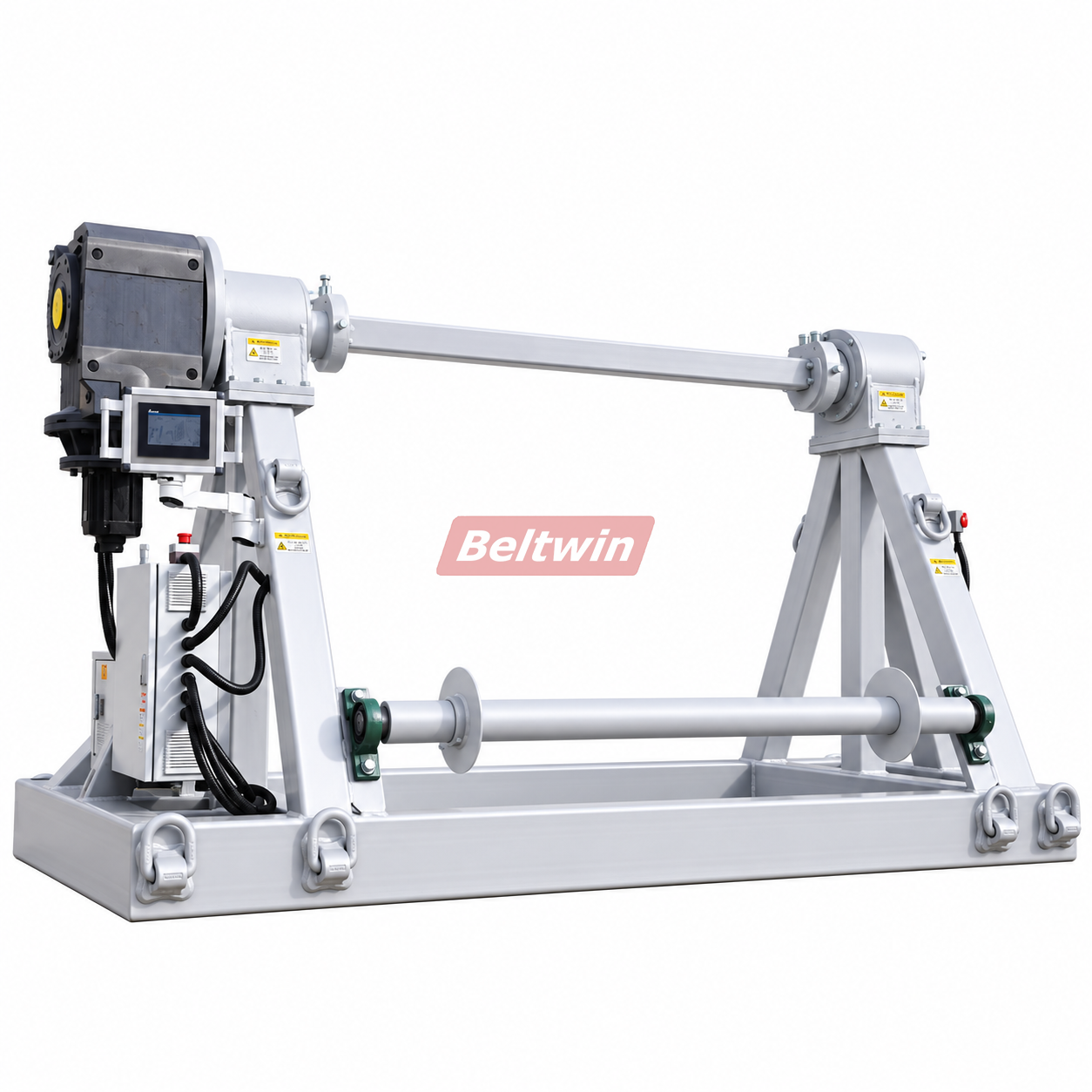

lifting lugs, Extended Belt Guide Assembly
Max belt width: 2000mm
Max belt roll's weight: 7 ton
Power: 7.5KW
Rolling speed: 10m/min
Automatic speed adjustment
