PortuguêsAir Cooling Splice Press Longitudinal Jointing PVC PU Conveyor Belt
Featuring fully integrated components, this air-cooled press requires zero assembly and is ready for direct use on conveyor belts.It supports independent temperature control for upper and lower sections, plus air pressure adjustment via its built-in pressure bag.
- Belt Width
- No limited width and length
- Belt Type
- For PVC and PU Belt
- Advantage
- Efficient and cost-effective
The market trend is increasing the width of the conveyor belts. A belt that 20 years back was considered as exceptionally wide, nowadays is frequently called as normal.
Following to this trend, Beltwin has updated its production lines: Air Cooled Splice Press Longitudinal Jointing Conveyor Belt.
Using a hot vulcanising process, it has the capability to longitudinally joint almost all PVC PU belts, this process ensures the longitudinal joint maintains its flexibility, strength and consistency. This is especially important for short belts and pattern belts like sawtooth.
Machine Specification:
| Joint Time: 10-20mins | ||
| For PVC and PU Belt | ||
| No limited width and length | ||
| PA-1500 | PA-2100 | |
| Jointing Length: | 1500mm | 2100mm |
| Jointing Width: | 150mm | 150mm |
| Top Plate Weight | 46KG | 60KG |
| Bottom Plate Weight | 49KG | 62KG |
| Press Weight | 95KG | 125KG |
| Press Body Length | 1730mm | 2330mm |
| Press Top Plate Height | 250mm | 250mm |
| Press Bottom Plate Height | 140mm | 140mm |
| Joint Press Height | 320mm | 320mm |
| Press Top Plate Width | 230mm | 230mm |
| Press Bottom Plate Width | 295mm | 295mm |
| Max. Press Working Pressure | 2Bar | 2Bar |
| Max. Temperature | 200℃ | 200℃ |
| Machine Specification(mm) | 2800*950*1850 | 3500*950*1850 |
| Total Machine Weight | 1100KG | 1600KG |
| Power | 5KW | 7.3KW |

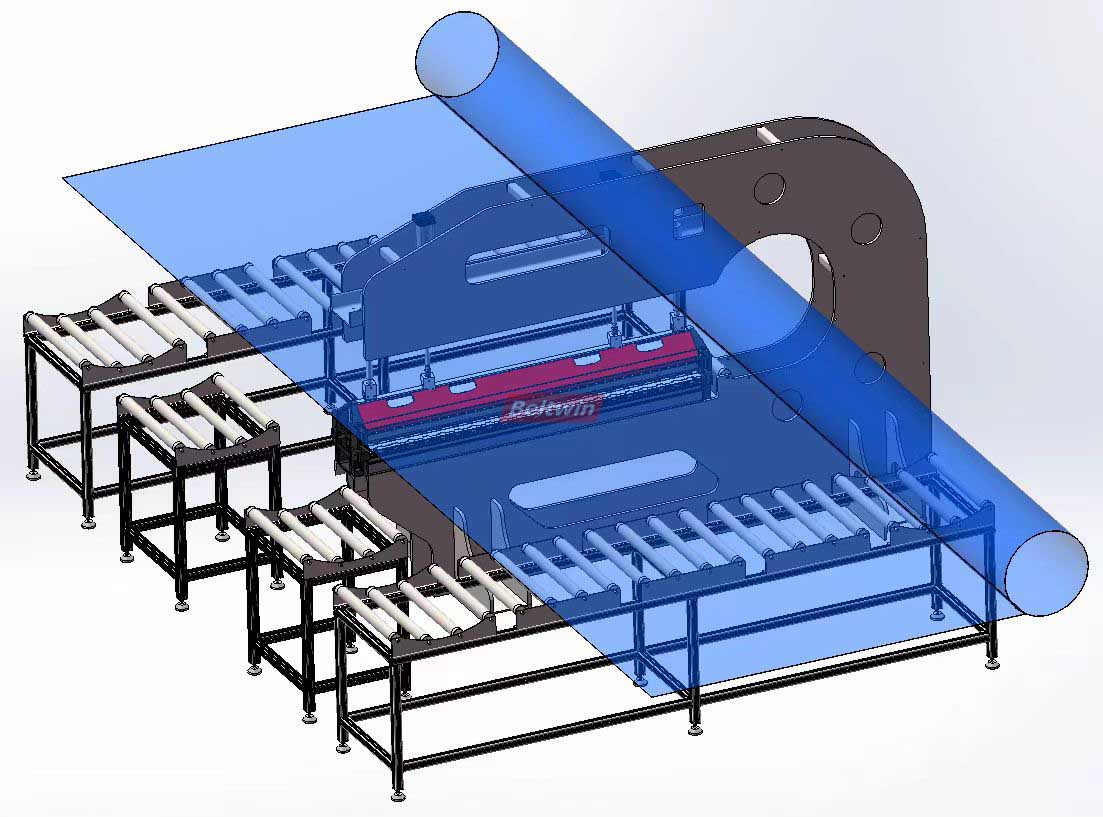

Optional Accessory: The belt support rack is optional

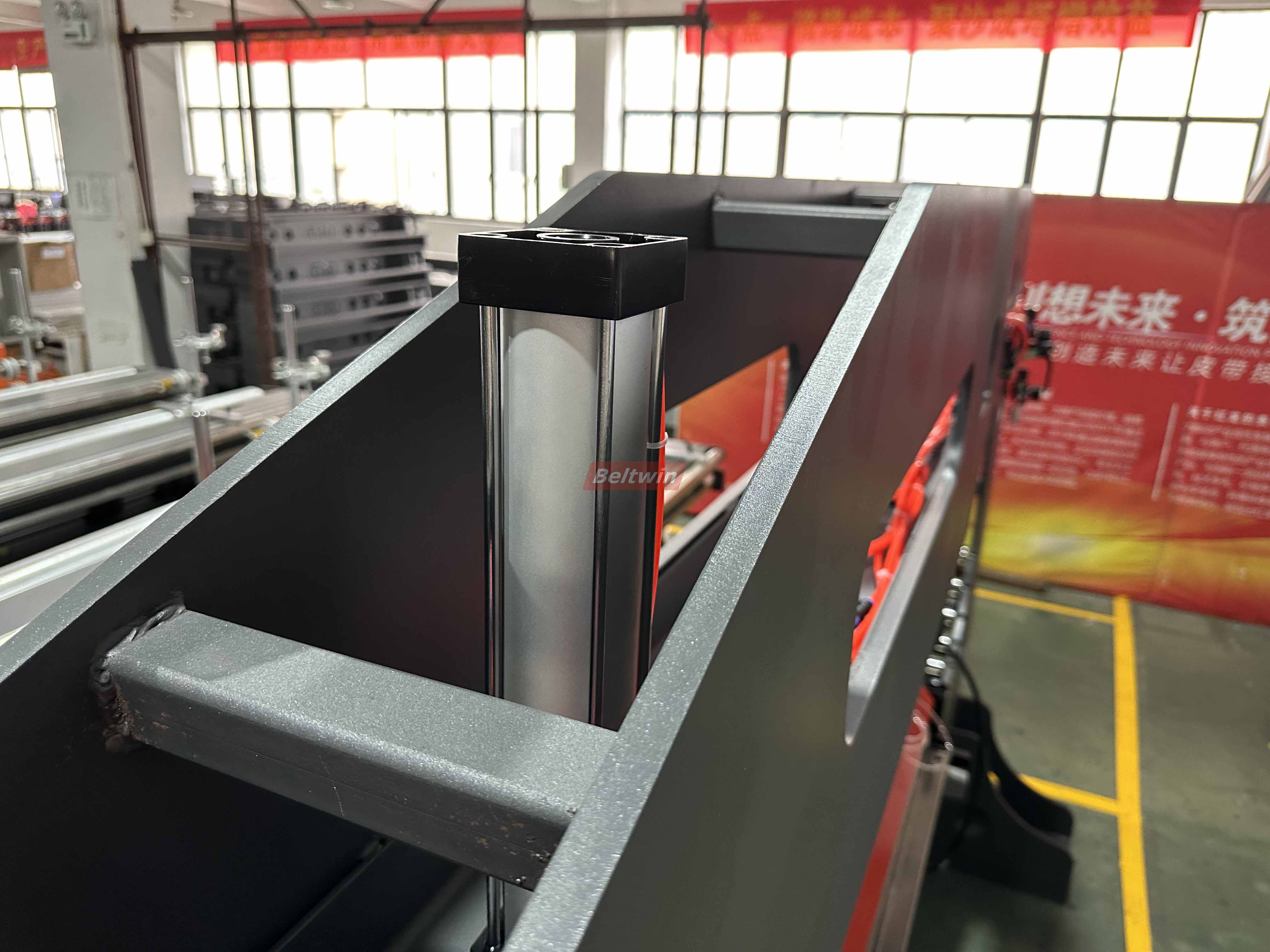

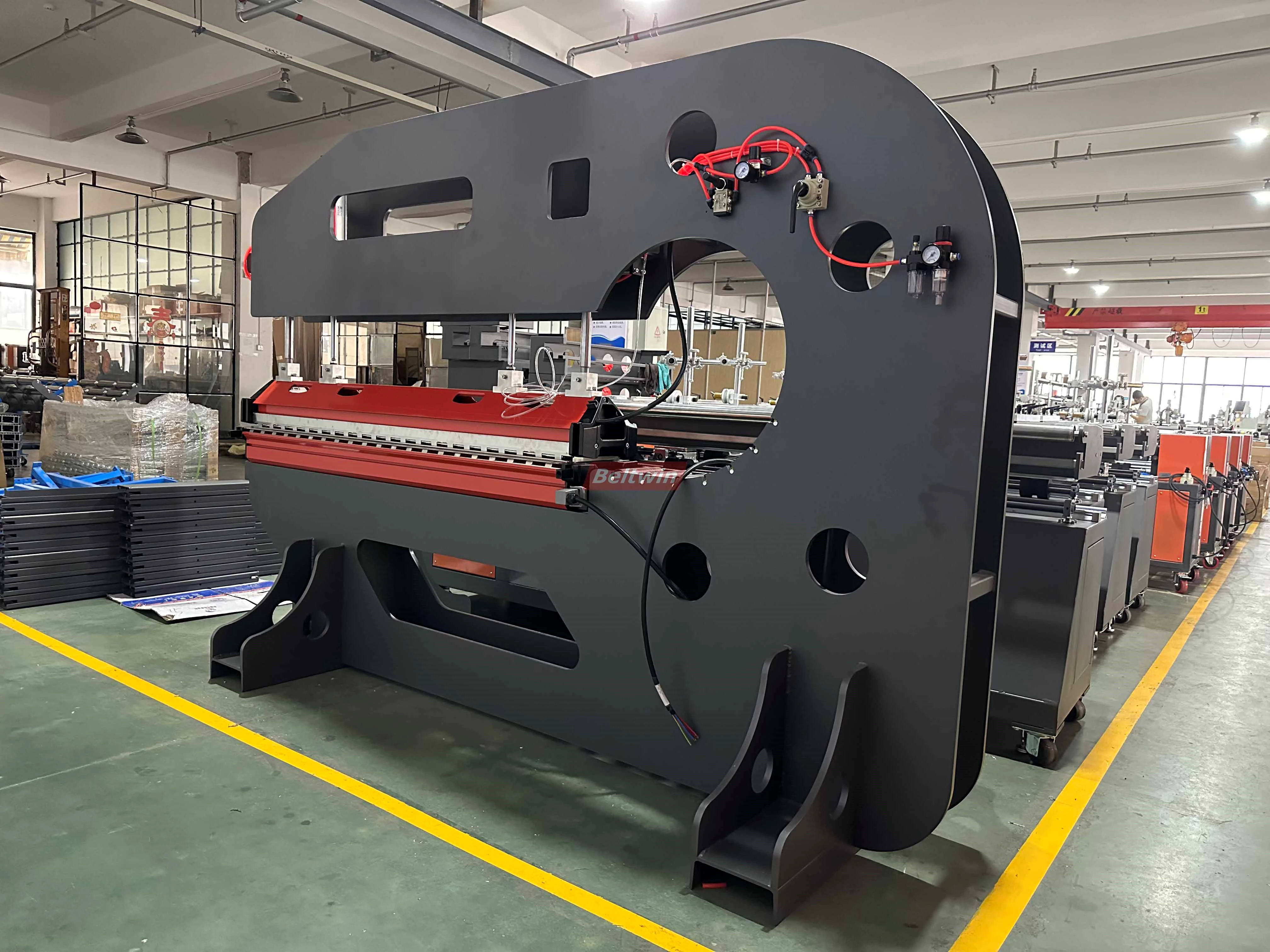

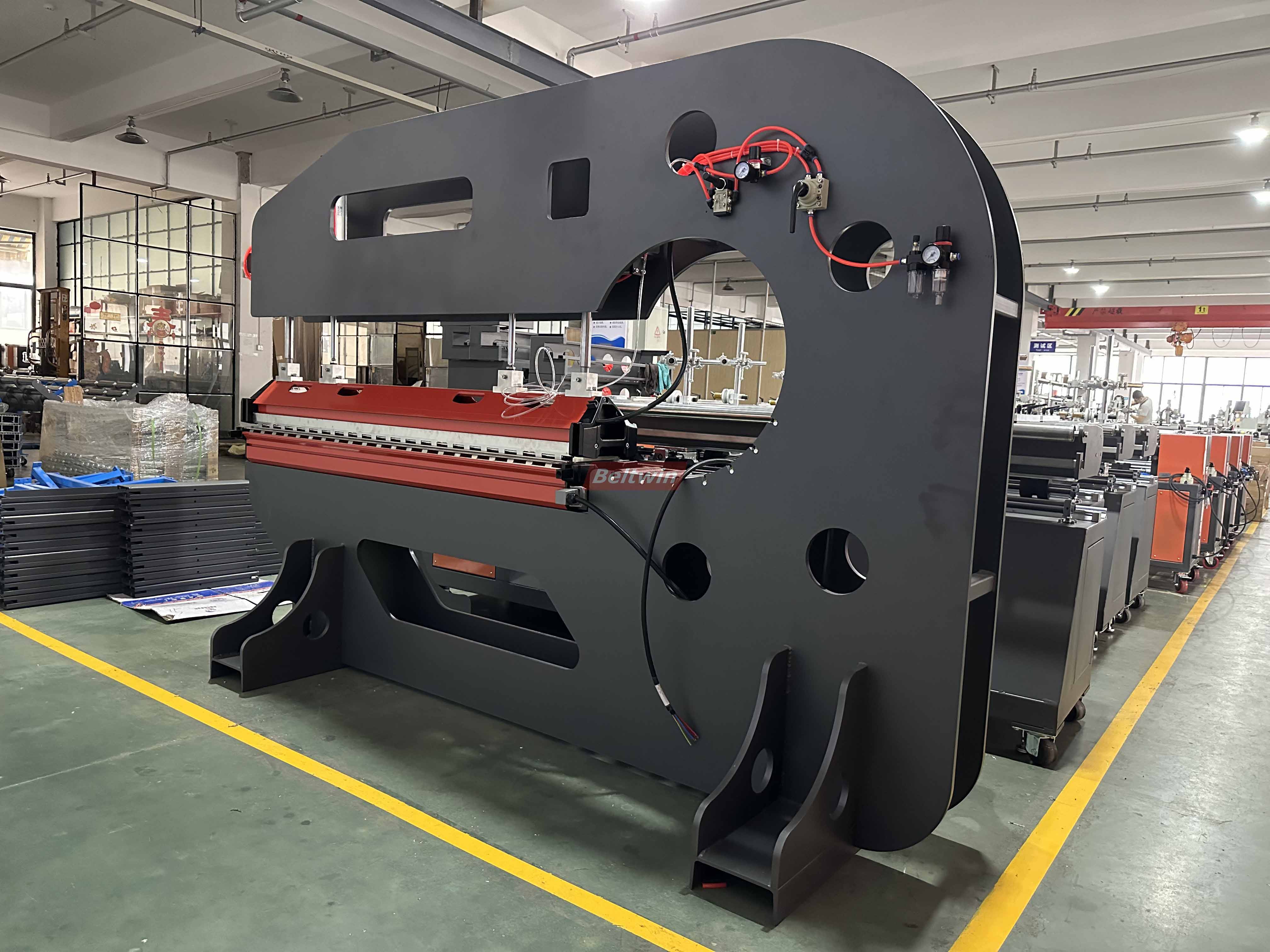

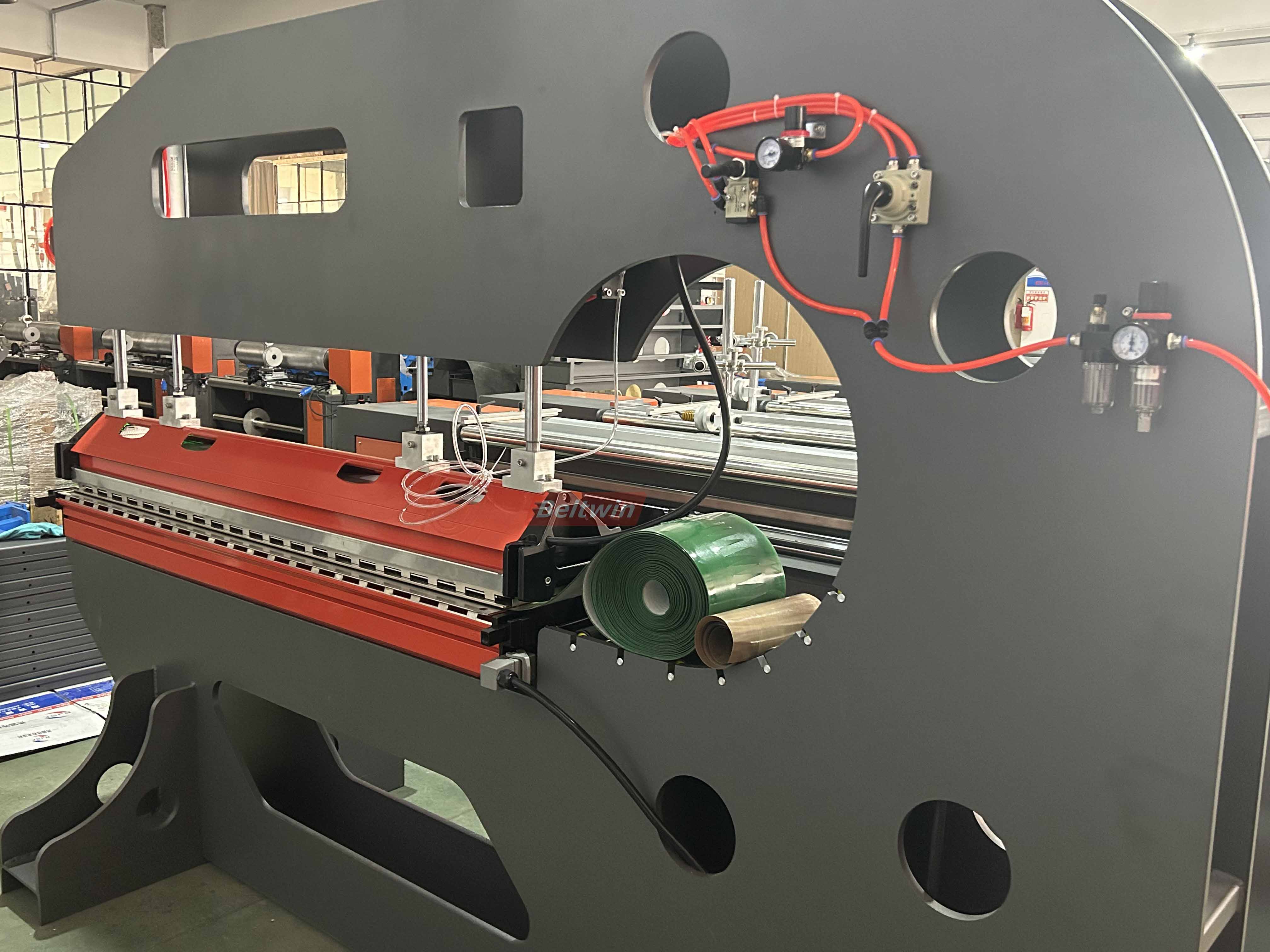

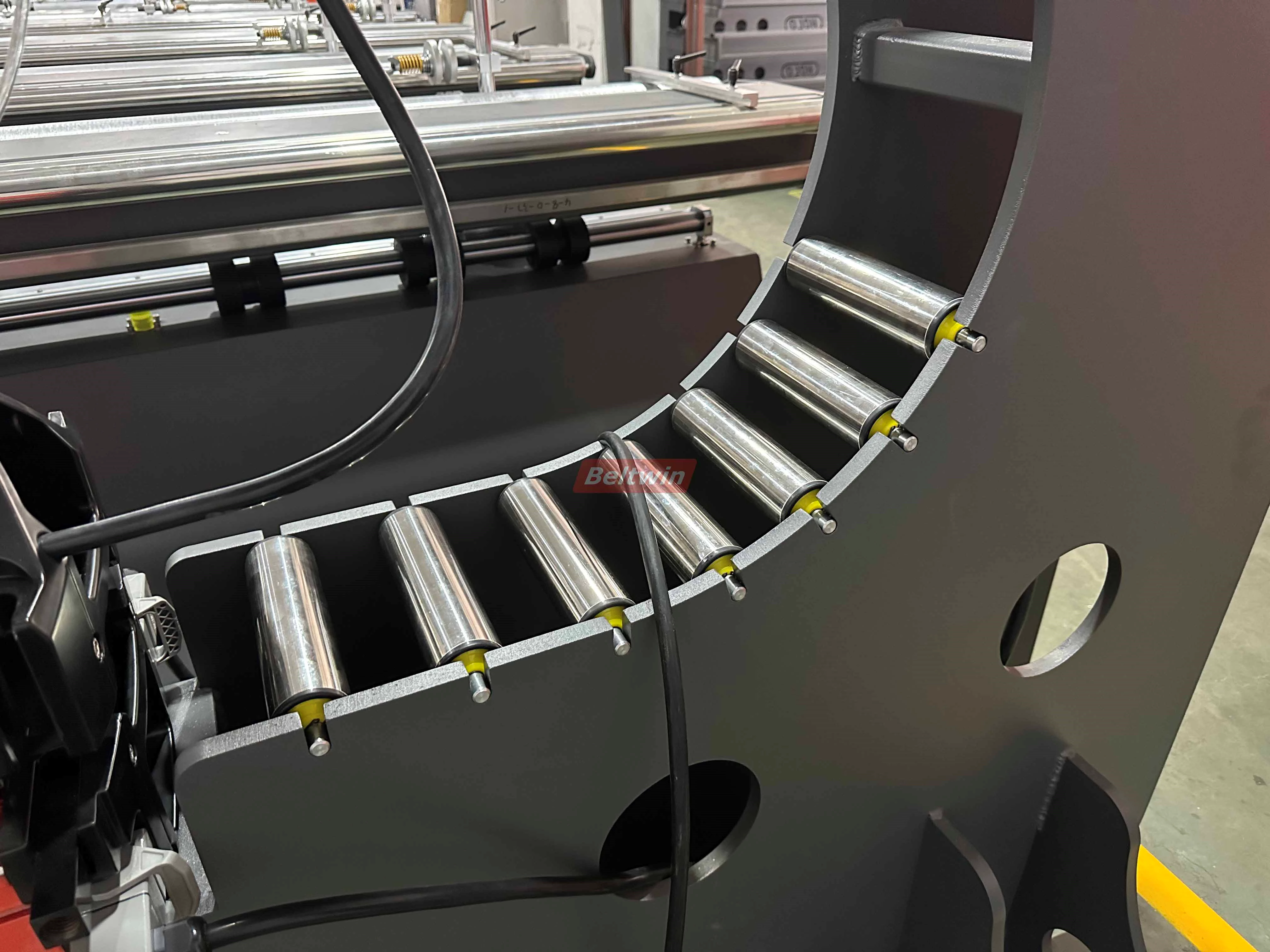

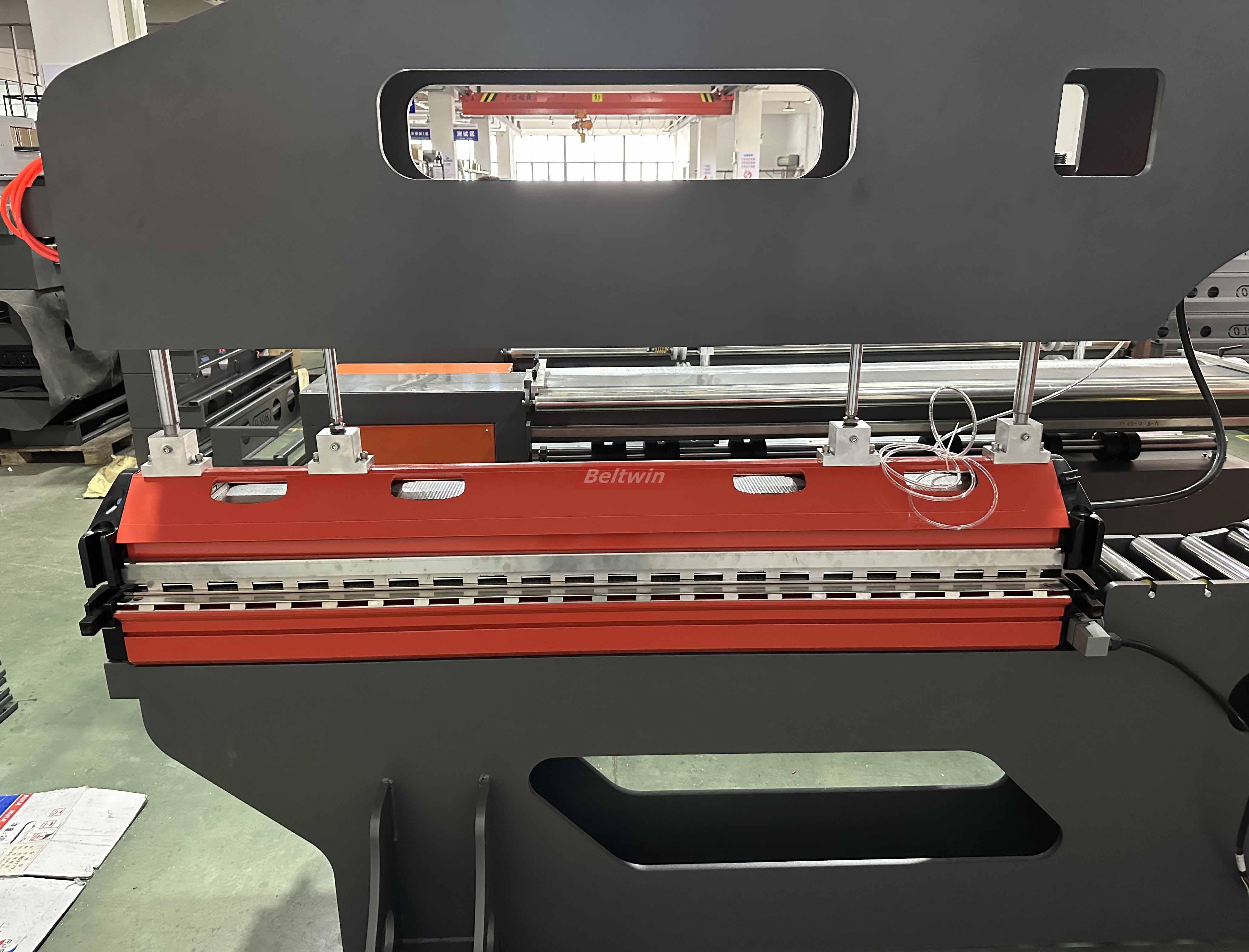

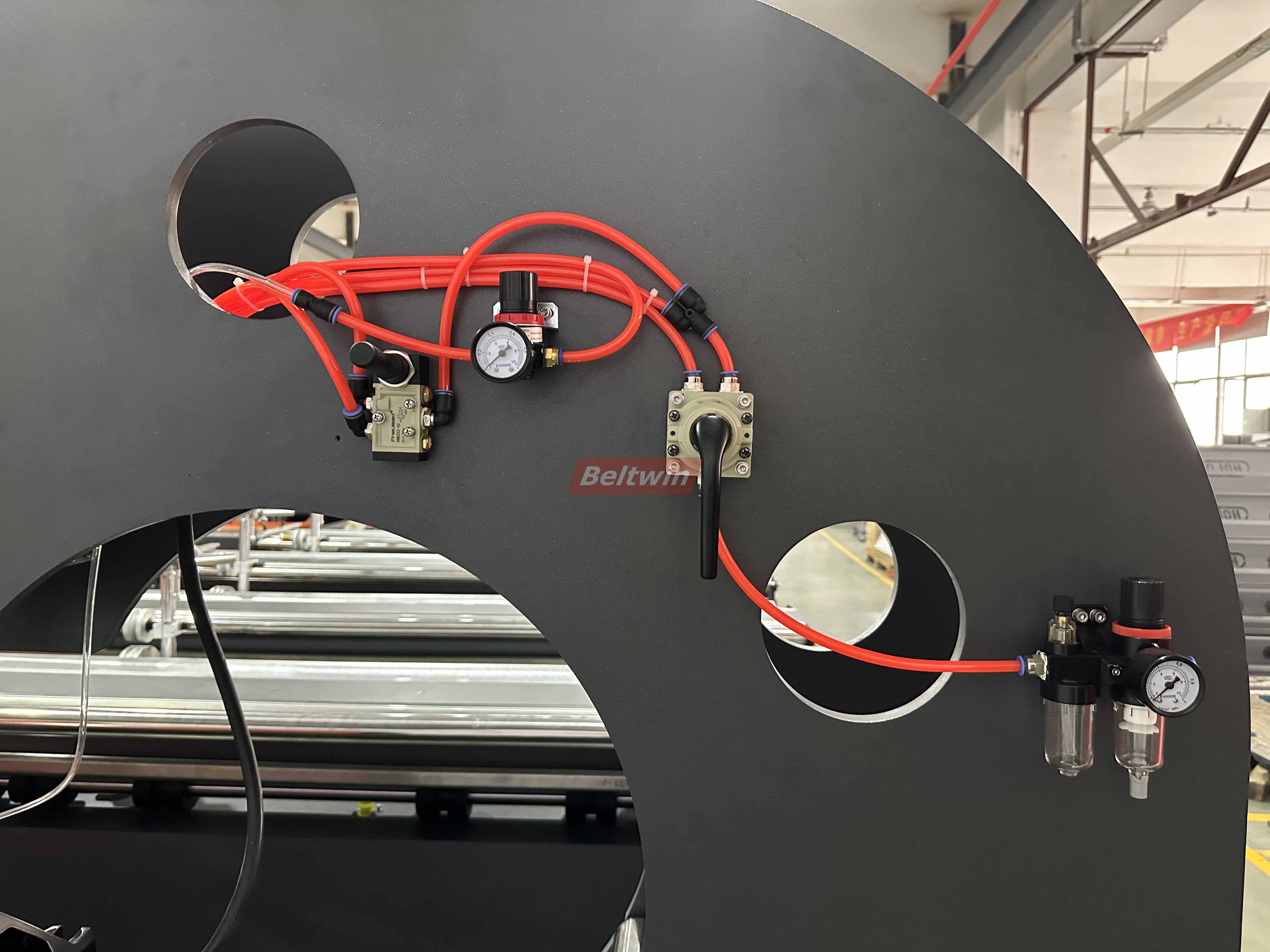

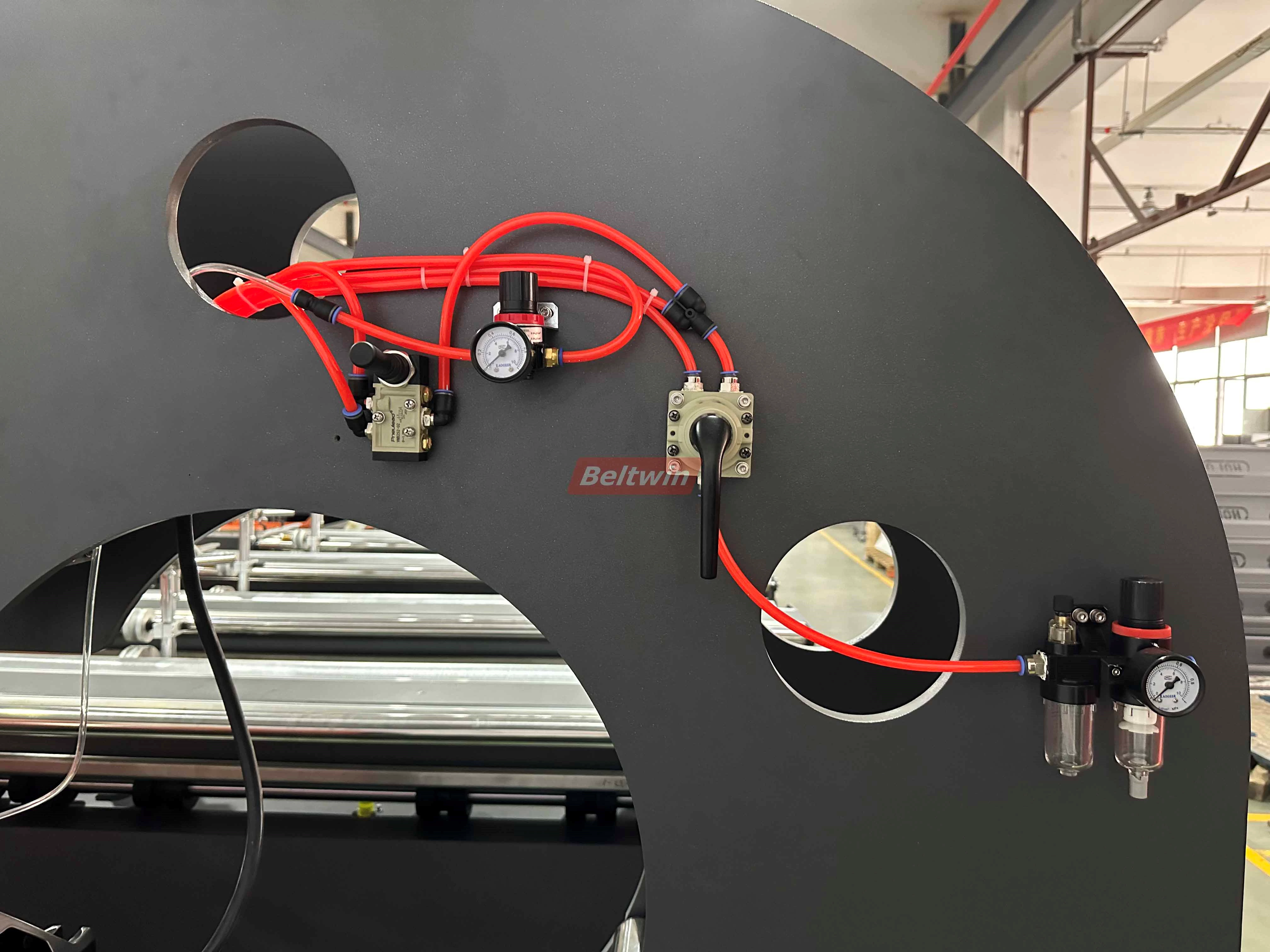

Machine Photos:
