PVC PU Rubber Conveyor Belt Perforating Machine Holes Drilling TD-1000

The Perforating machine is specially designed for making holes on the PVC PU and rubber conveyor belt. It is suitable for different types of conveyor belts. It can provide customers with high efficiency and convenient perforating experience, get rid of the trouble of manual drilling.
PVC PU Rubber Conveyor Belt Perforating Machine Holes Drilling TD-1000
PVC PU Rubber Conveyor Belt Perforating Machine Holes Drilling TD-1000 PVC PU Rubber Conveyor Belt Perforating Machine Holes Drilling TD-1000 PVC PU Rubber Conveyor Belt Perforating Machine Holes Drilling TD-1000 PVC PU Rubber Conveyor Belt Perforating Machine Holes Drilling TD-1000

Automatic Perforating Machine


The Perforating machine is specially designed for making holes on the PVC PU and rubber conveyor belt. It is suitable for different types of conveyor belts. It can provide customers with high efficiency and convenient perforating experience, get rid of the trouble of manual drilling.

A perforated belt is a PVC/PU conveyor belt with a sequence of punched holes often used for drying or vacuuming purposes. Or rubber belt with holes, used for install something, like bucket etc. Perforated PVC PU conveyor belts allow air to flow around the products and can effectively hold products and materials in place on the conveyor. Normally holes are round, size from 3mm up to 25mm, also have square, oval style holes.

Product Information:

  1. Max Belt width: 1000mm/1500mm
  2. Holes Making Method: Drilling
  3. Holes type: round, size from 3mm up to 25mm
  4. Machine Material: Steel
  5. Belt Type: Open or endless belt (min length 800mm for TD-1000, min length 1000mm for TD-1500)
  6. Motor: motor for roller 1.8KW, motor for moving blade: 0.75KW
  7. Electric Connection: 220V single phase
  8. Max thickness 8mm

Options:

  1. Blades for different size holes
  2. Visible protective cover

Specifications

  1. Suit for different type conveyor belts, such as PVC/PU belt, Transmission belt, light duty fabric rubber belt, normally the belt without steel cord is ok.
  2. The commonly used hole size is 3, 4, 5, 6, 7, 8, 9, 10, 11, 12mm, The drill head is changeable, one type hole size with one drilling head.
  3. Can make very clean holes
  4. The machine uses the drilling method, provide different size perforating head, the sharp perforating head can easily perforate the hard conveyor belt, and the hole without burr.
  5. High accuracy: 0.1mm
  6. Total Power: 1500W
  7. Voltage: 220V, Single-Phase

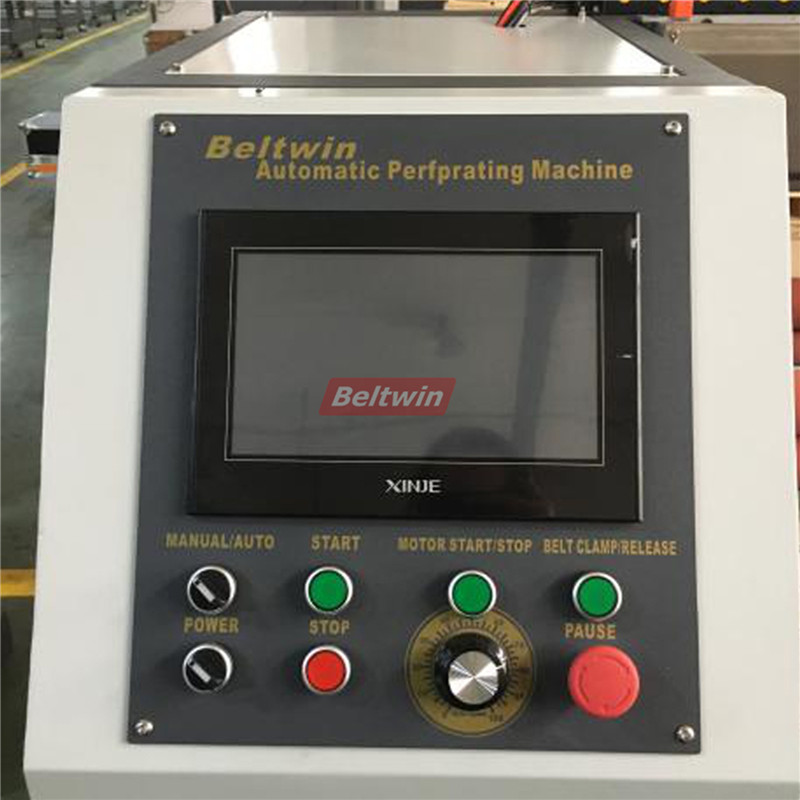

  8. Touch screen, adjustable hole spacing, row spacing, setting of various layouts for holes. all kinds of layout can be real-time changes, not restricted, and The perforating error can be controlled within 1mm.

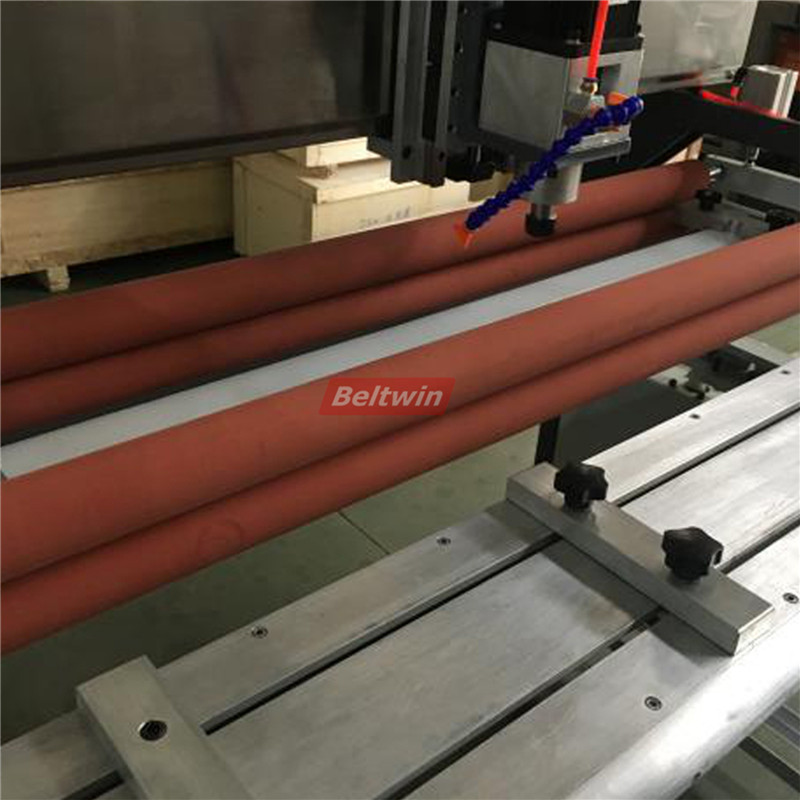

Open Construction, can load for both of endless belt or open belt.

Adjustable perforating speed. Can get 70 holes/min or more.

The holes edge more smooth and free of burr.

TD-1500 for max belt width 1500mm PVC PU or fabric rubber conveyor belt.

4 Holes Drilling Solutions Of Perforating Machine

Beltwin Automatic Perforating Machine Display

Drill 30mm Diameter Holes On 8mm Thickness PVC Belt

Drill Holes On Rubber Belt (Thickness:9.5/11/12/16mm) By Beltwin Perforating Machine
